• DBMS Architecture (revisited)
• Relational Operations
• Cost Models
• Query Types

❖ DBMS Architecture (revisited)

Implementation of relational operations in DBMS:

❖ Relational Operations

DBMS core = relational engine, with implementations of

• selection,   projection,   join,   set operations
• scanning,   sorting,   grouping,   aggregation,   ...

In this part of the course:

• examine methods for implementing each operation
• develop cost models for each implementation
• characterise when each method is most effective

Terminology reminder:

• tuple = collection of data values under some schema ≅ record
• page = block = collection of tuples + management data = i/o unit
• relation = table ≅ file = collection of tuples

❖ Relational Operations (cont)

In order to implement relational operations the low-levels of the system provides:

• Relation openRel(db,name)
  • get handle on relation name in database db
• Page request_page(rel,pid)
  • get page pid from relation rel, return buffer containing page
• Record get_record(buf,tid)
  • return record tid from page buf
• Tuple mkTuple(rel,rec)
  • convert record rec to a tuple, based on rel schema

❖ Relational Operations (cont)

Example of using low-level functions

// scan a relation Emps
Page p;  // current page
Tuple t; // current tuple
Relation r = relOpen(db,"Emps");
for (int i = 0; i < nPages(r); i++) {
   p = request_page(rel,i);
   for (int j = 0; j < nRecs(p); j++)
      t = mkTuple(r, get_record(p,j));
      ... process tuple t ...
   }
}

❖ Relational Operations (cont)

Two "dimensions of variation":

• which relational operation   (e.g. Sel, Proj, Join, Sort, ...)
• which access-method   (e.g. file struct: heap, indexed, hashed, ...)

Each query method involves an operator and a file structure:

• e.g. primary-key selection on hashed file
• e.g. primary-key selection on indexed file
• e.g. join on ordered heap files (sort-merge join)
• e.g. join on hashed files (hash join)
• e.g. two-dimensional range query on R-tree indexed file

We are interested in cost  of query methods (and insert/delete operations)

❖ Relational Operations (cont)

SQL vs DBMS engine

• select ... from R where C
  • find relevant tuples (satisfying C) in file(s) of R
• insert into R values(...)
  • place new tuple in some page of a file of R
• delete from R where C
  • find relevant tuples and "remove" from file(s) of R
• update R set ... where C
  • find relevant tuples in file(s) of R and "change" them

❖ Cost Models

An important aspect of this course is

• analysis of cost of various query methods

Cost can be measured in terms of

• Time Cost: total time taken to execute method, or
• Page Cost: number of pages read and/or written

Primary assumptions in our cost models:

• memory (RAM) is "small", fast, byte-at-a-time
• disk storage is very large, slow, page-at-a-time

❖ Cost Models (cont)

Since time cost is affected by many factors

• speed of i/o devices (fast/slow disk, SSD)
• load on machine

we do not consider time cost in our analyses.

For comparing methods, page cost is better

• identifies workload imposed by method
• BUT is clearly affected by buffering

Estimating costs with multiple concurrent ops and buffering is difficult!!

Addtional assumption: every page request leads to some i/o

❖ Cost Models (cont)

In developing cost models, we also assume:

• a relation is a set of r tuples, with average tuple size R bytes

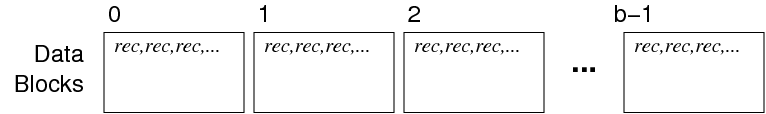

• the tuples are stored in b data pages on disk
• each page has size B bytes and contains up to c tuples
• the tuples which answer query q are contained in b_q pages
• data is transferred disk↔memory in whole pages
• cost of disk↔memory transfer T_r/w is very high

❖ Cost Models (cont)

Our cost models are "rough" (based on assumptions)

But do give an O(x) feel for how expensive operations are.

Example "rough" estimation: how many piano tuners in Sydney?

• Sydney has ≅ 4 000 000 people
• Average household size ≅ 3 ∴ 1 300 000 households
• Let's say that 1 in 10 households owns a piano
• Therefore there are ≅ 130 000 pianos
• Say people get their piano tuned every 2 years (on average)
• Say a tuner can do 2/day, 250 working-days/year
• Therefore 1 tuner can do 500 pianos per year
• Therefore Sydney would need ≅ 130000/2/500 = 130 tuners

Actual number of tuners in Yellow Pages = 120

Example borrowed from Alan Fekete at Sydney University.

❖ Query Types

Different query classes exhibit different query processing behaviours.
