❖ Query Execution

Query execution:   applies evaluation plan → result tuples

❖ Query Execution (cont)

Example of query translation:

select s.name, s.id, e.course, e.mark
from   Student s, Enrolment e
where  e.student = s.id and e.semester = '05s2';

maps to

maps to

Temp1  = BtreeSelect[semester=05s2](Enr)
Temp2  = HashJoin[e.student=s.id](Stu,Temp1)
Result = Project[name,id,course,mark](Temp2)

❖ Query Execution (cont)

A query execution plan:

• consists of a collection of RelOps
• executing together to produce a set of result tuples

Results may be passed from one operator to the next:

• materialization ... writing results to disk and reading them back
• pipelining ... generating and passing via memory buffers

❖ Materialization

Steps in materialization between two operators

• first operator reads input(s) and writes results to disk
• next operator treats tuples on disk as its input
• in essence, the Temp tables are produced as real tables

Advantage:

• intermediate results can be placed in a file structure
  (which can be chosen to speed up execution of subsequent operators)

Disadvantage:

• requires disk space/writes for intermediate results
• requires disk access to read intermediate results

❖ Pipelining

How pipelining is organised between two operators:

• operators execute "concurrently" as producer/consumer pairs
• structured as interacting iterators (open; while(next); close)

Advantage:

• no requirement for disk access (results passed via memory buffers)

Disadvantage:

• higher-level operators access inputs via linear scan,   or
• requires sufficient memory buffers to hold all outputs

❖ Iterators (reminder)

Iterators provide a "stream" of results:

• iter = startScan(params)
  • set up data structures for iterator   (create state, open files, ...)
  • params are specific to operator  (e.g. reln, condition, #buffers, ...)
• tuple = nextTuple(iter)
  • get the next tuple in the iteration; return null if no more
• endScan(iter)
  • clean up data structures for iterator

Other possible operations: reset to specific point, restart, ...

❖ Pipelining Example

Consider the query:

select s.id, e.course, e.mark
from   Student s, Enrolment e
where  e.student = s.id and
       e.semester = '05s2' and s.name = 'John';

Evaluated via communication between RA tree nodes:

Note: likely that projection is combined with join in PostgreSQL

❖ Disk Accesses

Pipelining cannot avoid all disk accesses.

Some operations use multiple passes (e.g. merge-sort, hash-join).

• data is written by one pass, read by subsequent passes

Thus ...

• within an operation, disk reads/writes are possible
• between operations, no disk reads/writes are needed

❖ PostgreSQL Query Execution

Defs: src/include/executor and src/include/nodes

Code: src/backend/executor

PostgreSQL uses pipelining (as much as possible) ...

• query plan is a tree of Plan nodes
• each type of node implements one kind of RA operation
  (node implements specific access method via iterator interface)
• node types e.g. Scan, Group, Indexscan, Sort, HashJoin
• execution is managed via a tree of PlanState nodes
  (mirrors the structure of the tree of Plan nodes; holds execution state)

❖ PostgreSQL Executor

Modules in src/backend/executor fall into two groups:

execXXX (e.g. execMain, execProcnode, execScan)

• implement generic control of plan evaluation (execution)
• provide overall plan execution and dispatch to node iterators

nodeXXX   (e.g. nodeSeqscan, nodeNestloop, nodeGroup)

• implement iterators for specific types of RA operators
• typically contains ExecInitXXX, ExecXXX, ExecEndXXX

❖ Example PostgreSQL Execution

Consider the query:

-- get manager's age and # employees in Shoe department
select e.age, d.nemps
from   Departments d, Employees e
where  e.name = d.manager and d.name ='Shoe'

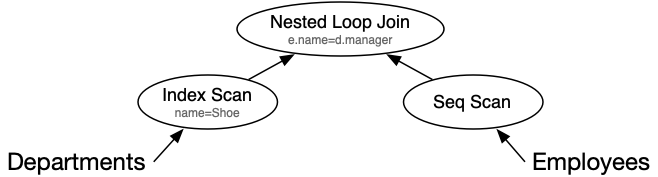

and its execution plan tree

❖ Example PostgreSQL Execution (cont)

Initially InitPlan() invokes ExecInitNode() on plan tree root.

ExecInitNode() sees a NestedLoop node ...
   so dispatches to ExecInitNestLoop() to set up iterator
   then invokes ExecInitNode() on left and right sub-plans
       in left subPlan, ExecInitNode() sees an IndexScan node
        so dispatches to ExecInitIndexScan() to set up iterator
       in right sub-plan, ExecInitNode() sees a SeqScan node
        so dispatches to ExecInitSeqScan() to set up iterator

Result: a plan state  tree with same structure as plan tree.

❖ Example PostgreSQL Execution (cont)

Plan state tree (collection of iterators):

❖ Example PostgreSQL Execution (cont)

Then ExecutePlan() repeatedly invokes ExecProcNode().

ExecProcNode() sees a NestedLoop node ...
   so dispatches to ExecNestedLoop() to get next tuple
   which invokes ExecProcNode() on its sub-plans
       in left sub-plan, ExecProcNode() sees an IndexScan node
            so dispatches to ExecIndexScan() to get next tuple
            if no more tuples, return END
            for this tuple, invoke ExecProcNode() on right sub-plan
                ExecProcNode() sees a SeqScan node
                    so dispatches to ExecSeqScan() to get next tuple
                    check for match and return joined tuples if found
                    continue scan until end
                reset right sub-plan iterator

Result: stream of result tuples returned via ExecutePlan()
