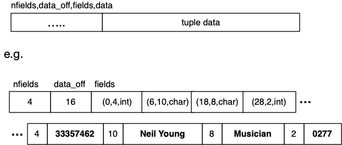

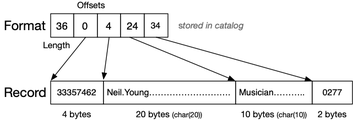

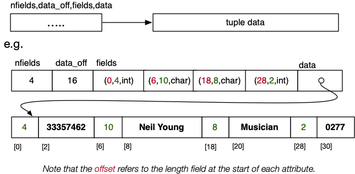

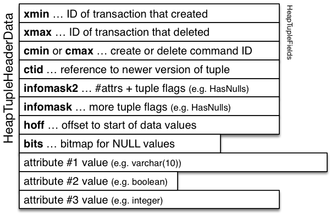

typedef struct HeapTupleHeaderData // simplified
{
  HeapTupleFields t_heap;
  ItemPointerData t_ctid;      // TID of newer version
  uint16          t_infomask2; // #attributes + flags
  uint16          t_infomask;  // flags e.g. has_null
  uint8           t_hoff;      // sizeof header incl. t_bits
  // above is fixed size (23 bytes) for all heap tuples
  bits8           t_bits[1];   // bitmap of NULLs, var.len.
  // OID goes here if HEAP_HASOID is set in t_infomask
  // actual data follows at end of struct
} HeapTupleHeaderData;

... PostgreSQL Tuples

22/84

Some of the bits in t_infomask ..

#define HEAP_HASNULL      0x0001
        /* has null attribute(s) */
#define HEAP_HASVARWIDTH  0x0002
        /* has variable-width attribute(s) */
#define HEAP_HASEXTERNAL  0x0004
        /* has external stored attribute(s) */
#define HEAP_HASOID_OLD   0x0008
        /* has an object-id field */

Location of NULLs is stored in t_bits[] array

... PostgreSQL Tuples

23/84

Tuple-related data types: (cont)

typedef struct HeapTupleFields  // simplified
{
  TransactionId t_xmin;  // inserting xact ID
  TransactionId t_xmax;  // deleting or locking xact ID
  union {
    CommandId   t_cid;   // inserting or deleting command ID
    TransactionId t_xvac;// old-style VACUUM FULL xact ID
  } t_field3;
} HeapTupleFields;

Note that not all system fields from stored tuple appear

• oid is stored after the tuple header, if used
• both xmin/xmax are stored, but only one of cmin/cmax

PostgreSQL Attribute Values

24/84

Values of attributes in PostgreSQL tuples are packaged as Datums

// representation of a data value
typedef uintptr_t Datum;

The actual data value:

• may be stored in the Datum (e.g. int)
• may have a header with length (for varlen attributes)
• may be stored in a TOAST file (if large value)

... PostgreSQL Attribute Values

25/84

Attribute values can be extracted as Datum from HeapTuples

Datum heap_getattr(
      HeapTuple tup,     // tuple (in memory)
      int attnum,        // which attribute
      TupleDesc tupDesc, // field descriptors
      bool *isnull       // flag to record NULL
)

isnull is set to true if value of field is NULL

attnum can be negative ... to access system attributes (e.g. OID)

For details, see include/access/htup_details.h

... PostgreSQL Attribute Values

26/84

Values of Datum objects can be manipulated via e.g.

// DatumGetBool:
//   Returns boolean value of a Datum.

#define DatumGetBool(X) ((bool) ((X) != 0))

// BoolGetDatum:
//   Returns Datum representation for a boolean.

#define BoolGetDatum(X) ((Datum) ((X) ? 1 : 0))

For details, see include/postgres.h

Implementing Relational Operations

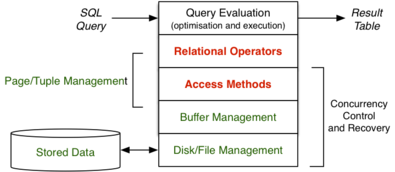

DBMS Architecture (revisited)

28/84

Implementation of relational operations in DBMS:

Relational Operations

29/84

DBMS core = relational engine, with implementations of

• selection,   projection,   join,   set operations
• scanning,   sorting,   grouping,   aggregation,   ...

• examine methods for implementing each operation
• develop cost models for each implementation
• characterise when each method is most effective

• tuple = collection of data values under some schema ≅ record
• page = block = collection of tuples + management data = i/o unit
• relation = table ≅ file = collection of tuples

... Relational Operations

30/84

Two "dimensions of variation":

• which relational operation   (e.g. Sel, Proj, Join, Sort, ...)
• which access-method   (e.g. file struct: heap, indexed, hashed, ...)

• e.g. primary-key selection on hashed file
• e.g. primary-key selection on indexed file
• e.g. join on ordered heap files (sort-merge join)
• e.g. join on hashed files (hash join)
• e.g. two-dimensional range query on R-tree indexed file

... Relational Operations

31/84

SQL vs DBMS engine

• select ... from R where C
  • find relevant tuples (satisfying C) in file(s) of R
• insert into R values(...)
  • place new tuple in some page of a file of R
• delete from R where C
  • find relevant tuples and "remove" from file(s) of R
• update R set ... where C
  • find relevant tuples in file(s) of R and "change" them

Cost Models

Cost Models

33/84

An important aspect of this course is

• analysis of cost of various query methods

• Time Cost: total time taken to execute method, or
• Page Cost: number of pages read and/or written

• memory (RAM) is "small", fast, byte-at-a-time
• disk storage is very large, slow, page-at-a-time

... Cost Models

34/84

Since time cost is affected by many factors

• speed of i/o devices (fast/slow disk, SSD)
• load on machine

For comparing methods, page cost is better

• identifies workload imposed by method
• BUT is clearly affected by buffering

Addtional assumption: every page request leads to some i/o

... Cost Models

35/84

In developing cost models, we also assume:

• a relation is a set of r tuples, with average size R bytes
• the tuples are stored in b data pages on disk
• each page has size B bytes and contains up to c tuples
• the tuples which answer query q are contained in b_q pages
• data is transferred disk↔memory in whole pages
• cost of disk↔memory transfer T_r/w is very high

... Cost Models

36/84

Our cost models are "rough" (based on assumptions)

But do give an O(x) feel for how expensive operations are.

Example "rough" estimation: how many piano tuners in Sydney?

• Sydney has ≅ 4 000 000 people
• Average household size ≅ 3 ∴ 1 300 000 households
• Let's say that 1 in 10 households owns a piano
• Therefore there are ≅ 130 000 pianos
• Say people get their piano tuned every 2 years (on average)
• Say a tuner can do 2/day, 250 working-days/year
• Therefore 1 tuner can do 500 pianos per year
• Therefore Sydney would need ≅ 130000/2/500 = 130 tuners

Example borrowed from Alan Fekete at Sydney University.

Query Types

37/84

Example File Structures

38/84

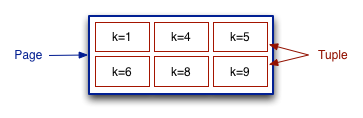

When describing file structures

• use a large box to represent a page
• use either a small box or tup_i (or rec_i) to represent a tuple
• sometimes refer to tuples via their key
  • mostly, key corresponds to the notion of "primary key"
  • sometimes, key means "search key" in selection condition

... Example File Structures

39/84

Consider three simple file structures:

• heap file ... tuples added to any page which has space
• sorted file ... tuples arranged in file in key order
• hash file ... tuples placed in pages using hash function

Some records in each page may be marked as "deleted".

Exercise 2: Operation Costs

40/84

For each of the following file structures

• heap file, sorted file, hash file

You can assume the existence of a file header containing

• values for r, R, b, B, c
• index of first page with free space (and a free list)

• each page contains a header and directory as well as tuples
• no buffering   (worst case scenario)

Scanning

Scanning

42/84

Consider the query:

select * from Rel;

Operational view:

for each page P in file of relation Rel {
   for each tuple t in page P {
      add tuple t to result set
   }
}

Cost: read every data page once

Time Cost = b.T_r,     Page Cost = b

... Scanning

43/84

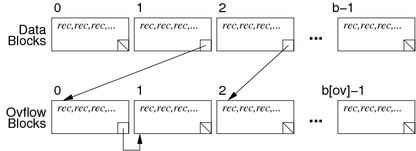

Scan implementation when file has overflow pages, e.g.

... Scanning

44/84

In this case, the implementation changes to:

for each page P in data file of relation Rel {
    for each tuple t in page P {
        add tuple t to result set
    }
    for each overflow page V of page P {
        for each tuple t in page V {
            add tuple t to result set
}   }   }

Cost: read each data page and each overflow page once

Cost = b + b_Ov

where b_Ov = total number of overflow pages

Selection via Scanning

45/84

Consider a one query like:

select * from Employee where id = 762288;

In an unordered file, search for matching tuple requires:

Guaranteed at most one answer; but could be in any page.

... Selection via Scanning

46/84

Overview of scan process:

for each page P in relation Employee {
    for each tuple t in page P {
        if (t.id == 762288) return t
}   }

Cost analysis for one searching in unordered file

• best case: read one page, find tuple
• worst case: read all b pages, find in last (or don't find)
• average case: read half of the pages (b/2)

Exercise 3: Cost of Search in Hashed File

47/84

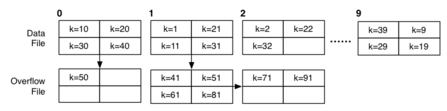

Consider the hashed file structure b = 10, c = 4, h(k) = k%10

Describe how the following queries

select * from R where k = 51;
select * from R where k > 50;

might be solved in a file structure like the above (h(k) = k%b).

Estimate the minimum and maximum cost (as #pages read)

Iterators

48/84

Access methods typically involve iterators, e.g.

Scan s = start_scan(Relation r, ...)

• commence a scan of relation r
• Scan may include condition to implement WHERE-clause
• Scan holds data on progress through file (e.g. current page)

Tuple next_tuple(Scan s)

• return Tuple immediately following last accessed one
• returns NULL if no more Tuples left in the relation

Example Query

49/84

Example: simple scan of a table ...

select name from Employee

implemented as:

DB db = openDatabase("myDB");
Relation r = openRelation(db,"Employee",READ);
Scan s = start_scan(r);
Tuple t;  // current tuple
while ((t = next_tuple(s)) != NULL)
{
   char *name = getStrField(t,2);
   printf("%s\n", name);
}

Exercise 4: Implement next_tuple()

50/84

Consider the following possible Scan data structure

typedef struct {
   Relation rel;
   Page     *curPage;  // Page buffer
   int      curPID;    // current pid
   int      curTID;    // current tid
} ScanData;

Assume tuples are indexed 0..nTuples(p)

Assume pages are indexed 0..nPages(rel)

Implement the  Tuple next_tuple(Scan)  function

P.S. What's in a Relation object?

Relation Copying

51/84

Consider an SQL statement like:

create table T as (select * from S);

Effectively, copies data from one table to a new table.

Process:

make empty relation T
s = start scan of S
while (t = next_tuple(s)) {
    insert tuple t into relation T
}

... Relation Copying

52/84

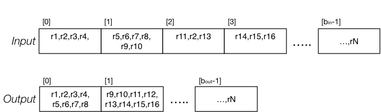

Possible that T is smaller than S

• may be unused free space in S where tuples were removed
• if T is built by simple append, will be compact

... Relation Copying

53/84

In terms of existing relation/page/tuple operations:

Relation in;       // relation handle (incl. files)
Relation out;      // relation handle (incl. files)
int ipid,opid,tid; // page and record indexes
Record rec;        // current record (tuple)
Page ibuf,obuf;    // input/output file buffers

in = openRelation("S", READ);
out = openRelation("T", NEW|WRITE);
clear(obuf);  opid = 0;
for (ipid = 0; ipid < nPages(in); ipid++) {
    ibuf = get_page(in, ipid);
    for (tid = 0; tid < nTuples(ibuf); tid++) {
        rec = get_record(ibuf, tid);
        if (!hasSpace(obuf,rec)) {
            put_page(out, opid++, obuf);
            clear(obuf);
        }
        insert_record(obuf,rec);
}   }
if (nTuples(obuf) > 0) put_page(out, opid, obuf);

Exercise 5: Cost of Relation Copy

54/84

Analyse cost for relation copying:

1. if both input and output are heap files
2. if input is sorted and output is heap file
3. if input is heap file and output is sorted

Assume ...

• r records in input file, c records/page
• b_in = number of pages in input file
• some pages in input file are not full
• all pages in output file are full (except the last)

Give cost in terms of #pages read + #pages written

---

Scanning in PostgreSQL

55/84

Scanning defined in: backend/access/heap/heapam.c

Implements iterator data/operations:

• HeapScanDesc ... struct containing iteration state
• scan = heap_beginscan(rel,...,nkeys,keys)
• tup = heap_getnext(scan, direction)
• heap_endscan(scan) ... frees up scan struct
• res = HeapKeyTest(tuple,...,nkeys,keys)
  ... performs ScanKeys tests on tuple ... is it a result tuple?

---

... Scanning in PostgreSQL

56/84

typedef HeapScanDescData *HeapScanDesc;

typedef struct HeapScanDescData
{
  // scan parameters
  Relation      rs_rd;        // heap relation descriptor
  Snapshot      rs_snapshot;  // snapshot ... tuple visibility
  int           rs_nkeys;     // number of scan keys
  ScanKey       rs_key;       // array of scan key descriptors
  ...
  // state set up at initscan time
  PageNumber    rs_npages;    // number of pages to scan
  PageNumber    rs_startpage; // page # to start at
  ...
  // scan current state, initally set to invalid
  HeapTupleData rs_ctup;      // current tuple in scan
  PageNumber    rs_cpage;     // current page # in scan
  Buffer        rs_cbuf;      // current buffer in scan
   ...
} HeapScanDescData;

---

Scanning in other File Structures

57/84

Above examples are for heap files

• simple, unordered, maybe indexed, no hashing

Other access file structures in PostgreSQL:

• btree, hash, gist, gin
• each implements:
  • startscan, getnext, endscan
  • insert, delete  (update=delete+insert)
  • other file-specific operators

---

Sorting

---

The Sort Operation

59/84

Sorting is explicit in queries only in the order by clause

select * from Students order by name;

Sorting is used internally in other operations:

• eliminating duplicate tuples for projection
• ordering files to enhance select efficiency
• implementing various styles of join
• forming tuple groups in group by

Sort methods such as quicksort are designed for in-memory data.

For large data on disks, need external sorts such as merge sort.

---

Two-way Merge Sort

60/84

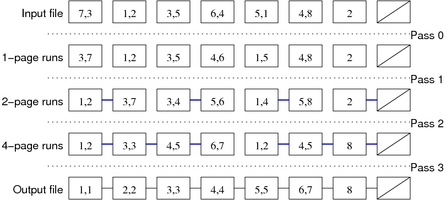

Example:

---

... Two-way Merge Sort

61/84

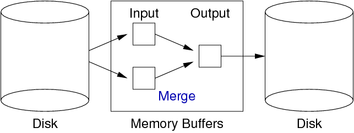

Requires three in-memory buffers:

Assumption: cost of Merge operation on two in-memory buffers ≅ 0.

---

Comparison for Sorting

62/84

Above assumes that we have a function to compare tuples.

Needs to understand ordering on different data types.

Need a function tupCompare(r1,r2,f) (cf. C's strcmp)

int tupCompare(r1,r2,f)
{
   if (r1.f < r2.f) return -1;
   if (r1.f > r2.f) return 1;
   return 0;
}

Assume =, <, > are available for all attribute types.

---

... Comparison for Sorting

63/84

In reality, need to sort on multiple attributes and ASC/DESC, e.g.

-- example multi-attribute sort
select * from Students
order by age desc, year_enrolled

Sketch of multi-attribute sorting function

int tupCompare(r1,r2,criteria)
{
   foreach (f,ord) in criteria {
      if (ord == ASC) {
         if (r1.f < r2.f) return -1;
         if (r1.f > r2.f) return 1;
      }
      else {
         if (r1.f > r2.f) return -1;
         if (r1.f < r2.f) return 1;
      }
   }
   return 0;
}

---

Cost of Two-way Merge Sort

64/84

For a file containing b data pages:

• require ceil(log₂b) passes to sort,
• each pass requires b page reads, b page writes

Gives total cost:   2.b.ceil(log₂b)

Example: Relation with r=10⁵ and c=50   ⇒   b=2000 pages.

Number of passes for sort:   ceil(log₂2000)  =  11

Reads/writes entire file 11 times!    Can we do better?

---

n-Way Merge Sort

65/84

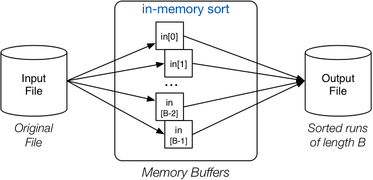

Initial pass uses: B total buffers

Reads B pages at a time, sorts in memory, writes out in order

---

... n-Way Merge Sort

66/84

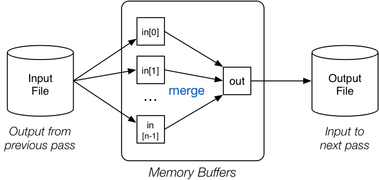

Merge passes use:   n input buffers,   1 output buffer

---

... n-Way Merge Sort

67/84

Method:

// Produce B-page-long runs
for each group of B pages in Rel {
    read B pages into memory buffers
    sort group in memory
    write B pages out to Temp
}
// Merge runs until everything sorted
numberOfRuns = ⌈b/B⌉
while (numberOfRuns > 1) {
    // n-way merge, where n=B-1
    for each group of n runs in Temp {
        merge into a single run via input buffers
        write run to newTemp via output buffer
    }
    numberOfRuns = ⌈numberOfRuns/n⌉
    Temp = newTemp // swap input/output files
}

---

Cost of n-Way Merge Sort

68/84

Consider file where b = 4096, B = 16 total buffers:

• pass 0 produces 256 × 16-page sorted runs
• pass 1
  • performs 15-way merge of groups of 16-page sorted runs
  • produces 18 × 240-page sorted runs   (17 full runs, 1 short run)
• pass 2
  • performs 15-way merge of groups of 240-page sorted runs
  • produces 2 × 3600-page sorted runs   (1 full run, 1 short run)
• pass 3
  • performs 15-way merge of groups of 3600-page sorted runs
  • produces 1 × 4096-page sorted runs

(cf. two-way merge sort which needs 11 passes)

---

... Cost of n-Way Merge Sort

69/84

Generalising from previous example ...

For b data pages and B buffers

• first pass: read/writes b pages, gives b₀ = ⌈b/B⌉ runs
• then need ⌈log_nb₀⌉ passes until sorted, where n = B-1
• each pass reads and writes b pages   (i.e. 2.b page accesses)

Cost = 2.b.(1 + ⌈log_nb₀⌉),   where b₀ and n are defined above

---

Exercise 6: Cost of n-Way Merge Sort

70/84

How many reads+writes to sort the following:

• r = 1048576 tuples (2²⁰)
• R = 62 bytes per tuple (fixed-size)
• B = 4096 bytes per page
• H = 96 bytes of header data per page
• D = 1 presence bit per tuple in page directory
• all pages are full

Consider for the cases:

• 9 total buffers, 8 input buffers, 1 output buffer
• 33 total buffers, 32 input buffers, 1 output buffer
• 257 total buffers, 256 input buffers, 1 output buffer

---

Sorting in PostgreSQL

71/84

Sort uses a merge-sort (from Knuth) similar to above:

• backend/utils/sort/tuplesort.c
• include/utils/sortsupport.h

Tuples are mapped to SortTuple structs for sorting:

• containing pointer to tuple and sort key
• no need to reference actual Tuples during sort
• unless multiple attributes used in sort

If all data fits into memory, sort using qsort().

If memory fills while reading, form "runs" and do disk-based sort.

---

... Sorting in PostgreSQL

72/84

Disk-based sort has phases:

• divide input into sorted runs using HeapSort
• merge using N buffers, one output buffer
• N = as many buffers as workMem allows

Described in terms of "tapes" ("tape" ≅ sorted run)

Implementation of "tapes": backend/utils/sort/logtape.c

---

... Sorting in PostgreSQL

73/84

Sorting comparison operators are obtained via catalog (in Type.o):

// gets pointer to function via pg_operator
struct Tuplesortstate { ... SortTupleComparator ... };

// returns negative, zero, positive
ApplySortComparator(Datum datum1, bool isnull1,
                    Datum datum2, bool isnull2,
                    SortSupport sort_helper);

Flags in SortSupport indicate: ascending/descending, nulls-first/last.

ApplySortComparator() is PostgreSQL's version of tupCompare()

---

Implementing Projection

---

The Projection Operation

75/84

Consider the query:

select distinct name,age from Employee;

If the Employee relation has four tuples such as:

(94002, John, Sales, Manager,   32)
(95212, Jane, Admin, Manager,   39)
(96341, John, Admin, Secretary, 32)
(91234, Jane, Admin, Secretary, 21)

then the result of the projection is:

(Jane, 21)   (Jane, 39)   (John, 32)

Note that duplicate tuples (e.g. (John,32)) are eliminated.

---

... The Projection Operation

76/84

The projection operation needs to:

1. scan the entire relation as input
   • already seen how to do scanning


2. remove unwanted attributes in output tuples
   • implementation depends on tuple internal structure
   • essentially, make a new tuple with fewer attributes
     and where the values may be computed from existing attributes


3. eliminate any duplicates produced   (if distinct)
   • two approaches: sorting or hashing

---

Sort-based Projection

77/84

Requires a temporary file/relation (Temp)

for each tuple T in Rel {
    T' = mkTuple([attrs],T)
    write T' to Temp
}

sort Temp on [attrs]

for each tuple T in Temp {
    if (T == Prev) continue
    write T to Result
    Prev = T
}

---

Exercise 7: Cost of Sort-based Projection

78/84

Consider a table R(x,y,z) with tuples:

Page 0:  (1,1,'a')   (11,2,'a')  (3,3,'c')
Page 1:  (13,5,'c')  (2,6,'b')   (9,4,'a')
Page 2:  (6,2,'a')   (17,7,'a')  (7,3,'b')
Page 3:  (14,6,'a')  (8,4,'c')   (5,2,'b')
Page 4:  (10,1,'b')  (15,5,'b')  (12,6,'b')
Page 5:  (4,2,'a')   (16,9,'c')  (18,8,'c')

SQL:   create T as (select distinct y from R)

Assuming:

• 3 memory buffers, 2 for input, one for output
• pages/buffers hold 3 R tuples (i.e. c_R=3), 6 T tuples (i.e. c_T=6)

Show how sort-based projection would execute this statement.

---

Cost of Sort-based Projection

79/84

The costs involved are (assuming B=n+1 buffers for sort):

• scanning original relation Rel:   b_R   (with c_R)
• writing Temp relation:   b_T     (smaller tuples, c_T > c_R, sorted)
• sorting Temp relation:
    2.b_T.ceil(log_nb₀) where b₀ = ceil(b_T/B)
• scanning Temp, removing duplicates:   b_T
• writing the result relation:   b_Out     (maybe less tuples)

Cost = sum of above = b_R + b_T + 2.b_T.ceil(log_nb₀) + b_T + b_Out

---

Hash-based Projection

80/84

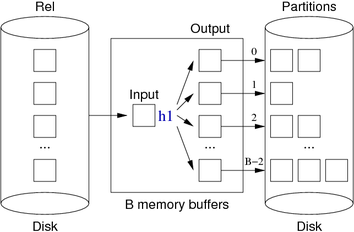

Partitioning phase:

---

... Hash-based Projection

81/84

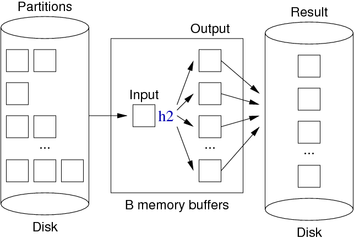

Duplicate elimination phase:

---

... Hash-based Projection

82/84

Algorithm for both phases:

for each tuple T in relation Rel {
    T' = mkTuple([attrs],T)
    H = h1(T', n)
    B = buffer for partition[H]
    if (B full) write and clear B
    insert T' into B
}
for each partition P in 0..n-1 {
    for each tuple T in partition P {
        H = h2(T, n)
        B = buffer for hash value H
        if (T not in B) insert T into B
        // assumes B never gets full
    }
    write and clear all buffers
}

---

Exercise 8: Cost of Hash-based Projection

83/84

Consider a table R(x,y,z) with tuples:

Page 0:  (1,1,'a')   (11,2,'a')  (3,3,'c')
Page 1:  (13,5,'c')  (2,6,'b')   (9,4,'a')
Page 2:  (6,2,'a')   (17,7,'a')  (7,3,'b')
Page 3:  (14,6,'a')  (8,4,'c')   (5,2,'b')
Page 4:  (10,1,'b')  (15,5,'b')  (12,6,'b')
Page 5:  (4,2,'a')   (16,9,'c')  (18,8,'c')
-- and then the same tuples repeated for pages 6-11

SQL:   create T as (select distinct y from R)

Assuming:

• 4 memory buffers, one for input, 3 for partitioning
• pages/buffers hold 3 R tuples (i.e. c_R=3), 4 T tuples (i.e. c_T=4)
• hash functions:   h1(x) = x%3,   h2(x) = (x%4)%3

Show how hash-based projection would execute this statement.

---

Cost of Hash-based Projection

84/84

The total cost is the sum of the following:

• scanning original relation R:   b_R
• writing partitions:   b_P   (b_R vs b_P ?)
• re-reading partitions:   b_P
• writing the result relation:   b_Out

Cost = b_R + 2b_P + b_Out

To ensure that n is larger than the largest partition ...

• use hash functions (h1,h2) with uniform spread
• allocate at least sqrt(b_R)+1 buffers
• if insufficient buffers, significant re-reading overhead

---

Produced: 10 Mar 2020
