insert into S select * from R where x > 10;

if 50% of the tuples satisfy the condition.

DBMS Parameters

22/100

Our view of relations in DBMSs:

• a relation is a set of r  tuples, with average size R  bytes
• the tuples are stored in b  data pages on disk
• each page has size B  bytes and contains up to c  tuples
• data is transferred disk↔memory in whole pages
• cost of disk↔memory transfer T_r , T_w  dominates other costs

... DBMS Parameters

23/100

Typical DBMS/table parameter values:

Multiple-file Disk Manager

24/100

Most DBMSs don't use a single large file for all data.

They typically provide:

• multiple files partitioned physically or logically
• mapping from DB-level objects to files (e.g. via meta-data)

Using multiple files (one file per relation) can be easier, e.g.

• adding a new relation
• extending the size of a relation
• computing page offsets within a relation

... Multiple-file Disk Manager

25/100

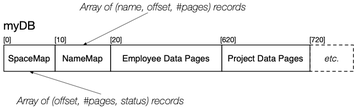

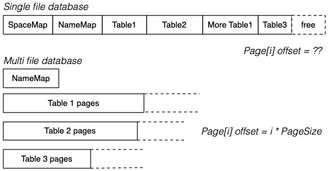

Example of single-file vs multiple-file:

Consider how you would compute file offset of page[i] in table[1] ...

... Multiple-file Disk Manager

26/100

Structure of PageId for data pages in such systems ...

If system uses one file per table, PageId contains:

• relation identifier (which can be mapped to filename)
• page number (to identify page within the file)

• relation identifier
• file identifier (combined with relid, gives filename)
• page number (to identify page within the file)

PostgreSQL Storage Manager

27/100

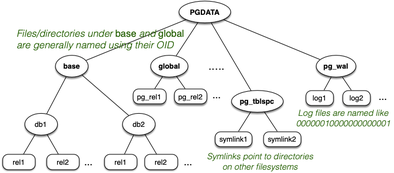

PostgreSQL uses the following file organisation ...

... PostgreSQL Storage Manager

28/100

Components of storage subsystem:

• mapping from relations to files   (RelFileNode)
• abstraction for open relation pool   (storage/smgr)
• functions for managing files   (storage/smgr/md.c)
• file-descriptor pool   (storage/file)

• heap files containing data (tuples)
• index files containing index entries

Relations as Files

29/100

PostgreSQL identifies relation files via their OIDs.

The core data structure for this is RelFileNode:

typedef struct RelFileNode {
    Oid  spcNode;  // tablespace
    Oid  dbNode;   // database
    Oid  relNode;  // relation
} RelFileNode;

Global (shared) tables (e.g. pg_database) have

•   spcNode == GLOBALTABLESPACE_OID
•   dbNode == 0

... Relations as Files

30/100

The relpath function maps RelFileNode to file:

char *relpath(RelFileNode r)  // simplified
{
   char *path = malloc(ENOUGH_SPACE);

   if (r.spcNode == GLOBALTABLESPACE_OID) {
      /* Shared system relations live in PGDATA/global */
      Assert(r.dbNode == 0);
      sprintf(path, "%s/global/%u",
              DataDir, r.relNode);
   }
   else if (r.spcNode == DEFAULTTABLESPACE_OID) {
      /* The default tablespace is PGDATA/base */
      sprintf(path, "%s/base/%u/%u",
              DataDir, r.dbNode, r.relNode);
   }
   else {
      /* All other tablespaces accessed via symlinks */
      sprintf(path, "%s/pg_tblspc/%u/%u/%u", DataDir
              r.spcNode, r.dbNode, r.relNode);
   }
   return path;
}

Exercise 2: PostgreSQL Files

31/100

In your PostgreSQL server

• examine the content of the $PGDATA directory
• find the directory containing the pizza database
• find the file in this directory for the People table
• examine the contents of the People file
• what are the other files in the directory?
• are there forks in any of your databases?

File Descriptor Pool

32/100

Unix has limits on the number of concurrently open files.

PostgreSQL maintains a pool of open file descriptors:

• to hide this limitation from higher level functions
• to minimise expensive open() operations

Open files are referenced via: typedef int File

A File is an index into a table of "virtual file descriptors".

Defs: include/storage/fd.h
Code: backend/storage/file/fd.c

... File Descriptor Pool

33/100

Interface to file descriptor (pool):

File PathNameOpenFile(char *fileName, int flags)
      // open a file with default pg.conf mode
File PathNameOpenFilePerm(char *fName, int flags, int mode)
     // open a file in the DB directory ($PGDATA/base/...)
File OpenTemporaryFile(bool interXact)
     // open temp file flag: close at end of transaction?
void FileClose(File file)
void FileUnlink(File file)
int  FileRead(File file, char *buffer, int amount)
int  FileWrite(File file, char *buffer, int amount)
int  FileSync(File file)
long FileSeek(File file, long offset, int whence)
int  FileTruncate(File file, long offset)

Analogous to Unix syscalls open(), close(), read(), ...

... File Descriptor Pool

34/100

Virtual file descriptor records (simplified):

typedef struct vfd
{
    s_short  fd;              // current FD, or VFD_CLOSED if none
    u_short  fdstate;         // bitflags for Vfd's state
    File     nextFree;        // link to next free Vfd, if in freelist
    File     lruMoreRecently; // doubly linked recency-of-use list
    File     lruLessRecently;
    long     seekPos;         // current logical file position
    char     *fileName;       // name of file, or NULL for unused Vfd
    // NB: fileName is malloc'd, and must be free'd when closing the Vfd
    int      fileFlags;       // open(2) flags for (re)opening the file
    int      fileMode;        // mode to pass to open(2)
} Vfd;

... File Descriptor Pool

35/100

Virtual file descriptors (Vfd)

• physically stored in dynamically-allocated array


• also arranged into list by recency-of-use


Exercise 3: Opening a Vfd

36/100

Consider the following call to open a file

f = PathNameOpenFilePerm(
   "/srvr/jas/pgsql/data/base/13645/12348",
   O_RDWR | O_CREAT | O_EXCL | PG_BINARY,
   0600
)

Sketch implementation of PathNameOpenFilePerm()

File Manager

37/100

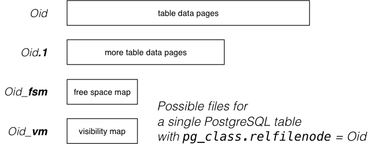

Reminder: PostgreSQL file organisation

... File Manager

38/100

PostgreSQL stores each table

• in the directory PGDATA/pg_database.oid
• often in multiple files (aka forks)

... File Manager

39/100

Data files   (Oid, Oid.1, ...):

• sequence of fixed-size blocks/pages  (typically 8KB)

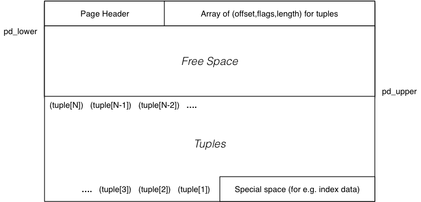

• each page contains tuple data and admin data  (see later)
• max size of data files 1GB  (Unix limitation)

... File Manager

40/100

Free space map   (Oid_fsm):

• indicates where free space is in data pages
• "free" space is only free after VACUUM
    (DELETE simply marks tuples as no longer in use xmax)

• indicates pages where all tuples are "visible"
    (visible = accessible to all currently active transactions)
• such pages can be ignored by VACUUM

... File Manager

41/100

The "magnetic disk storage manager" (storage/smgr/md.c)

• manages its own pool of open file descriptors (Vfd's)
• may use several Vfd's to access data, if several forks
• manages mapping from PageID to file+offset.

typedef struct
{
    RelFileNode rnode;    // which relation/file
    ForkNumber  forkNum;  // which fork (of reln)
    BlockNumber blockNum; // which page/block
} BufferTag;

... File Manager

42/100

Access to a block of data proceeds (roughly) as follows:

// pageID set from pg_catalog tables
// buffer obtained from Buffer pool
getBlock(BufferTag pageID, Buffer buf)
{
   File fid;  off_t offset;  int fd;
   (fid, offset) = findBlock(pageID)
   fd = VfdCache[fid].fd;
   lseek(fd, offset, SEEK_SET)
   VfdCache[fid].seekPos = offset;
   nread = read(fd, buf, BLOCKSIZE)
   if (nread < BLOCKSIZE) ... we have a problem
}

BLOCKSIZE is a global configurable constant (default: 8192)

... File Manager

43/100

findBlock(BufferTag pageID) returns (Vfd, off_t)
{
   offset = pageID.blockNum * BLOCKSIZE
   fileName = relpath(pageID.rnode)
   if (pageID.forkNum > 0)
      fileName = fileName+"."+pageID.forkNum
   fid = PathNameOpenFIle(fileName, O_READ);
   fSize = VfdCache[fid].fileSize;
   if (offset > fSize) {
      fid = allocate new Vfd for next fork
      offset = offset - fd.fileSize
   }
   return (fd, offset)
}

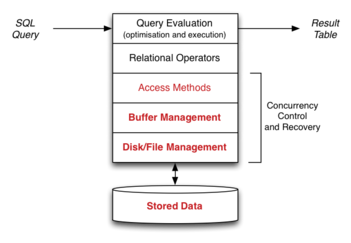

Buffer Pool

Buffer Pool

45/100

Aim of buffer pool:

• hold pages read from database files, for possible re-use

• access methods which read/write data pages
• e.g. sequential scan, indexed retrieval, hashing

• file manager functions to access data files

... Buffer Pool

46/100

... Buffer Pool

47/100

Buffer pool operations:   (both take single PageID argument)

• request_page(pid),   release_page(pid), ...

• request_page() replaces getBlock() or get_page()
• release_page() replaces putBlock() or put_page()

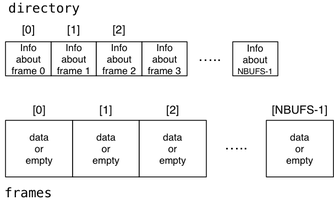

Buffer pool data structures:

• frames ... array of NBUFS Page buffers
• directory ... array of NBUFS FrameData items

... Buffer Pool

48/100

... Buffer Pool

49/100

For each frame, we need to know:   (FrameData)

• which Page it contains, or whether empty/free
• whether it has been modified since loading (dirty bit)
• how many transactions are currently using it (pin count)
• time-stamp for most recent access (assists with replacement)

• PageID = BufferTag = (rnode, forkNum, blockNum)

... Buffer Pool

50/100

How scans are performed without Buffer Pool:

Buffer buf;
int N = numberOfBlocks(Rel);
for (i = 0; i < N; i++) {
   pageID = makePageID(db,Rel,i);
   getBlock(pageID, buf);
   for (j = 0; j < nTuples(buf); j++)
      process(buf, j)
}

Requires N page reads.

If we read it again, N page reads.

... Buffer Pool

51/100

How scans are performed with Buffer Pool:

Buffer buf;
int N = numberOfBlocks(Rel);
for (i = 0; i < N; i++) {
   pageID = makePageID(db,Rel,i);
   bufID = request_page(pageID);
   buf = frames[bufID]
   for (j = 0; j < nTuples(buf); j++)
      process(buf, j)
   release_page(pageID);
}

Requires N page reads on the first pass.

If we read it again, 0 ≤ page reads ≤ N

... Buffer Pool

52/100

Buffer pool data structures:

typedef char Page[PAGESIZE];
typedef ... PageID;  // defined earlier

typedef struct _FrameData {
   PageID  pid;        // which page is in frame
   int     pin_count;  // how many processes using page
   int     dirty;      // page modified since loaded?
   Time    last_used;  // when page was last accessed
} FrameData;

Page frames[NBUFS];    // actual buffers
FrameData directory[NBUFS];

... Buffer Pool

53/100

Implementation of request_page()

int request_page(PageID pid)
{
   bufID = findInPool(pid)
   if (bufId == NOT_FOUND) {
      if (no free frames in Pool) {
         bufID = findFrameToReplace()
         if (directory[bufID].dirty)
            old = directory[bufID].page
            put_page(old, frames[bufID])
      }
      bufID = index of freed frame
      directory[bufID].page = pid
      directory[bufID].pin_count = 0
      directory[bufID].dirty = 0
      get_page(pid, frames[bufID])
   }
   directory[bufID].pin_count++
   return bufID
}

... Buffer Pool

54/100

The release_page(pid) operation:

• Decrement pin count for specified page

The mark_page(pid) operation:

• Set dirty bit on for specified page

The flush_page(pid) operation:

• Write the specified page to disk (using write())

... Buffer Pool

55/100

Evicting a page ...

• find frame(s) preferably satisfying
  • pin count = 0   (i.e. nobody using it)
  • dirty bit = 0   (not modified)
• if selected frame was modified, flush frame to disk
• flag directory entry as "frame empty"

• need a policy to decide which is best choice

Page Replacement Policies

56/100

Several schemes are commonly in use:

• Least Recently Used (LRU)
• Most Recently Used (MRU)
• First in First Out (FIFO)
• Random

• how to keep track of "last access" time?
• base on request/release ops or on real page usage?

... Page Replacement Policies

57/100

Cost benefit from buffer pool (with n frames) is determined by:

• number of available frames (more ⇒ better)
• replacement strategy vs page access pattern

First scan costs b reads; subsequent scans are "free".

Example (b): sequential scan, MRU, n < b

First scan costs b reads; subsequent scans cost b - n reads.

Example (c): sequential scan, LRU, n < b

All scans cost b reads; known as sequential flooding.

Effect of Buffer Management

58/100

Consider a query to find customers who are also employees:

select c.name
from   Customer c, Employee e
where  c.ssn = e.ssn;

This might be implemented inside the DBMS via nested loops:

for each tuple t1 in Customer {
    for each tuple t2 in Employee {
        if (t1.ssn == t2.ssn)
            append (t1.name) to result set
    }
}

... Effect of Buffer Management

59/100

In terms of page-level operations, the algorithm looks like:

Rel rC = openRelation("Customer");
Rel rE = openRelation("Employee");
for (int i = 0; i < nPages(rC); i++) {
    PageID pid1 = makePageID(db,rC,i);
    Page p1 = request_page(pid1);
    for (int j = 0; j < nPages(rE); j++) {
        PageID pid2 = makePageID(db,rE,j);
        Page p2 = request_page(pid2);
        // compare all pairs of tuples from p1,p2
        // construct solution set from matching pairs
        release_page(pid2);
    }
    release_page(pid1);
}

Exercise 4: Buffer Cost Benefit (i)

60/100

Assume that:

• the Customer relation has b_C pages (e.g. 10)
• the Employee relation has b_E pages (e.g. 4)

• if we have only 2 buffers (i.e. effectively no buffer pool)
• if we have 20 buffers
• when a buffer pool with MRU replacement strategy is used
• when a buffer pool with LRU replacement strategy is used

Exercise 5: Buffer Cost Benefit (ii)

61/100

If the tables were larger, the above analysis would be tedious.

Write a C program to simulate buffer pool usage

• assuming a nested loop join as above
• argv[1] gives number of pages in "outer" table
• argv[2] gives number of pages in "inner" table
• argv[3] gives number of slots in buffer pool
• argv[4] gives replacement strategy (LRU,MRU,FIFO-Q)

PostgreSQL Buffer Manager

62/100

PostgreSQL buffer manager:

• provides a shared pool of memory buffers for all backends
• all access methods get data from disk via buffer manager

Definitions:  src/include/storage/buf*.h

Functions:  src/backend/storage/buffer/*.c

Commentary: backend/storage/buffer/README

Buffer code is also used by backends who want a private buffer pool

... PostgreSQL Buffer Manager

63/100

Buffer pool consists of:

BufferDescriptors    (i.e. directory)

• shared fixed array of NBuffers x BufferDesc

• shared fixed array of NBuffers x buffers (each BLCKSZ bytes)

• indexes: global buffers 1..NBuffers; local buffers negative

shared_buffers = 16MB   # min 128KB, 16*8KB buffers

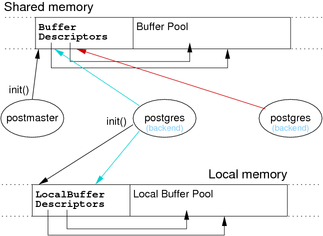

... PostgreSQL Buffer Manager

64/100

Buffer Pool Data Types

65/100

typedef struct buftag {
   RelFileNode rnode;     /* physical relation identifier */
   ForkNumber  forkNum;
   BlockNumber blockNum;  /* relative to start of reln */
} BufferTag;

typedef struct BufferDesc { (simplified)
   BufferTag tag;        // ID of page contained in buffer
   int       buf_id;     // buffer's index number (from 0)
   Bits32    state;      // dirty, refcount, usage
   int       freeNext;   // link in freelist chain
   ...                   // others related to concurrency
} BufferDesc;

Buffer Pool Functions

66/100

Buffer manager interface:

Buffer ReadBuffer(Relation r, BlockNumber n)

• ensures page n of file for relation r is loaded
• increments reference (pin) count and usage count for buffer
• returns index of loaded page in buffer pool (Buffer value)

• used by ReadBuffer to find a buffer for (r,f,n)
• if no available buffers, select buffer to be replaced

... Buffer Pool Functions

67/100

Buffer manager interface (cont):

void ReleaseBuffer(Buffer buf)

• decrement pin count on buffer
• if pin count falls to zero,
  ensures all activity on buffer is completed before returning

• marks a buffer as modified
• requires that buffer is pinned and locked
• actual write is done later (e.g. when buffer replaced)

... Buffer Pool Functions

68/100

Additional buffer manager functions:

Page BufferGetPage(Buffer buf)

• finds actual data associated with buffer in pool
• returns reference to memory where data is located

• check whether this backend holds a pin on buffer

• write data in checkpoint logs (for recovery)
• flush all dirty blocks in buffer pool to disk

Clock-sweep Replacement Strategy

69/100

PostgreSQL page replacement strategy: clock-sweep

• treat buffer pool as circular list of buffer slots
• NextVictimBuffer holds index of next possible evictee
• if this page is pinned or "popular", leave it
  • usage_count implements "popularity/recency" measure
  • incremented on each access to buffer (up to small limit)
  • decremented each time considered for eviction
• increment NextVictimBuffer and try again (wrap at end)

Exercise 6: PostgreSQL Buffer Pool

70/100

Consider an initally empty buffer pool with only 3 slots.

Show the state of the pool after each of the following:

Req R0, Req S0, Rel S0, Req S1, Rel S1, Req S2,
Rel S2, Rel R0, Req R1, Req S0, Rel S0, Req S1,
Rel S1, Req S2, Rel S2, Rel R1, Req R2, Req S0,
Rel S0, Req S1, Rel S1, Req S2, Rel S2, Rel R2

Treat BufferDesc entries as

(tag, usage_count, refcount, freeNext)

Assume freeList and nextVictim global variables.

Pages

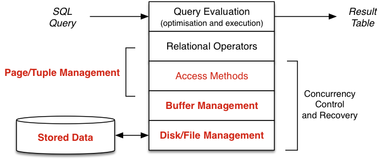

Page/Tuple Management

72/100

Pages

73/100

Database applications view data as:

• a collection of records (tuples)
• records can be accessed via a TupleId/RecordId/RID
• TupleId = (PageID + TupIndex)

• data is a sequence of fixed-size pages (aka "blocks")
• pages can be (random) accessed via a PageID
• each page contains zero or more tuple values

Page Formats

74/100

Ultimately, a Page is simply an array of bytes (byte[]).

We want to interpret/manipulate it as a collection of Records.

Typical operations on Pages:

• request_page(pid) ... get page via its PageId
• get_record(rid) ... get record via its TupleId
• rid = insert_record(pid,rec) ... add new record
• update_record(rid,rec) ... update value of record
• delete_record(rid) ... remove record from page

... Page Formats

75/100

Factors affecting Page formats:

• determined by record size flexibility   (fixed, variable)
• how free space within Page is managed
• whether some data is stored outside Page
  • does Page have an associated overflow chain?
  • are large data values stored elsewhere? (e.g. TOAST)
  • can one tuple span multiple Pages?

... Page Formats

76/100

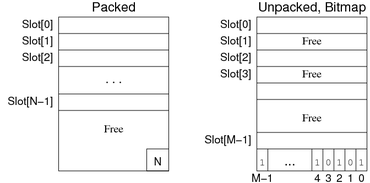

For fixed-length records, use record slots.

• insert: place new record in first available slot
• delete: two possibilities for handling free record slots:

Exercise 7: Fixed-length Records

77/100

Give examples of table definitions

• which result in fixed-length records
• which result in variable-length records

create table R ( ...);

What are the common features of each type of table?

Exercise 8: Inserting/Deleting Fixed-length Records

78/100

For each of the following Page formats:

• compacted/packed free space
• unpacked free space (with bitmap)

• a suitable data structure to represent a Page
• a function to insert a new record
• a function to delete a record

Page Formats

79/100

For variable-length records, must use slot directory.

Possibilities for handling free-space within block:

• compacted (one region of free space)
• fragmented (distributed free space)

• normally fragmented (cheap to maintain)
• compacted when needed (e.g. record won't fit)

... Page Formats

80/100

Compacted free space:

Note: "pointers" are implemented as word offsets within block.

... Page Formats

81/100

Fragmented free space:

... Page Formats

82/100

Initial page state (compacted free space) ...

... Page Formats

83/100

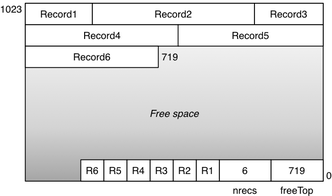

Before inserting record 7 (compacted free space) ...

... Page Formats

84/100

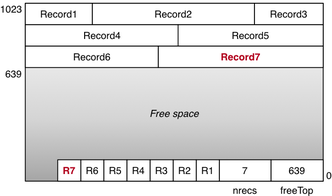

After inserting record 7 (80 bytes) ...

... Page Formats

85/100

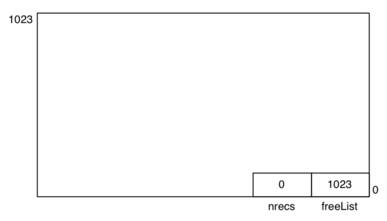

Initial page state (fragmented free space) ...

... Page Formats

86/100

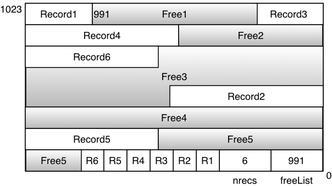

Before inserting record 7 (fragmented free space) ...

... Page Formats

87/100

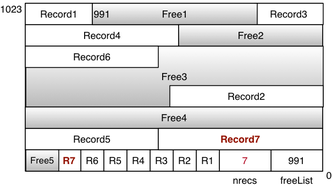

After inserting record 7 (80 bytes) ...

Exercise 9: Inserting Variable-length Records

88/100

For both of the following page formats

1. variable-length records, with compacted free space
2. variable-length records, with fragmented free space

Use the above page format, but also assume:

• page size is 1024 bytes
• tuples start on 4-byte boundaries
• references into page are all 8-bits (1 byte) long
• a function recSize(r) gives size in bytes

Storage Utilisation

89/100

How many records can fit in a page? (denoted C = capacity)

Depends on:

• page size ... typical values: 1KB, 2KB, 4KB, 8KB
• record size ... typical values: 64B, 200B, app-dependent
• page header data ... typically: 4B - 32B
• slot directory ... depends on how many records

Given C,   HeaderSize + C*SlotSize + C*R  ≤  PageSize

Exercise 10: Space Utilisation

90/100

Consider the following page/record information:

• page size = 1KB = 1024 bytes = 2¹⁰ bytes
• records: (a:int,b:varchar(20),c:char(10),d:int)
• records are all aligned on 4-byte boundaries
• c field padded to ensure d starts on 4-byte boundary
• each record has 4 field-offsets at start of record (each 1 byte)
• char(10) field rounded up to 12-bytes to preserve alignment
• maximum size of b values = 20 bytes; average size = 16 bytes
• page has 32-bytes of header information, starting at byte 0
• only insertions, no deletions or updates

Overflows

91/100

Sometimes, it may not be possible to insert a record into a page:

1. no free-space fragment large enough
2. overall free-space is not large enough
3. the record is larger than the page
4. no more free directory slots in page

If still insufficient space, we need an alternative solution ...

... Overflows

92/100

File organisation determines how cases (2)..(4) are handled.

If records may be inserted anywhere that there is free space

• cases (2) and (4) can be handled by making a new page
• case (3) requires either spanned records or "overflow file"

• cases (2) and (4) require an "overflow page"
• case (3) requires an "overflow file"

... Overflows

93/100

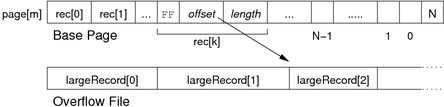

Overflow files for very large records and BLOBs:

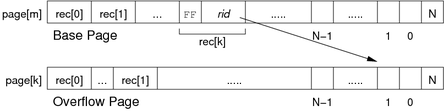

Record-based handling of overflows:

We discuss overflow pages in more detail when covering Hash Files.

PostgreSQL Page Representation

94/100

Functions: src/backend/storage/page/*.c

Definitions: src/include/storage/bufpage.h

Each page is 8KB (default BLCKSZ) and contains:

• header (free space pointers, flags, xact data)
• array of (offset,length) pairs for tuples in page
• free space region (between array and tuple data)
• actual tuples themselves (inserted from end towards start)
• (optionally) region for special data (e.g. index data)

Also supports ~SQL-standard BLOBs   (explicit large data items)

... PostgreSQL Page Representation

95/100

PostgreSQL page layout:

... PostgreSQL Page Representation

96/100

Page-related data types:

// a Page is simply a pointer to start of buffer
typedef Pointer Page;

// indexes into the tuple directory
typedef uint16  LocationIndex;

// entries in tuple directory (line pointer array)
typedef struct ItemIdData
{
   unsigned   lp_off:15,    // tuple offset from start of page
              lp_flags:2,   // unused,normal,redirect,dead
              lp_len:15;    // length of tuple (bytes)
} ItemIdData;

... PostgreSQL Page Representation

97/100

Page-related data types: (cont)

typedef struct PageHeaderData
{
   XLogRecPtr    pd_lsn;      // xact log record for last change
   uint16        pd_tli;      // xact log reference information
   uint16        pd_flags;    // flag bits (e.g. free, full, ...
   LocationIndex pd_lower;    // offset to start of free space
   LocationIndex pd_upper;    // offset to end of free space
   LocationIndex pd_special;  // offset to start of special space
   uint16        pd_pagesize_version;
   TransactionId pd_prune_xid;// is pruning useful in data page?
   ItemIdData    pd_linp[1];  // beginning of line pointer array
} PageHeaderData;

typedef PageHeaderData *PageHeader;

... PostgreSQL Page Representation

98/100

Operations on Pages:

void PageInit(Page page, Size pageSize, ...)

• initialize a Page buffer to empty page
• in particular, sets pd_lower and pd_upper

• insert one tuple (or index entry) into a Page
• fails if: not enough free space, too many tuples

• compact tuple storage to give one large free space region

... PostgreSQL Page Representation

99/100

PostgreSQL has two kinds of pages:

• heap pages which contain tuples
• index pages which contain index entries

One important difference:

• index entries tend be a smaller than tuples
• can typically fit more index entries per page

Exercise 11: PostgreSQL Pages

100/100

Draw diagrams of a PostgreSQL heap page

• when it is initially empty
• after three tuples have been inserted
      with lengths of 60, 80, and 70 bytes
• after the 80 byte tuple is deleted (but before vacuuming)
• after a new 50 byte tuple is added

Assume that there is no special space in the page.

Produced: 3 Mar 2020
