COMP3911 05s1 Theory Exam - Sample Solutions

COMP9311 05s1 Theory Exam
Sample Solutions

Question 1

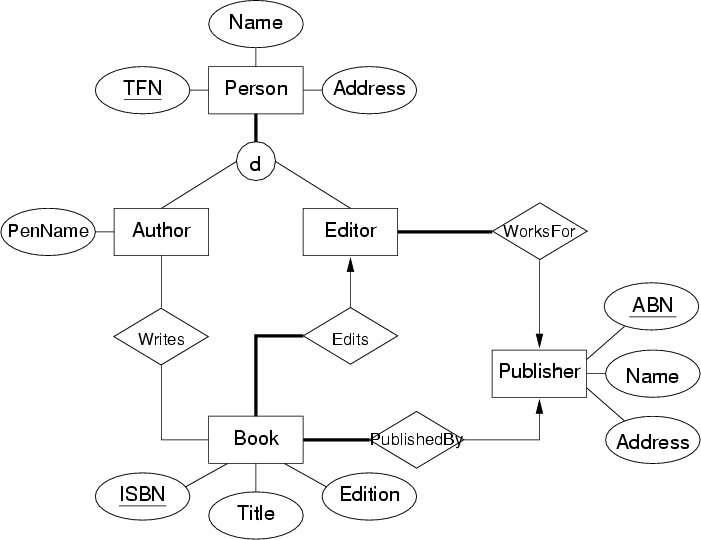

An ER diagram to represent information about the Australian book-publishing industry:

[ER diagram]

Some allowable variations:

the relationships don't have to have precisely these names, as long as the meaning is clearly the same
the lines marked in blue could have been made "thick" to indicate total participation
there could have been an additional relationship between Authors and Editors called "liasesWith" (or some term like this)

Question 2

Relational schemas based on ER diagram with class hierarchy:

Version using the "ER mapping" (one table per entity)

create table R (
	id      integer,
	h       varchar(20),
	primary key (id)
);
create table S (
	id      integer,
	j       char(4) check (j >= 'AAAA' and j <= 'ZZZZ')
	primary key (id),
	foreign key (id) references R(id)
);
create table T (
	id      integer,
	k       float check (k >= 1.0 and k <= 5.0),
	primary key (id),
	foreign key (id) references R(id)
);

This schema cannot represent:

that an R must appear in one of S or T
that an R appears only in S or T and not both

Version using the "single table mapping" (one table for hierarchy)

create table R (
	id      integer,
	h       varchar(20),
	kind    char(1) not null check (kind in ('S','T')),
	j       char(4) check (j >= 'AAAA' and j <= 'ZZZZ')
	k       float check (k >= 1.0 and k <= 5.0),
	primary key (id)
);

This schema cannot represent:

that attribute j should have value if kind='T'
that attribute k should have value if kind='S'

Allowable variations in the schemas:

integer could be replaced by int
float could be replaced by real
any name can be used for the kind attribute; it's type must have two values that clearly distinguish S and T tuples

Question 3

Relational schemas based on ER diagram with class hierarchy:

    create table F (
        a       integer,
        c       text,
        R       integer not null,
        d       text,
        primary key (a),
        foreign key (R) references G(b)
    );
    create table G (
        b       integer,
        e       text,
        primary key (b)
    );

Question 4

Function to return the number of seats available on a plane flight:

    create or replace function
        seatsAvail(flid integer) return integer
    as
        totSeats    integer;
        bookedSeats integer;
    begin
        select p.nseats into totSeats
        from   Flights f, Planes p
        where  f.id = flid and f.plane = p.id;
        select count(b.pax) into bookedSeats
        from   Bookings b
        where  b.flight = flid;
        return totSeats - bookedSeats;
    end;
    /

Question 5

Triggers for maintaining the Flights.avSeats attribute:

    create trigger insertFlightTrigger
    before insert on Flights
    for each row
    declare
        ns integer;
    begin
        -- if no such plane, then exception terminates insert
        select nseats into ns from Planes where id = :new.plane;
        :new.seatsAvail := ns;
    end;

    create trigger insertBookingTrigger
    after insert on Bookings
    for each row
    begin
        update Flights set seatsAvail = seatsAvail - 1 where id = :new.flight;
    end;

    create trigger deleteBookingTrigger
    after delete on Bookings
    for each row
    begin
        update Flights set seatsAvail = seatsAvail + 1 where id = old.flight;
    end;

Assumes that the interface (and domain constraints) prevents INSERT operations being invoked on a full flight.

Question 6

Functional dependencies:

Pcode -> Product
Pcode -> Price
Cust# -> Customer
Cust# -> Address
Cust# -> Phone

or, to simplify and use question notation

(a) Pc -> Pr Pe
(b) C# -> Cu Ad Ph

Conversion to BCNF schema: Start from:
```
R = (T, Pr, Pc, Pe, Q, C#, Cu, Ad, Ph)  with key = (Pc,C#,T,Q)
```
Existence of FD (a) means R is not in BCNF (partial-key dependence), so decompose to
```
R' = (T, Pc, Q, C#, Cu, Ad, Ph)  with key = (Pc,C#,T,Q)

P  = (Pc, Pr, Pe)  with key = (Pc)
```
Table P is already in BCNF (all non-key attributes depend only on whole key)
Existence of FD (b) means R' is not in BCNF (partial-key dependence), so decompose to
```
R'' = (T, Pc, Q, C#)  with key = (Pc,C#,T,Q)

C   = (C#, Cu, Ad, Ph)  with key = (C#)
```
Both of the above tables are in BCNF (no FDs violate BCNF rules), so the final schema is:
```
Prod = (Pc, Pr, Pe)
Cust = (C#, Cu, Ad, Ph)
Sale = (T, Pc, Q, C#)
```
Allowable variations:
- No need to use exactly the same naming scheme
- Can apply the FDs in either order
- If other FDs were defined in part (a), they must be used correctly here

Question 7

Which studios has Peter Weir directed films for?

Res = Proj[studio](Sel[director='Peter Weir'](Movie)

Which actors have starred in films from Paramount Studios?

PFilms  = Proj[title,year](Sel[studio='Paramount'](Movie))
PFilms' = Rename[mtitle,myear](PFilms)
Res     = Proj[actor](Starring Join Pfilms')

Which films starred both Tom Cruise and Nicole Kidman?

TFilms = Proj[mtitle,myear](Sel[actor='Tom Cruise'](Starring))
NFilms = Proj[mtitle,myear](Sel[actor='Nicole Kidman'](Starring))
Res    = TFilms Intersect NFilms

Which actors have starred in all films directed by Stanley Kubrick?

KFilms  = Proj[title,year](Sel[director='Stanley Kubrick'](Movie))
KFilms' = Rename[mtitle,myear](KFilms)
Res     = Starring Divides KFilms'
