Lecturer in Charge:		Helen Paik
Office:		K17-501C
Email:		h.paik@unsw.edu.au
Consults:		non-technical/personal issue - by appointments ...
		technical/course contents - Use CSE Help! (G05), or Course Forum

Course admin:		Tim Arney
A team of tutors:		David Choulex, Deniz Dilsiz,
		Jiangze Zhou, Joey Zhou,
		Kanak Maheshwari, Nimish Ukey,
		Sachin Singh, Thomas Duffett,
		Zhonghao Liu, Ziting Li
Email address to use:		cs9024@cse.unsw.edu.au

COMP9021 …

• gets you thinking like a programmer
• solving problems by developing programs
• expressing your ideas in the language Python

• gets you thinking like a computer scientist
• knowing fundamental data structures/algorithms
• able to reason about their applicability/effectiveness
• able to analyse the efficiency of programs
• able to code in C

• how to store data inside a computer for efficient use

• step-by-step process for solving a problem  (within finite amount of space and time)

COMP9021 …

COMP9024 …


There are no prerequisites for this course.

However we will move at fast pace through the necessary programming fundamentals. You may find it helpful if you are able to:

• produce correct programs from a specification
• understand the state-based model of computation
  (variables, assignment, function parameters)
• use fundamental data structures
  (characters, numbers, strings, arrays)
• use fundamental control structures   (if, while, for)
• know fundamental programming techniques   (recursion)
• fix simple bugs in incorrect programs

At the end of this course you should be able to:

• choose/develop effective data structures (DS)
  (graphs, search trees, …)
• choose/develop algorithms (A) on these DS
  (graph algorithms, tree algorithms, string algorithms, …)
• analyse performance characteristics of algorithms

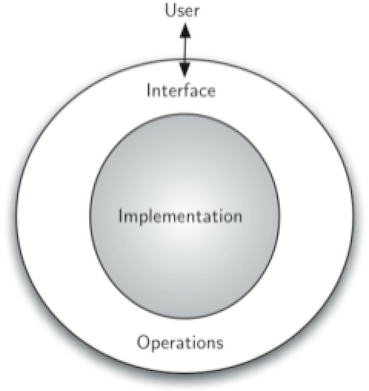

• package a set of DS+A as an abstract data type
• develop and maintain C programs

All course information is placed on the main course website:

• http://www.cse.unsw.edu.au/~cs9024

Bookmark the page ... a portal to all course related links (e.g., lecture content, forum, submitting assignments, viewing marks).

Access to lecture recordings on Moodle:

• COMP9024 Data Structures & Algorithms (2026-T1)

Ideas for the COMP9024 material are drawn from

• slides by Michael Thielscher (COMP9024 19T3,20T2), John Shepherd (COMP1927 16s2), Hui Wu (COMP9024 16s2) and Alan Blair (COMP1917 14s2)
• Robert Sedgewick's and Alistair Moffat's books, Goodrich and Tamassia's Java book, Skiena and Revilla's programming challenges book

Week		Lectures		Weekly Prac		Weekly Tut		Assignment
1		Introduction, C language		prac exercise				--
2		Analysis of algorithms		prac exercise		problem set
3		Dynamic data structures		prac exercise		problem set
4		Graph data structures		prac exercise		problem set
5		Graph algorithms		prac exercise		problem set		Large Assignment
6		Break				--		|
7		Search tree data structures		prac exercise		problem set		|
8		Search tree algorithms		prac exercise		problem set		|
9		String algorithms		prac exercise		problem set		|
10		Randomised algorithms, Review		prac exercise		problem set		| due
Exam Week (Central)		Final Exam (on campus)						--

• On Lectures: Mon 3-5pm, Thur 4-6pm (recording release soon after the lecture via Echo360)
• Weekly help sessions (K17, G05) - check the homepage (TBC)

Textbook is a "double-header"

• Algorithms in C, Parts 1-4, Robert Sedgewick
• Algorithms in C, Part 5, Robert Sedgewick

Good books, useful beyond COMP9024 (but coding style …)

Supplementary textbook:

• Alistair Moffat
  Programming, Problem Solving, and Abstraction with C
  Pearson Educational, Australia, Revised edition 2013, ISBN 978-1-48-601097-4

Also, numerous online C resources are available.

Lectures will:

• present theory
• demonstrate problem-solving methods
• give practical demonstrations

Lecture slides will be made available before lecture

Feel free to ask questions, but No Idle Chatting (disrupts others!)

In weeks 1-5, 7-10 :

• you will be asked to submit 1 or 2 (small) programs
• which will be auto-marked against one or more test cases
• weekly assessments are released/collected weekly (starting Week 1).

Weekly Practicals (programming exercises) contribute 16% to overall mark ( 2 marks each x 8, best 8 chosen out of 9).

Do them yourself!   and   Don't fall behind!

The weekly tutorials/classes, with tutors, aims to:

• clarify any problems with lecture material
• work through exercises related to lecture topics
• give practice with algorithm design skills   (think before coding)

You may bring your own laptop to access materials or take notes

Important - tutorials are not marked; however, they provide an opportunity for a more intimate classroom experience where you can interact more closely with the tutors and other students.

The large assignment gives you experience applying tools/techniques
(but to a larger programming problem than the homework)

The assignment will be carried out individually.

The assignment will be released late Week 5 (or sometime in Week 6 ...) and is due in week 10.

The assignment contributes 24% to overall mark.

The late penalty is a per-day mark reduction equal to 5% of the max assessment mark for up to 5 days.

For example, if an assignment that would receive an on-time mark of 16/24 is submitted 3 days late, it should receive a mark of 12.4/24 (16-(24*0.05*3)).

Advice on doing assignments:

They always take longer than you expect.

Don't leave them to the last minute.

Organising your time → no late penalty.

If you do leave them to the last minute:

• take the late penalty rather than copying

We get very annoyed by people who plagiarise.

Examples of Plagiarism (student.unsw.edu.au/plagiarism):

1. Copying

   Using same or similar idea without acknowledging the source
   This includes copying ideas from a website, internet

2. Collusion

   Presenting work as independent when produced in collusion with others
   This includes students providing their work to another student

   • which includes using any form of publicly readable code repository

Any submission based on a work of another student, or a code repository (e.g., github), or generative AI tools (e.g., ChatGPT), or contracted work is considered cheating.

Your submissions will be checked for and will be reported to the Academic Integrity Unit at UNSW.

What about ...

Find and read the use of AI policy from the course homepage

2-hour torture written exam during the exam period.

Format:

• current plan is to have it on campus (invigilated)
• using your own laptop with locked-down browser
• some multiple-choice questions
• some descriptive/analytical questions

Must score at least 25/60 in the final exam to pass the course.

How to pass the Final Exam:

• do the class activities yourself
• do the class activities every week
• use weekly practicals to practise programming in C
• practise programming outside classes
• utilise the help sessions with the tutors
• read the lecture notes
• do the examples in the lecture notes yourself

weekly_lab   = mark for weekly program exercises (out of 2*(best 8 out of 9))
large_assn   = mark for large assignment (out of 24)
exam         = mark for final exam       (out of 60)

if (exam >= 25)
   total = weekly_lab + mid_term + large_assn + exam
else
   total = exam * (100/60)

To pass the course, you must achieve:

• at least 25/60 for exam
• at least 50/100 for total

The goal is for you to become a better Computer Scientist

• more confident in your own ability to choose data structures (DS)
• more confident in your own ability to develop algorithms (A)
• able to analyse and justify your choices
• producing a better end-product
• ultimately, enjoying the software design and development process

• good example of an imperative language
• gives the programmer great control
• produces fast code
• many libraries and resources
• main language for writing operating systems and compilers; and commonly used for a variety of applications in industry (and science)

C and UNIX operating system share a complex history …

• C was originally designed for and implemented on UNIX
• Dennis Ritchie was the author of C (around 1971)
• In 1973, UNIX was rewritten in C
• B (author: Ken Thompson, 1970) was the predecessor to C, but there was no A
• American National Standards Institute (ANSI) C standard published in 1988
  • this greatly improved source code portability
• Current standard: C23 (ISO/IEC 9899:2024) This course uses a C11/C17-compatible subset.

#include <stdio.h>

int f(int m, int n) {

   while (m != n) {
      if (m > n) {
	 m = m-n;
      } else {
	 n = n-m;
      }
   }
   return m;
}

int main(void) {

   printf("%d\n", f(30,18));
   return 0;
}

Insertion Sort algorithm (in Pseudo Code):

insertionSort(A):
|  Input array A[0..n-1] of n elements
|
|  for all i=1..n-1 do
|  |  element=A[i], j=i-1
|  |  while j≥0 and A[j]>element do
|  |     A[j+1]=A[j]
|  |     j=j-1
|  |  end while
|  |  A[j+1]=element
|  end for

e.g., A = [29, 10, 14, 37, 13]

#include <stdio.h> // include standard I/O library defs and functions

#define SIZE 6     // define a symbolic constant

void insertionSort(int array[], int n) {  // function headers must provide types
   int i;                                 // each variable must have a type
   for (i = 1; i < n; i++) {              // for-loop syntax
      int element = array[i];
      int j = i-1;
      while (j >= 0 && array[j] > element) {  // logical AND
         array[j+1] = array[j];
         j--;                                 // abbreviated assignment j=j-1
      }
      array[j+1] = element;                   // statements terminated by ;
   }                                          // code blocks enclosed in { }
}

int main(void) {                              // main: program starts here
   int numbers[SIZE] = { 3, 6, 5, 2, 4, 1 };  /* array declaration
                                                 and initialisation */
   int i;
   insertionSort(numbers, SIZE);
   for (i = 0; i < SIZE; i++)
      printf("%d\n", numbers[i]);             // printf defined in <stdio>

   return 0;           // return program status (here: no error) to environment
}

To compile a program prog.c, you type the following:

gcc prog.c

To run the program, type:

./a.out

Command line options:

• The default with gcc is not to give you any warnings about potential problems
• Good practice is to be tough on yourself:

  gcc -Wall prog.c


  which reports all warnings to anything it finds that is potentially wrong or non ANSI compliant

• The -o option tells gcc to place the compiled object in the named file rather than a.out

  gcc -o prog prog.c


Formatted output written to standard output (e.g. screen)

printf(format-string, expr1, expr2, …);

format-string can use the following placeholders:

Examples:

num = 3;
printf("The cube of %d is %d.\n", num, num*num*num);

The cube of 3 is 27.

id  = 'z';
num = 1234567;
printf("Your \"login ID\" will be in the form of %c%d.\n", id, num);

Your "login ID" will be in the form of z1234567.

• Can also use width and precision:

  printf("%8.3f\n", 3.14159);


     3.142


Algorithms are built using

• assignments
• conditionals
• loops
• function calls/return statements

• In C, each statement is terminated by a semicolon ;
• Curly brackets { } used to enclose statements in a block
• Usual arithmetic operators: +, -, *, /, %
• Usual assignment operators: =, +=, -=, *=, /=, %=
• The operators ++ and -- can be used to increment a variable (add 1) or decrement a variable (subtract 1)
  • It is recommended to put the increment or decrement operator after the variable:


             // suppose k=6 initially
    k++;     // increment k by 1; afterwards, k=7
    n = k--; // first assign k to n, then decrement k by 1
             // afterwards, k=6 but n=7


  • It is also possible (but NOT recommended) to put the operator before the variable:


             // again, suppose k=6 initially
    ++k;     // increment k by 1; afterwards, k=7
    n = --k; // first decrement k by 1, then assign k to n
             // afterwards, k=6 and n=6


C assignment statements are really expressions

• they return a result: the value being assigned
• the return value is generally ignored

v = 5; //The value of the expression is 5.

Useful because it lets you combine: (1) collecting a value (2) testing that value, into a single expression.

Frequently, assignment is used in loop continuation tests

• to combine the test with collecting the next value
• to make the expression of such loops more concise

v = getNextItem();
while (v != 0) {
   process(v);
   v = getNextItem();
}

is often written as

while ((v = getNextItem()) != 0) {
   process(v);
}

1.
   a = 1; b = 5;
   while (a < b) {
      a++;
      b--;
   }


2.
   a = 1; b = 5;
   while ((a += 2) < b) {
      b--;
   }


1. a == 3, b == 3
2. a == 5, b == 4

if (expression) {
   some statements;
}

if (expression) {
   some statements1;
} else {
   some statements2;
}

• some statements executed if, and only if, the evaluation of expression is non-zero
• some statements1 executed when the evaluation of expression is non-zero
• some statements2 executed when the evaluation of expression is zero
• Statements can be single instructions or blocks enclosed in { }

Indentation is very important in promoting the readability of the code

Each logical block of code is indented:

// Style 1 if (x) { statements; }

// Style 2 (my preference) if (x) { statements; }

// Preferred else-if style if (expression1) { statements1; } else if (exp2) { statements2; } else if (exp3) { statements3; } else { statements4; }

Relational and logical operators

a > b		a greater than b
a >= b		a greater than or equal b
a < b		a less than b
a <= b		a less than or equal b
a == b		a equal to b
a != b		a not equal to b
a && b		a logical and b
a || b		a logical or b
! a		logical not a

A relational or logical expression evaluates to 1 if true, and to 0 if false

1. What is the output of the following program fragment?

   if ((x > y) && !(y-x <= 0)) {
       printf("Aye\n");
   } else {
       printf("Nay\n");
   }


2. What is the resulting value of x after the following assignment?

   x = (x >= 0) + (x < 0);


1. The condition is unsatisfiable, hence the output will always be

   Nay


2. No matter what the value of x, one of the conditions will be true (==1) and the other false (==0)
   Hence the resulting value will be x == 1

C has two different "while loop" constructs

// while loop
while (expression) {
    some statements;
}

// do .. while loop
do {
   some statements;
} while (expression);

int x = 5;

while (x < 3) {
    printf("%d\n", x);
    x++;
}
//output: nothing

int x = 5;

do {
    printf("%d\n", x);
    x++;
} while (x < 3);
//output: 5

The  do .. while  loop ensures the statements will be executed at least once

The "for loop" in C

for (expr1; expr2; expr3) {
   some statements;
}

• expr1 is evaluated before the loop starts
• expr2 is evaluated at the beginning of each loop
  • if it is non-zero, the loop is repeated
• expr3 is evaluated at the end of each loop



Example:

for (i = 1; i < 10; i++) { printf("%d %d\n", i, i * i); }

int i, j;
for (i = 8; i > 1; i /= 2) {
    for (j = i; j >= 1; j--) {
        printf("%d%d\n", i, j);
    }
    printf("\n");
}

88
87
..
81

44
..
41

22
21

Functions have the form

return-type function-name(parameters) {

    declarations

    statements

    return …;
}

• if return_type is void then the function does not return a value
• if parameters is void then the function has no arguments

When a function is called:

1. memory is allocated for its parameters and local variables
2. the parameter expressions in the calling function are evaluated
3. C uses "call-by-value" parameter passing …
   • the function works only on its own local copies of the parameters, not the ones in the calling function
4. local variables need to be assigned before they are used   (otherwise they will have "garbage" values)
5. function code is executed, until the first return statement is reached

When a return statement is executed, the function terminates:

return expression;

1. the returned expression will be evaluated
2. all local variables and parameters will be thrown away when the function terminates
3. the calling function is free to use the returned value, or to ignore it

// Euclid's gcd algorithm (recursive version)
int euclid_gcd(int m, int n) {
    if (n == 0) {
        return m;
    } else {
        return euclid_gcd(n, m % n);
    }
}

The return statement can also be used to terminate a function of return-type void:

return;

• In C each variable must have a type
• C has the following generic data types:

  char		character		'A', 'e', '#', …
  int		integer		2, 17, -5, …
  float		floating-point number		3.14159, …
  double		double precision floating-point		3.14159265358979, …

  There are other types, which are variations on these

• Variable declaration must specify a data type and a name; they can be initialised when they are declared:

  float x;
  char  ch = 'A';
  int   j = i;


Families of aggregate data types:

• homogeneous … all elements have same base type
  • arrays (e.g. char s[50], int v[100])
• heterogeneous … elements may combine different base types
  • structures (e.g. struct student { char name[30]; int zID; })

An array is

• a collection of same-type variables
• arranged as a linear sequence
• accessed using an integer subscript
• for an array of size N, valid subscripts are 0..N-1

int  a[20];    // array of 20 integer values/variables
char b[10];    // array of 10 character values/variables

Larger example:

#define MAX 20

int i;           // integer value used as index
int fact[MAX];   // array of 20 integer values

fact[0] = 1;
for (i = 1; i < MAX; i++) {
    fact[i] = i * fact[i-1];
}

We can define a symbolic constant at the top of the file

#define SPEED_OF_LIGHT 299792458.0
#define ERROR_MESSAGE "Out of memory.\n"

Symbolic constants make the code easier to understand and maintain

#define NAME replacement_text

• The compiler's pre-processor will replace all occurrences of NAME with replacement_text
• it will not make the replacement if NAME is inside quotes ("…") or part of another name

UNSW Computing provides a style guide for C programs:

Not strictly mandatory for COMP9024, but very useful guideline

Style considerations that do matter for your COMP9024 assignments:

• use proper layout, including consistent indentation
  • 3 spaces throughout, or 4 spaces throughout
    do not use TABs
• keep functions short and break into sub-functions as required
• use meaningful names (for variables, functions etc)
• use symbolic constants to avoid burying "magic numbers" in the code
• comment your code

C has a reputation for allowing obscure code, leading to …

The International Obfuscated C Code Contest

• Run each year since 1984
• Goal is to produce
  • a working C program
  • whose appearance is obscure
  • whose functionality unfathomable
• Web site: www.ioccc.org
• 100's of examples of bizarre C code
  (understand these → you are a C master)

Most artistic code (Eric Marshall, 1986)

                                                   extern int
                                                       errno
                                                         ;char
                                                            grrr
                             ;main(                           r,
  argv, argc )            int    argc                           ,
   r        ;           char *argv[];{int                     P( );
#define x  int i,       j,cc[4];printf("      choo choo\n"     ) ;
x  ;if    (P(  !        i              )        |  cc[  !      j ]
&  P(j    )>2  ?        j              :        i  ){*  argv[i++ +!-i]
;              for    (i=              0;;    i++                   );
_exit(argv[argc- 2    / cc[1*argc]|-1<4 ]    ) ;printf("%d",P(""));}}
  P  (    a  )   char a   ;  {    a  ;   while(    a  >      "  B   "
  /* -    by E            ricM    arsh             all-      */);    }

Just plain obscure (Ed Lycklama, 1985)

#define o define
#o ___o write
#o ooo (unsigned)
#o o_o_ 1
#o _o_ char
#o _oo goto
#o _oo_ read
#o o_o for
#o o_ main
#o o__ if
#o oo_ 0
#o _o(_,__,___)(void)___o(_,__,ooo(___))
#o __o (o_o_<<((o_o_<<(o_o_<<o_o_))+(o_o_<<o_o_)))+(o_o_<<(o_o_<<(o_o_<<o_o_)))
o_(){_o_ _=oo_,__,___,____[__o];_oo ______;_____:___=__o-o_o_; _______:
_o(o_o_,____,__=(_-o_o_<___?_-o_o_:___));o_o(;__;_o(o_o_,"\b",o_o_),__--);
_o(o_o_," ",o_o_);o__(--___)_oo _______;_o(o_o_,"\n",o_o_);______:o__(_=_oo_(
oo_,____,__o))_oo _____;}

"String" is a special word for an array of characters

• end-of-string is denoted by '\0' (of type char and always implemented as 0)

If a character array s[11] contains the string "hello", this is how it would look in memory:

  0   1   2   3   4   5   6   7   8   9   10
---------------------------------------------
| h | e | l | l | o | \0|   |   |   |   |   |
---------------------------------------------

Arrays can be initialised by code, or you can specify an initial set of values in declaration.

Examples:

char s[6]   = {'h', 'e', 'l', 'l', 'o', '\0'};

char t[6]   = "hello";

int fib[20] = {1, 1};

int vec[]   = {5, 4, 3, 2, 1};

In the third case, fib[0] == fib[1] == 1 while the initial values fib[2] .. fib[19] are undefined.

In the last case, C infers the array length   (as if we declared vec[5]).

 1  #include <stdio.h>
 2
 3  int main(void) {
 4     int arr[3] = {10,10,10};
 5     char str[] = "Art";
 6     int i;
 7
 8     for (i = 1; i < 3; i++) {
 9        arr[i] = arr[i-1] + arr[i] + 1;
10        str[i] = str[i+1];
11     }
12     printf("Array[2] = %d\n", arr[2]);
13     printf("String = \"%s\"\n", str);
14     return 0;
15  }

Array[2] = 32
String = "At"

Formatted input read from standard input (e.g. keyboard)

scanf(format-string, expr1, expr2, …);

Converting string into integer

int value = atoi(string);

Example:

#include <stdio.h>   // includes definition of BUFSIZ (usually =512) and scanf()
#include <stdlib.h>  // includes definition of atoi()

...

char str[BUFSIZ];
int n;

printf("Enter a string: ");
scanf("%s", str);
n = atoi(str);
printf("You entered: \"%s\". This converts to integer %d.\n", str, n);

Enter a string: 9024
You entered: "9024". This converts to integer 9024.

When an array is passed as a parameter to a function

• the address of the start of the array is actually passed

int total, vec[20];
…
total = sum(vec);

Within the function …

• the types of elements in the array are known
• the size of the array is unknown

Since functions do not know how large an array is:

• pass in the size of the array as an extra parameter, or
• include a "termination value" to mark the end of the array

int total, vec[20];
…
total = sum(vec,20);

Also, since the function doesn't know the array size, it can't check whether we've written an invalid subscript (e.g. in the above example 100 or 20).

Implement a function that sums up all elements in an array.

Use the prototype

int sum(int[], int)

int sum(int vec[], int dim) {
   int i, total = 0;

   for (i = 0; i < dim; i++) {
      total += vec[i];
   }
   return total;
}

Examples:

Note:   q[0][1]==2.7    r[1][3]==8    q[1]=={3.1,0.1}

Multi-dimensional arrays can also be initialised (must provide # of columns):

float q[][2] = {
   { 0.5, 2.7 },
   { 3.1, 0.1 }
};

C allows us to define new data type (names) via typedef:

typedef ExistingDataType NewTypeName;

Examples:

typedef float Temperature;

typedef int Matrix[20][20];

Using these types

Reasons to use typedef:

• give meaningful names to value types   (documentation)
  • is a given number Temperature, Dollars, Volts, …?
• allow for easy changes to underlying type

  typedef float Real;
  Real complex_calculation(Real a, Real b) {
  	Real c = log(a+b); … return c;
  }


• "package up" complex type definitions for easy re-use
  • many examples to follow; Matrix is a simple example

A structure

• is a collection of variables, perhaps of different types, grouped together under a single name
• helps to organise complicated data into manageable entities
• exposes the connection between data within an entity
• is defined using the struct keyword

typedef struct {
       char name[30];
       int  zID;
} StudentT;

One structure can be nested inside another:

typedef struct {
	int day, month;
} DateT;

typedef struct {
	int hour, minute;
} TimeT;

typedef struct {
	char   plate[7];   // e.g. "DSA42X"
	double speed;
        DateT  d;
	TimeT  t;
} TicketT;

Possible memory layout produced for TicketT object:

---------------------------------
| D | S | A | 4 | 2 | X | \0|   |    7 bytes + 1 padding
---------------------------------
|                          68.4 |    8 bytes
---------------------------------
|             2 |             6 |    8 bytes
---------------------------------
|            20 |            45 |    8 bytes
---------------------------------

Don't normally care about internal layout, since fields are accessed by name.

Defining a structured data type itself does not allocate any memory

We need to declare a variable in order to allocate memory

DateT christmas;

The components of the structure can be accessed using the "dot" operator

christmas.day   =   25;
christmas.month =   12;

With the above TicketT type, we declare and use variables as …

#define NUM_TICKETS 1500

typedef struct {…} TicketT;

TicketT tickets[NUM_TICKETS];  // array of structs

// Print all speeding tickets in a readable format
for (i = 0; i < NUM_TICKETS; i++) {
    printf("%s %6.2f %d/%d at %d:%d\n", tickets[i].plate,
                                        tickets[i].speed,
                                        tickets[i].d.day,
                                        tickets[i].d.month,
                                        tickets[i].t.hour,
                                        tickets[i].t.minute);
}

// Sample output:
//
// DSA42X  68.40 2/6 at 20:45

A structure can be passed as a parameter to a function:

void print_date(DateT d) {

	printf("%d/%d\n", d.day, d.month);
}

int is_winter(DateT d) {

	return ( (d.month >= 6) && (d.month <= 8) );
}

A data type is …

• a set of values   (atomic or structured values)
• a collection of operations on those values

• is a logical description of how we view the data and operations
• without regard to how they will be implemented
• creates an encapsulation around the data
• is a form of information hiding

e.g. integer stacks/  e.g. push, pop, isEmpty?

Users of the ADT see only the interface

Builders of the ADT provide an implementation

ADT interface provides

• a user-view of the data structure
• function signatures (prototypes) for all operations
• semantics of operations (via documentation)
• ⇒  a "contract" between ADT and its clients

• concrete definition of the data structures
• function implementations for all operations

ADT interfaces are opaque

• clients cannot see the implementation via the interface

• facilitate decomposition of complex programs
• make implementation changes invisible to clients
• improve readability and structuring of software
• allow for reuse of modules in other systems

We want to distinguish …

• ADO = abstract data object
• ADT = abstract data type

Stack, aka pushdown stack or LIFO data structure (last in, first out)

Assume (for the time being) stacks of char values

Operations:

• create an empty stack
• insert (push) an item onto stack
• remove (pop) most recently pushed item
• check whether stack is empty

• undo sequence in a text editor
• bracket matching algorithm
• …

Example of use:

Queue, aka FIFO data structure (first in, first out)

Insert and delete are called enqueue and dequeue

Applications:

• the checkout at a supermarket
• people queueing to go onto a bus
• objects flowing through a pipe (where they cannot overtake each other)
• chat messages
• web page requests arriving at a web server
• printing jobs arriving at a printer
• …

Consider the previous example but with a queue instead of a stack.

Which element would have been taken out ("dequeued") first?

Interface (a file named Stack.h)

// Stack ADO header file

#define MAXITEMS 10

void StackInit();      // set up empty stack
int  StackIsEmpty();   // check whether stack is empty
void StackPush(char);  // insert char on top of stack
char StackPop();       // remove char from top of stack

Note:

• no explicit reference to Stack object
• this makes it an Abstract Data Object (ADO)

Implementation may use the following data structure:

Implementation (in a file named Stack.c):

#include "Stack.h" #include <assert.h> // define the Data Structure typedef struct { char item[MAXITEMS]; int top; } stackRep; // define the Data Object static stackRep stackObject; // set up empty stack void StackInit() { stackObject.top = -1; } // check whether stack is empty int StackIsEmpty() { return (stackObject.top < 0); }

// insert char on top of stack void StackPush(char ch) { assert(stackObject.top < MAXITEMS-1); stackObject.top++; int i = stackObject.top; stackObject.item[i] = ch; } // remove char from top of stack char StackPop() { assert(stackObject.top > -1); int i = stackObject.top; char ch = stackObject.item[i]; stackObject.top--; return ch; }

• assert(test) terminates program with error message if test fails
• static Type Var declares Var as local to Stack.c

Bracket matching … check whether all opening brackets such as '(', '[', '{' have matching closing brackets ')', ']', '}'

Which of the following expressions are balanced?

1. (a+b) * c
2. a[i]+b[j]*c[k])
3. (a[i]+b[j])*c[k]
4. a(a+b]*c
5. void f(char a[], int n) {int i; for(i=0;i<n;i++) { a[i] = (a[i]*a[i])*(i+1); }}
6. a(a+b * c

1. balanced
2. not balanced (case 1: an opening bracket is missing)
3. balanced
4. not balanced (case 2: closing bracket doesn't match opening bracket)
5. balanced
6. not balanced (case 3: missing closing bracket)

Bracket matching algorithm, to be implemented as a client for Stack ADO:

bracketMatching(s):
|  Input  stream s of characters
|  Output true if parentheses in s balanced, false otherwise
|
|  for each ch in s do
|  |  if ch = open bracket then
|  |     push ch onto stack
|  |  else if ch = closing bracket then
|  |  |  if stack is empty then
|  |  |     return false                    // opening bracket missing (case 1)
|  |  |  else
|  |  |     pop top of stack
|  |  |     if brackets do not match then
|  |  |        return false                 // wrong closing bracket (case 2)
|  |  |     end if
|  |  |  end if
|  |  end if
|  end for
|  if stack is not empty then return false  // some brackets unmatched (case 3)
|                        else return true

Execution trace of client on sample input:

( [ { } ] )

Trace the algorithm on the input

void f(char a[], int n) {
   int i;
   for(i=0;i<n;i++) { a[i] = a[i]*a[i])*(i+1); }
}

• Use Stack ADT

  #include "Stack.h"


• Sidetrack: Character I/O Functions in C   (requires <stdio.h>)

  int getchar(void);


  • returns character read from standard input as an int, or returns EOF on end of file   (keyboard: CTRL-D on Unix, CTRL-Z on Windows)

  int putchar(int ch);


  • writes the character ch to standard output
  • returns the character written, or EOF on error

Compilers are programs that

• convert program source code to executable form
• "executable" might be machine code or bytecode

• applies source-to-source transformation (pre-processor)
• compiles source code to produce object files
• links object files and libraries to produce executables

Compilation/linking with gcc

gcc -c Stack.c
produces Stack.o, from Stack.c and Stack.h

gcc -c brackets.c
produces brackets.o, from brackets.c and Stack.h

gcc -o rbt brackets.o Stack.o
links brackets.o, Stack.o and libraries
producing executable program called rbt

Note that stdio,assert included implicitly.

gcc is a multi-purpose tool

• compiles (-c), links, makes executables (-o)

• Introduction to Algorithms and Data Structures
• C programming language, compiling with gcc
  • Basic data types (char, int, float)
  • Basic programming constructs (if … else conditionals, while loops, for loops)
  • Basic data structures (atomic data types, arrays, structures)
• Introduction to ADTs
  • Compilation

• Suggested reading (Moffat):
  • introduction to C … Ch. 1; Ch. 2.1-2.3, 2.5-2.6;
  • conditionals and loops … Ch. 3.1-3.3; Ch. 4.1-4.4
  • arrays … Ch. 7.1, 7.5-7.6
  • structures … Ch. 8.1
• Suggested reading (Sedgewick):
  • introduction to ADTs … Ch. 4.1-4.3
