❖ Week 10 Monday

In today's lecture ...

• Concurency,   Database History,   Course Review,   Exam Preview

Things to do ...

• Assignment 2 now due midday Thursday (Nov 16)
  (and no fiurther extensions based on you overloading vxdb2)
• Quiz 6 due by 23:59 Saturday (Nov 18)
• MyExperience course evaluation now open (7% response rate so far)

Coming Up ...

• no lecture on Wednesday
• will schedule pre-exam Help Sessions for coming weeks

❖ Assignment 2

How to allocate courses to requirements:

• overall order: stream core, prog core, stream elective, prog elective, gened, free
• within groups, consider in order of Requirements.id
• does it appear in a core requirement, add to that requirement
• does it appear in an elective requirement (either directly or via a pattern)
  and are the UOC already allocated < min_req, add to that requirement
• is the allocated gened UOC < max_req, add to the gened requirement
• if UOC already allocated to free < min_req, add to free requirement
• otherwise, cannot be allocated

Make a single pass through the courses in the transcript; allocate greedily

❖ Assignment 2 (cont)

Side-effects of this one-pass greedy allocation approach

• courses which could potentially be allocated to free, aren't
• some GEN##### course may end up in free

First problem could be alleviated by changing the allocation to free

• allocate to free even if UOC for free ≥ min_req

Second problem is difficult to fix

• don't want to hold off allocating non-GEN courses to gened
• just about any course can be a gened these days

DO NOT implement these fixes for the assignment

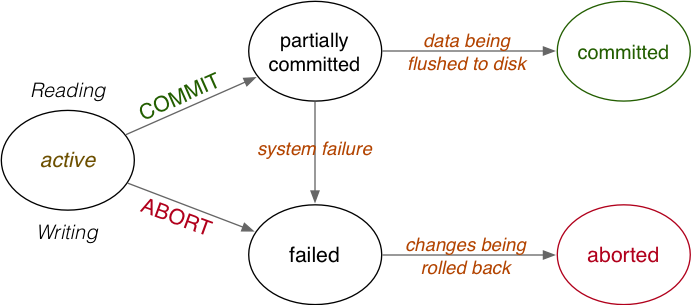

❖ Transactions (recap)

Transaction are application atomic operations, involing multiple DB ops

A transaction must always terminate, either:

• successfully (COMMIT), with all changes preserved
• unsuccessfully (ABORT), with database unchanged

❖ Concurrency Control in SQL

Transactions in SQL are specified by

• BEGIN ... start a transaction
• COMMIT ... successfully complete a transaction
• ROLLBACK ... undo changes made by transaction + abort

In PostgreSQL, some actions cause implicit rollback:

• raise exception  during execution of a function
• returning null from a  before  trigger

PostgreSQL also provdes ABORT as a synonym for SQL standard ROLLBACK

❖ Concurrency Control in SQL (cont)

Concurrent access can be controlled via SQL:

• table-level locking: apply lock to entire table
• row-level locking: apply lock to just some rows

LOCK TABLE  explicitly acquires lock on an entire table.

Some SQL commands implicitly acquire appropriate locks, e.g.

• ALTER TABLE  acquires an exclusive lock on table
• UPDATE, DELETE  acquire locks on affected rows

All locks are released at end of transaction

❖ Locking in PostgreSQL

Some locking in PG is implicit (e.g. changing schema)

Explicit locks are available:

lock table TableName [ in LockMode mode ]

Some possible LockModes:

• SHARE ... simply reading the table
• SHARE ROW EXCLUSIVE ... intend to update table

No UNLOCK ... all locks are released at end of transaction

Row-level locking: lock all selected rows for writing

select * from Table where Condition for update

❖ Locking in PostgreSQL (cont)

Two examples of lock usage in PostgreSQL:

begin;
lock table films in share mode;
select id into _id_ from films
    where name = 'Star Wars: Episode I - The Phantom Menace';
-- Do rollback if no record was returned
insert into films_user_comments values
    (_id_, 'GREAT! I was waiting for it for so long!');
commit;

begin;
lock table films in share row exclusive mode;
delete from films_user_comments where id in
    (select id from films where rating < 5);
delete from films where rating < 5;
commit;

❖ Exercise: Locking

Apply appropriate locking in the bank transfer transaction.

create or replace function
   transfer(N integer, Src text, Dest text)
   returns integer
declare
   sID integer; dID integer; avail integer;
begin
   select id,balance into sID,avail
   from   Accounts where name=Src;
...
   return nextval('tx_id_seq');
end;

❖ Locking and Performance

Locking reduces concurrency ⇒ lower throughput.

Granularity of locking can impact performance:

+ lock a small item ⇒ more of database accessible

+ lock a small item ⇒ quick update ⇒ quick lock release

- lock small items ⇒ more locks ⇒ more lock management

Granularity levels: field, row (tuple), table, whole database

Many DBMSs support multiple lock-granularities.

❖ Multi-version Concurrency Control

One approach to reducing the requirement for locks is to

• provide multiple (consistent) versions of the database
• give each transaction access to an "appropriate" version
  (i.e. a version that maintains the serializability of the transaction)

This approach is called Multi-Version Concurrency Control.

Differences between MVCC and standard locking models:

• writing never blocks reading   (make new version of tuple)
• reading never blocks writing   (read old version of tuple)

PostgreSQL pioneered MVCC as a concurrency control mechanism

❖ Multi-version Concurrency Control (cont)

PostgreSQL MVCC ...

• each tuple is tagged with (time of) tx that created/deleted it
• each tuple is linked to the next newer version of same tuple

Access to a tuple requires

• check most recent version which existed when tx started; use that version

Periodic vacuum process deletes tuples that

• are not accessible to any currently executing transactions

Time/space overheads in implementing MVCC

• are justified by reduced requirement for locking (⇒ more concurrency)

❖ A Brief History of Databases

Some important moments in the development of Databases ...

• 1960's ... large data stores based on linked network of nodes
• 1970 ... Ted Codd invents relational model
• 1975 ... System R from IBM ... first relational DBMS (incl.SQL)
• 1979 ... Oracle ships first version of its DBMS
• 1980's ... Stonebraker makes Postgres (some OO features)
• 1990's ... Object-oriented DBMSs, Access (DBMS?), PostgreSQL
• 1998 ... IBM releases SQL Server
• 2000's ... XML databases, then NoSQL databases
• 2010's ... DBMSs become more "distributed", also MongoDB
• recently ... eventual consistency, column stores, graph databases

❖ Future of Database

Core "database" goals:

• deal with very large amounts of data (terabytes, petabyes, ...)
• very-high-level languages (deal with big data in uniform ways)
• query optimisation   (if evaluation too slow ⇒ useless)

At the moment (and for the last 40 years) RDBMSs dominate ...

• simple, clean data model, backed up by theory
• high-level language for accessing data
• 50 years development work on RDB engine technology

RDBMSs work well in domains with uniform, structured data.

❖ Future of Database (cont)

Limitations/pitfalls of RDBMSs:

• NULL is ambiguous: unknown, not applicable, not supplied
• "limited" support for constraints/integrity and rules
• no support for uncertainty (data represents the state-of-the-world)
• data model too simple (e.g. limited support for complex objects, but PG)
• query model too rigid (e.g. no approximate match, but PG regexp)
• cotinually changing data sources not well-handled
• data must be "molded" to fit a single rigid schema
• database systems must be manually "tuned"
• do not scale well to some data sets (e.g. Google, Telco's)

❖ Future of Database (cont)

How to overcome (some of) these limitations?

Extend the relational model ...

• add new data types and query ops for new applications
• non-1NF data e.g. arrays, JSON ... both supported by PostgreSQL
• deal with uncertainty/inaccuracy/approximation in data

Replace the relational model ...

• object-oriented DBMS ... OO programming with persistent objects
• XML DBMS ... all data stored as XML documents, new query model
• application-effective data model (e.g. (key,value) pairs)

Performance: DBMSs that "tune" themselves ...

❖ Big Data

Some modern applications have massive data sets (e.g. Google)

• far too large to store on a single machine/RDBMS
• query demands far too high even if could store in DBMS

Approach to dealing with such data

• distribute data over large collection of nodes (redundancy)
• provide computational mechanisms for distributing computation

Often this data does not need full relational selection

• represent data via (key,value) pairs
• unique key values can be used for addressing data
• values can be large objects (e.g. web pages, images, ...)

❖ Big Data (cont)

Popular computational approach to Big Data: map/reduce

• suitable for widely-distributed, very-large data
• allows parallel computation on such data to be easily specified
• distribute (map) parts of computation across network
• compute in parallel (possibly with further map'ing)
• merge (reduce) multiple results for delivery to requestor

Some Big Data proponents see no future need for SQL/relational ...

• depends on application (e.g. hard integrity vs eventual consistency)

Humour: Parody of noSQL fans (strong language warning)

❖ Object-relational Mapping

Pure OO databases came and went in the 90's  (similarly XML databases)

A compromise:

• data stored in relational format
• "wrapper" gives the apperance of objects

Programmer works purely with objects; wrapper converts to SQL

Problems:

• OO query mechanisms are no better than SQL
• translation may lead to inefficient SQL

❖ Information Retrieval

DBMSs generally do precise matching (although like/regexps)

Information retrieval systems do approximate matching.

E.g. documents containing these words (Google, etc.)

Also, introduce notion of "quality" of matching
(e.g. tuple T₁ is a better match than tuple T₂)

Quality also implies ranking of results.

Much activity in incorporating IR ideas into DBMS context.

Goal: support database exploration better.

❖ Multimedia Data

Data which does not fit the "tabular model":

• image, video, music, text, ... (and combinations of these)

Research problems:

• how to specify queries on such data? (image₁ ≅ image₂)
• how to "display" results? (synchronize components)

Solutions to the first problem typically:

• extend notions of "matching"/indexes for querying
• require sophisticated methods for capturing data features

Sample query: find other songs like this one?

❖ Uncertainty

Multimedia/IR introduces approximate matching.

In some contexts, we have approximate/uncertain data.

E.g. witness statements in a crime-fighting database

"I think the getaway car was red ... or maybe orange ..."

"I am 75% sure that John carried out the crime"

Work by Jennifer Widom at Stanford on the Trio system

• extends the relational model (ULDB)
• extends the query language (TriQL)

❖ Stream Management Systems

Makes one addition to the relational model

• stream = infinite sequence of tuples, arriving one-at-a-time

Applications: news feeds, telecomms, monitoring web usage, ...

RDBMSs: run a variety of queries on (relatively) fixed data

StreamDBs: run fixed queries on changing data (stream)

Approaches:

• window = relation formed from a stream via a rule
• stream data type = build new stream-specific operations

❖ Graph-based Databases

Use graphs rather than tables as basic data structure tool.

Applications: complex data representation, via "flexible" objects

Implementing graphs in RDBMSs is possible, but often inefficient.

Graph nature of data changes query model considerably.

• different kinds of queries: kNN, neighbourhood, skyline

Research problem: query processing for large graphs

❖ Dispersed Databases

Characteristics of dispersed databases:

• very large numbers of small processing nodes
• data is distributed/shared among nodes

Applications: environmental monitoring devices, "intelligent dust", ...

Research issues:

• query/search strategies (how to organise query processing)
• distribution of data (trade-off between centralised and diffused)

Less extreme versions of this already exist:

• grid and cloud computing
• database management for mobile devices

❖ Main-memory Databases

Disk-based data is slow to access, and page-at-a-time

• RBDMS techniques aim to minimise page read/writes
• methods: buffering, indexes, join algotithms

Non-volatile non-disk storage is becoming larger and cheaper

• many databases would fit in memory ... disk as a backup/archive

Research problems:

• how to structure data on SSD-like devices
• how to process queries in such an environment

❖ Other DB Research

Open problems:

• database integration/federation
  • making a collection of heterogeneous databases work together
  • schema reconciliation is a difficult problem (vocab, schemas)
• replication
  • maintain consistent copies of one database across multiple hosts
  • how to propagate changes systematically?
• column-based storage
  • row = collection of values for a given attribute
  • column = collection of attributes for tuple

❖ Beyond COMP3311

COMP9312 Data Analytics for Graphs

• manipulating large-scale graph structures

COMP9313 Big Data Management

• handling data that won't fit in a DBMS on one machine

COMP9315 Database Systems Implementation

• comprehensive study of DBMS internals

COMP9319 Web Data Compression and Search

• compression and searching algorithms, and XML

COMP6714 Information Retrieval and Web Search

• finding information in unstructured text

❖ COMP3311 Course Aims

At the end of this course you should be able to:

• develop accurate, non-redundant data models;
• realise data models as relational database schemas;
• formulate queries via the full range of SQL constructs;
• use stored procedures and triggers to extend DBMS capabilities;
• write applications in Python that interact effectively with databases;
• understand the overall architecture of relational DBMSs;
• analyze performance issues in relational database applications;
• understand how queries are evaluated via relational algebra operations;
• understand the concepts behind transactions and concurrency control

❖ Syllabus Overview

1. Data modelling and database design
   • Entity-relationship (ER) design, relational data model
   • Relational theory   (algebra, dependencies, normalisation)
2. Database application development
   • SQL for querying, data definition and modification   (PostgreSQL's version)
   • extending SQL   Queries, Functions, Aggregates, Triggers
   • PostgreSQL,   psql (an SQL shell),   PLpgSQL (procedural SQL)
   • SQLite,   sqlite3 (an SQL shell)
   • Python3,   Psycopg2,   accessing data programmatically
3. DBMS theory/technology
   • relational algebra,   functional dependencies,   normalization
   • performance tuning,   catalogues,   access control
   • DBMS architecture,   query processing,   transaction processing

Things in gray will definitely not be examined.

❖ Assessment Summary

Your final mark/grade will be determined as follows:

quizzes = mark for on-line quizzes   (out of 12)
ass1    = mark for assignment 1      (out of 12)
ass2    = mark for assignment 2      (out of 16)
exam    = mark for final exam        (out of 60)
okExam  = exam >= 25                 (after scaling)
mark    = quizzes + ass1 + ass2 + exam
grade   = HD|DN|CR|PS  if mark >= 50 && okExam
        = FL           if mark <  50 && okExam
        = UF           if !okExam

❖ Final Exam

Mon 4 Dec,   3-hour exam,   morning and afternoon sessions

Morning: arrive by 10:00am,   Afternoon: arrive by 1:20pm

Exam environment:

• invigilated, in the CSE labs, on CSE workstations
• closed exam environment, no Webcms3, no email, no web
• provided: questions, documentation, course notes
• no BYO laptop

❖ Final Exam (cont)

Questions ...

• 5 practical exercises, using PostgreSQL/Python3/Psycopg2
• 4 theory exercises, typed answers, like tute questions

What you have access to ...

• the exam paper (html), templates for all questions
• checking scripts for programming questions (like autotest)
• course notes, documentation for PostgreSQL/Python/Psycopg2

What you do not have access to

• the class directory, your home directory
• Webcms3, email, messaging, etc.

❖ Final Exam (cont)

When you login (zID/zPass) into the exam environment ...

• we create some working directories
  • including templates and testing scripts
• we create a local PostgreSQL server for you
• we load the exam database into your PG server
• we start a web browser, pointing at the exam entry page

PostgreSQL server runs on your workstation

Database: will not be huge, will not be overly complex (e.g. < 15 tables)

You do not have access to  VLab or  /localstorage  or  /home/YOU

❖ Final Exam (cont)

For the prac questions ...

• files are contained in a q? directory
• including a template, test cases and a check script

For the theory questions ...

• each question has a text file template q?.txt

General suggestions ...

• submit your answers using a submit script (e.g. submit q2)
• give up on questions that are taking too long (e.g. > 30 mins for prac)
• submit questions as you complete them; can submit multiple times
• don't leave all submissions to the last minute; if late, not marked

❖ Final Exam (cont)

❖ Final Exam (cont)

Questions are as follows:

1. an SQL query
2. another SQL query
3. a PLpgSQL function
4. a Python3/Psycopg2 script
5. another Python3/Psycopg2 script
6. an analysis/synthesis question
7. another analysis/synthesis question
8. etc. etc. etc.

Note that the database for Q1-5 will be available in advance.

❖ Revision

Sources for revision material:

• Lecture Material, Prac/Tute Exercises, Assignments
• Fundamentals of Database Systems, Elmasri/Navathe
• Database System Concepts, Silberschatz/Korth/Sudarshan
• Database Management Systems, Ramakrishnan/Gehrke
• Database Systems: Complete Book, Garcia-Molina/Ullman/Widom
• Database Systems: App-oriented, Kifer/Bernstein/Lewis
• PostgreSQL/Python3/Psycopg2 Documentation (to some extent)

❖ Supplementary Exams

Supplementary Exams are only available to people who

• are absent from the Final Exam with good reason
  (good = documented, serious, clearly affects ability to do exam)
• have performed well during the rest of the semester

If you are awarded a Supp Exam ...

• to be held in O-week of 24T1 (Mon 5 Feb)
• you must make yourself available for it
• non-attendance at the Supp ⇒ mark of 0 for the exam

❖ Assessment

Assessment is about determining how well you understand the syllabus.

If you can't demonstrate your understanding, you won't pass.

In particular, I don't pass people just because ...

• please, please, ... my parents will be ashamed of me
• please, please, ... I tried really hard in this course
• please, please, ... this is my final course to graduate
• please, please, ... I'll be excluded if I fail COMP3311
• please, please, ... if I fail this, I can't do COMP93xx
• etc. etc. etc.

❖ Assessment (cont)

Of course, assessment isn't a "one-way street" ...

• we get to assess you in the final exam
• you get to assess us in the Course Evaluation

MyExperience evaluations are online (via MyUNSW) NOW

Several evaluations: course, lecturer, tutor

Telling us good things is ok.

Telling us things to improve is very useful.

❖ Some Thoughts ...

You need to learn for life, not just the exam.

In particular, learn to find answers for yourself.

Typically, no single correct answer. (Solutions range from poor to excellent)

Take pride in your work. (Aim for quality, not just correctness)

VScode and autotest will generally not be available in the workplace

❖ Finally ...
