❖ Week 07 Monday

In today's lecture ...

• Assignment 2,   Python/psycopg2,   Relational Design Theory

Things to do ...

• Quiz 4 due by 23:59 Friday 27 October  (Week 7)
• Assignment 2 due by 23:59 Friday 10 November  (Week 9)
• Play with the  ass2  database and Python/psycopg2

❖ Rest of Term

Plan for remainder of term:

❖ Assignment 2

Database about UNSW, called MyMyUNSW ...

• subjects, courses, streams (specialisations), programs
• people, students, staff, orgunits (organisational units)
• course_enrolments, stream_enrolments, program_enrolments
• degree requirements (total UOC, core, electives, gened, ...)

Similar to SiMS, the database behind myUNSW

Goal: build a progression checker (no more waiting for the Nucleus)

Database schema info will eventually be in .../assignments/ass2/schema.php

❖ Assignment 2 (cont)

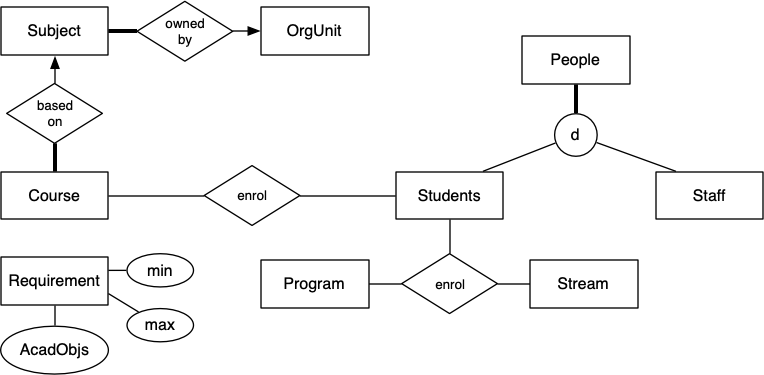

Partial ER diagram of the MyMyUNSW database:

❖ Assignment 2 (cont)

Differences/examples from diagram:

• students don't enrol directly in streams; via program enrolment
• OrgUnits exist in a hierarchy (school in faculty in UNSW)
• People.id is not the same as zID
• Requirements apply to streams and programs, e.g.

  Requirements(id,name,type,min,max,acadObjects,stream/program)
  Req(123,'CS core','core',42,42,'COMP1511,COMP1521,...',COMPA1)
  Req(345,'Gen Ed','gened',12,12,'FREE####',3778)
  Req(678,"CS Elective','elective',30,-,'COMP[3469]###',COMPA1)
  Req(789,'CS Majors','stream',1,1,'COMPA1,COMPD1,...',3778)


❖ Assignment 2 (cont)

How we are building the database ...

• collected lots of enrolment/course/etc data
• wrote scripts to extract (some) raw data into schema form
• filtered out most of the enrolment data; "randomised" the data
• built database, via  createdb,  psql -f,  \copy

Database dump is > 20MB   (don't copy it to Vlab)

Database under pgsql/data/base directory is > 200 MB

Your quota on /localstorage is not infinite;  manage space carefully

❖ Assignment 2 (cont)

What you get (as templates) and what you submit:

• helpers.sql ... holds SQL views and PLpgSQL functions
• helpers.py ... holds Python functions for general use
• script₁ ... Python script for Q1
• script₂ ... Python script for Q2
• etc. etc. etc.

Put these under your VLab directory, not under /localstorage

Submit via give or Webcms3 before 11:59 on Friday 10 November

❖ Keep in mind for Assignment 2

If 100's of people are finishing the assignment last minute ...

• we get bombarded with 100's of emails, forum posts, etc.

  (it takes much longer to get your question answered)

• vxdb2  has 100's of PG servers running simultaneously

  (it runs s-l-o-w; queries take much longer to run)

Beware:  /localstorage  is not backed up ... put only your DB there

❖ Psycopg2 recap

Psycopg2 is a library for Python ↔ PostgreSQL interaction.

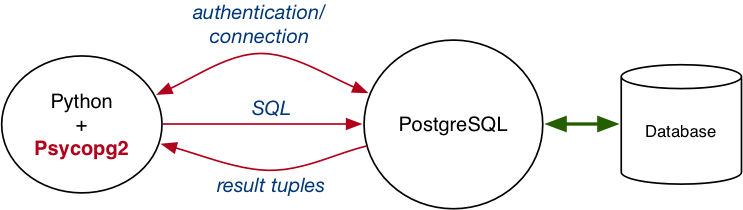

Where psycopg2 fits in the PL/DB architecture

❖ Psycopg2 recap (cont)

Common psycopg2 operations:

• conn = psycopg2.connect(DB_connection_string)
• conn.close()
• conn.commit()
• cur = conn.cursor()
• cur.execute(SQL_statement, Values)
• cur.mogrify(SQL_statement, Values)
• list = cur.fetchall()
• tup = cur.fetchone()
• list = cur.fetchmany(nTuples)

❖ Psycopg2 recap (cont)

Typical database access pattern in Psycopg2

qry = 'select a,b,c from R where d = %s'
try:
   db = psycopg2.connect('dbname=mydb')
   cur = db.cursor()
   cur.execute(qry, [6])
   for tup in cur.fetchall():
      x,y,z = tup  # extract a,b,c values into x,y,z
      ... do something with x, y, z ...

except Exception as err:
  print("DB error: ", err)

finally:
  if db:
    db.close()

❖ Psycopg2 Examples

Consider (a variation of) the MyMyUNSW database ...

People(id, zid, family, given, fullname, origin)
Students(id)
Staff(id, office, phone, employed, supervisor)

Orgunits(id, utype, name, unswid)
Terms(id, code, name, starting, ending)

Subjects(id, code, title, uoc, career, owner)
Courses(id, subject, term, homepage)
Streams(id, code, name, owner, stype)
Programs(id, code, name, uoc, owner, career, duration)

Program_enrolments(id, student, term, program, ...))
Stream_enrolments(part_of_prog_enr, stream)
Course_enrolments(student, course, mark, grade)

❖ Exercise: Python/psycopg2 Scripts

Write a Python script that, given a partial student name

• shows the full names and zids of students matching the name

Usage examples:  ./stu 'smith',     ./stu 'nobody'

Write a Python script that, given a term code

• prints how many courses were offered in that term

Usage examples:  ./crs 17s2,     ./crs 19T1

❖ Exercise: Python/psycopg2 Scripts (cont)

Write a Python script that, given a student ID

• gives a list of what program(s) the student was enrolled in

Usage examples:  ./progs 5124862,     ./progs 1234567

Write a Python script that, given a term code

• counts enrolments for every course in that term

Usage examples:  ./enrs 17s2,     ./enrs 19T1

❖ Relational Design Theory

We know how to express ER data models and SQL schemas

But how do we know that our models/schemas are "good"?

Properties of "good" models/schemas

• accurate ... represent scenario faithfully
• complete ... represent all aspects of a scenario
• minimal ... minimse stored data; no repetition

Relational design theory addresses the last issue

Relies on the notion of functional dependency

❖ Relational Design Theory (cont)

Functional dependencies

• describe relationships between attributes within  a relation

What we study here:

• basic theory and definition of functional dependencies
• methodology for improving schema designs (normalisation)

The aim of studying this:

• improve understanding of relationships among data
• gain enough formalism to assist practical database design

❖ Relational Design and Redundancy

In database design, redundancy is generally a "bad thing":

• makes it difficult to maintain consistency after updates

Our goal is to reduce redundancy in stored data

• by ensuring that the schema is structured appropriately

But ... redundancy may have some advantages

• e.g. give performance improvements
  (by avoiding joins to collect bits of related data together)

❖ Relational Design and Redundancy (cont)

Consider the following relation defining bank accounts/branches:

accountNo	balance	customer	branch	address	assets
A-101	500	1313131	Downtown	Brooklyn	9000000
A-102	400	1313131	Perryridge	Horseneck	1700000
A-113	600	9876543	Round Hill	Horseneck	8000000
A-201	900	9876543	Brighton	Brooklyn	7100000
A-215	700	1111111	Minus	Horseneck	400000
A-222	700	1111111	Redwood	Palo Alto	2100000
A-305	350	1234567	Round Hill	Horseneck	8000000

Careless updating of this data may introduce inconsistencies.

❖ Exercise: Update Anomalies

Show what happens when the following changes occur:

• add a new account (A-306,100,2424242,Round Hill)


• change the address of the Round Hill branch to San Jose


• close the account A-201

How to ensure that the database is updated appropriately when a new account is added as above?

❖ Update Anomalies

Insertion anomaly:

• when we insert a new record, we need to check that branch data is consistent with existing tuples

Update anomaly:

• if a branch changes address, we need to update all tuples referring to that branch

Deletion anomaly:

• if we remove information about the last account at a branch, all of the branch information disappears

Insertion/update anomalies are avoidable, but need extra DBMS work

❖ Avoiding Update Anomalies

Redundancy in stored data can lead to update anomalies

Functional dependencies allow us to

• reason about relationships between attributes
• identify redundancies (at schema level)

Normalization methods allow us to

• transform a schema to remove redundancy

Note: most algorithms for normalization are non-deterministic

• multiple different correct solutions are possible

❖ Notation/Terminology

Most texts adopt the following terminology:

Relation schemas		upper-case letters, denoting set of all attributes (e.g. R, S, P, Q )
Relation instances		lower-case letter corresponding to schema (e.g. r(R), s(S), p(P), q(Q) )
Tuples		lower-case letters   (e.g. t, t', t1, u, v )
Attributes		upper-case letters from start of alphabet (e.g. A, B, C, D )
Sets of attributes		simple concatenation of attribute names (e.g. X=ABCD, Y=EFG )
Attributes in tuples		tuple[attrSet] (e.g. t[ABCD], t[X])

❖ Database Design (revisited)

To avoid update anomalies, normalization should give:

• a schema with "minimal overlap" between tables
• each table contains a "coherent" collection of data values

Normalization typically involves

• decompose a relation based on FDs
• R → R₁  and R₂, where R₁ ∪ R₂ = R  and  R₁ ∩ R₂ ≠ ∅
• repeat decomposition until no more decomposition is possible

Finally, each R_i  contains info about one entity (e.g. branch, customer, ...)

❖ Database Design (revisited) (cont)

But we already have a design procedure (ER-then-relational)

• and it appears to produce schemas without redundancy

Why do we need another design procedure?

1. ER → Relational does not guarantee no redundancy
   • dependency theory allows us to check designs for residual problems
2. the new procedure gives (semi)automated design
   • determine all of the attributes in the problem domain
   • collect them all together in a "universal relation"
   • provide information about how attributes are related
   • apply normalisation to decompose into non-redundant relations

❖ Functional Dependency

A relation instance r(R) satisfies a dependency X → Y if

• for any t, u ∈ r,   t[X] = u[X]   ⇒   t[Y] = u[Y]

In other words, if two tuples in R agree in their values for the set of attributes X, then they must also agree in their values for the set of attributes Y.

We say that "Y is functionally dependent on X".

Attribute sets X and Y may overlap; trivially true that X → X.

Notes:

• X → Y can also be read as "X determines Y"
• the single arrow → denotes functional dependency
• the double arrow ⇒ denotes logical implication

❖ Identifying Functional Dependencies

Consider an instance r(R) of the relation schema R(ABCDE):

A	B	C	D	E
a1	b1	c1	d1	e1
a2	b1	c2	d2	e1
a3	b2	c1	d1	e1
a4	b2	c2	d2	e1
a5	b3	c3	d1	e1

What dependencies can we observe among its attributes?

❖ Identifying Functional Dependencies (cont)

Since A values are unique, the definition of fd gives:

• A → B,    A → C,    A → D,    A → E
• A → BC,    A → CD,   ...   A → BCDE
• can be summarised as   A → BCDE

Since all E values are the same, it follows that:

• A → E,    B → E,    C → E,    D → E
• in general, cannot be summarised as   ABCD → E


❖ Identifying Functional Dependencies (cont)

Other observations:

• combinations of BC are unique, therefore   BC → ADE
• combinations of BD are unique, therefore   BD → ACE
• if C values match, so do D values, therefore   C → D
• however, D values don't determine C values, so   !(D → C)

We could derive many other dependencies, e.g.   AE → BC, ...

In practice, choose a minimal set of fds (basis)

• from which all other fds can be derived
• which captures useful problem-domain information
