❖ Week 02 Wednesday

In today's lecture ...

• More ER → SQL, and SQL DDL
• Building/restoring a database

Things to do ...

• Quiz before Friday midnight
• Set up your PostgreSQL server
  (300 students have logged in to vxdb2 and have /localstorage)
• Help Session, Friday 4pm, Location: TBA

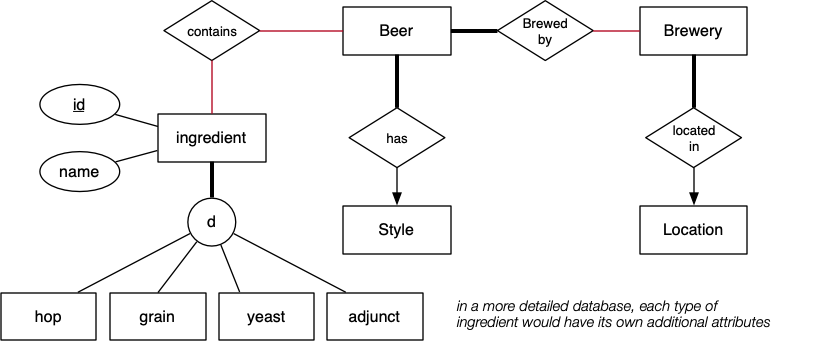

❖ Assignment 1 Database

Database about beer and breweries

❖ Assignment 1 Database (cont)

Details of entities, with example data (does not include all entities):

Beers(id, name, brewed, style, abv, ibu, sold_in, volume, notes, rating)

(123, 'VB', 2020, *Lager, 5.0, 30, can, 375, 'Worst beer in world', 1)

Brewers(id, name, founded, website, located_in)

(321, 'Carlton', 1899, 'www.carlton.com.au', *Melbourne)

Styles(id, name, min_abv, max_abv)

(456, 'Lager', 4.0, 6.0)

Ingredients(id, itype, name)

(654, 'hop', 'Cascade')

Brewed_by(beer, brewery)

(*VB, *Carlton) ... represented as (123, 321)

❖ Recap

ER → Relational/SQL Mapping

• attributes → attributes
• entities → relations/tables
• 1:1 relationships → foreign key
• 1:n relationships → foreign key
• n:m relationships → link table
• composite attributes → attributes
• multi-valued attributes → table

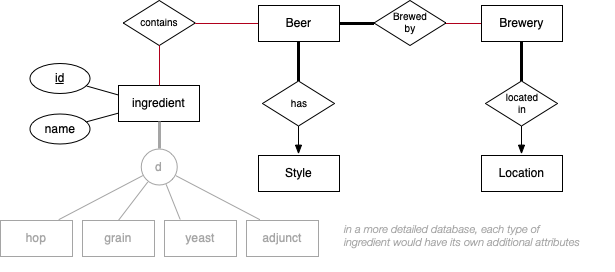

❖ Exercise: ER-to-SQL for Beer Database

Convert the beer ER data model to an SQL schema

• assume that each entity has attributes id and name
• treat Ingredient as simple entity; ignore sub-classes

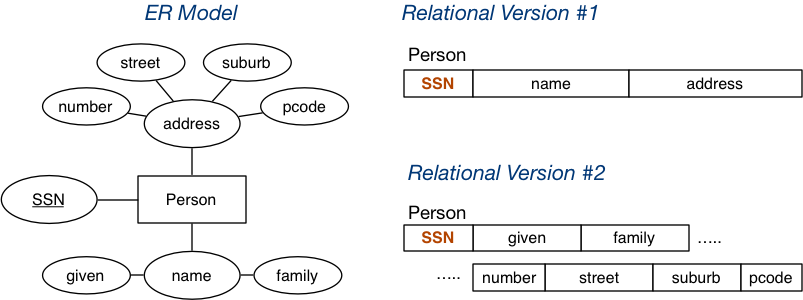

❖ Mapping Composite Attributes

Composite attributes are mapped by concatenation or flattening.

Example:

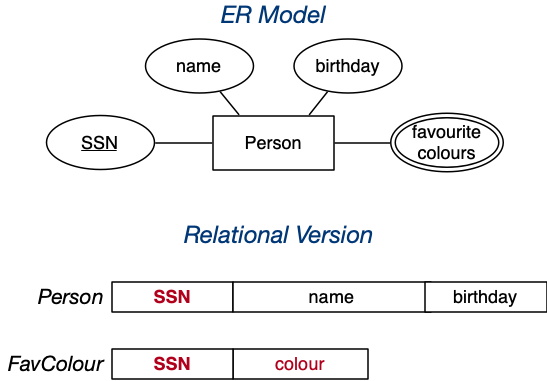

❖ Mapping Multi-valued Attributes (MVAs)

MVAs are mapped by a new table linking values to their entity.

Example:

❖ Mapping Subclasses

Three different approaches to mapping subclasses to tables:

• ER style
  • each entity becomes a separate table,
  • containing attributes of subclass + FK to superclass table
• object-oriented
  • each entity becomes a separate table,
  • inheriting all attributes from all superclasses
• single table with nulls
  • whole class hierarchy becomes one table,
  • containing all attributes of all subclasses (null, if unused)

Which mapping is best depends on how data is to be used.

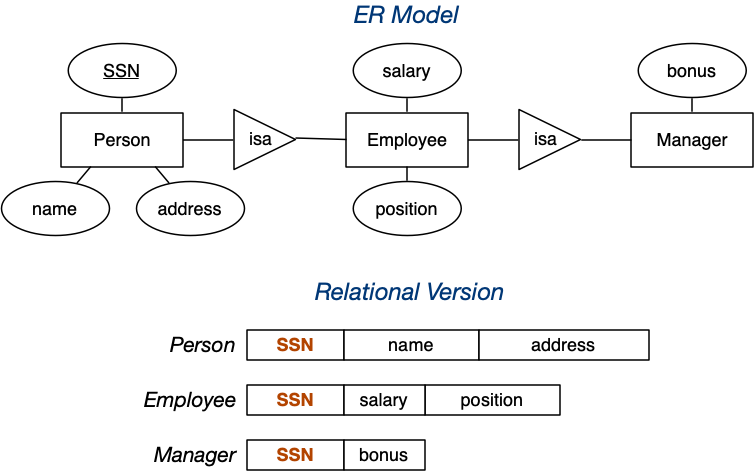

❖ Mapping Subclasses (cont)

Example of ER-style mapping:

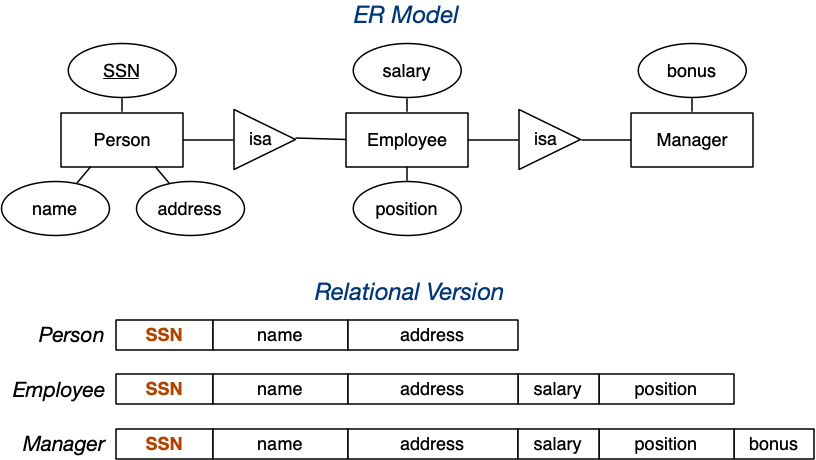

❖ Mapping Subclasses (cont)

Example of object-oriented mapping:

❖ Mapping Subclasses (cont)

Example of single-table-with-nulls mapping:

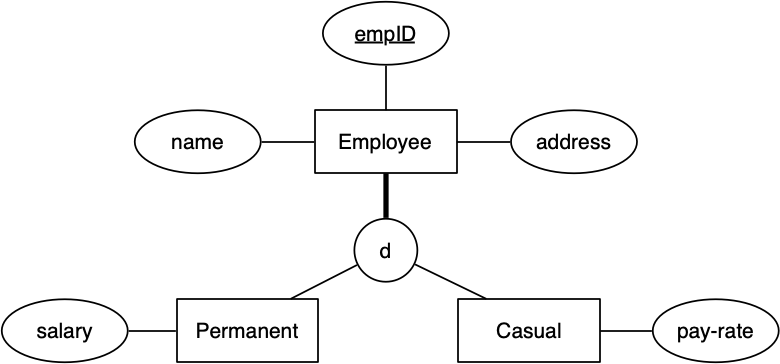

❖ Exercise: ER-to-SQL (1)

Convert the following class hierarchy to SQL using ER mapping:

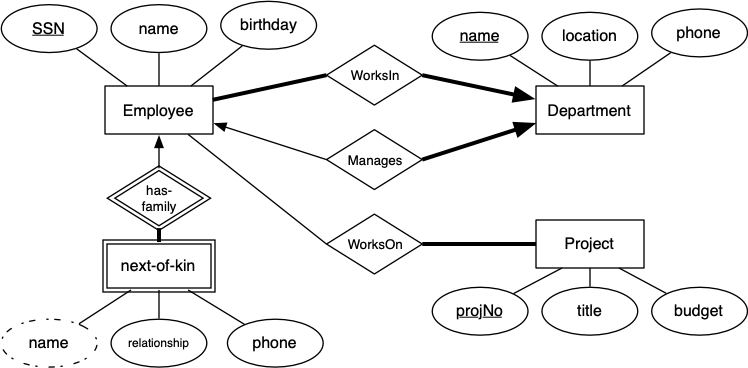

❖ Exercise: ER-to-SQL (2)

Convert this ER design to SQL:

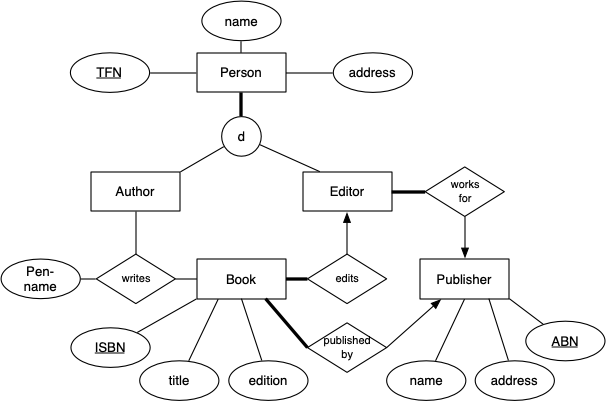

❖ Exercise: ER-to-SQL (3)

Convert the Publishing ER model to SQL

• A TFN is stored as a 9-digit number
• An ABN is stored as an 11-digit number
• An ISBN (13-digit version) looks like 978-3-16-148410-0

❖ PostgreSQL Databases

Create a database in PostgreSQL via

$ createdb  DatabaseName

Creates an empty database (no schema, no data)

Remove a database in PostgreSQL via

$ dropdb  DatabaseName

Removes schema and all data permanently

Remove an entire PostgreSQL server (on vxdb2)

$ rm -fr /localstorage/$USER/pgsql

Removes all server files, all databases, all data !

❖ psql

The psql command is a shell that allows you to

• conect to databases  (one at a time)
• ask SQL queries on a database
• find information (meta data) about a database
• add/delete/update tuples in tables

Usage:

$ psql  mydb
...
mydb=# \d
...
mydb=$ select * from SomeTable;
...
mydb=# \q

❖ psql (cont)

A useful way to use   psql:

$ psql -l

Gives a list of all databases under your PostgreSQL server.

The "databases"   postgres,  template1,   template2

• are special databases used internally by PostgreSQL
• do not  dropdb  them

❖ psql (cont)

The psql command has several prompts

• db=# ... waiting to start a command
• db-# ... waiting for rest of command
• db(# ... waiting for rest of expression  (...)
• db'# ... waiting to finish a string (expecting closing ')

Note that db will be (replaced by) the name of the current database

Note that # means you are super-user; normal users get >

SQL statements can span several lines, terminated by typing ;

psql meta-commands are single-line commands

❖ psql (cont)

psql has a range of meta-commands, beginning with \

• help ... a quick list of useful meta-commands
• \? ... a list of all meta-commands (very many of them)
• \d ... list of all tables and views in current schema
• \dt ... list of all tables in current schema
• \d Table ... list of all attributes in Table
• \df ... list of all user-defined functions in current schema
• \q ... exit psql

❖ Exercise: Creating a database

On vxdb2, do the following:

• create a database called xyz
• examine its (empty) schema
• within xyz create a table

  create table R (
     x integer primary key,
     y float not null,
     z text
  );


• examine the schema again
• examine the attributes of table R
• how many tuples are in table R?
• remove the database xyz

❖ Populating a Database

Basic way of adding tuples to a database:

db=# insert into Table values (val1,val2,...);

Adds a tuple to table Table assuming

• values satisfy all constraints on tuples/table

Ways it can fail ...

• value for primary key field is already in the table
• tuple has  null values for fields defined as  not null
• value for some field violates constraints on that field
• etc. etc. etc.

❖ Exercise: Inserting Tuples

Which  insert  statements are successful?
If successful, what tuple value is inserted?

create type Mood as enum ('sad','happy');

create table People (
	name text not null,
	feels Mood
);

insert into People values ('John','happy');
insert into People values ('Andrew','angry');
insert into People values ('Tina',null);
insert into People(name) values ('Anne');
insert into People(feels) values ('happy');

❖ Exercise: More Inserting Tuples

Which  insert  statements are successful?
If successful, what tuple value is inserted?

create domain PosInt as integer check (value > 0);

create table Points (
	x PosInt default 1,
	y posint
);

insert into Points values (3,4);
insert into Points values (3,null);
insert into Points values (-3,4);
insert into Points(y) values (5);
insert into Points values (default,5);

❖ Bulk Insertion

Entering tuples interactively one-by-one is not feasible

Alternative: put  insert  statements in a file and run

$ psql DatabaseName -f FileName

Attempts to execute each insert statement:

• if tuple valid, inserted into database
• if tuple not valid, prints error message, then continues

Note that FileName can contain any SQL statements

Might consist only of  create table  statements to build a schema

❖ Bulk Insertion (cont)

A common way of building a database

$ createdb mydb
$ psql mydb -f schema.sql
$ psql mydb -f data.sql

where

• schema.sql contains table and type definitions
• data.sql contains statements to insert tuples

❖ Bulk Insertion (cont)

How I "debug" a database schema

$ dropdb mydb
$ createdb mydb
$ psql mydb -f schema.sql > .errs 2>&1
$ vi .errs
  # fix any errors that appear in .errs
$ psql mydb -f data.sql > .errs 2>&1
$ vi .errs
  # fix any errors that appear in .errs

Repeat until .errs contains no lines with ERROR

❖ Bulk Insertion (cont)

Alternative way of inserting tuples

copy TableName ( attribute names ) from stdin;
... lines containing tab-separated values ...
... one value for each of the named attributes ...
\.

Difference between copy and multiple inserts

• with insert ...
  • all tuples with valid values are inserted
  • tuples with invalid values are not inserted
• with copy ...
  • if any tuple contains invlid values, nothing is inserted

❖ Dump/Restore

Once a database is built, can make a complete copy in a text file

• the whole schema (including types, constraints, etc), and all data

by running the command

$ pg_dump -O -x DatabaseName > DumpFileName

and can make a new copy via

$ createdb newdb
$ psql newdb -f DumpFileName

We generally supply databases using pre-built dump files

❖ Exercise: Playing with Beer Database

Load up the database from  ass1.dump

Guess some SQL to answer the following:

• what tables are in the database
• what fields/attributes are in the  Beers  table
• what fields/attributes are in the  Breweries  table
• how many beers there are
• how many breweries there are
• what beers have "Black Lung" in their name
