❖ Week 02

In today's lecture ...

• SQL Data Definition Language (DDL)
• Mapping ER → Relational/SQL

Things to do ...

• Tutorials start this week
• Quiz due Friday midnight
• Set up your PostgreSQL server

  • ~170/690 students have logged in to vxdb2 and have /localstorage
  • come to CSE Help! if you're having trouble installing PostgreSQL

❖ Email and Context

When sending email to us (cs3311), please include your zID

Before typing commands, think about the context:

Prompt		Context
$		in Linux shell run Unix commands, e.g. ls, cd
db=#		in psql run SQL commands, e.g. select, update
db>		in sqlite3 run SQL commands, e.g. select, update
none		in vim,   you are doomed but try :q or ZZ

❖ n:m:p Relationships

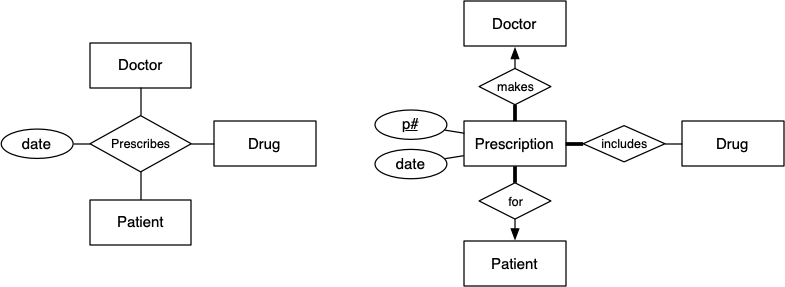

Two possible ER models for "prescribes" in the medical scenario

Could be done as a 3-way relationship, or using a new entity

❖ Recap

Entity-relationship data model

• attributes,   entities,   relationships,   subclasses
• relationship variations: total/partial, n:m, 1:n, 1:1

Relational data model

• attributes,   tuples,   relations
• attribute = name + domain/type
• tuple = list of attributes,  based on attribute definitions
• relation = set of tuples,  based on a tuple definition

E.g.   Student(zID:integer, name:string, WAM:float, ...)

❖ Relational Data Model

A relational schema consists of

• a collection of relation definitions + constraints

Different kinds of constraints

• unique = value of attribute is unique in relation

• key = chosen unique attribute to distinguish tuples

• domain = type of attribute, restrictions within type

• referential integrity = foreign key
  • tuple in relation R has attribute F
  • whose value corresponds to key attribute K in relation S

❖ Relational Data Model (cont)

Mapping an ER model to a relational schema

• attributes → attributes, plus domains
• entities → tuples,   entity sets → relations
• relationships → relations, plus constraints

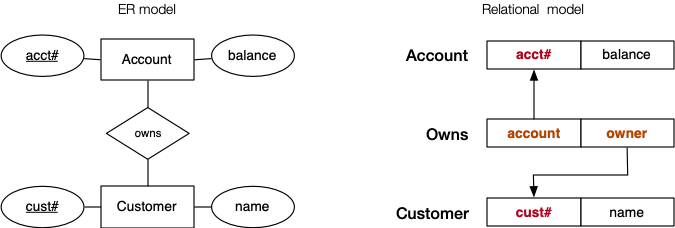

Example:

❖ Exercise: ER-to-relational Mapping

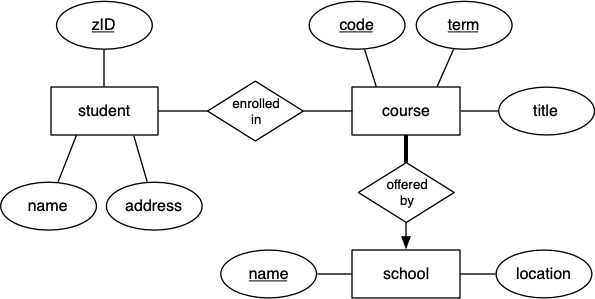

Describe this ER model as an (informal) relational schema

❖ Mapping ER to SQL

Above example gives informal description of relational schema

Need a more formal way of describing relational schemas

SQL data definition language (DDL) provides this

SQL is an implementation of relational data model

• relations → tables,   tuples → tuples,   attributes → columns/fields

Mapping ER to SQL

• entity sets → tables,   entities → rows/tuples,   attributes → columns/fields
• relationships → tables  or  foreign keys
• multi-valued-attributes/weak-entities/subclasses → ?

❖ Mapping ER to SQL (cont)

Useful strategy for database design:

• perform initial data modelling using ER
  (conceptual-level modelling, gives a "map" of the DB)
• transform conceptual design into SQL relational model
  (implementation-level modelling)

A formal mapping exists for ER model → SQL/Relational model.

This maps "structures"; but additional info is needed, e.g.

• concrete domains for attributes and other constraints

Note: cannot map some things (e.g. n:m total participation)

❖ SQL Schemas

Primary SQL DDL construct is table creation:

create table TableName (
   attr1Name  type [constraints],
   attr2Name  type [constraints],
   attr3Name  type [constraints],
   ...
   primary key (attrxName ),
   foreign key (attryName)
               references OtherTable (attrzName )
);

SQL schema = collection of table definitions, including constraints

❖ SQL Types

Built-in types

• numeric: integer, numeric(n), real
• strings: char(n), varchar(n), text
• time: date, time, timestamp, interval
• boolean, monetary, geometric, enumerated, ...

Make your own

create domain Name as Type Constraint;
create type Name as enum (val1, val2,...);

❖ Exercise: ER-to-SQL Mapping

Describe this ER model as an SQL schema

❖ SQL Constraints

Constraints in SQL DDL

• on attributes e.g.   integer,   check (x > 0),   not null
• on table e.g.   unique,   primary key (a,b,c)
• between tables e.g.   foreign key (x) references T(y)

Tuples which do not satisfy constraints cannot be added to DB

Gives strong guarantee that the data is valid (internally consistent)

But does not guarantee that it reflects reality

❖ Exercise: Constraints

Constraint = SQL expression limiting possible values

Define type + constraints for

• positive integers
• marks (range 0..100)
• unsw course codes (COMP3311)
• person's name (alpha + space + - + ')

❖ Exercise: ER-to-SQL Mappings

For each of the following mappings:

• strong entity
• n:m relationship
• 1:n relationship
• 1:1 relationship
• n-way relationships
• multi-valued attributes

give an SQL schema including relevant constraints

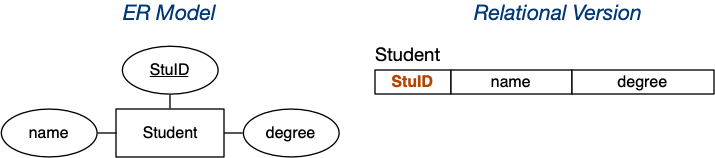

❖ Mapping Strong Entities

An entity set E  with atomic attributes  a₁, a₂, ... a_n

maps to

A relation R  with attributes (columns)  a₁, a₂, ... a_n

Example:

Note: the key is preserved in the mapping.

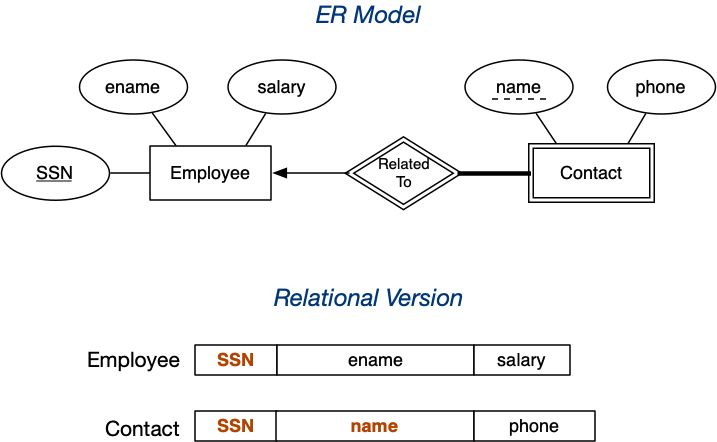

❖ Mapping Weak Entities

Example:

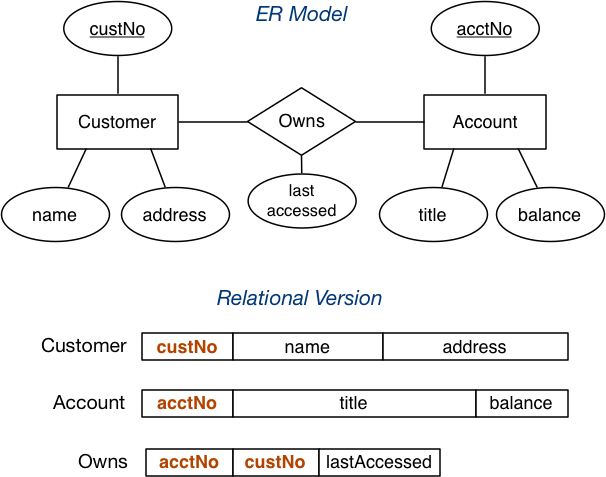

❖ Mapping N:M Relationships

Example:

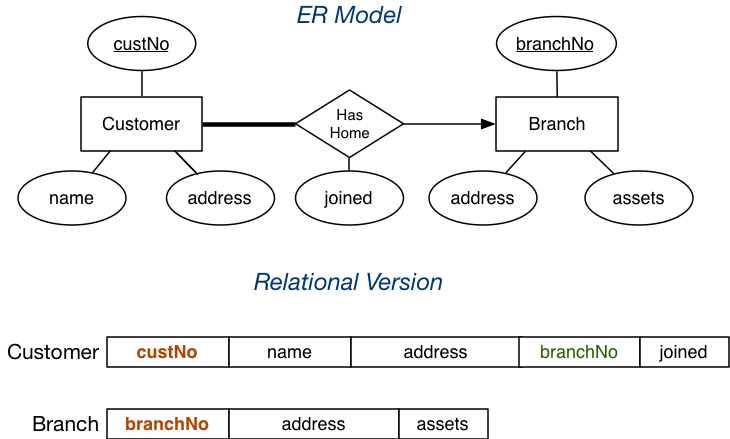

❖ Mapping 1:N Relationships

Example:

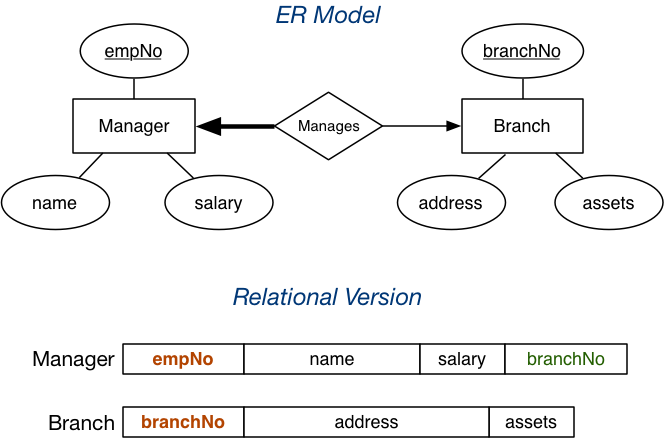

❖ Mapping 1:1 Relationships

Example:

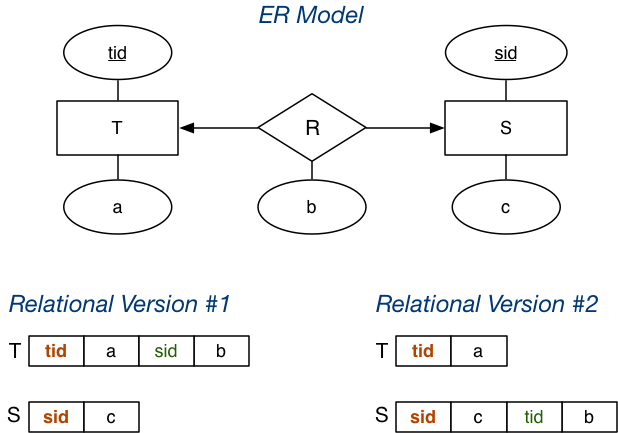

❖ Mapping 1:1 Relationships (cont)

If there is no reason to favour one side of the relationship ...

❖ Mapping n-way Relationships

Relationship mappings above assume binary relationship.

If multiple entities are involved:

• n:m generalises naturally to n:m:p:q
  • include foreign key for each participating entity
  • include any other attributes of the relationship
• other multiplicities (e.g. 1:n:m) ...
  • need to be mapped the same as n:m:p:q
  • so not quite an accurate mapping of the ER

❖ Exercise: Mapping n-way Relationships

Convert the following ER models into an SQL schema:
