A relational database management system (RDBMS) is

• software designed to support large-scale data-intensive applications
• allowing high-level description of data (domains, constraints)
• with high-level access to the data (relational model, SQL)
• providing efficient storage and retrieval (disk/memory management)
• supporting multiple simultaneous users (privilege, protection)
• doing multiple simultaneous operations (transactions, concurrency)
• maintaining reliable access to the stored data (backup, recovery)

Note: databases provide persistent storage of information

RDBMSs implement ≅ the relational model.

Provide facilities to define:

• domains, attributes, tuples, tables
• constraints (domain, key, reference, ...)

Variations from the relational model:

• no strict requirement for tables to have keys
• bag semantics, rather than set semantics
• no direct support for multi-table constraints

RDBMSs typically provide at least the following operations:

• create/remove a database
• create/remove/alter table schemas within a database
• insert/delete/update tuples within a table
• queries on data, define named queries (views)

Most also provide mechanisms for

• defining new data types
• implementing complex constraints (triggers)
• defining/storing procedural code to manipulate data
• creating/managing users of the database
• describing transactional behaviour (see later)

All modern RDBMSs provide access to the data via SQL.

Each RDBMS has its own dialect ≅ the SQL standard.

Most provide SQL via one or more of

• an interactive "shell"   (e.g. psql, sqlite3, SQL*Plus, ...)
• programming language APIs   (e.g. Java/JDBC, Python, C, ...)

Some operations are also implemented as utility commands

e.g. PostgreSQL's createdb, dropdb, createuser, ...

RDBMSs also provide access to meta-data (catalog).

Meta-data typically presented as collection of tables.

A standard INFORMATION_SCHEMA exists for meta-data.

DB users interact with catalog via meta-commands:

• PostgreSQL's \d, \d Table
• SQLite's .schema, .schema Table
• Oracle's select * from tab

DB admin typically also has SQL access to catalog.

RDBMSs typically provide mechanisms for

• loading schemas (typically from a file)
• bulk upload of data into tables (from files)
• saving entire databases (data + meta-data)
• clearing tables   (e.g. delete from Staff)
• clearing schema   (not in PostgreSQL)

Available via command line or interactive SQL shell.

RDBMS query engines implement RA operations

• projection   (tuple manipulation; generalised projection)
• selection   (tuple filtering; indexes, hashing)
• join   (nested-loop, hash-join, indexed-join)
• set operations   (union, intersection, difference)
• aggregation   (e.g. count, sum, avg, ...)
• grouping   (group-by, group filtering (via having))

RDBMSs typically provide role-based user management:

• individual users have username/password
• users may be associated with multiple roles
• roles are assigned privileges   (e.g. create tables, view table R)

Authentication via username/password gives access to DBs.

Roles determine what can be done within a DB.

Often in application programming

• a single application-level operation (transaction)
• involves mutliple DBMS-level operations (e.g. insert, update)

To faithfully represent the application-level operation:

• either all DBMS-level operations must complete
• or all DBMS-level operations must fail

If the transaction fails partway

• any completed DBMS operations must be undone
• the DBMS should enforce this automatically

Transactions treat a group of DBMS operations as atomic.

For serious applications, the RDBMS must be ACID ...

Atomicity		Either all operations of transaction are reflected in database or none are.
Consistency		Execution of a transaction in isolation preserves data consistency (i.e. maps a valid DB to a valid DB).
Isolation		Transactions are "unaware" of other transactions executing concurrently.
Durability		After successful transaction, changes persist even if system later fails.

DBMSs with these properties provide a strong guarantee that any update operation will result in a valid database (no corruption).

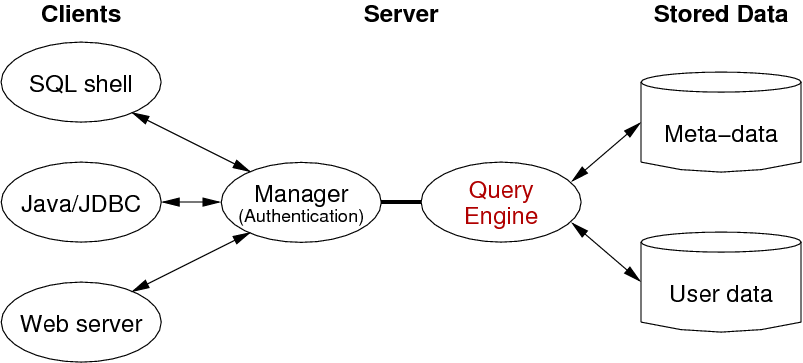

Typical client-server architecture for modern RDBMS:

Core of RDBMS = a relational algebra engine.

Examples of ACID (serious) database management systems:

• Oracle   (most widely-used commercial RDBMS)
• IBM's DB2   (maybe the best relational engine + research backing)
• Microsoft's SQL Server   (solid relational engine + research backing)
• PostgreSQL   (open-source, reliable, serious functionality)
• MySQL   (open-source, now has sufficient functionality)
• SQLite   (open-source, serverless, DB is a single file)
• HyperSQL   (open-source, 100% Java, serious functionality)
• Informix, Sybase, Ingres, ... have all faded or are fading

Most serious RDBMS's

• support all of the SQL:92 and SQL:99 standards
• support most of the SQL:2003 and SQL:2008 standards

Typical variations:

• mechanism for creating unique ID values (e.g. SEQUENCE)
• mechanism to return part of result set (e.g. LIMIT)
• extra data types (not defined in standard)
• many additional functions on data values
• don't support all SQL transaction levels
• DROP Object IF EXISTS

Database applications typically involve:

• code in an application language (e.g. Java, Python)
• definitions and queries in SQL (stored in DB)
• procedural code/transactions (stored in DB)

Code in multiple languages, stored in different places.

Interaction between app.code and DBMS

• is via a "thin pipe" (SQL in, tuples out)
• following old-fashioned file access pattern:


  open; while (more input) { get next; process; } close


A typical DB application has several types of code:

• UI (user interface) code, e.g. Python/HTML, Java/Swing
• application/business logic, e.g. Python, Java, PL/SQL
• data access, e.g. PL/SQL, SQL

Multiple code sources ⇒ software management problems:

• maintaining consistency across code-bases
• minimising cross-talk (separation of concerns)

Patterns such as Model-View-Controller aim to manage this.

Perfomance issues with data-intensive applications

• minimise traffic between app.code and DB
  (connection/communication costs are expensive)
• "impedance mismatch" between app.code and DB
  (DB = tuple-set-at-a-time, Code = object-at-a-time)

These suggest that

• as much as possible, data manipulation is pushed into DBMS
• but this requires a tight interaction between layers

Software engineering suggests minimal interaction between layers.

This conflict is not yet well-resolved.

Standard paradigm for accessing DB from app.code

--  establish connection to DBMS
db = dbConnect("dbname=X user=Y passwd=Z");
query = "select a,b from R,S where ... ";
--  invoke query and get handle to result set
results = dbQuery(db, query);
--  for each tuple in result set
while (tuple = dbNext(results)) {
    --  process next tuple
    process(val(tuple,'a'), val(tuple,'b'));
}
dbClose(results);
