❖ Serializability

Serializable schedule:

• concurrent schedule for T₁ ..T_n with final state S
• S  is also a final state of a possible serial schedule for T₁ ..T_n

Abstracting this needs a notion of schedule equivalence.

Two common formulations of serializability:

• conflict serializibility   (read/write operations occur in the "right" order)
• view serializibility   (read operations see the correct version of data)

❖ Conflict Serializability

Consider two transactions T₁ and T₂ acting on data item X.

Possible orders for read/write operations by T₁ and T₂:

If T₁ and T₂ act on different data items, result is always equivalent.

❖ Conflict Serializability (cont)

Two transactions have a potential conflict if

• they perform operations on the same data item
• at least one of the operations is a write operation

In such cases, the order of operations affects the result.

If no conflict, can swap order without affecting the result.

If we can transform a schedule

• by swapping the order of non-conflicting operations
• such that the result is a serial schedule

then we say that the schedule is conflict serializible.

❖ Conflict Serializability (cont)

Example: transform a concurrent schedule to serial schedule

T1: R(A) W(A)      R(B)      W(B)
T2:           R(A)      W(A)      R(B) W(B)
swap
T1: R(A) W(A) R(B)           W(B)
T2:                R(A) W(A)      R(B) W(B)
swap
T1: R(A) W(A) R(B)      W(B)
T2:                R(A)      W(A) R(B) W(B)
swap
T1: R(A) W(A) R(B) W(B)
T2:                     R(A) W(A) R(B) W(B)

❖ Conflict Serializability (cont)

Checking for conflict-serializability:

• show that ordering in concurrent schedule
• cannot be achieved in any serial schedule

Method for doing this:

• build a precedence-graph
• nodes represent transactions
• arcs represent order of action on shared data
• arc from T₁→T₂  means T₁  acts on X  before T₂
• a cycle indicates not  conflict-serializable.

❖ Conflict Serializability Example

Example schedule which is not conflict serializable:

T1: R(X)           R(Y) W(X)      W(Y)
T2:           R(X)           W(X)
T3:      R(X)                          W(X)
attempted swaps
T1:           R(X) W(X)          R(Y) W(Y)
T2:      R(X)           W(X)
T3: R(X)                     W(X)

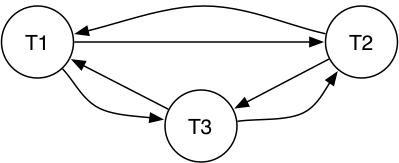

Precendence graph for the above schedule:

❖ View Serializability

View Serializability is

• an alternative formulation of serializability
• that is less conservative than conflict serializability (CS)
  (some safe schedules that are view serializable are not conflict serializable)

As with CS, it is based on a notion of schedule equivalence

• a schedule is "safe" if view equivalent to a serial schedule

The idea: if, across the two schedules ...

• they read the same version of a shared object
• they write the same final version of an object

then they are view equivalent

❖ View Serializability (cont)

Two schedules S and S' on T₁ .. T_n are view equivalent iff

• for each shared data item X
  • if, in S, T_j reads the initial value of X,
    then, in S', T_j also reads the initial value of X
  • if, in S, T_j reads X written by T_k,
    then, in S' T_j also reads the value of X written by T_k in S'
  • if, in S, T_j performs the final write of X,
    then, in S', T_j also performs the final write of X

To check serializibilty of S ...

• find a serial schedule that is view equivalent to S
• from among the n! possible serial schedules

❖ View Serializability Example

Example: consider the following concurrent schedule

T1: R(A) W(A)      R(B)      W(B)
T2:           R(A)      W(A)      R(B) W(B)

If view serializable, the read/write behaviour must be like one of

1. T1: R(A) W(A) R(B) W(B)
   T2:                     R(A) W(A) R(B) W(B)


2. T1:                     R(A) W(A) R(B) W(B)
   T2: R(A) W(A) R(B) W(B)


❖ View Serializability Example (cont)

Reminder of concurrent schedule

T1: R(A) W(A)      R(B)      W(B)
T2:           R(A)      W(A)      R(B) W(B)

In the concurrent schedule

• A: T1 reads initial, T2 reads T1's write, T2 writes final
• B: T1 reads initial, T2 reads T1's write, T2 writes final

In T1;T2

• A: T1 reads initial, T2 reads T1's write, T2 writes final
• B: T1 reads initial, T2 reads T1's write, T2 writes final

So, concurrent schedule is view equivalent to T1;T2
