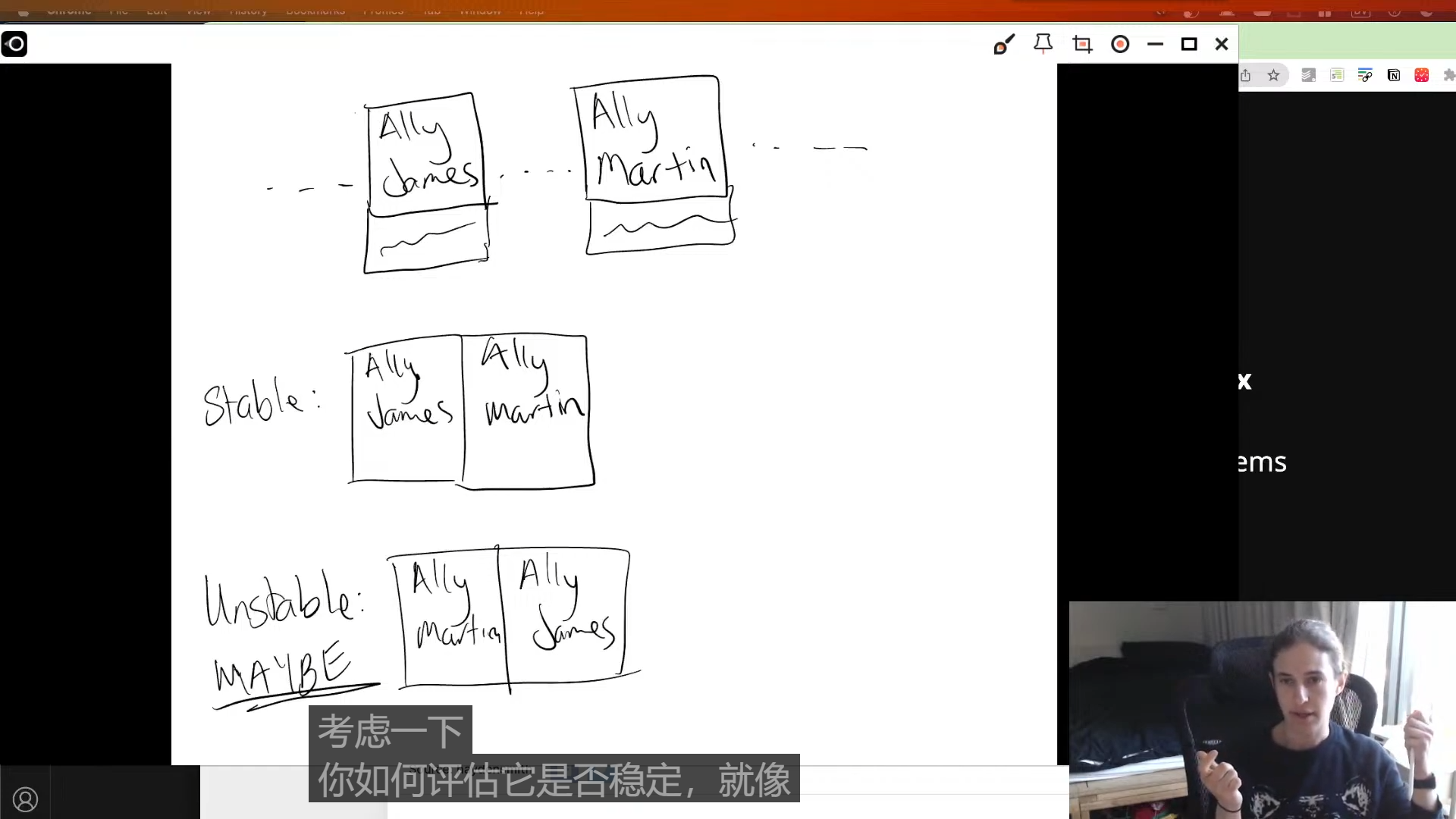

Stable or Unstable?

Properties of Sorting Algorithms

  • Stable sorting algorithms:
    • When sorting elements that share the same value, their original order in the unsorted list is preserved in the sorted list.
  • Unstable (adaptive) sorting algorithms:
    • When sorting elements that share the same value, their original order in the unsorted list might not be preserved in the sorted list.

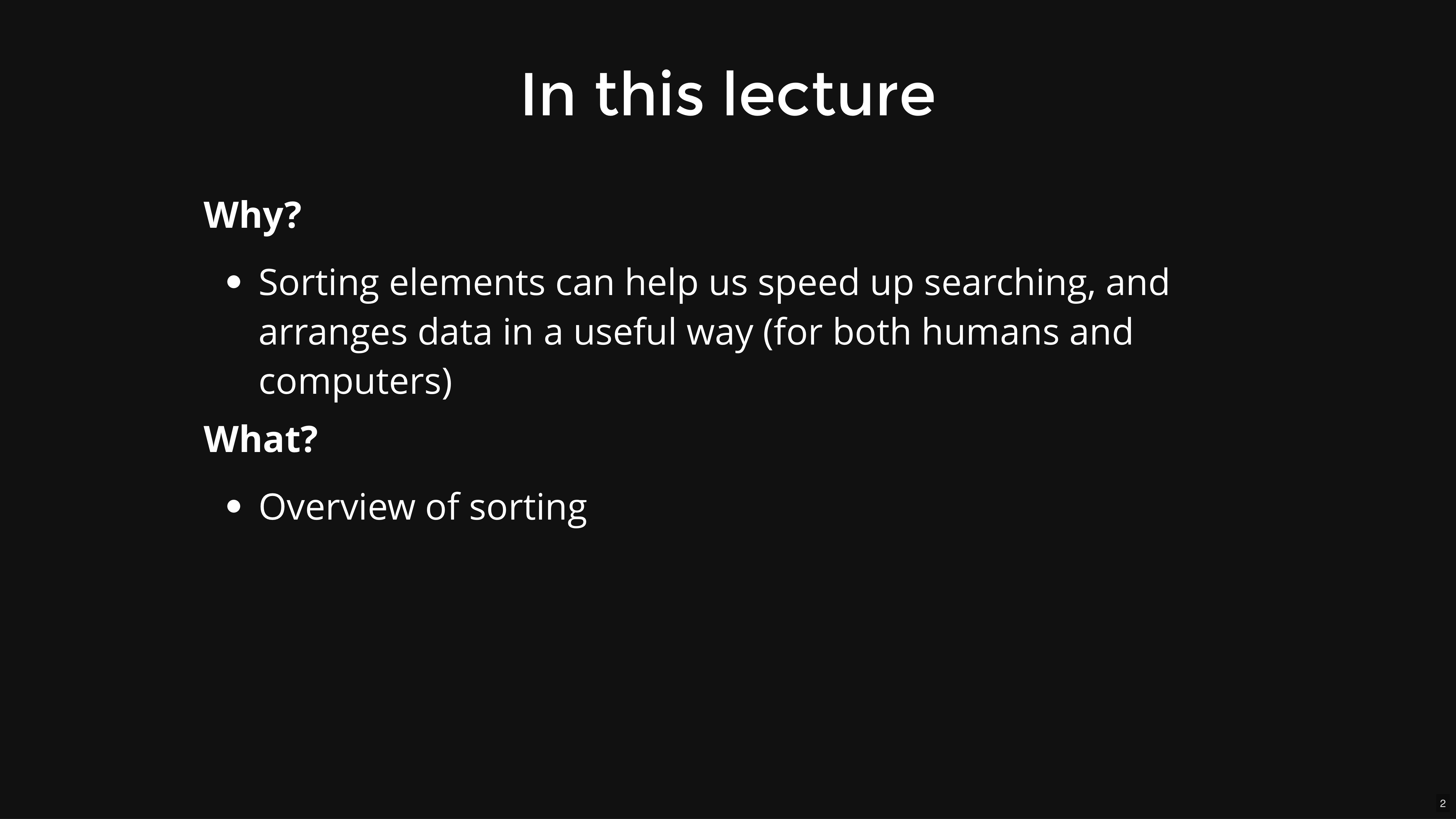

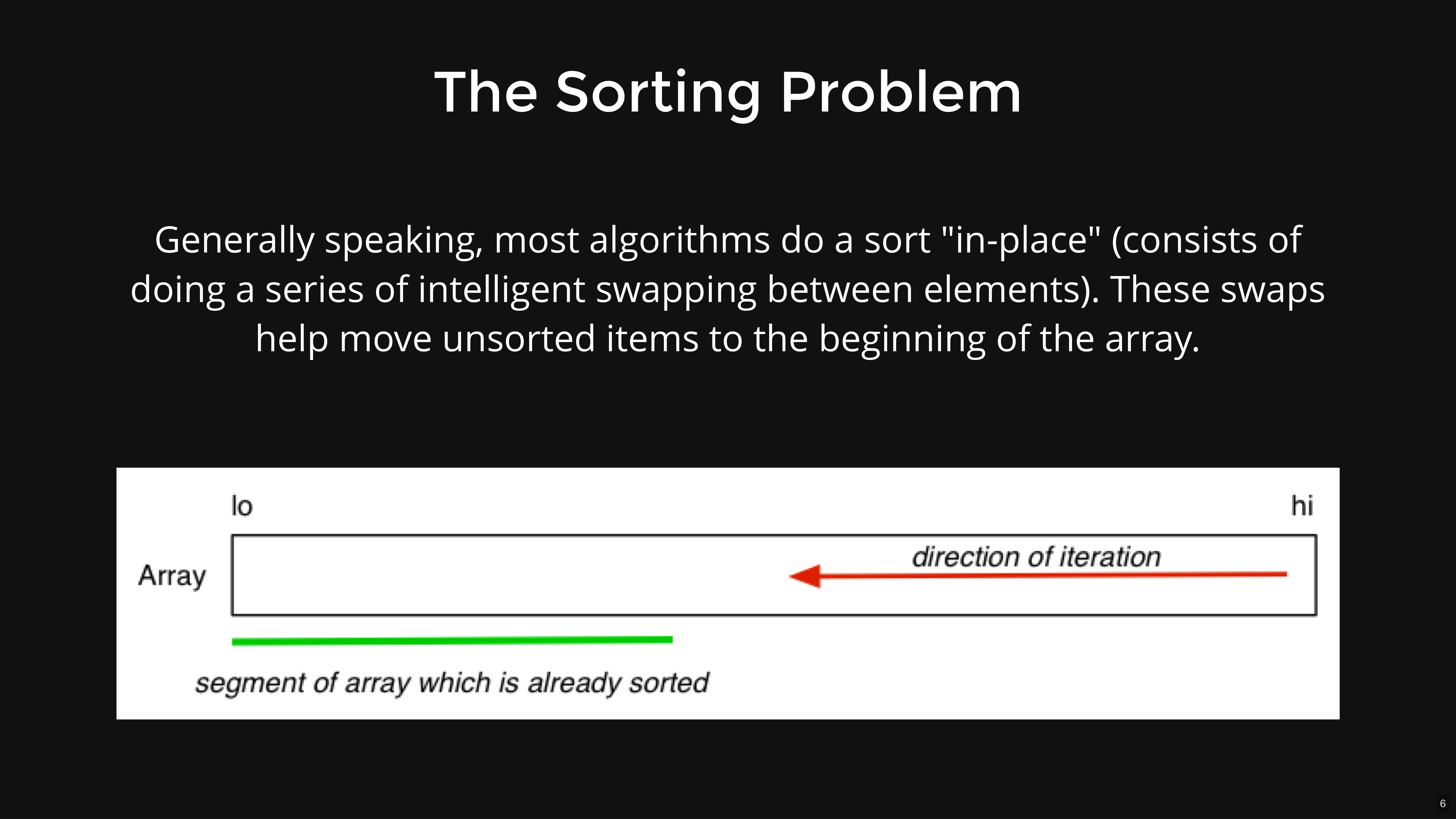

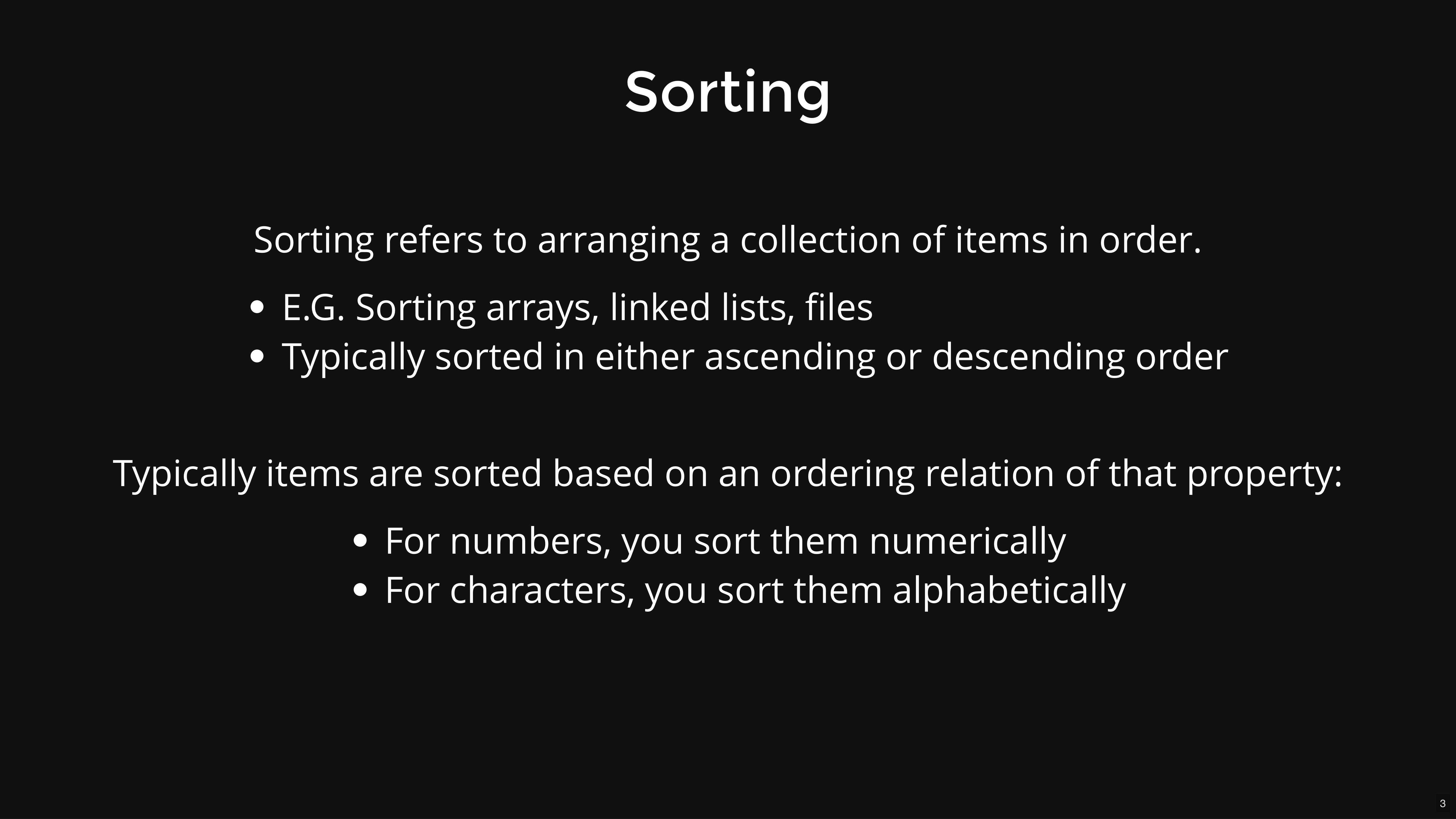

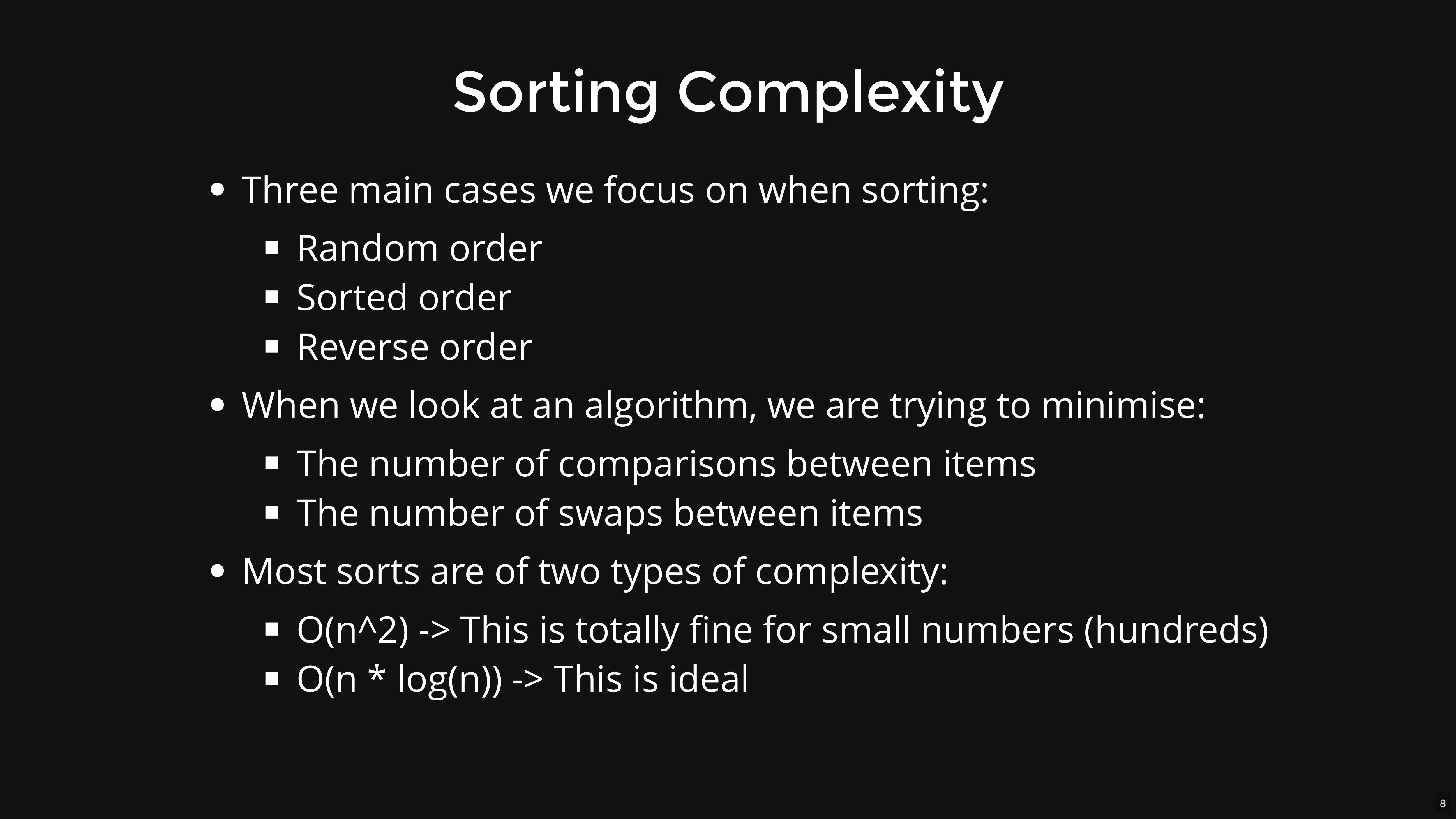

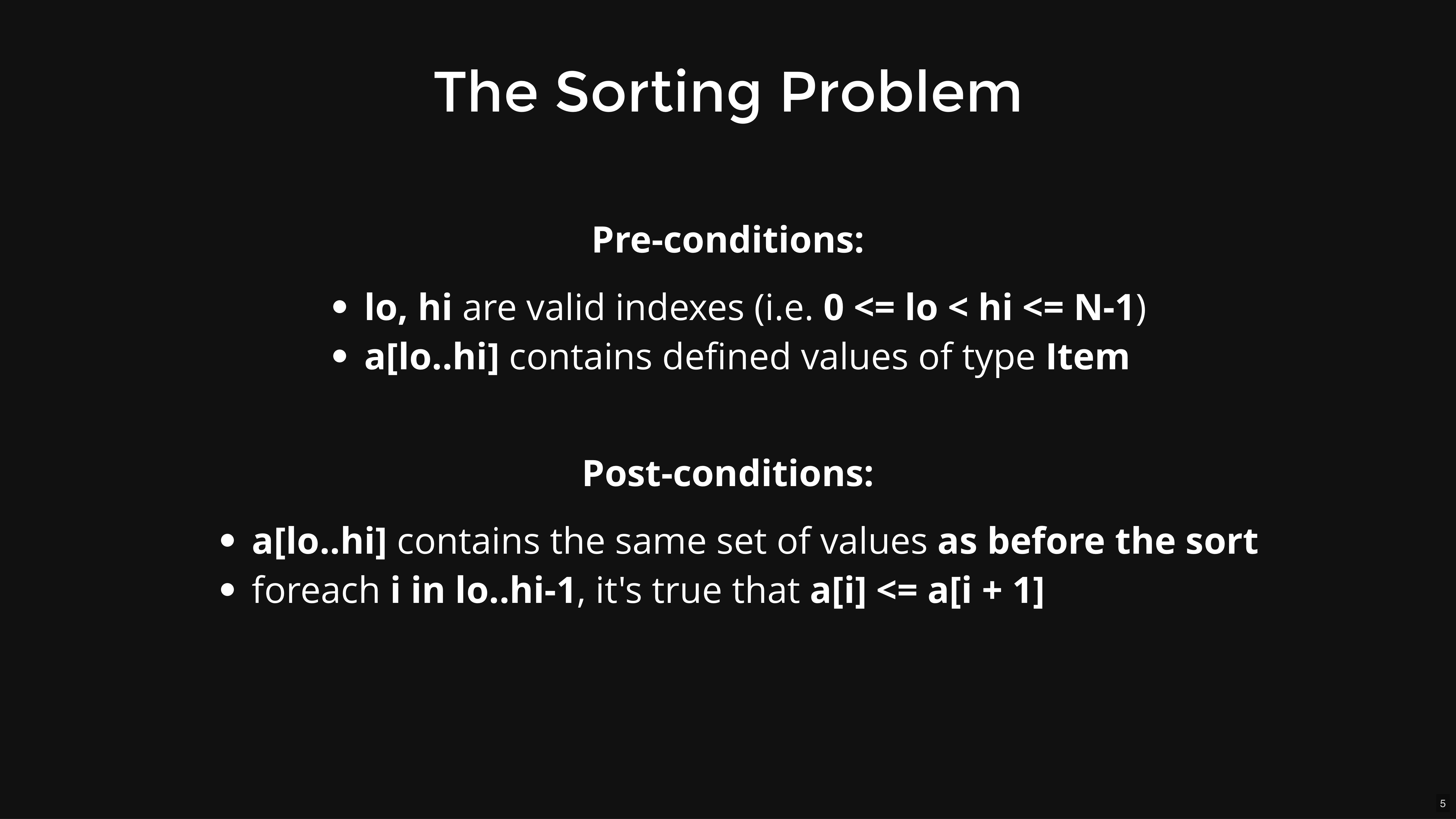

Sorting Overview

Sorting Overview:


Basic Sorts:


Merge Sort:


Quick Sort:

Quick Sort Lecture Slides Annotated

annotated lecture slides

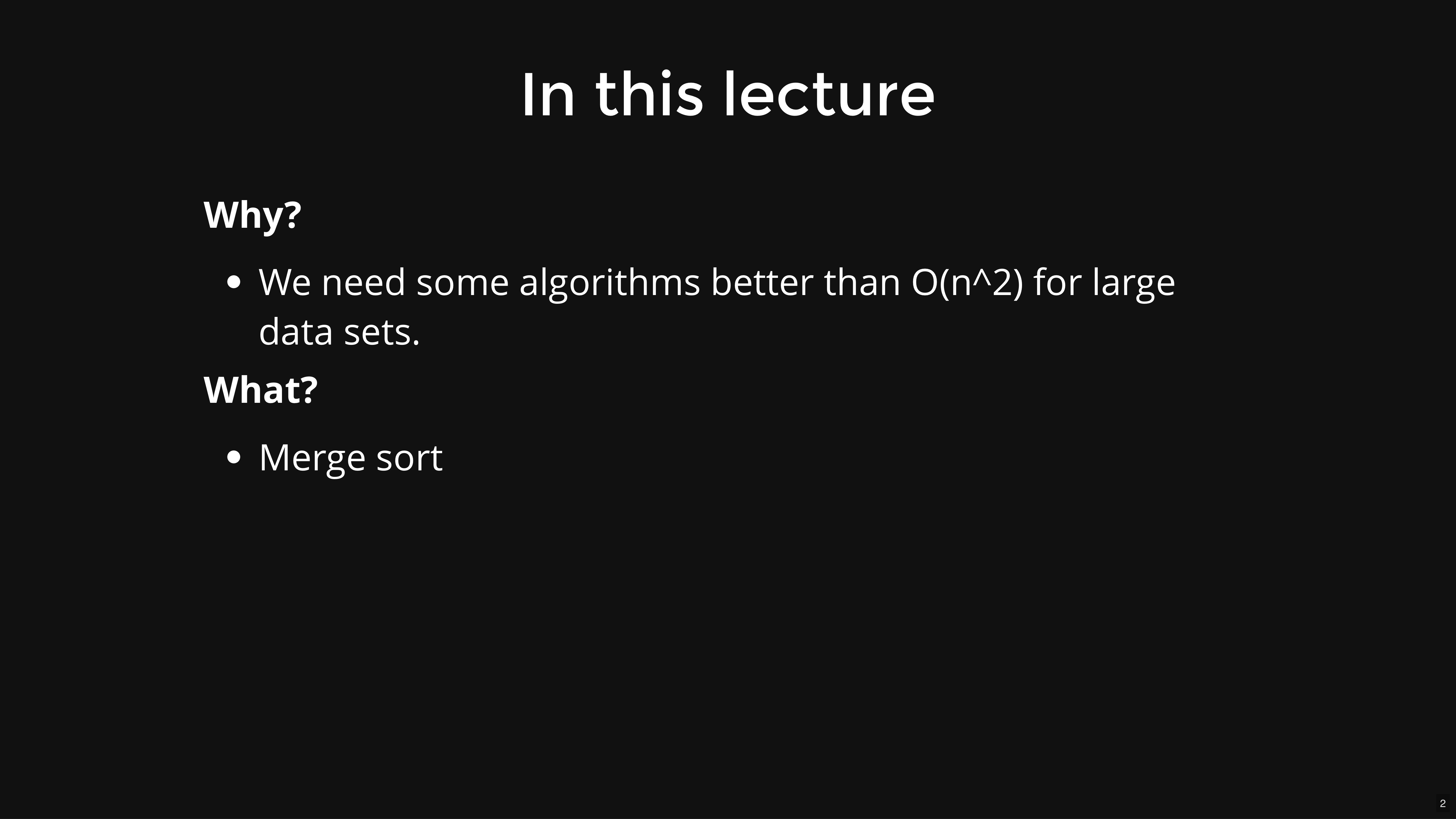

Merge Sort Lecture Slides Annotated

Annotated lecture slides

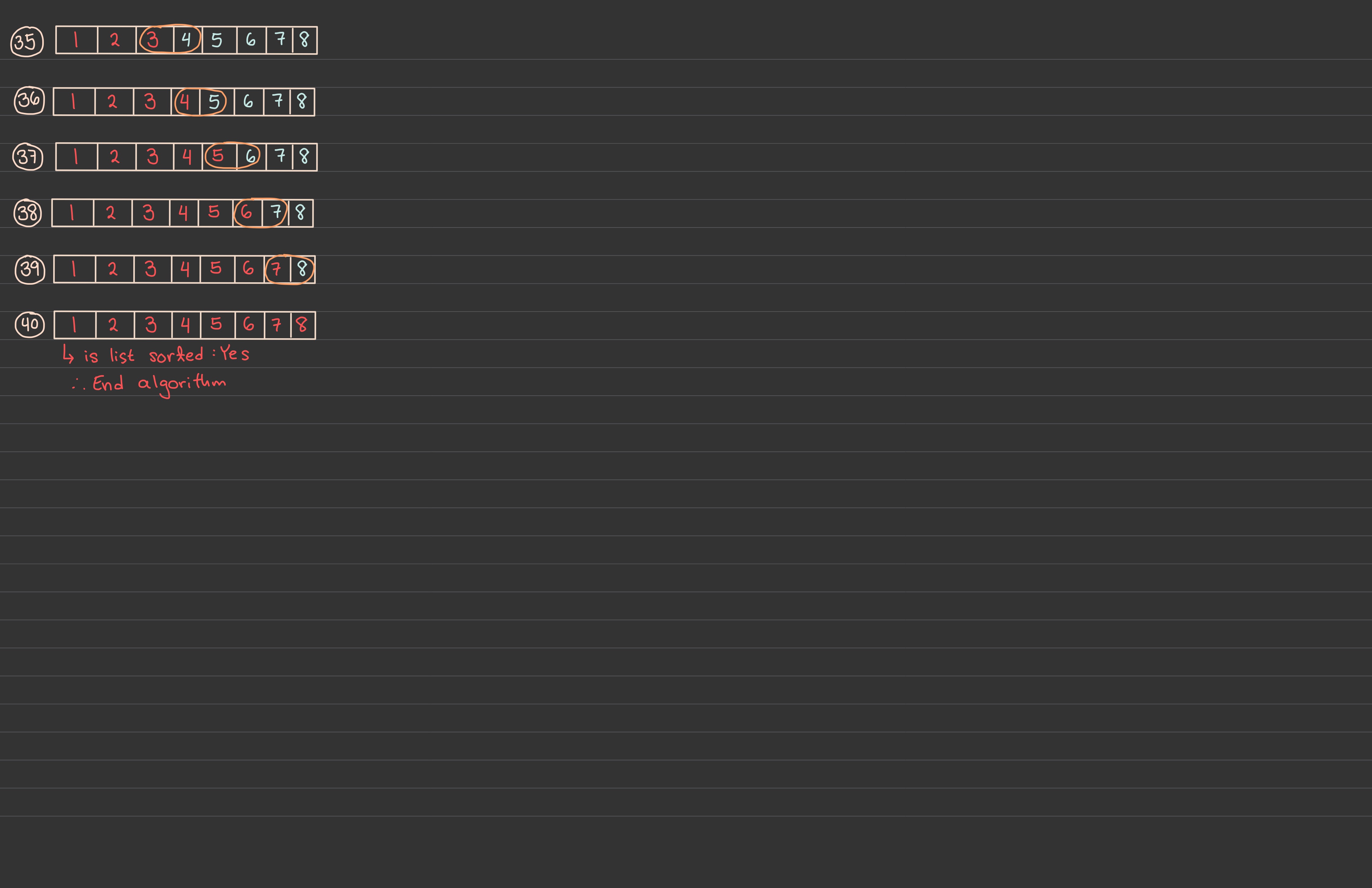

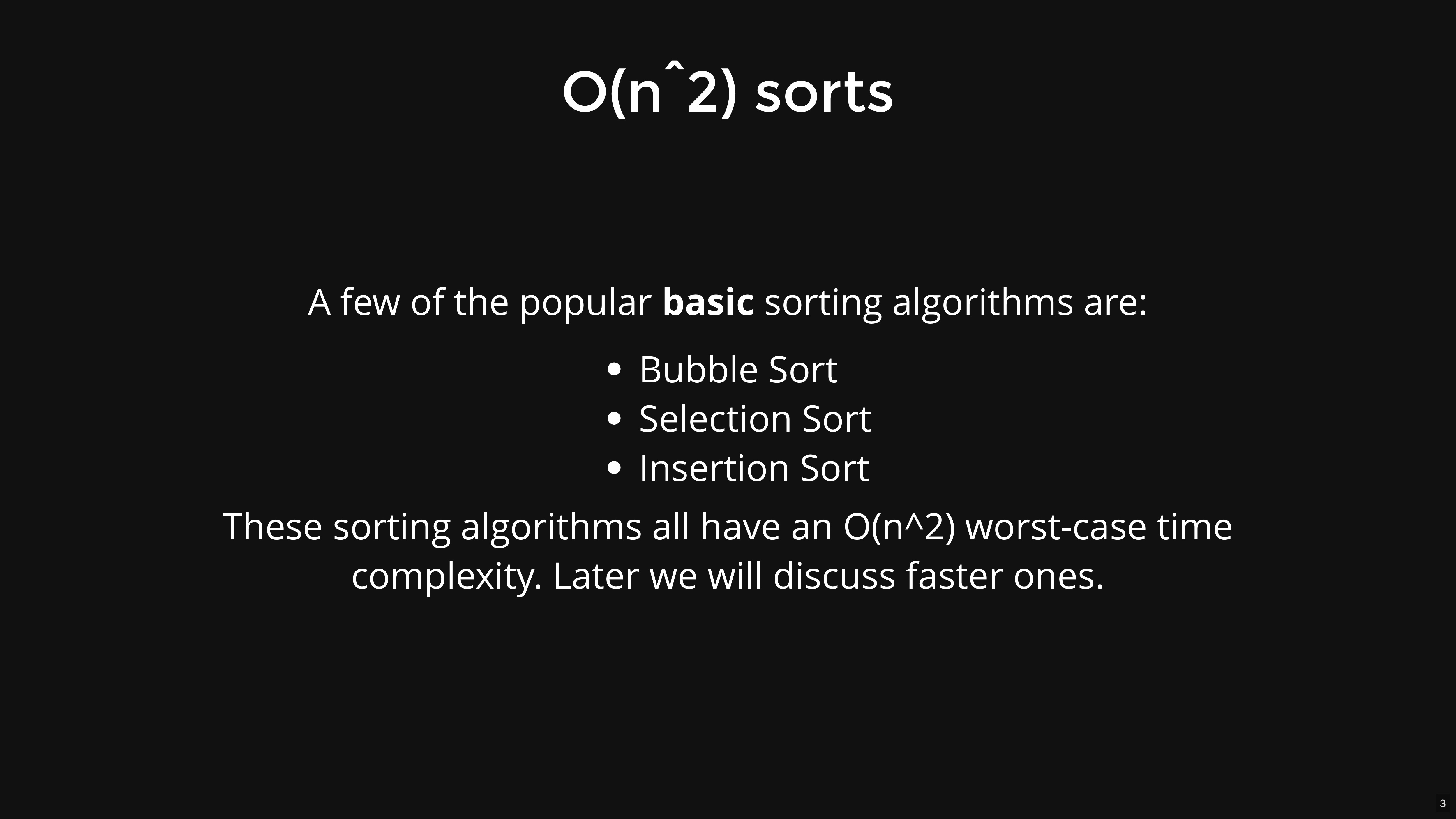

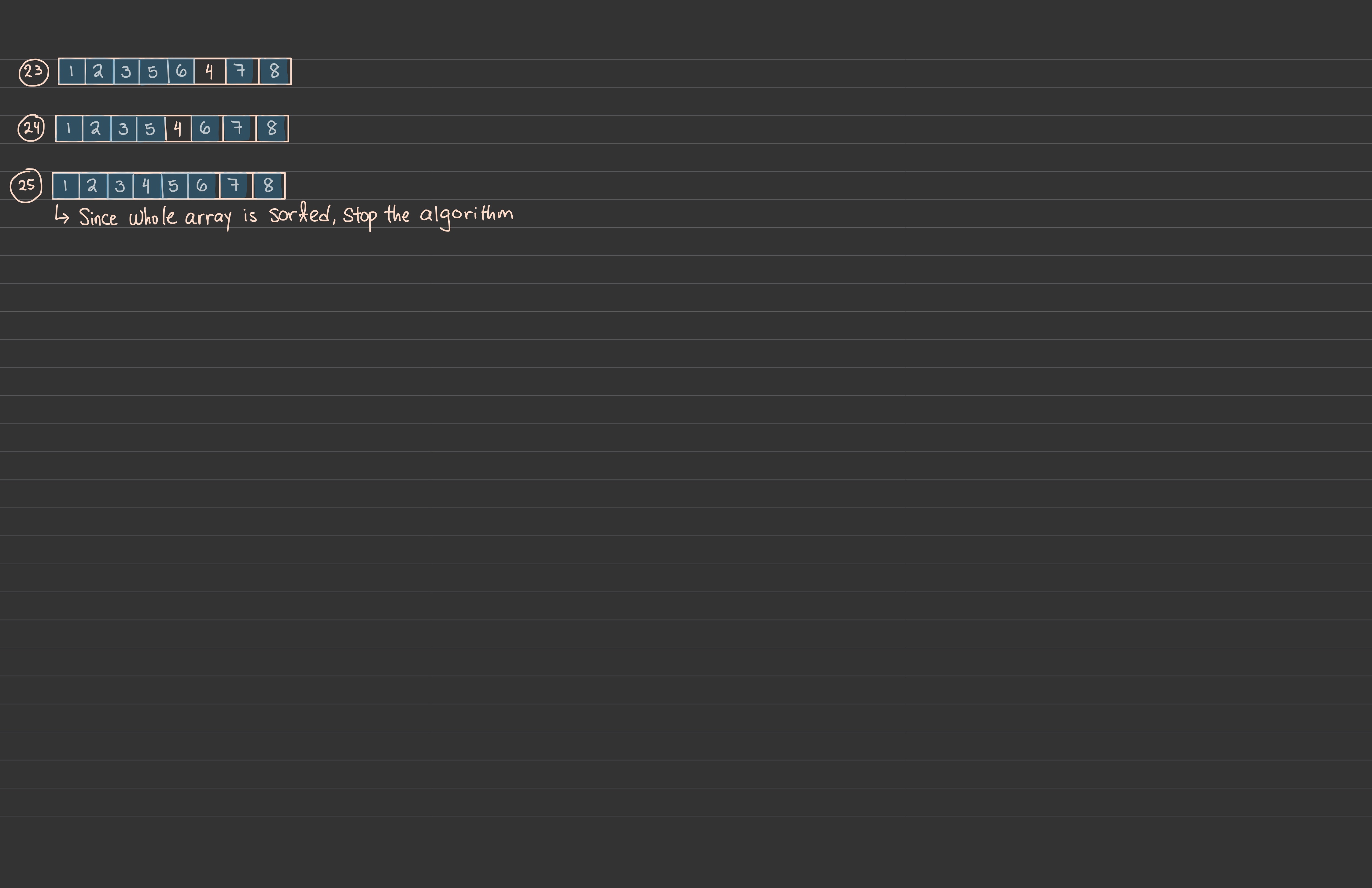

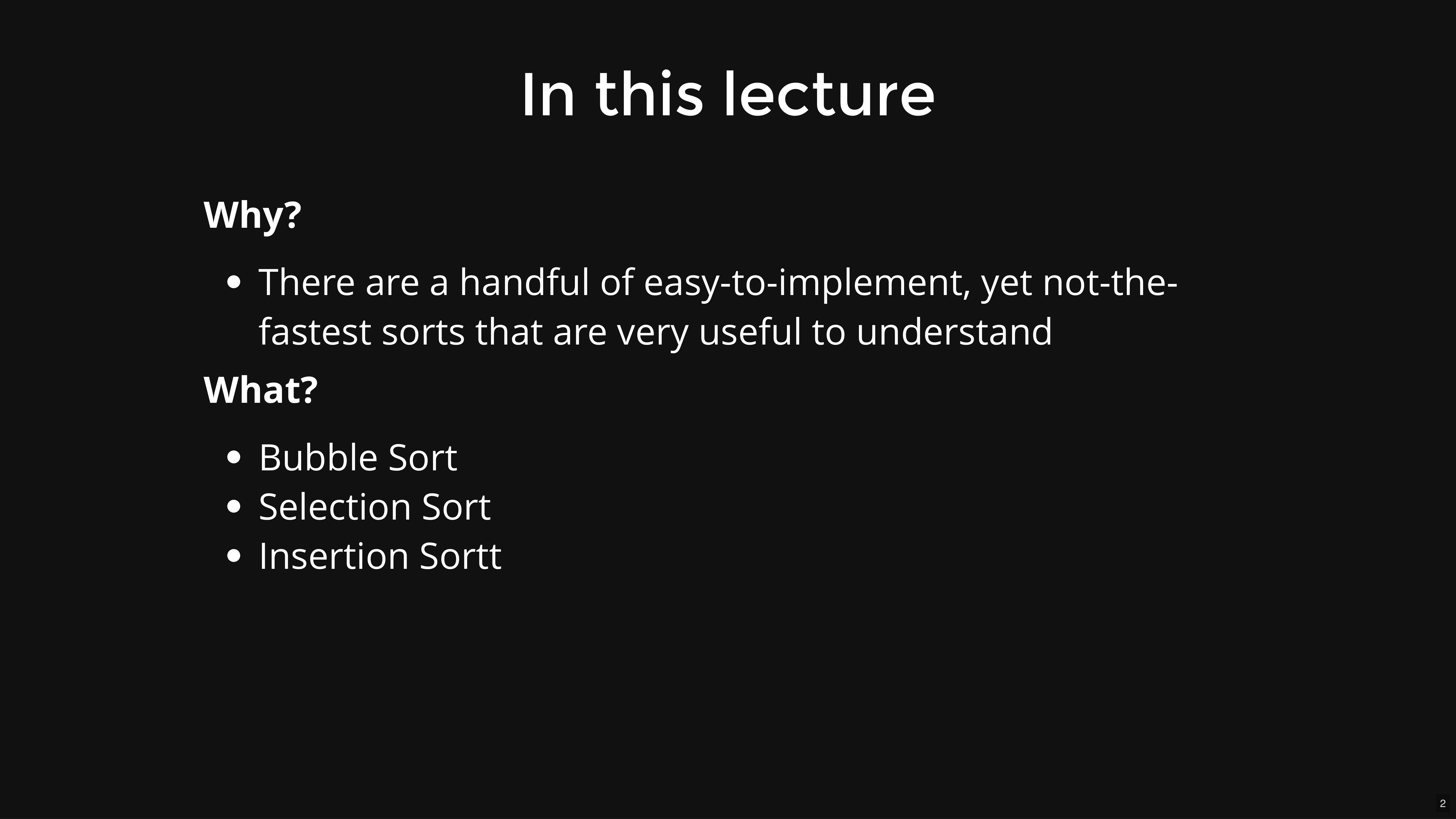

Basic Sort Lecture Slides Annotated

Annotated lecture slides

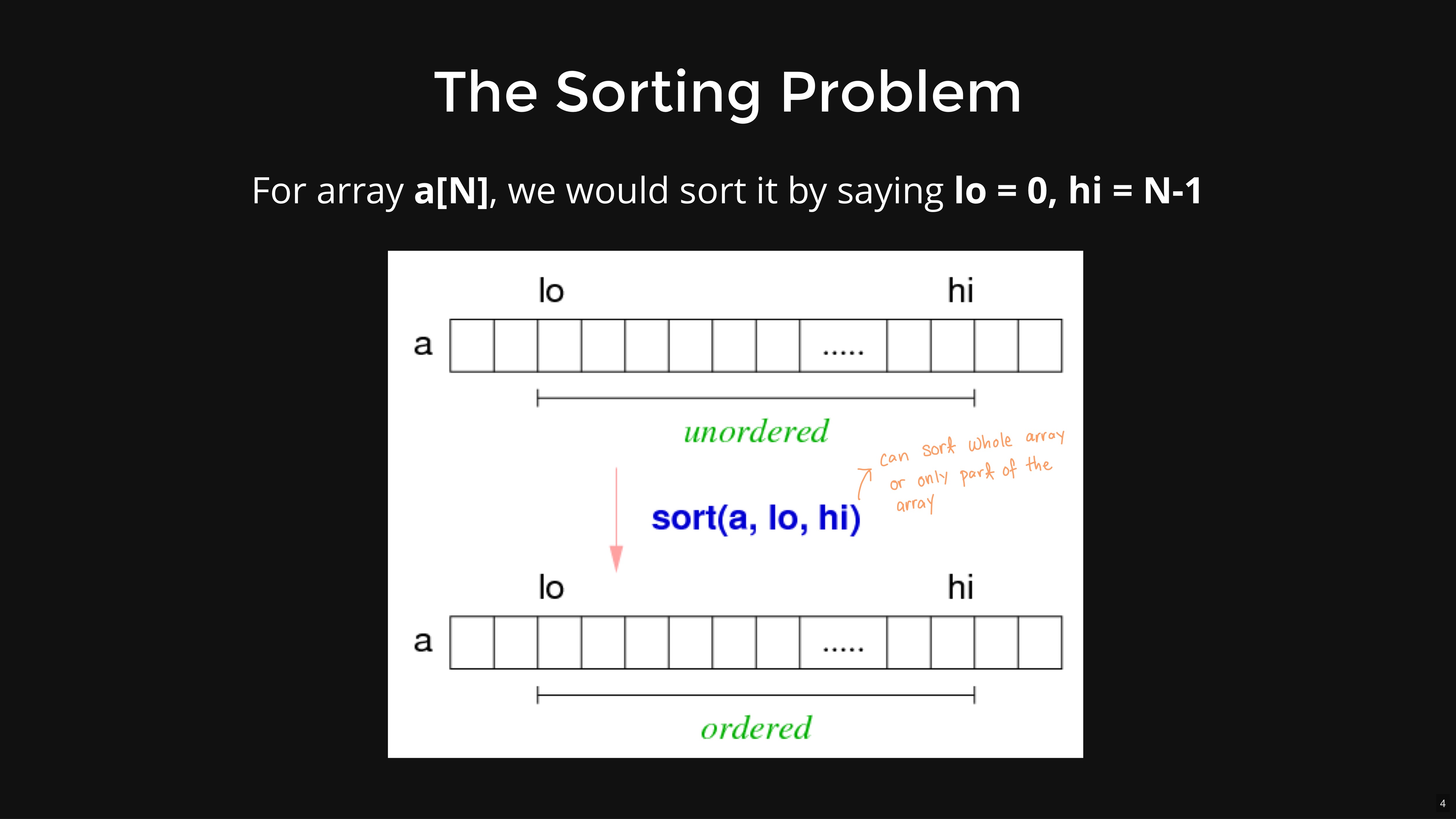

Sorting Overview Lecture Slides Annotated

Annotated lecture slides

Tutorial questions

1

Sorting algorithms

sorting algorithms

Quick sort

- MOT (Median of three): first index, last index, middle index and find median as a pivot

- random: random pivot

- naive: pick a pivot with fixed strategy

(average O(n log n), worst O(n^2))

Quick Sort pseudocode

int array a initialise

if start >= end, return

int key = start, i = start + 1, j = end, temp

start while loop i <= j

while i <= end && a[i] <=a[key] -> i++;

while j <= start && a[j] >=a[key] -> j--;

if i > j -> swap(a[key], a[j])

else swap(a[i], a[j])

end while loop

call recursion(start, j - 1)

call recursion(j + 1, end)

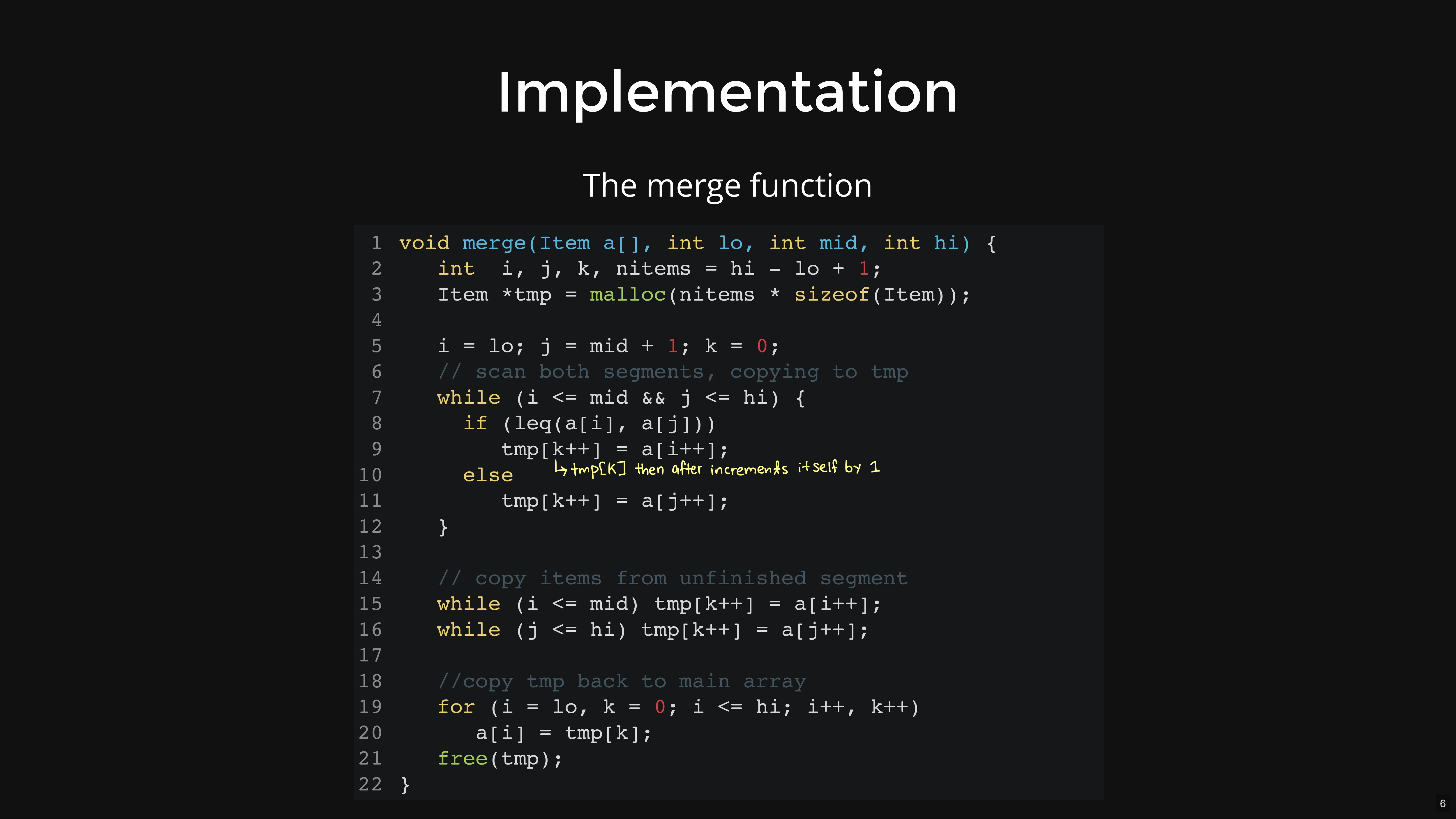

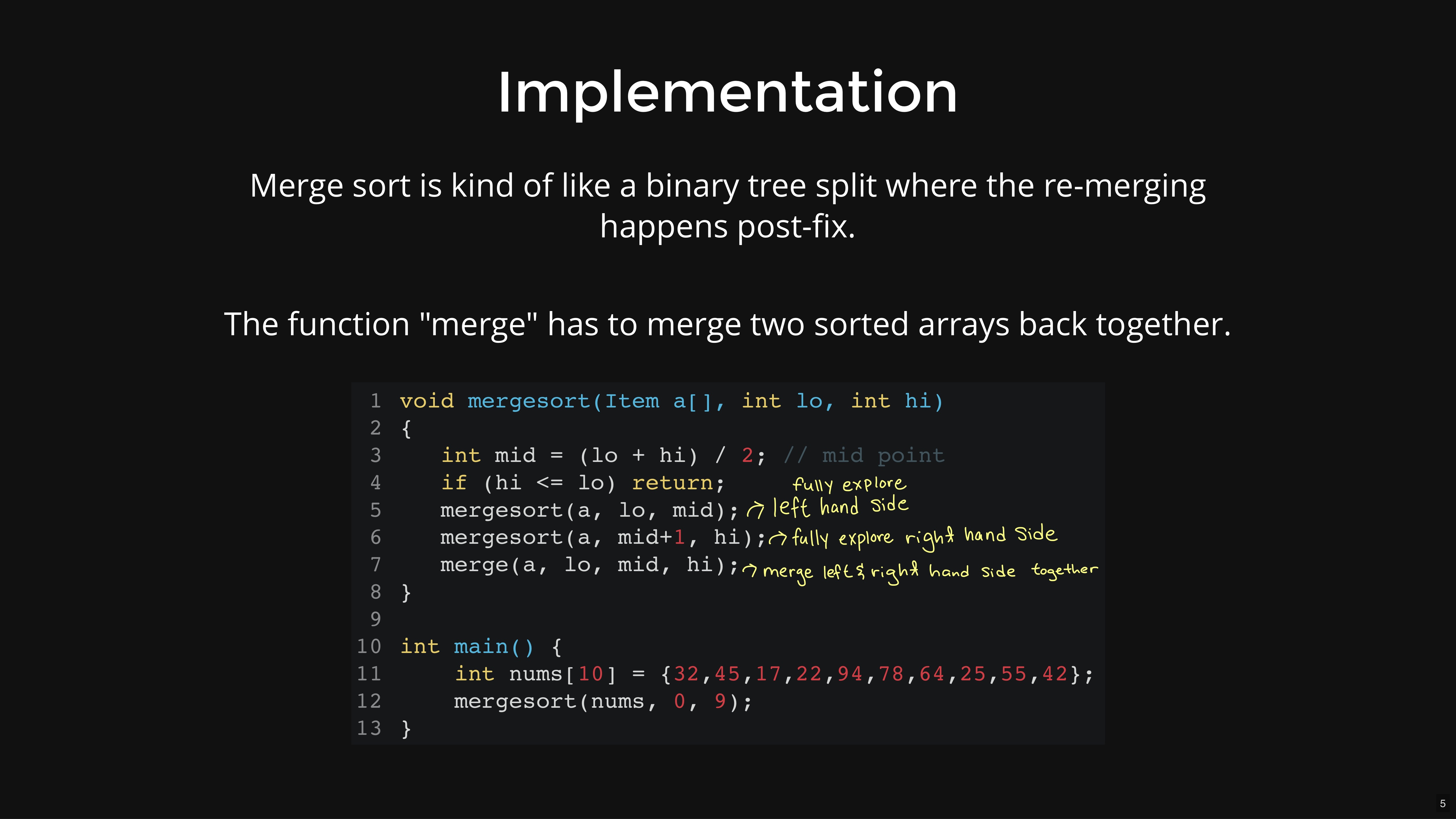

Merge sort pseudocode

<main>

mergeSort call with list, start index and arraySize - 1(end index)


<merge sort>

int mid

if left < right (start and end index)

mid = (left + right) / 2 // list divide

recursive call(list, left, mid) // list 1 conquer

recursive call (list, mid + 1, right) // list 2 conquer

call merge (list, left, mid, right) // combining list 1 and list 2


<merge>

int i = left, j = mid +1, k = left,

int L

make int array sorted

start while loop i <= mid AND j <= right // combine two list

if list [i] <= list[j] => sorted[k++] = list[i++]

else sorted[k++] = list[j++]

end while loop

// pick leftovers

if i > mid

for L = j, L <= right -> sorted[k++] = list[L]

else

for L = i, L <= mid -> sorted[k++] = list[L]


// copy sorted(temporary) array to list

for L=left, L <= right -> list[L] = sorted[L]

insertion sort pseudocode (e.g. struct road sort)

- starts with index 1 since we can consider index 0 is already sorted

start for loop i = 1 & i < array size

struct road r = array[i] // copy inserting value

int j is same with i

start while loop when j is greater than 0 AND r's value is smaller than array[j-1]'s value

array[j] = array[j-1]

decrease index j

end while loop

array[j] is set by r

end for loop

bubble sort pseudocode

int temp

start for loop i < array length

start for loop j < array length - 1 - i

if array [j] > array [j+1]

swap array[j] and array[j +1] using temp

end if

end for j loop

end for i loop


in first for loop, the biggest number will move at the end (reason why arraylength -1 - i)

selection sort pseudocode
int temp;

start for loop i < array length - 1 // no need to compare the final one

start for loop j = i + 1, j < array length

if data of i > data of j

swap i and j using temp

end if

end for j loop

end for i loop

Stable sorts

it is possible for an unstable sorting algorithm to produce the same output as a stable sorting algorithm.

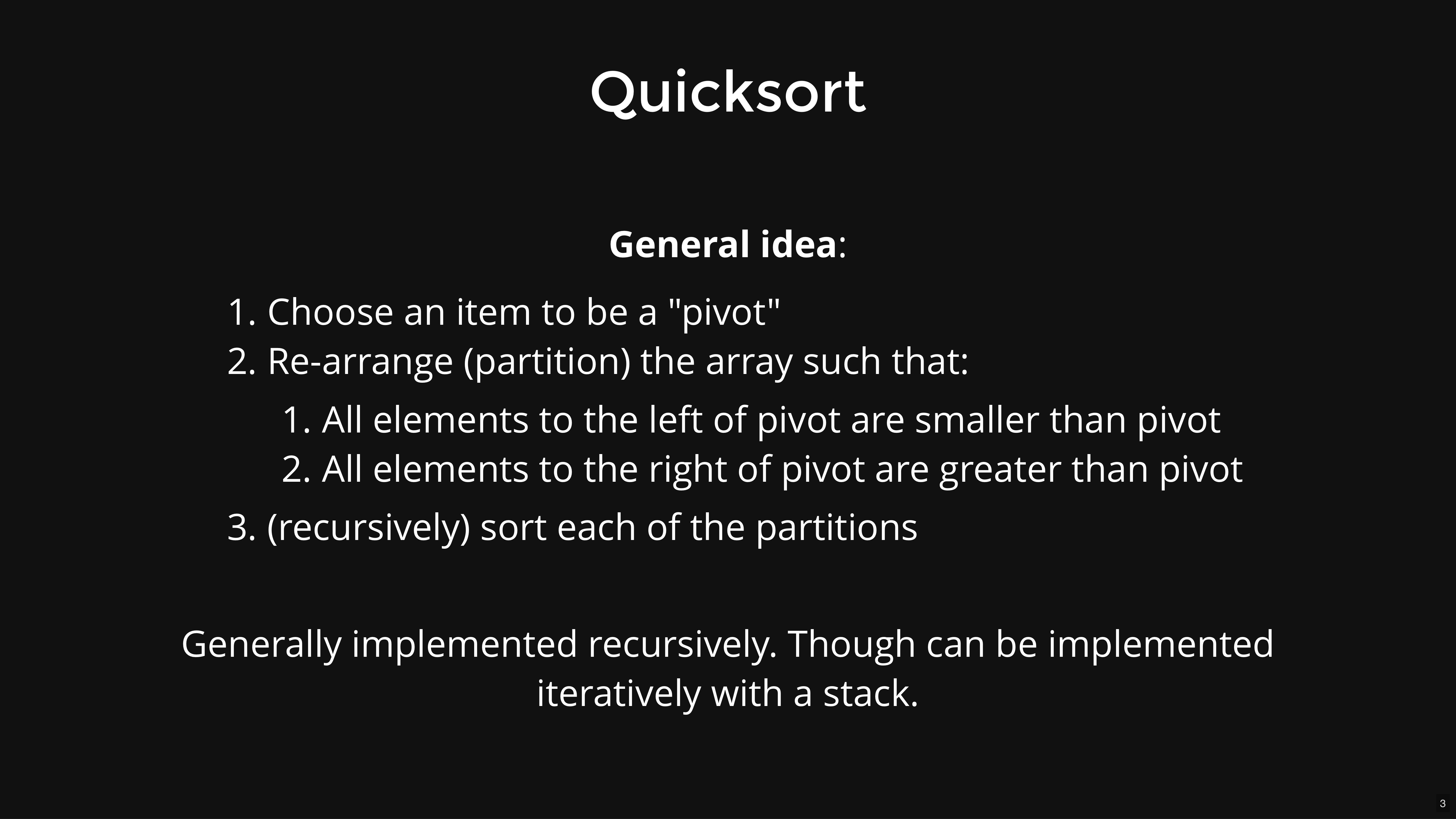

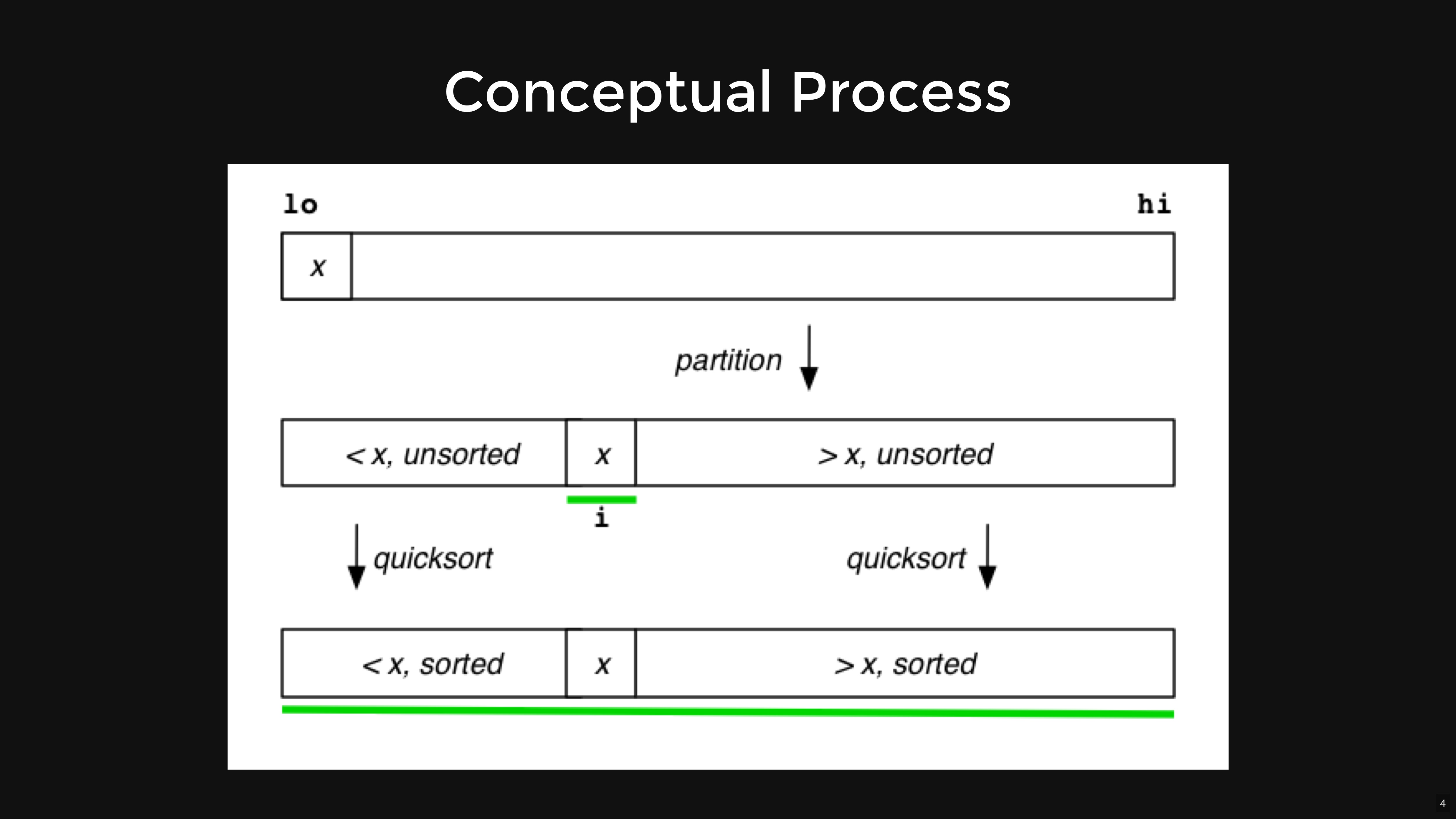

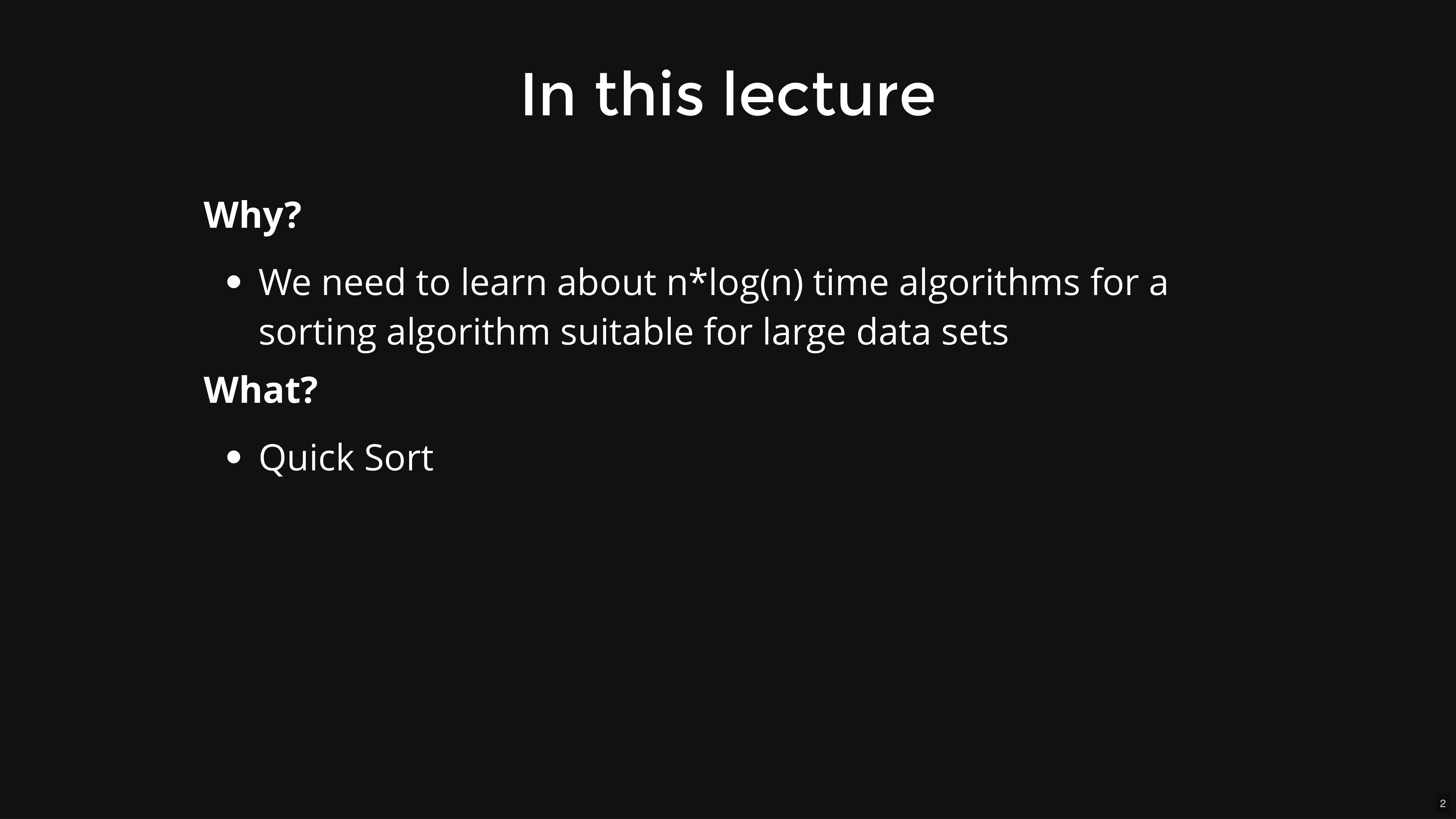

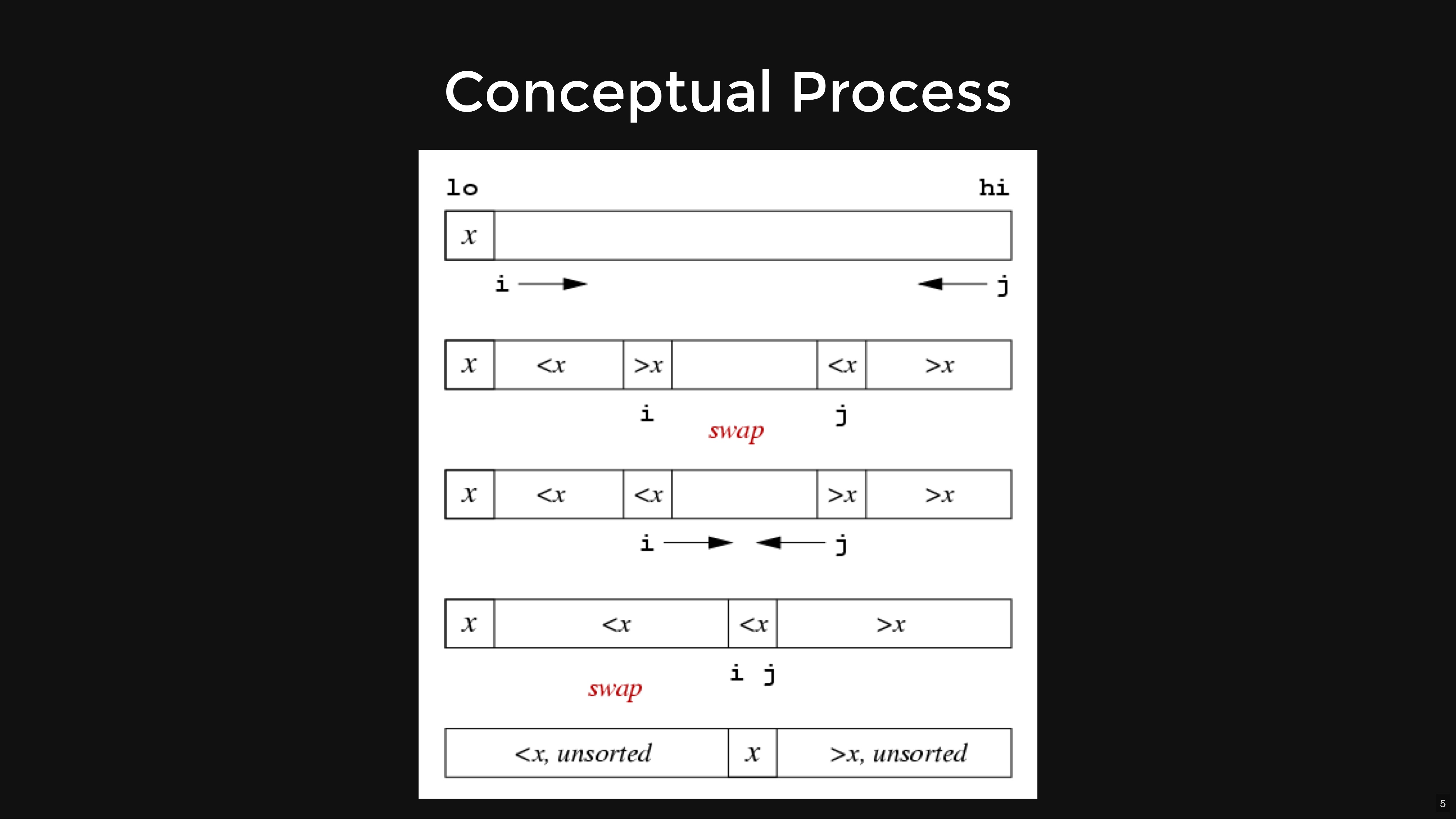

Quick Sort

Quick Sort

Steps:
  1. Choose an element, called a pivot, from the array.
  2. Partition the array such that:
    - All elements less than the pivot are to its left.
    - All elements greater than the pivot are to its right.
  3. Recursively apply the above steps to the sub-array of elements with smaller values and separately to the sub-array of elements with greater values.

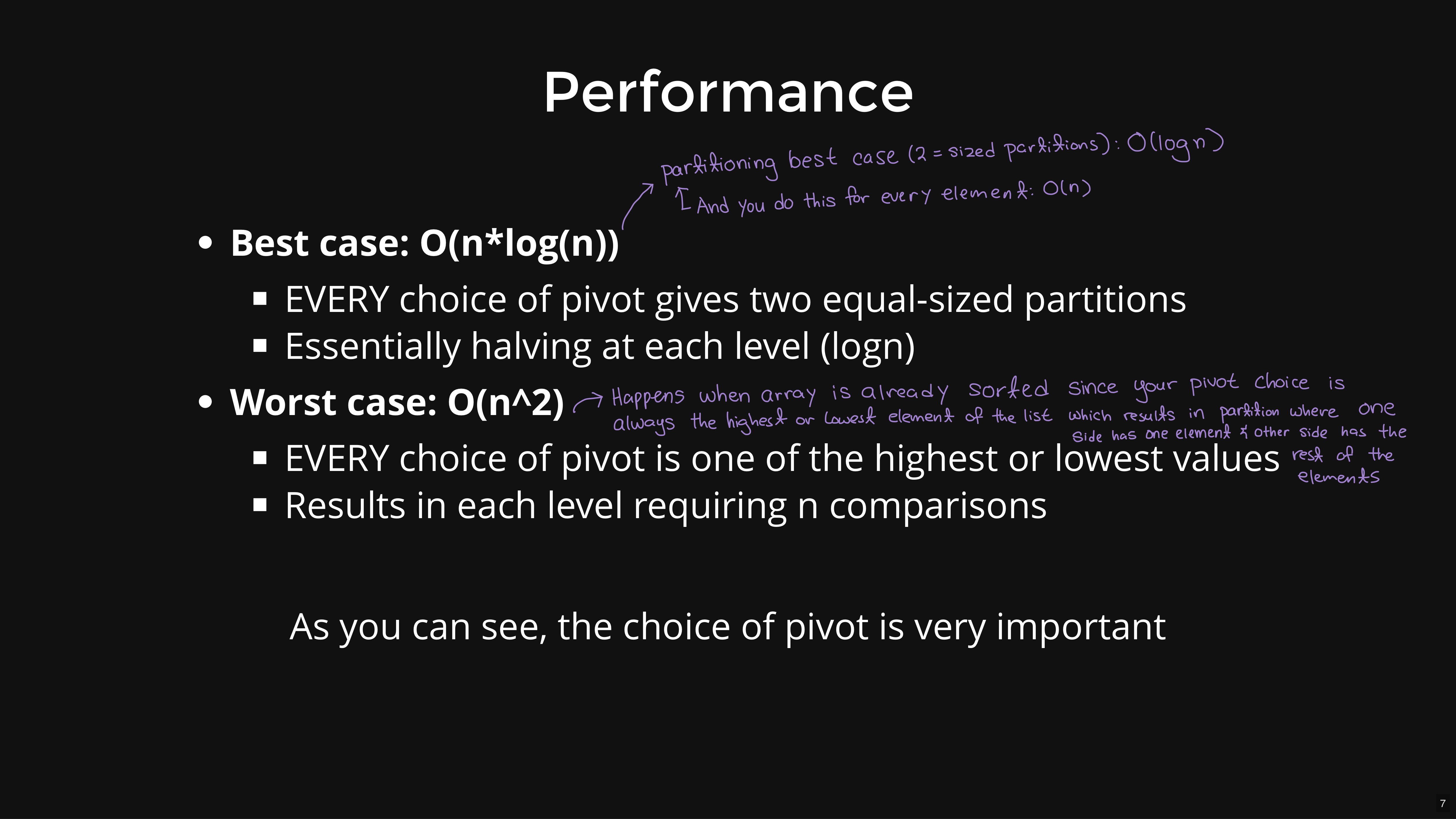

Time Complexity:
  • Best Case: O(n log n)
  • Average Case: O(n log n)
  • Worst Case: O(n^2)

Stability: Unstable

Adaptive: No

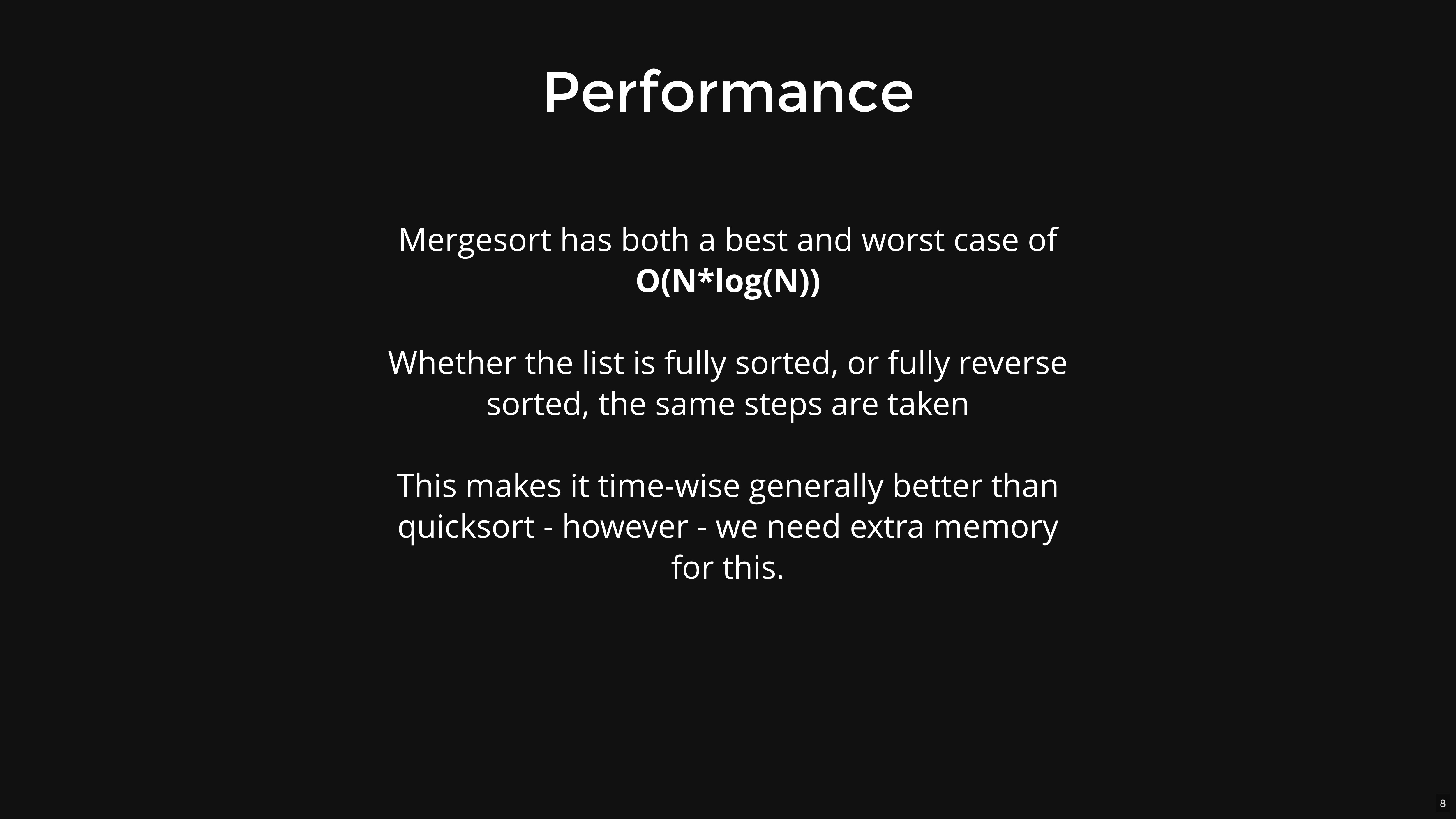

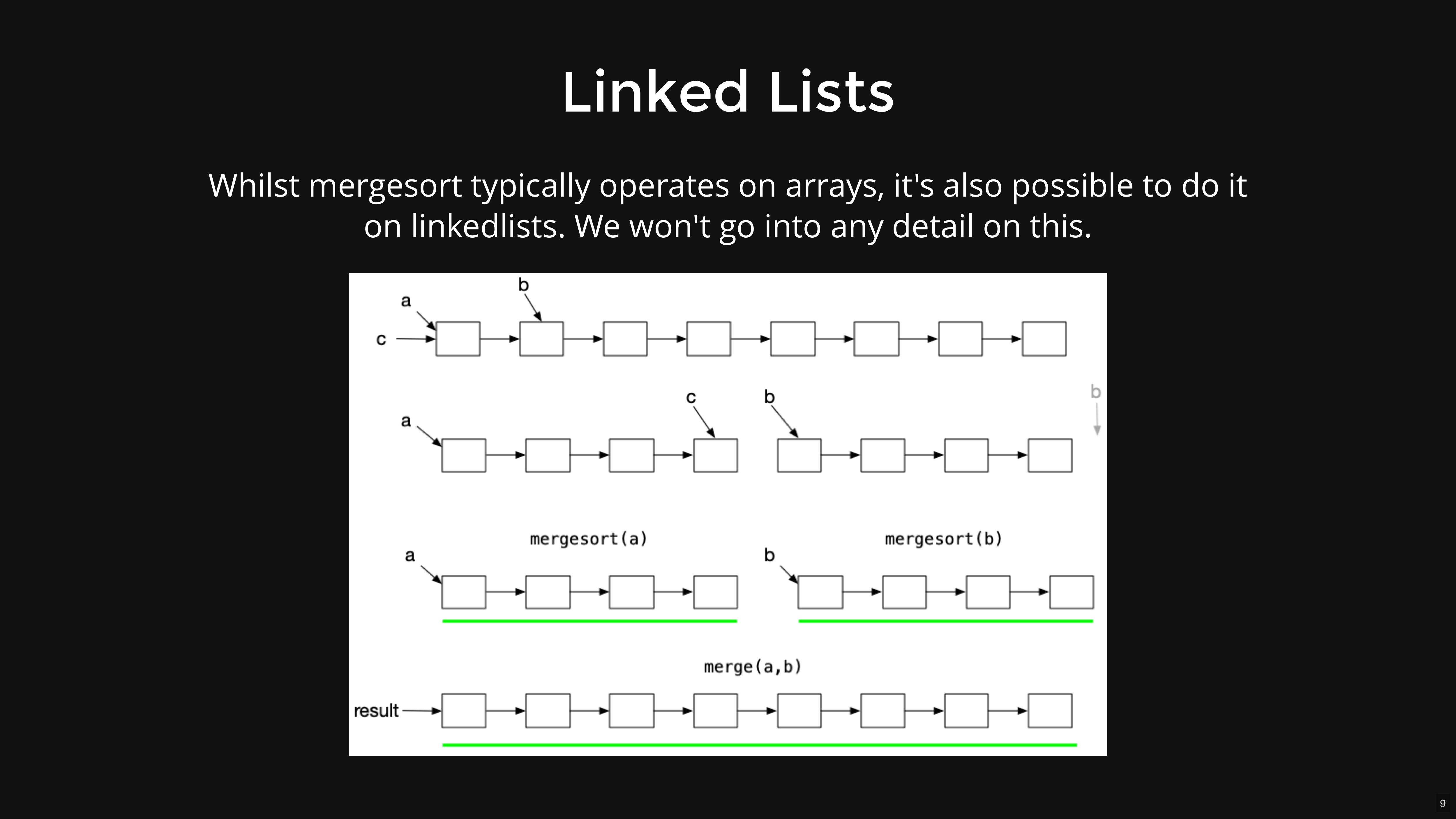

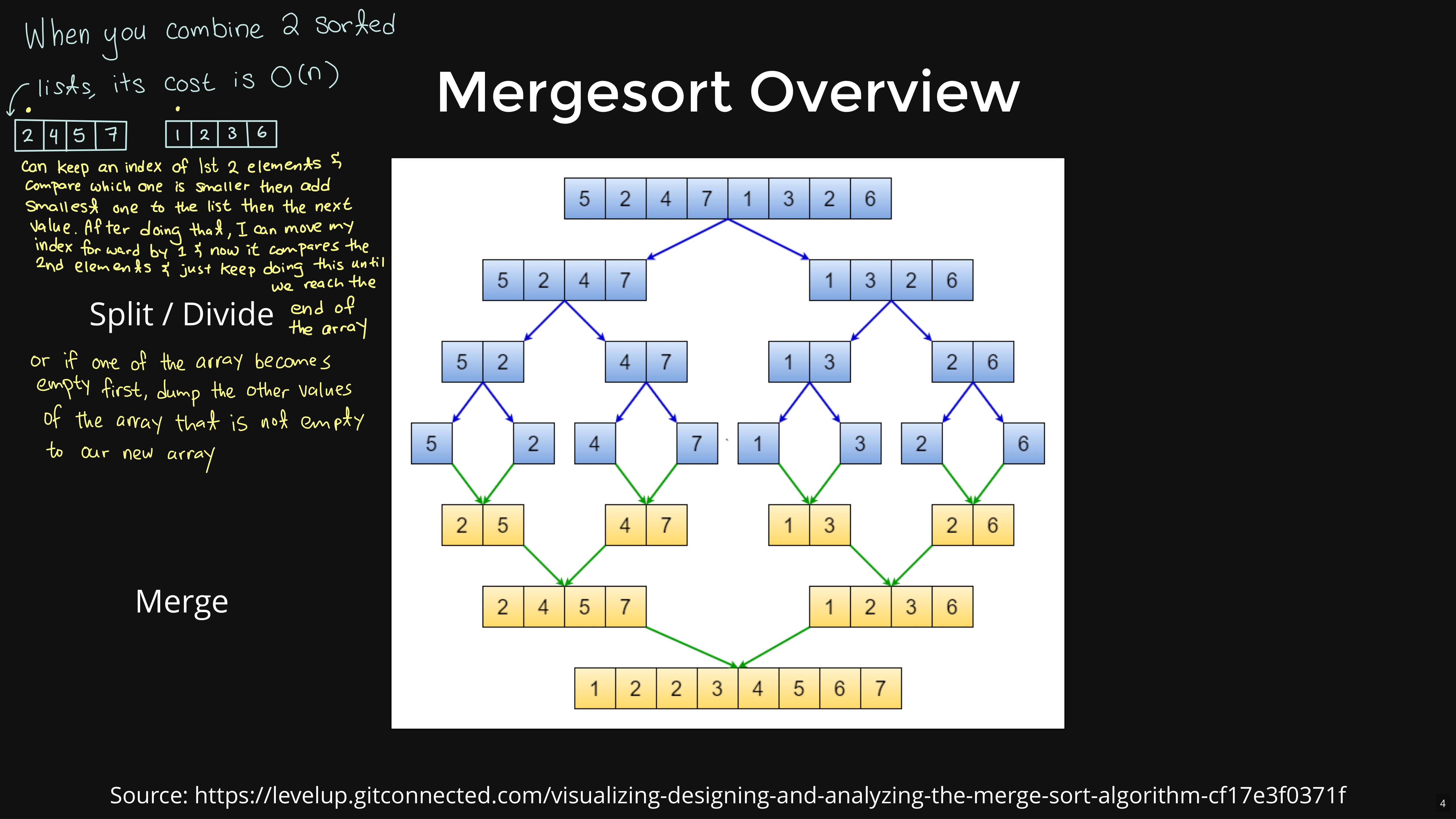

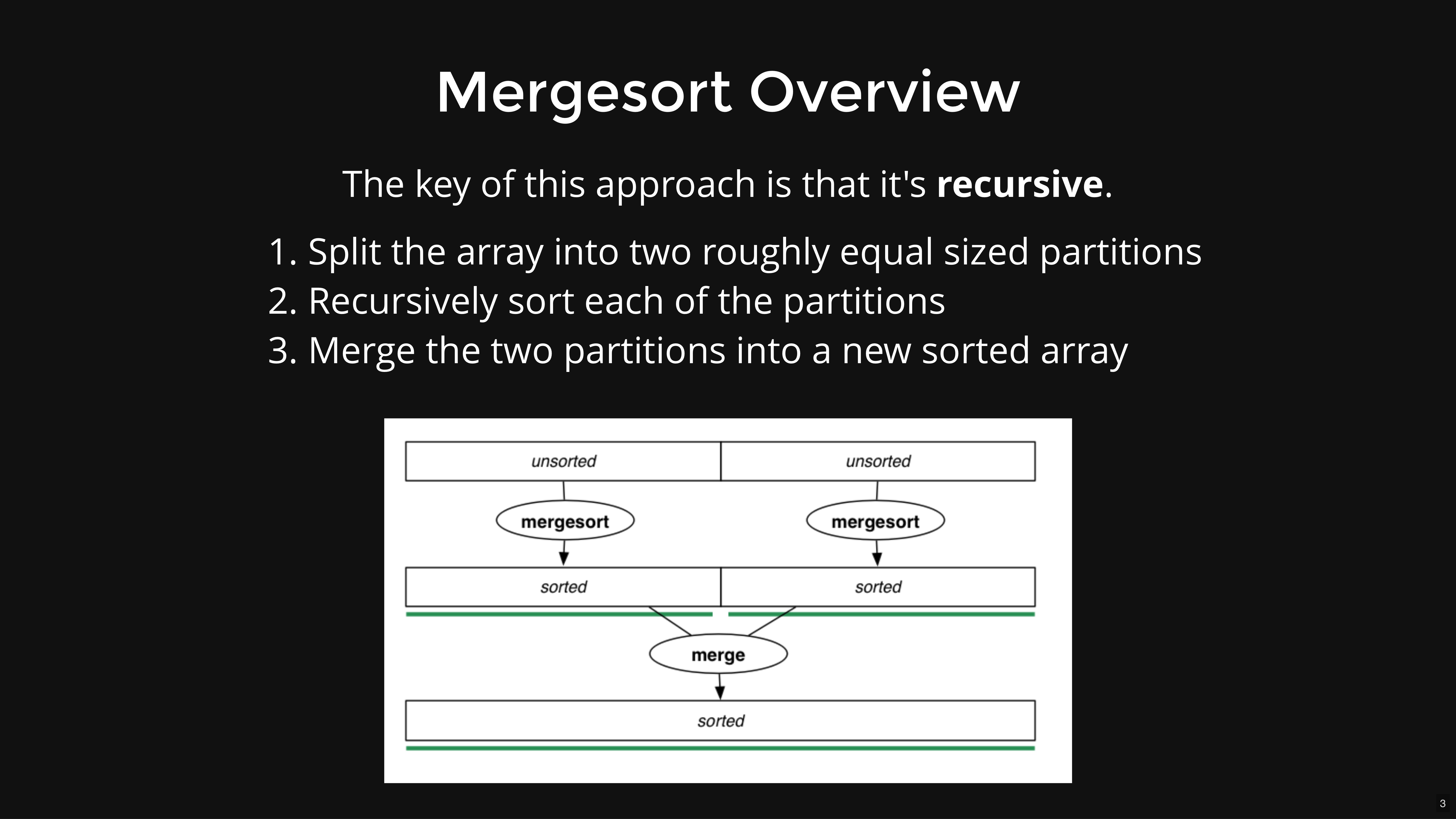

Merge Sort

Merge Sort

Steps:


  1. Divide the array into two halves
  2. Sort each half recursively
  3. Merge the two halves

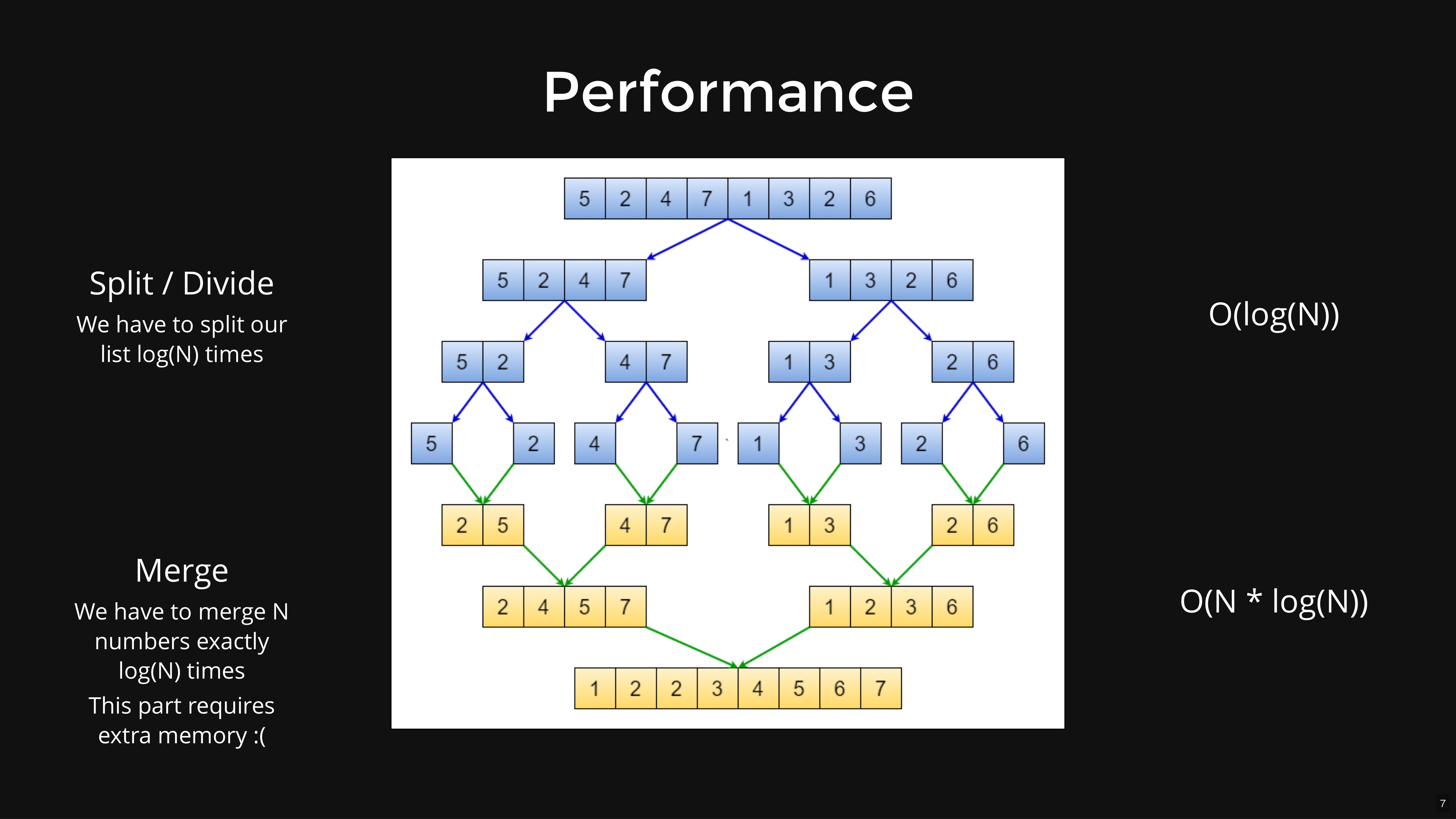

Time Complexity:


  • Best: O(n log n)
  • Average: O(n log n)
  • Worst: O(n log n)

Stability: Stable

Adaptive: No

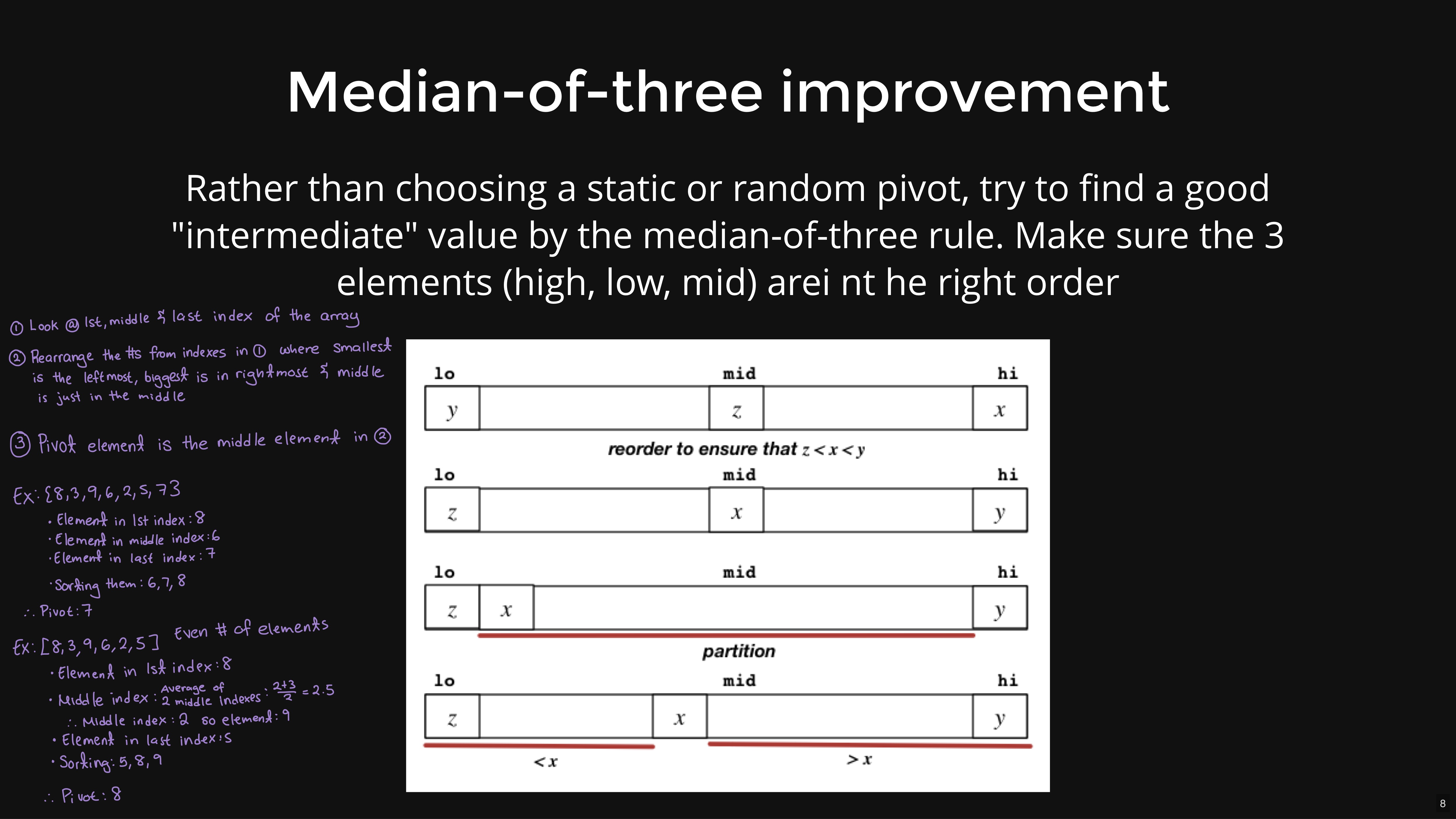

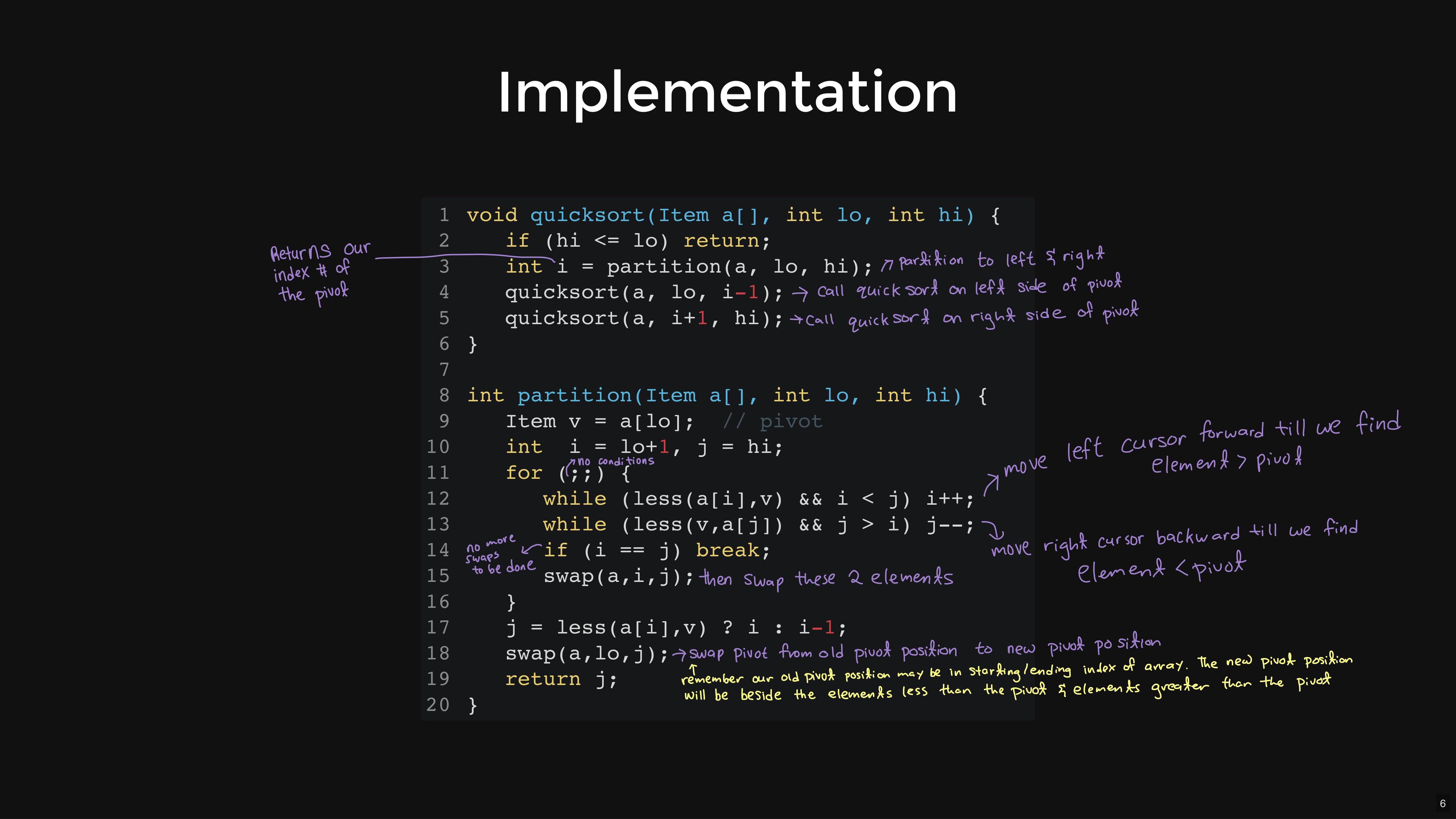

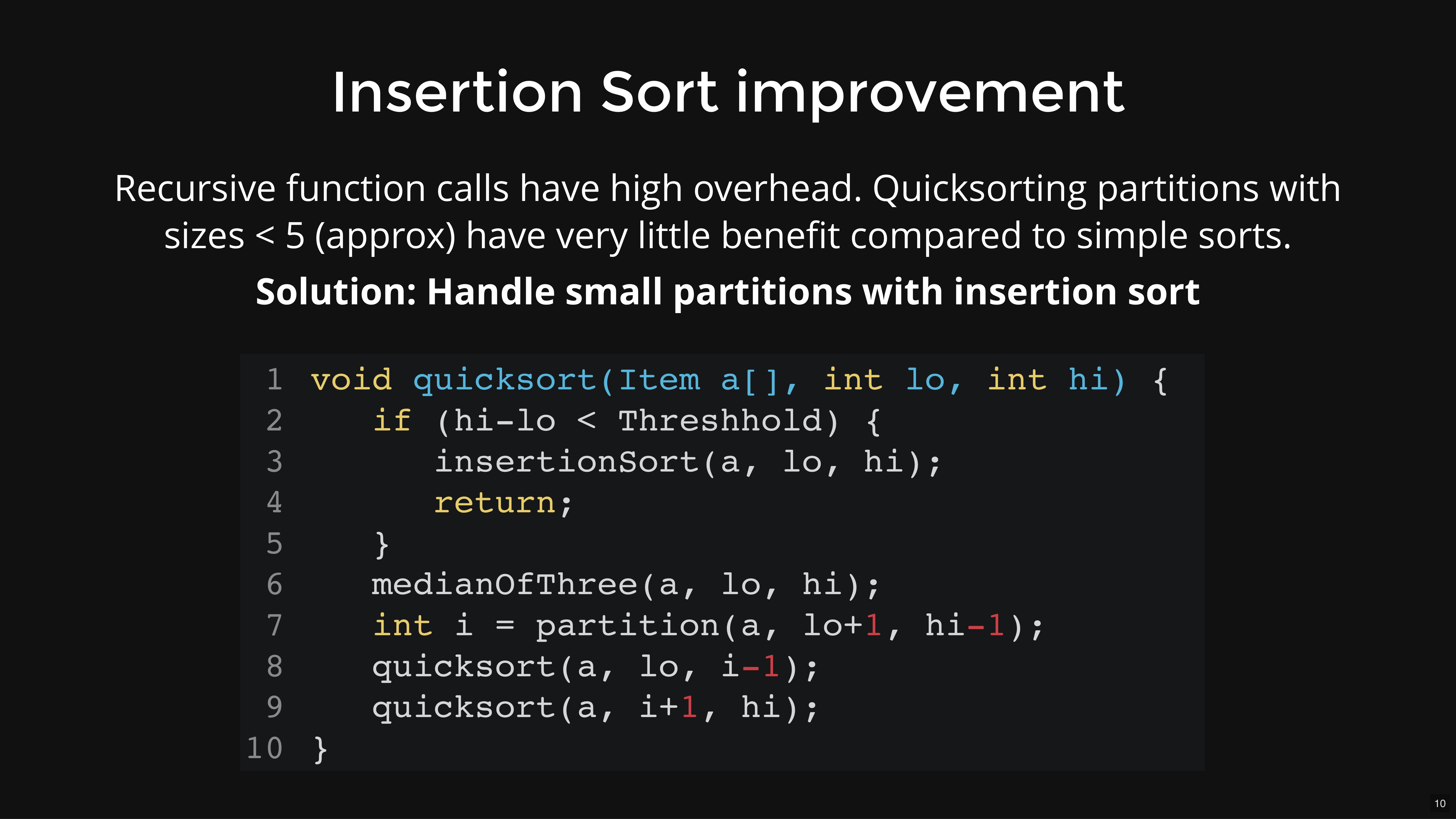

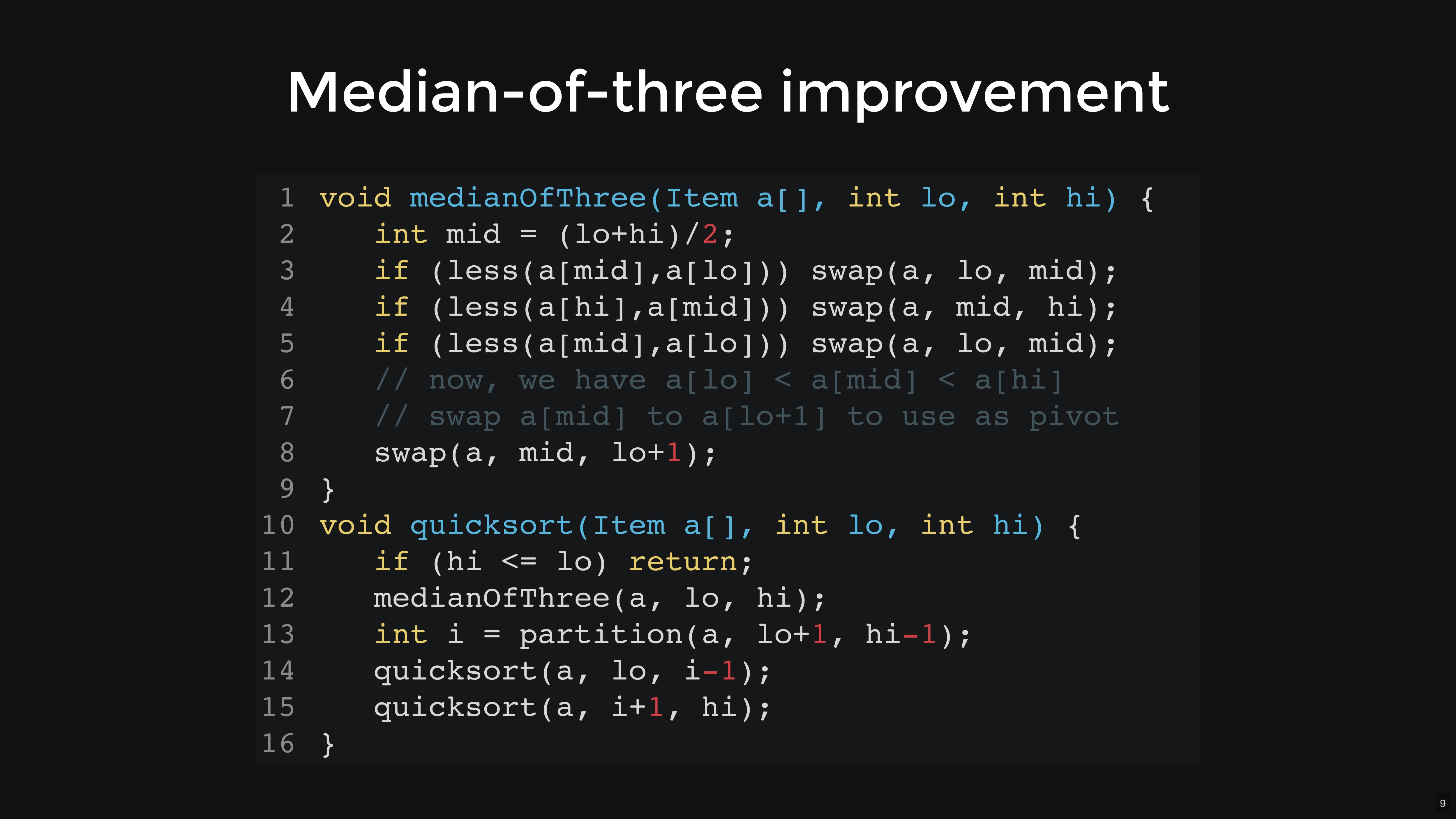

Quick sort with Median of three

void quicksort(Item a[], int lo, int hi) {
   int i;
   // index of pivot    if (hi <= lo) return;
    medianOfThree(a, lo, hi);
    i = partition(a, lo+1, hi-1);
    quicksort(a, lo, i-1);
    quicksort(a, i+1, hi);
}
void medianOfThree(Item a[], int lo, int hi) {
    int mid = (lo+hi)/2;
    if (less(a[mid],a[lo]))
        swap(a, lo, mid);
    if (less(a[hi],a[mid]))
        swap(a, mid, hi);
    if (less(a[mid],a[lo]))
        swap(a, lo, mid);
// now, we have a[lo] ≤ a[mid] ≤ a[hi]// swap a[mid] to a[lo+1] to use as pivot    swap(a, lo+1, mid);
}

int partition(Item a[], int lo, int hi) {
    Item v = a[lo]; // pivot
int i = lo+1, j = hi; for (;;) { while (less(a[i],v) && i < j) i++; while (less(v,a[j]) && j > i) j--; if (i == j) break; swap(a,i,j); } j = less(a[i],v) ? i : i-1; swap(a,lo,j); return j; }

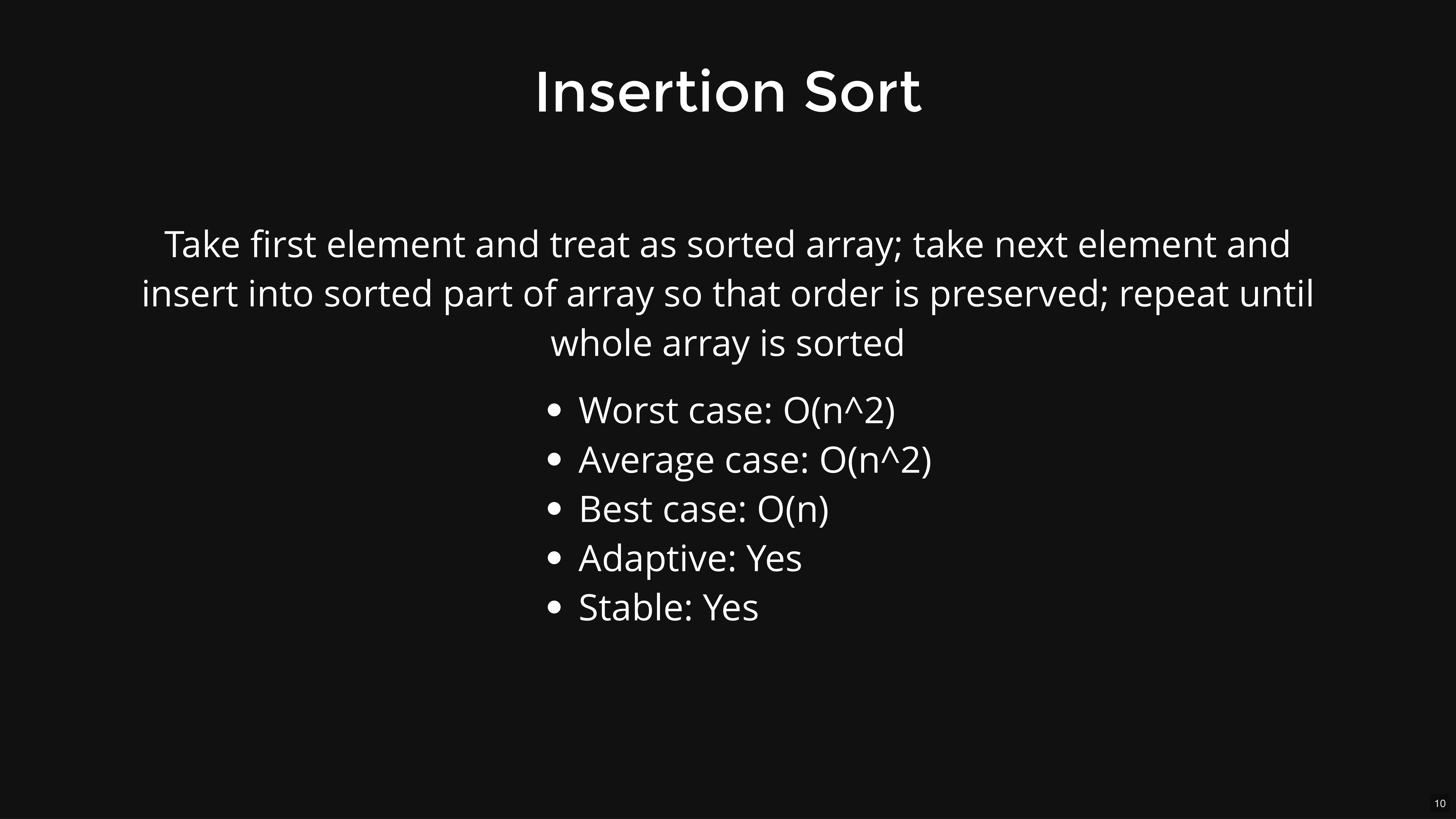

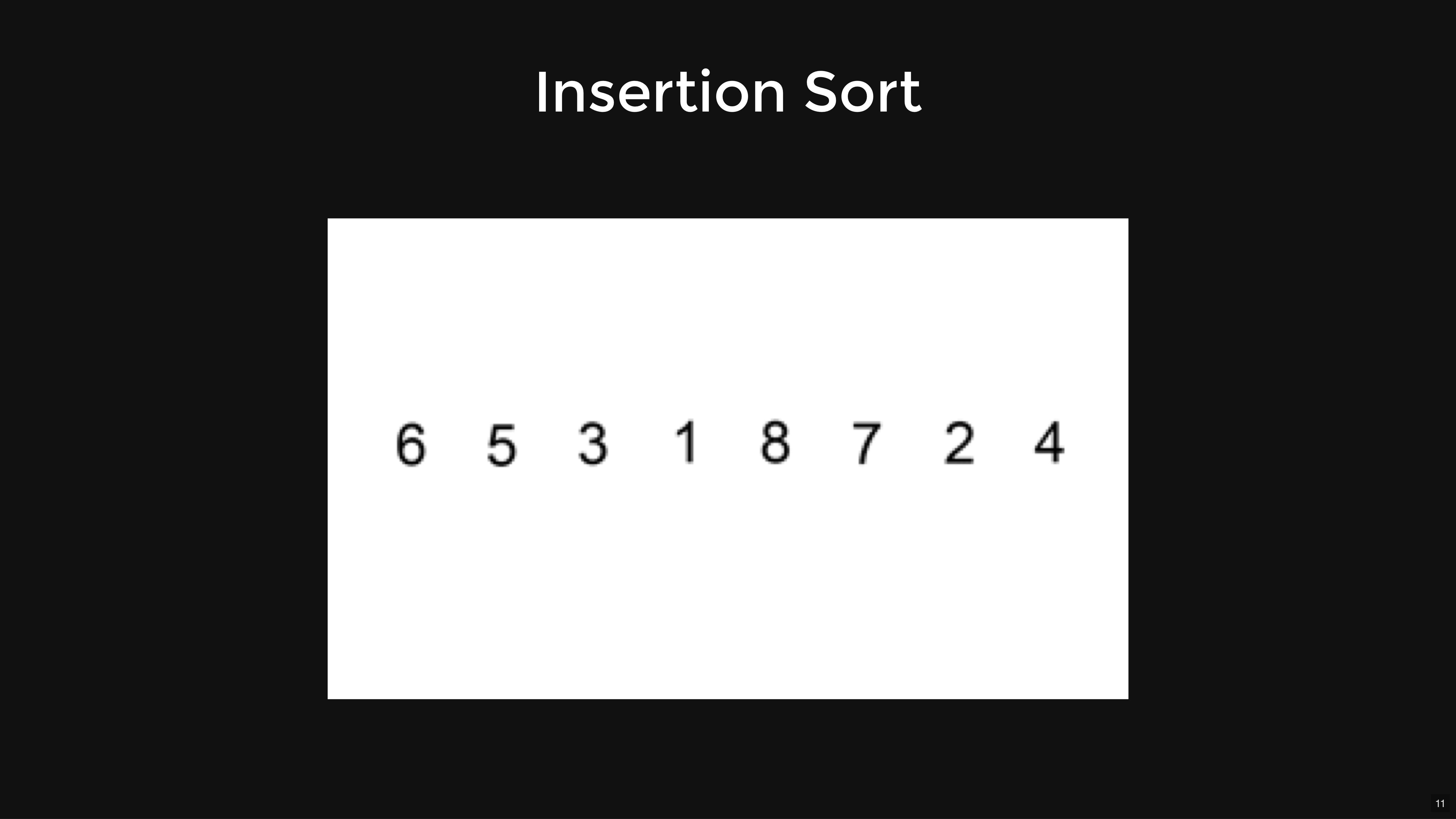

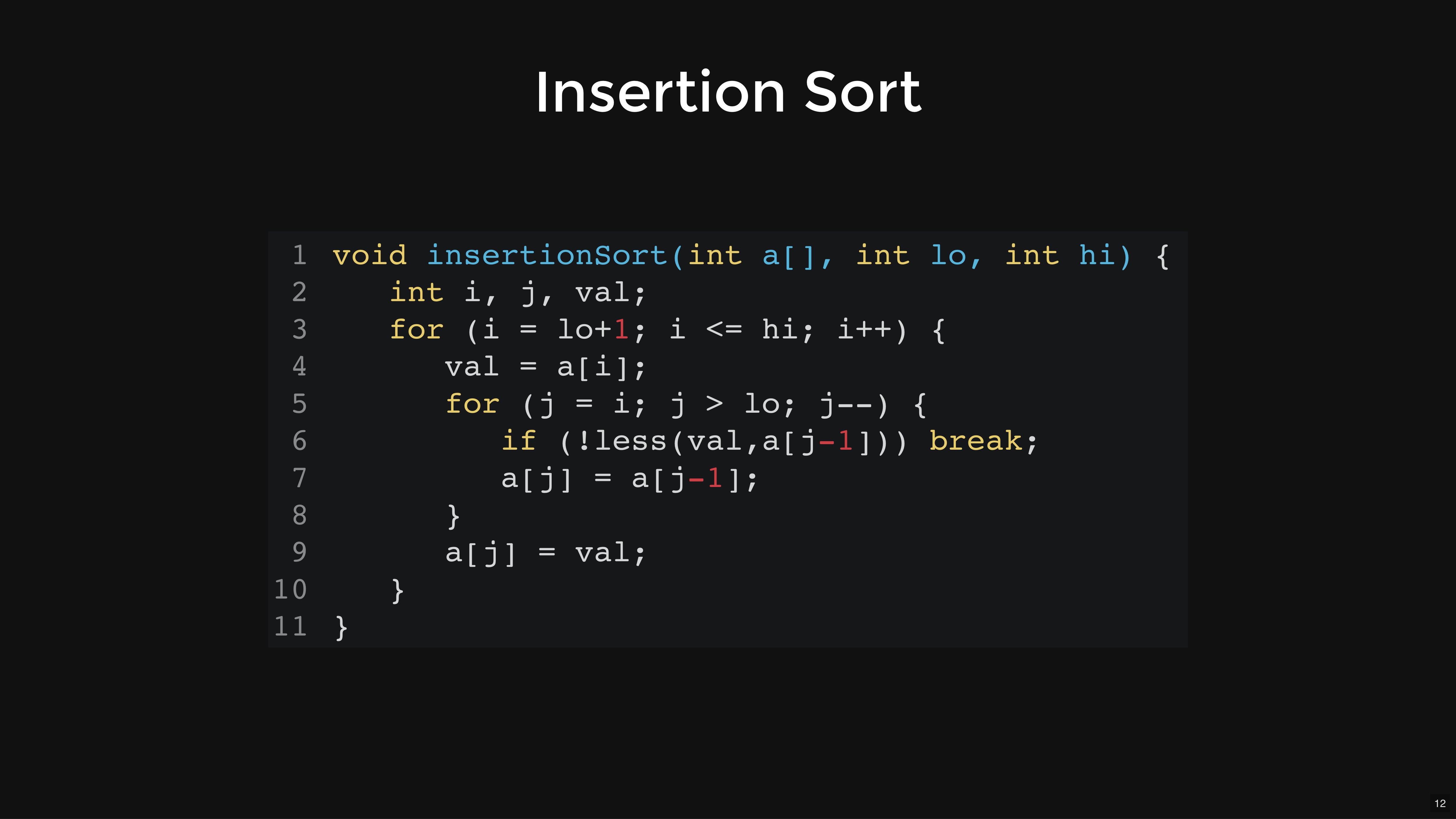

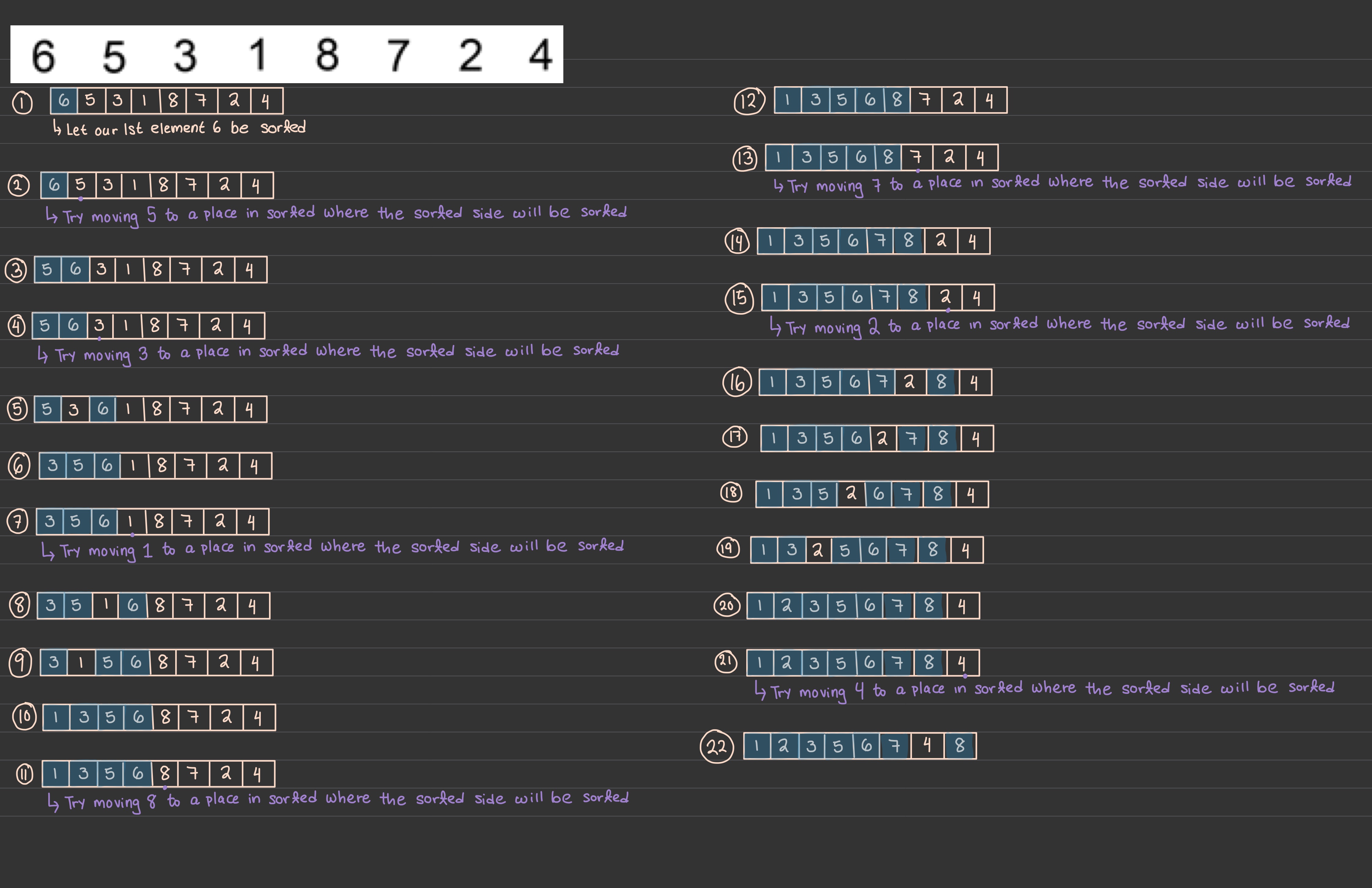

Insertion Sort

Insertion Sort

Steps:

  1. Treat the first element as a sorted list
  2. For each element, insert it into the sorted list in the correct position
  3. Repeat until all elements are sorted
Time Complexity:
  • Best Case: O(n)
  • Average Case: O(n^2)
  • Worst Case: O(n^2)

Stable: Yes

Adaptive: Yes

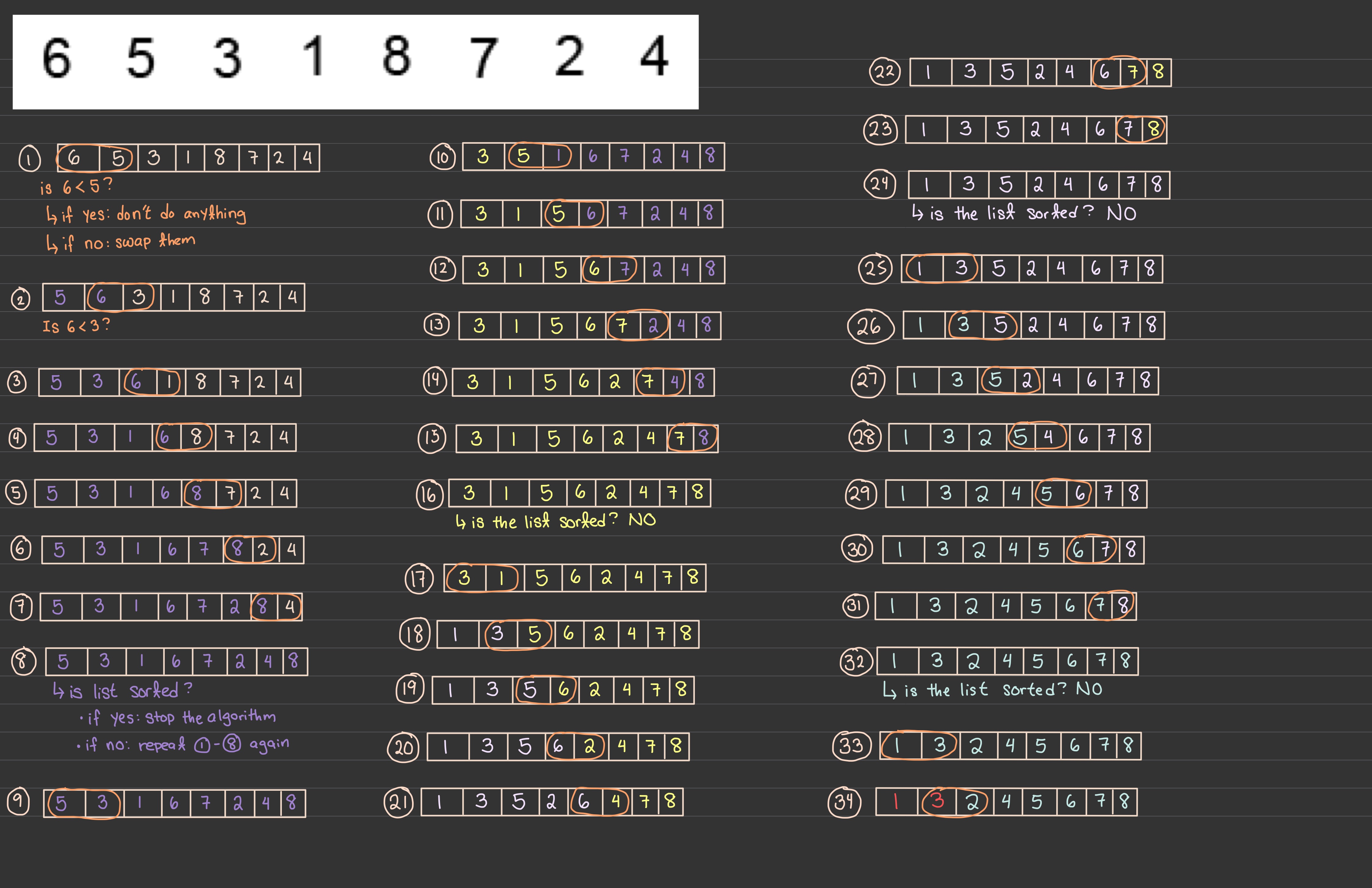

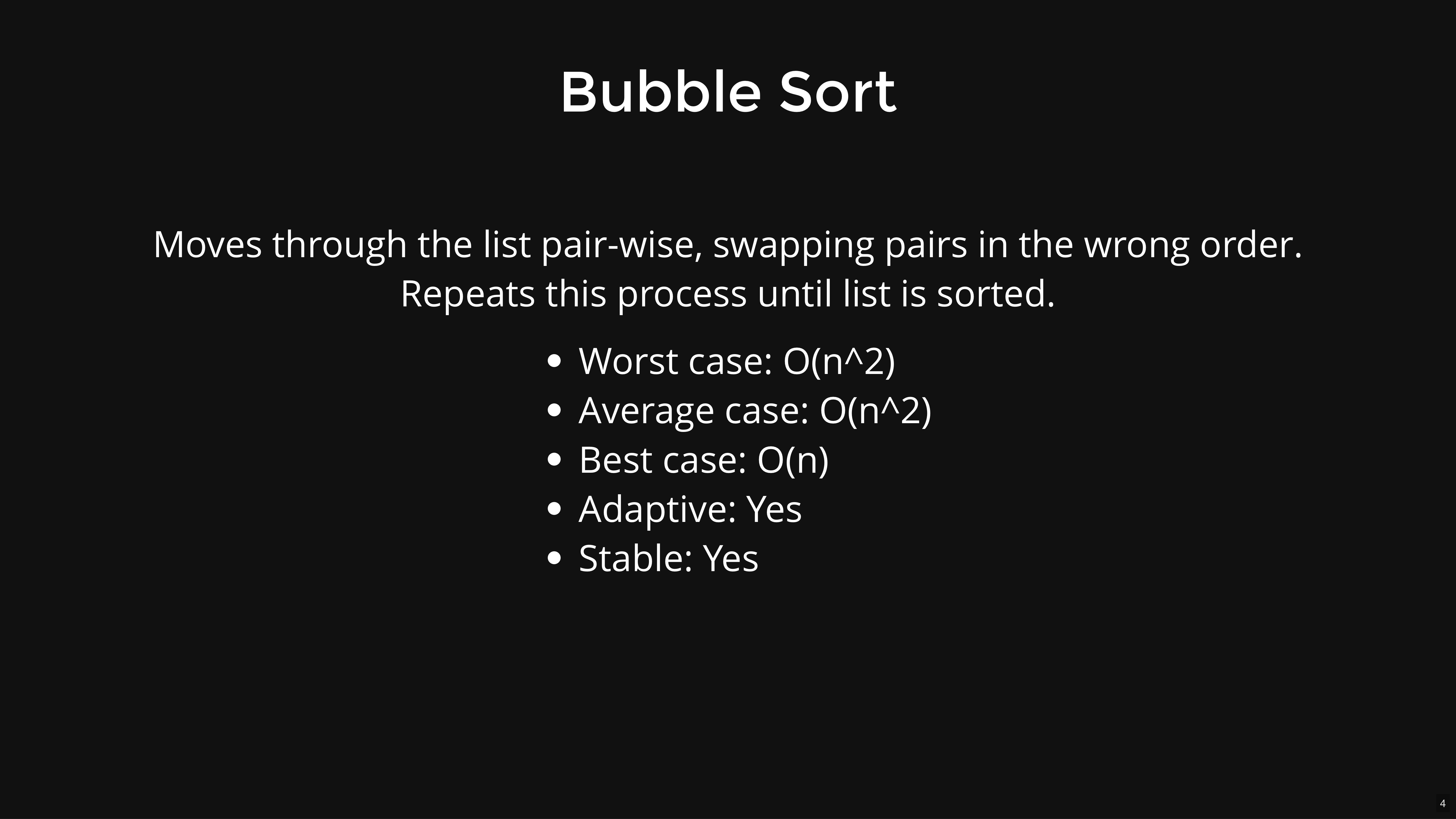

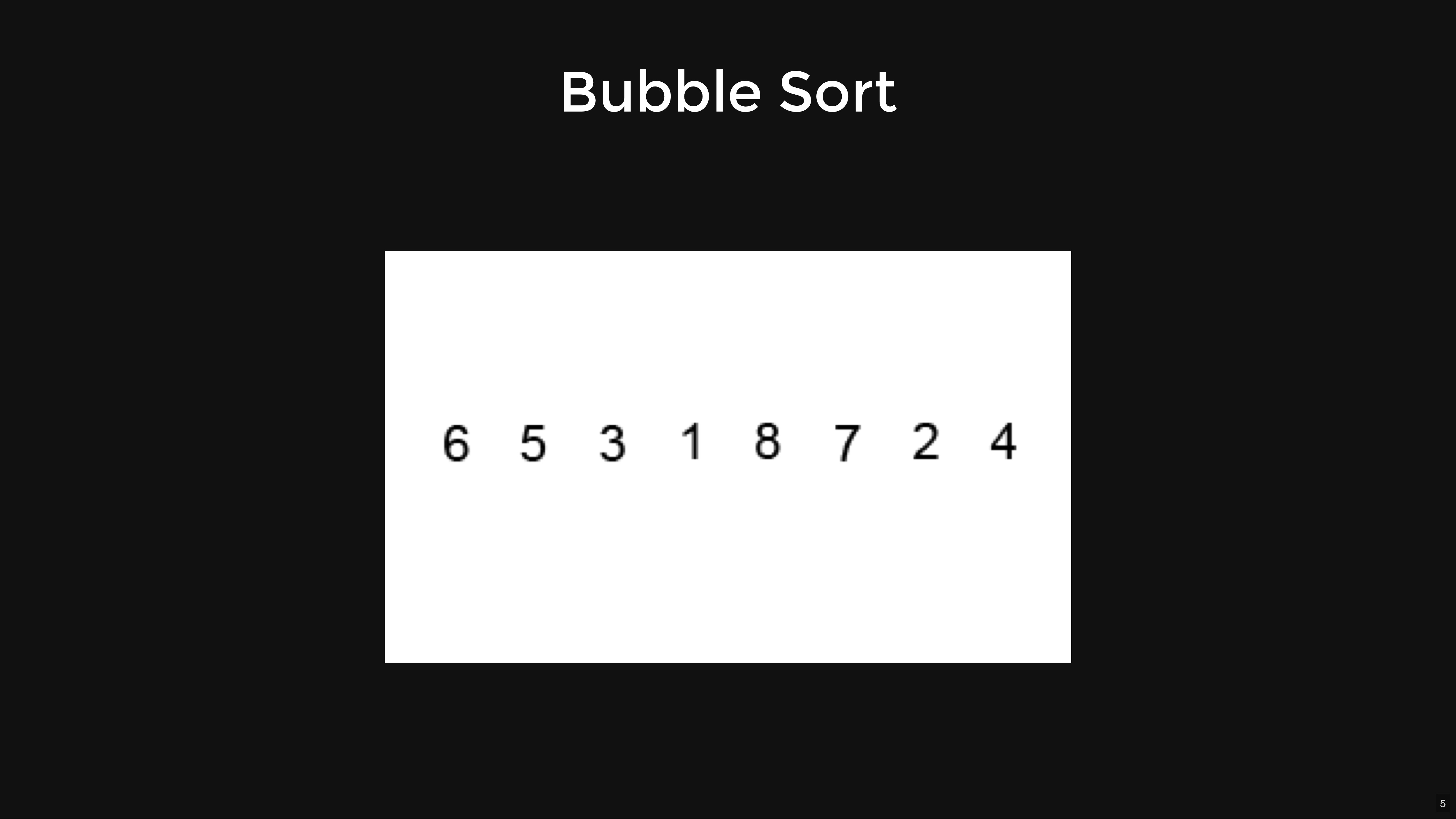

Bubble Sort

Bubble Sort

Steps:
  1. Compare the first and second element
  2. If the first element is greater than the second element, swap them
  3. Repeat step 1 and 2 until the end of the array
  4. Repeat step 1 to 3 until the array is sorted


Time Complexity:

  • Best Case: O(n)
  • Average Case: O(n^2)
  • Worst Case: O(n^2)

Stability: Stable

Adaptive: Yes

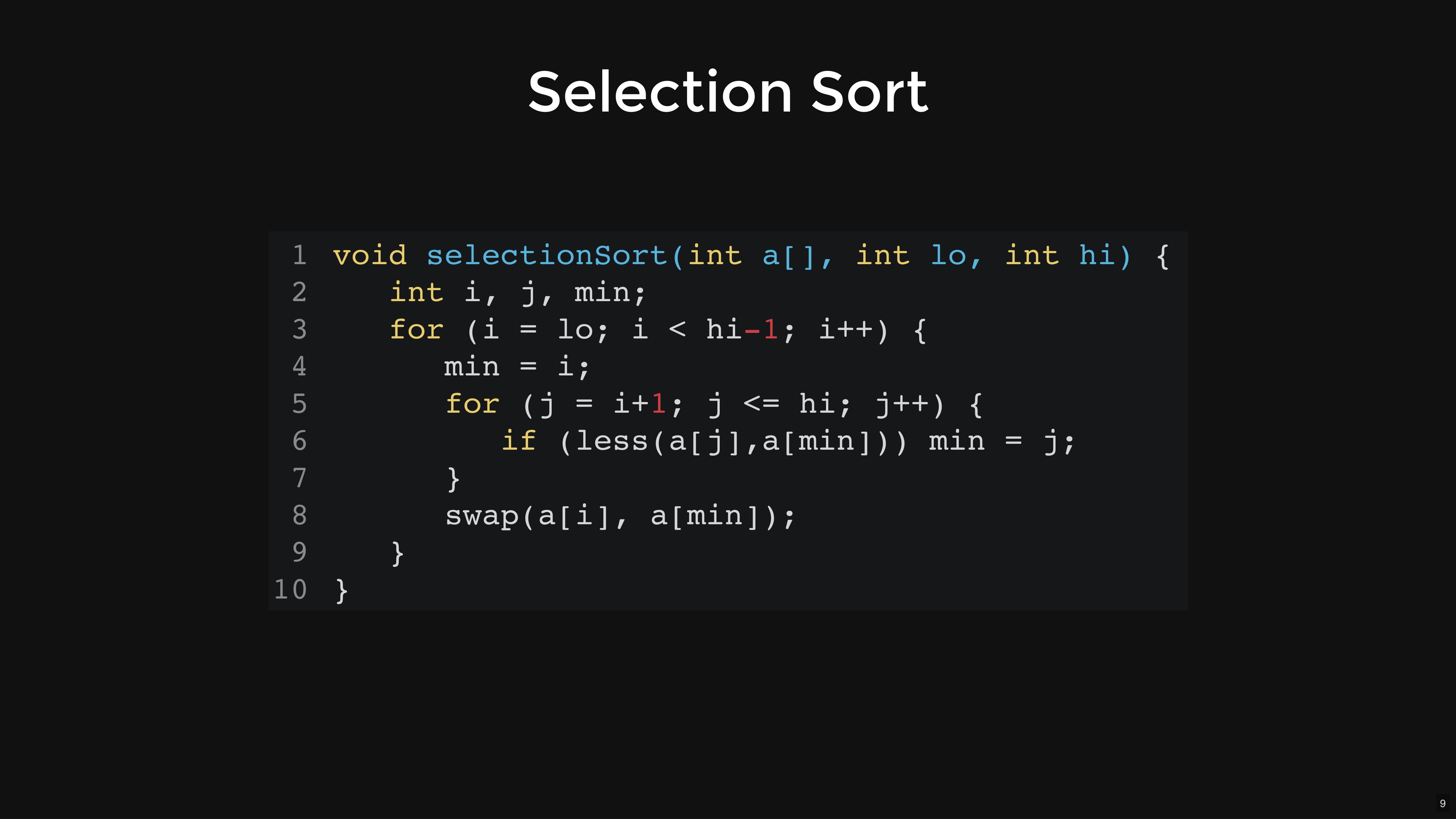

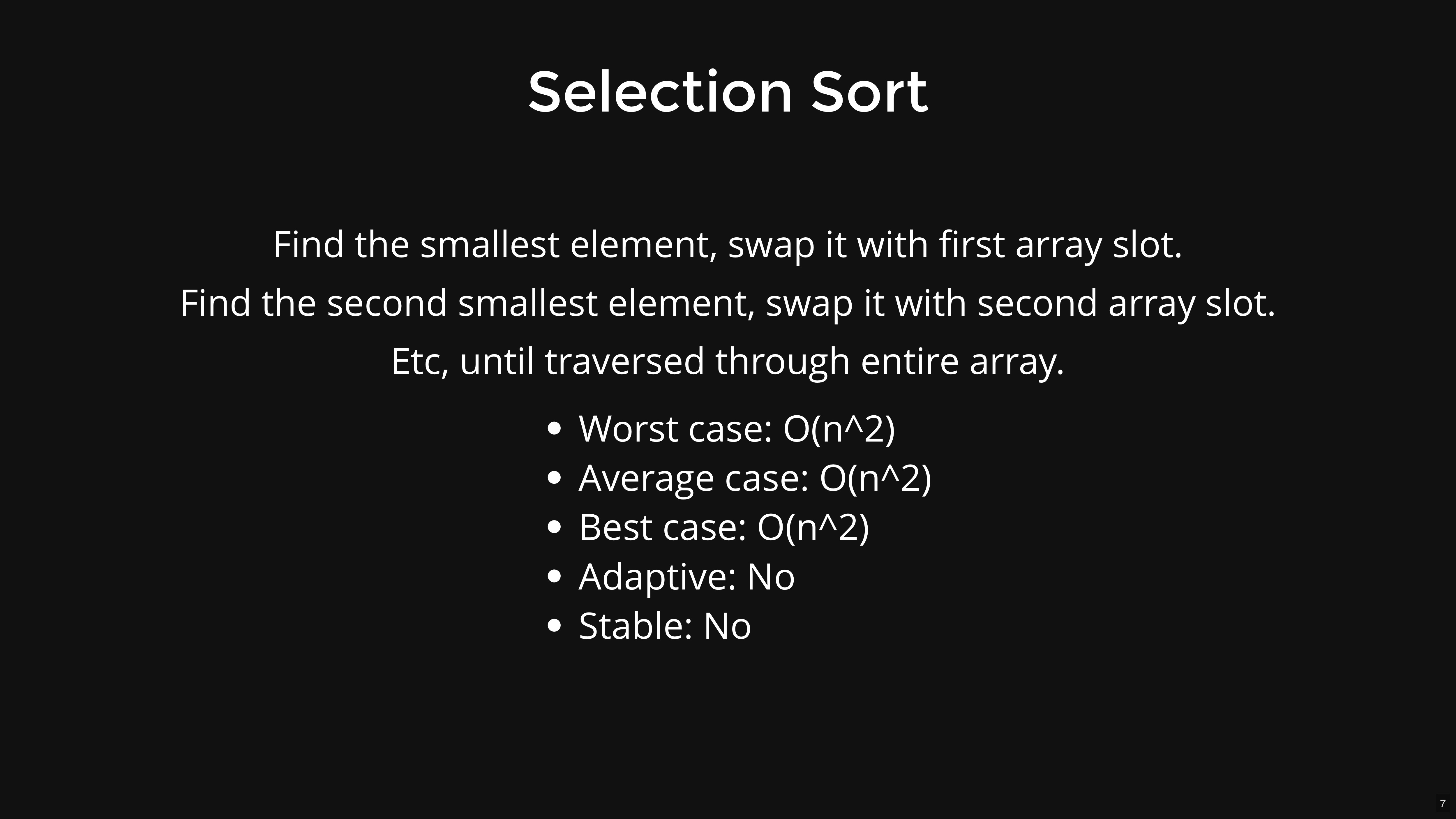

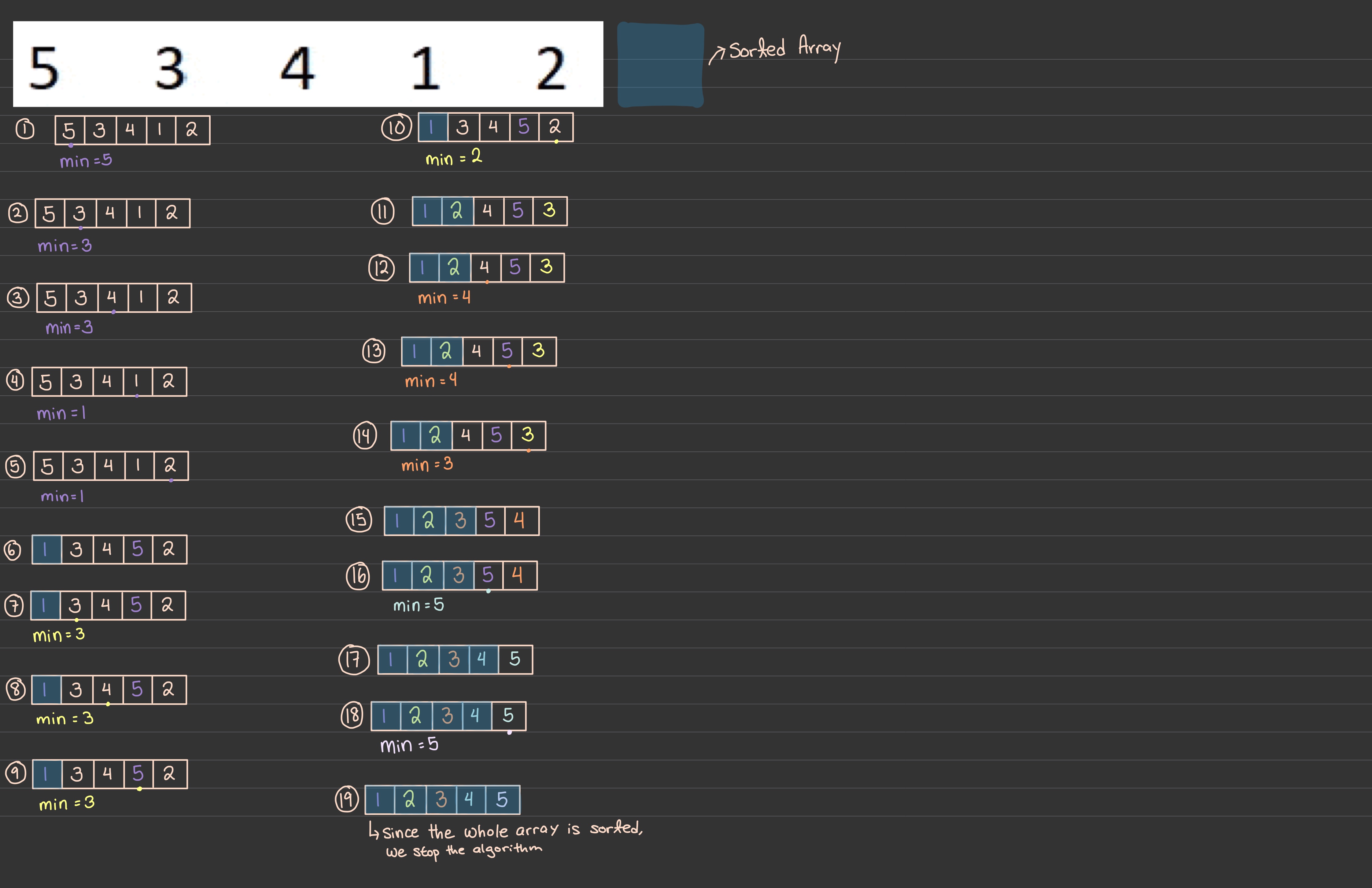

Selection Sort

Selection Sort

Steps:

  1. Find the smallest element in the array and swap it with the leftmost element unsorted element.
  2. Repeat step 1 until the array is sorted.

Time Complexity:

  • Best Case: O(n^2)
  • Average Case: O(n^2)
  • Worst Case: O(n^2)

Stability: Unstable
Adaptive: No


performs selection sort on a linkedlist

List selectionSort(List ls) {
List old = ls;
List sorted = NULL; // result
while (old != NULL) {
// find largest node in old list
List max = listMax(old);
// unlink largest node in old list
old = listUnlinkNode(old, max);
// add node to beginning of list
max->next = sorted;
sorted = max;
}
return sorted;
}
// Returns a pointer to the node containing the largest
// element of the given list.
static List listMax(List ls) {
List max = ls;
for (List curr = ls; curr != NULL; curr = curr->next) {
if (curr->value > max->value) {
max = curr;
}
}
return max;
}
// Removes a given node from a list without freeing it.
static List listUnlinkNode(List ls, List node) {
if (ls == node) {
return ls->next;
} else {
ls->next = listUnlinkNode(ls->next, node);
return ls;
}
}

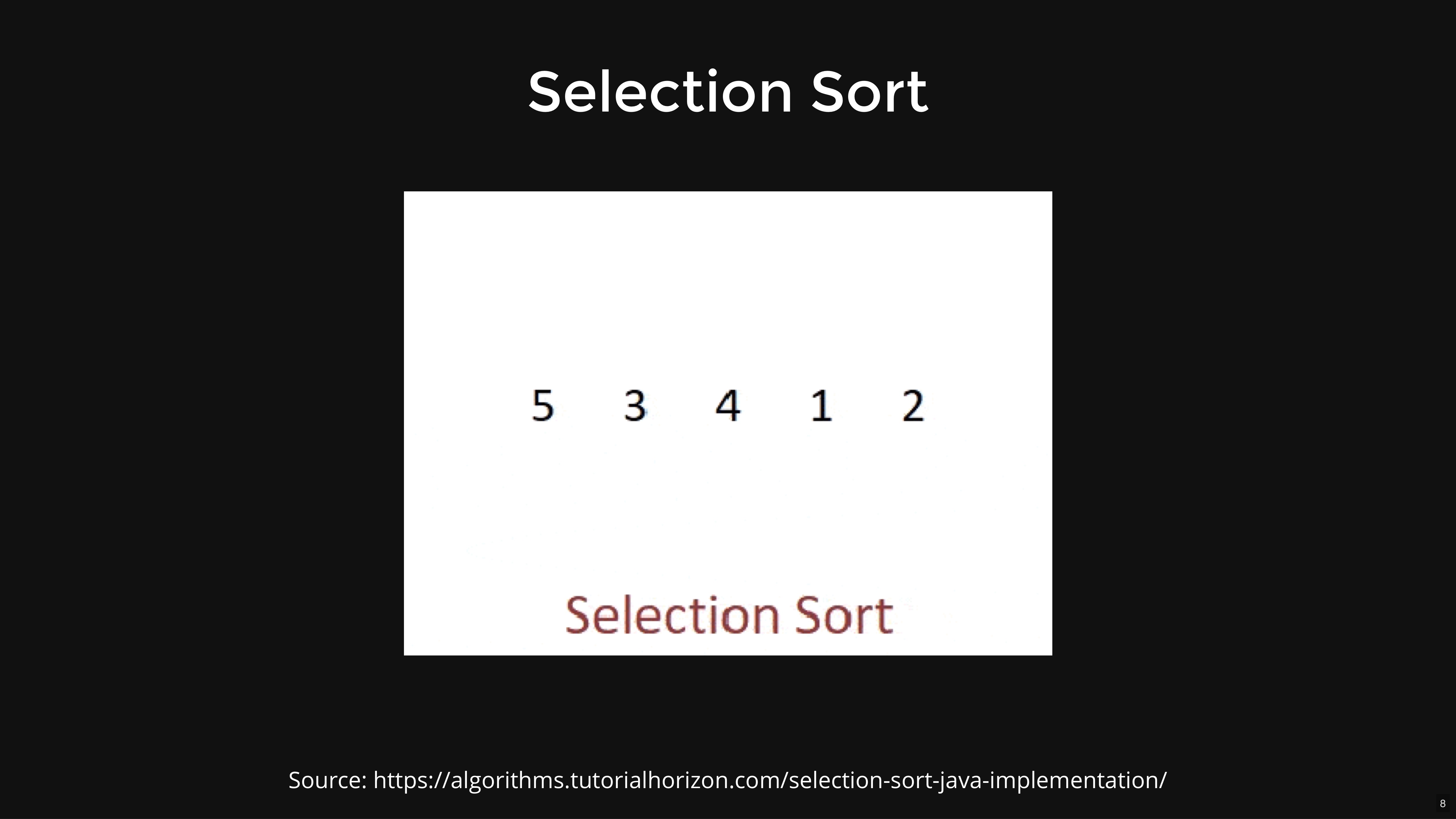

selection sort gif

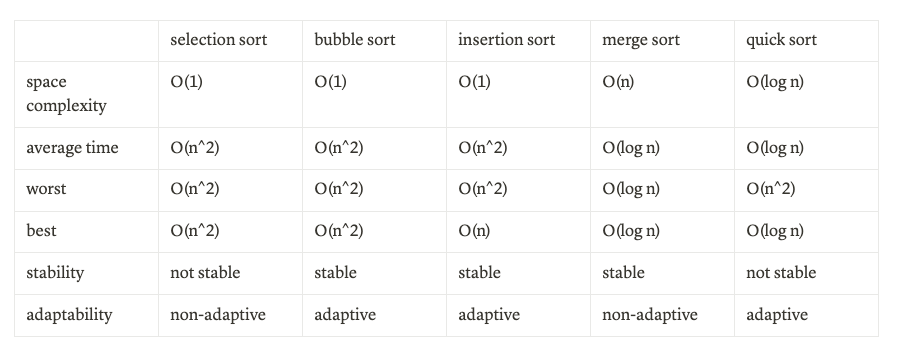

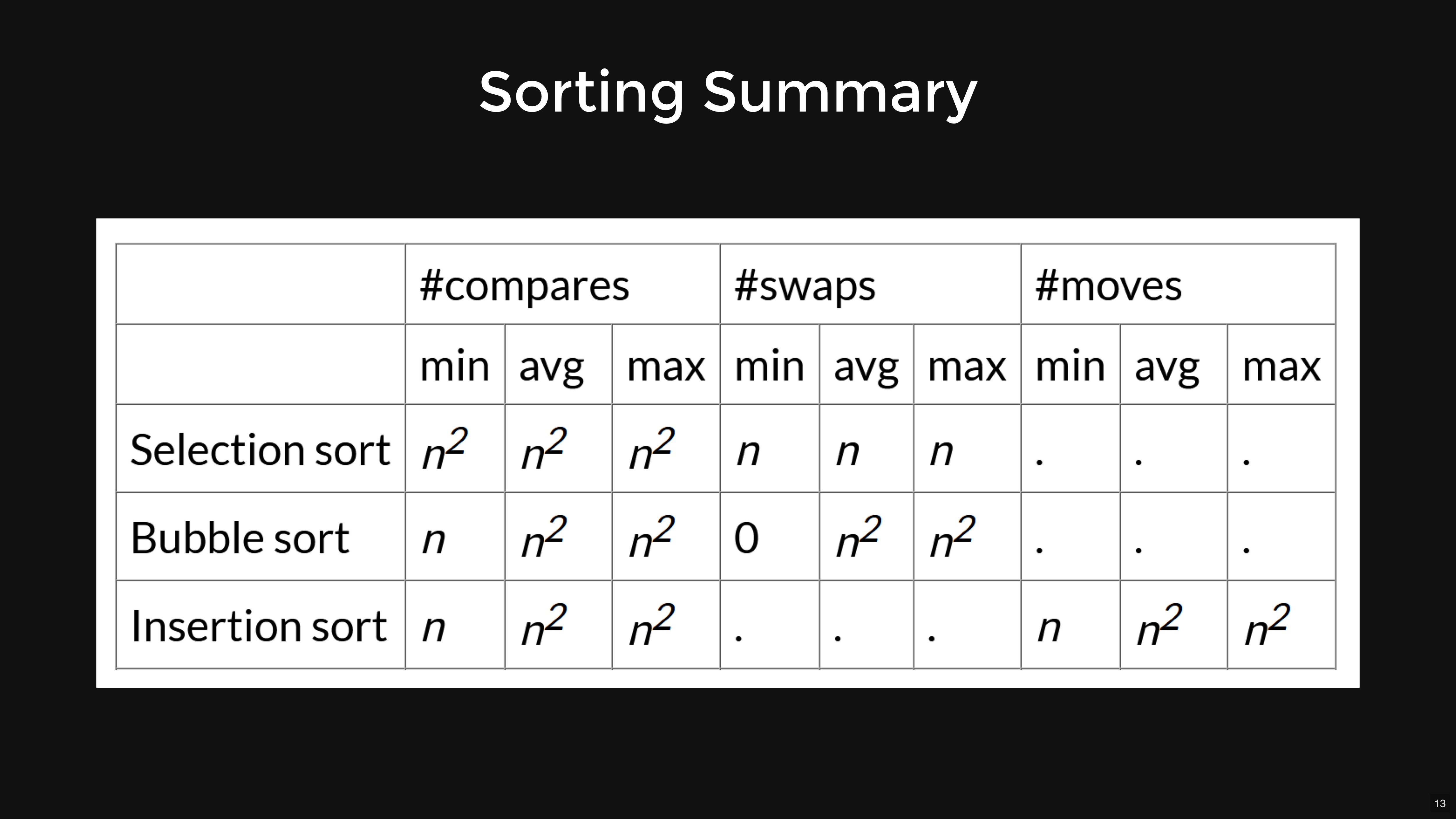

Table of All Sorting Algorithms

Table of All Sorting Algorithms:

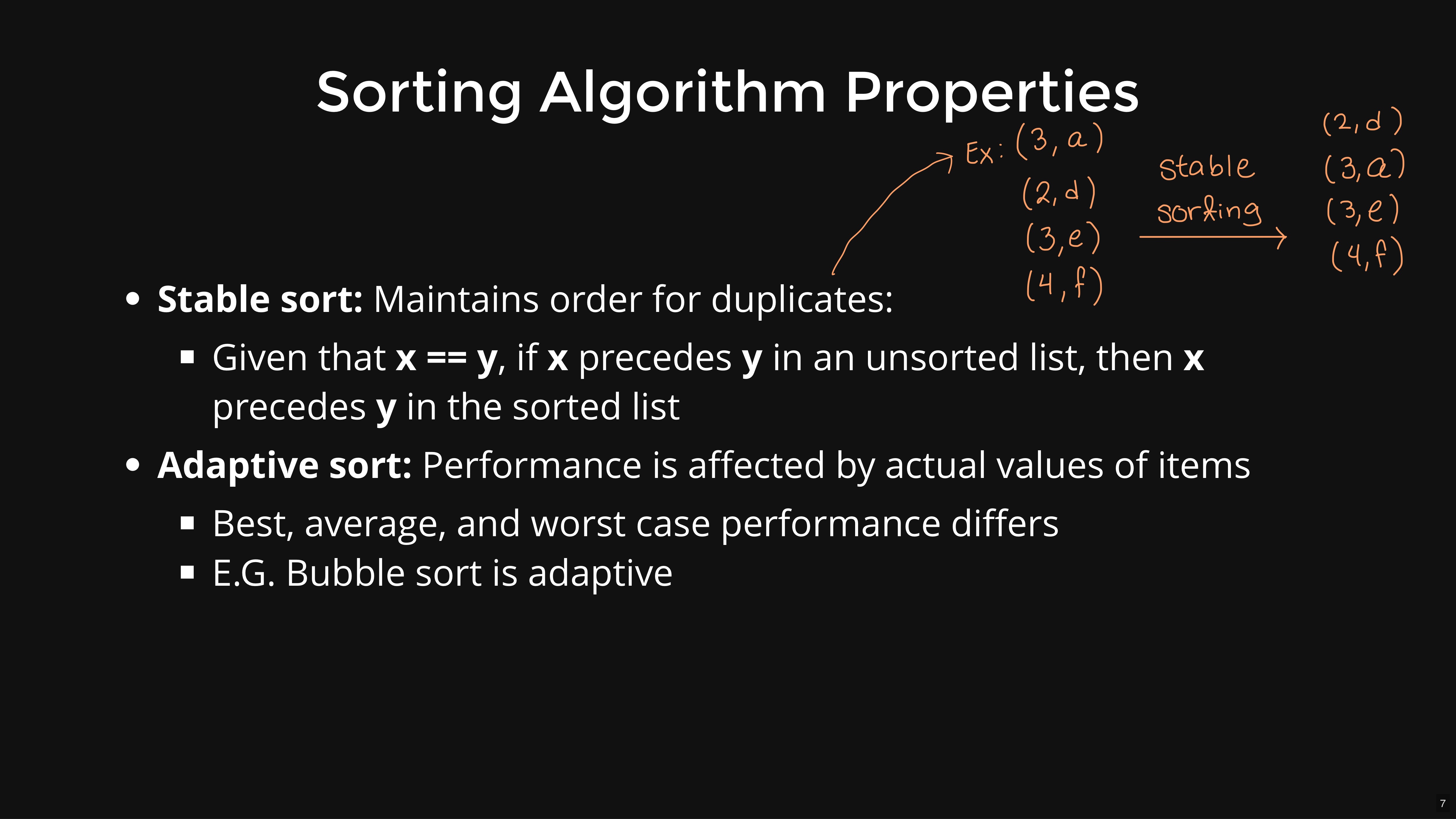

​Properties of Sorting Algorithms

Properties of Sorting Algorithms

  • Stable sorting algorithms:
    • When sorting elements that share the same value, their original order in the unsorted list is preserved in the sorted list.
  • Adaptive sorting algorithms:
    • An adaptive sort is a type of sorting algorithm that takes advantage of the existing order of elements to improve its performance. When an algorithm is adaptive, it tends to perform better when dealing with data that is already partially sorted or when there is some pattern in the data. In such cases, the algorithm can take shortcuts or optimize its operations to avoid unnecessary comparisons and swaps.

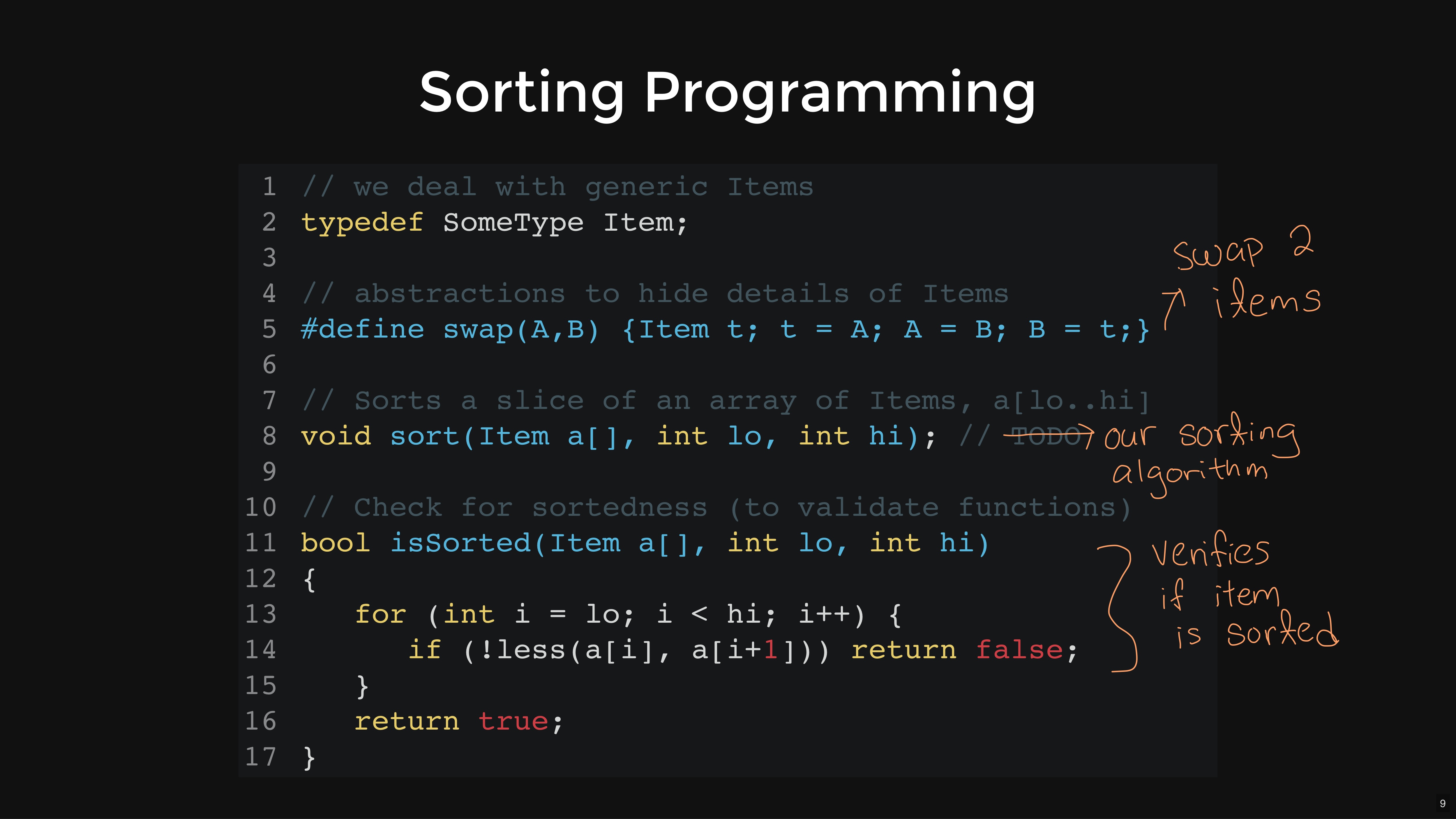

sort trio code

#include <stdio.h>

#include <stdlib.h>

#include "Sort.h"

// Helper function to swap elements `array[i]` and `array[j]` in an array

void swap(int *array, int i, int j)

{

int temp = array[i];

array[i] = array[j];

array[j] = temp;

}

/**

* Sorts the array of ints

*

* Input:

* - int *array: An array of ints

* - int size: Number of elements in the array

* Output:

* - void

*/

void sort(int *array, int size) {

//3 cursors - low, curr, high

//low: First index of unsorted partition

//High: Last index of unsorted partition

//curr: index of current unsorted element

int low = 0;

int curr = 0;

int high = size - 1;

//Sort until curr cursor passes high cursor, as anything to right of

//high cursor is guarenteed to be sorted from previous sorts

while (curr <= high) {

//Case1: current element is 0

if (array[curr] == 0)

{

swap(array, low, curr);

low++;

curr++;

}

//Case2: current element is 2

else if (array[curr] == 2)

{

swap(array, curr, high);

high--;

}

//Case3: current element is 1

else {

curr++;

}

}

}

//Explaination

/*

Aim: We want all the 0's on LHS of the array, and all the 2's on the RHS

of the array. This leaves the remaining 1's to be in the middle of array,

thus producing a sorted array.

Methodology:

To keep track of which elements in the array needs to be sorted, we use

3 cursors: low, curr, and high.

low: Tracks first index of the unsorted partition of array (initialised to 0)

High: Tracks last index of the unsorted partition of array (intilaised to last index of array)

curr: Tracks index of current unsorted element (initialised to 0)

Initially, the array is assumed to be unsorted. Hence low will be initialised to

the first index 0, high will be initialised to the last index of array, and curr

will be initialised to first index 0 as we sort elements left to right.

Now, if the current element is 0, then we want it on the LHS of the array.

Since the low cursor points to the first index of the unsorted

partition (LHS of array), we swap the current element with the element the

low cursor is pointing to. Now that we know 0 is in the correct side of the "sorted"

array, we decrease the size of the unsorted partition by incrementing the

low cursor. We also move on to sort the next element in array by incremeting

the curr cursor.

However, if the current element is 2, then we want it on the RHS of the array.

Since the high cursor points to the last index of the unsorted

partition (RHS of array), we swap the current element with the element the

high cursor is pointing to. Now that 2 is in the correct side of the "sorted"

array, we decrease the size of the unsorted partition by decrementing the

high cursor. However, unlike when our current element was a 0, we don't sort the next

element in the array by incrementing the curr cursor just yet. The reason is because

the element the high cursor was pointing to, now in curr's index, itself is

not guaranteed to be in the correct order.

For example, if we had the array

0 1 2 0 0, where low points to 1, curr points to 2, and high points to 0.

Since the current element is 2, then we need to swap it with the last index in

the unsorted partition which in this example is the second 0. This results

in an array of 0 1 0 0 2. But as you can see, the 0 we swapped 2 with, itself

is not correctly sorted as it comes after 1. So we have to consider sorting

the new current element of 0, and not the next element in array by incrementing just yet.

Now if the current element is 1, then we don't want to swap it with another element

so its on the LHS or RHS of the array. We want to leave it alone.

Thus, we just increment the curr cursor to sort the next element in the array.

This process repeats until the curr cursor passes the high cursor, as

anything to the right of the high cursor is guarenteed to be sorted from

previous sorts.

*/

sorting algorithm comparisons

characteristics

  • stable sort = always maintains order for duplicates (given that x == y and x precedes y originally, then x still precedes y in sorted list)
  • adaptive sort = performance is affected by actual values of items (so if array is already sorted it finishes really quickly, e.g. bubble sort) → performance differs between best / worst / average cases

algorithms

mergesort re-merging process

  • keep track of smallest item in each subarray
  • three indexes: smallest of array1, smallest of array 2, start of tempArray
  • compare smallest items of each subarray → add smaller one to temporary array, then increment indexes for tempArray + array2 smallest
  • repeat for values in the new indexes (will be next smallest item in array2 + still smallest in array1) → if items are equal, add item from array1 (to keep algorithm stable) to tempArray, then increment as usual (other item will be added in next iteration)
  • continue until end of one of the arrays is reached → add everything from the other array, then stop

(12)

Program for QuickSort

// C code to implement quicksort

#include <stdio.h>

// Function to swap two elements

void swap(int* a, int* b)

{

int t = *a;

*a = *b;

*b = t;

}

// Partition the array using the last element as the pivot

int partition(int arr[], int low, int high)

{

// Choosing the pivot

int pivot = arr[high];

// Index of smaller element and indicates

// the right position of pivot found so far

int i = (low - 1);

for (int j = low; j <= high - 1; j++) {

// If current element is smaller than the pivot

if (arr[j] < pivot) {

// Increment index of smaller element

i++;

swap(&arr[i], &arr[j]);

}

}

swap(&arr[i + 1], &arr[high]);

return (i + 1);

}

// The main function that implements QuickSort

// arr[] --> Array to be sorted,

// low --> Starting index,

// high --> Ending index

void quickSort(int arr[], int low, int high)

{

if (low < high) {

// pi is partitioning index, arr[p]

// is now at right place

int pi = partition(arr, low, high);

// Separately sort elements before

// partition and after partition

quickSort(arr, low, pi - 1);

quickSort(arr, pi + 1, high);

}

}

// Driver code

int main()

{

int arr[] = { 10, 7, 8, 9, 1, 5 };

int N = sizeof(arr) / sizeof(arr[0]);

// Function call

quickSort(arr, 0, N - 1);

printf("Sorted array: \n");

for (int i = 0; i < N; i++)

printf("%d ", arr[i]);

return 0;

}

Program for Heap Sort

// Heap Sort in C

#include <stdio.h>

// Function to swap the position of two elements

void swap(int* a, int* b)

{

int temp = *a;

*a = *b;

*b = temp;

}

// To heapify a subtree rooted with node i

// which is an index in arr[].

// n is size of heap

void heapify(int arr[], int N, int i)

{

// Find largest among root,

// left child and right child

// Initialize largest as root

int largest = i;

// left = 2*i + 1

int left = 2 * i + 1;

// right = 2*i + 2

int right = 2 * i + 2;

// If left child is larger than root

if (left < N && arr[left] > arr[largest])

largest = left;

// If right child is larger than largest

// so far

if (right < N && arr[right] > arr[largest])

largest = right;

// Swap and continue heapifying

// if root is not largest

// If largest is not root

if (largest != i) {

swap(&arr[i], &arr[largest]);

// Recursively heapify the affected

// sub-tree

heapify(arr, N, largest);

}

}

// Main function to do heap sort

void heapSort(int arr[], int N)

{

// Build max heap

for (int i = N / 2 - 1; i >= 0; i--)

heapify(arr, N, i);

// Heap sort

for (int i = N - 1; i >= 0; i--) {

swap(&arr[0], &arr[i]);

// Heapify root element

// to get highest element at

// root again

heapify(arr, i, 0);

}

}

// A utility function to print array of size n

void printArray(int arr[], int N)

{

for (int i = 0; i < N; i++)

printf("%d ", arr[i]);

printf("\n");

}

// Driver's code

int main()

{

int arr[] = { 12, 11, 13, 5, 6, 7 };

int N = sizeof(arr) / sizeof(arr[0]);

// Function call

heapSort(arr, N);

printf("Sorted array is\n");

printArray(arr, N);

}

// This code is contributed by _i_plus_plus_.

Program for Insertion Sort

// C program for insertion sort

#include <math.h>

#include <stdio.h>

/* Function to sort an array using insertion sort*/

void insertionSort(int arr[], int n)

{

int i, key, j;

for (i = 1; i < n; i++) {

key = arr[i];

j = i - 1;

/* Move elements of arr[0..i-1], that are

greater than key, to one position ahead

of their current position */

while (j >= 0 && arr[j] > key) {

arr[j + 1] = arr[j];

j = j - 1;

}

arr[j + 1] = key;

}

}

// A utility function to print an array of size n

void printArray(int arr[], int n)

{

int i;

for (i = 0; i < n; i++)

printf("%d ", arr[i]);

printf("\n");

}

/* Driver program to test insertion sort */

int main()

{

int arr[] = { 12, 11, 13, 5, 6 };

int n = sizeof(arr) / sizeof(arr[0]);

insertionSort(arr, n);

printArray(arr, n);

return 0;

}

Program for Bubble Sort

// Optimized implementation of Bubble sort

#include <stdbool.h>

#include <stdio.h>

void swap(int* xp, int* yp)

{

int temp = *xp;

*xp = *yp;

*yp = temp;

}

// An optimized version of Bubble Sort

void bubbleSort(int arr[], int n)

{

int i, j;

bool swapped;

for (i = 0; i < n - 1; i++) {

swapped = false;

for (j = 0; j < n - i - 1; j++) {

if (arr[j] > arr[j + 1]) {

swap(&arr[j], &arr[j + 1]);

swapped = true;

}

}

// If no two elements were swapped by inner loop,

// then break

if (swapped == false)

break;

}

}

// Function to print an array

void printArray(int arr[], int size)

{

int i;

for (i = 0; i < size; i++)

printf("%d ", arr[i]);

}

// Driver program to test above functions

int main()

{

int arr[] = { 64, 34, 25, 12, 22, 11, 90 };

int n = sizeof(arr) / sizeof(arr[0]);

bubbleSort(arr, n);

printf("Sorted array: \n");

printArray(arr, n);

return 0;

}

Program for Selection Sort

#include <stdio.h>

void swap(int *xp, int *yp)

{

int temp = *xp;

*xp = *yp;

*yp = temp;

}

void selectionSort(int arr[], int n)

{

int i, j, min_idx;

// One by one move boundary of unsorted subarray

for (i = 0; i < n-1; i++)

{

// Find the minimum element in unsorted array

min_idx = i;

for (j = i+1; j < n; j++)

if (arr[j] < arr[min_idx])

min_idx = j;

// Swap the found minimum element with the first element

if(min_idx != i)

swap(&arr[min_idx], &arr[i]);

}

}

/* Function to print an array */

void printArray(int arr[], int size)

{

int i;

for (i=0; i < size; i++)

printf("%d ", arr[i]);

printf("\n");

}

// Driver program to test above functions

int main()

{

int arr[] = {64, 25, 12, 22, 11};

int n = sizeof(arr)/sizeof(arr[0]);

selectionSort(arr, n);

printf("Sorted array: \n");

printArray(arr, n);

return 0;

}

Time Complexities of Sorting Algorithms

Selection Sort Ω(n^2) θ(n^2) O(n^2)
Bubble Sort Ω(n) θ(n^2) O(n^2)
Insertion Sort Ω(n) θ(n^2) O(n^2)
Heap Sort Ω(n log(n)) θ(n log(n)) O(n log(n))
Quick Sort Ω(n log(n)) θ(n log(n)) O(n^2)
Merge Sort Ω(n log(n)) θ(n log(n)) O(n log(n))

Types Of Time Complexity :

  1. Best Time Complexity: Define the input for which algorithm takes less time or minimum time. In the best case calculate the lower bound of an algorithm. Example: In the linear search when search data is present at the first location of large data then the best case occurs.
  2. Average Time Complexity: In the average case take all random inputs and calculate the computation time for all inputs.
    And then we divide it by the total number of inputs.
  3. Worst Time Complexity: Define the input for which algorithm takes a long time or maximum time. In the worst calculate the upper bound of an algorithm. Example: In the linear search when search data is present at the last location of large data then the worst case occurs.

Sort Detective

Ways to Determine the Difference Between Sorting Algorithms:

1) Time Complexity

2) Stability (Stable: Bubble Sort, Insertion Sort and Merge Sort) (Unstable: Vanilla Qsort, Qsort, MoT, Randomised QSort, Shell Sort, Powers of Four)

3) Bubble Sort Ascending with Early Exit would have ascending input sets be the fastest in all cases.

4) Merge Sort divides the list regardless of the order, so it is input agnostic.

5) For descending inputs, insertion sort will take longer than most other sorts, as with descending inputs, the final sorted list will need to be incrementally moved

6) Quicksort similarly has this issue, but we know that there is a difference in stability.

7) Obviously - randomised qsort will be input agnostic

Invalid message: Your post must contain text!
