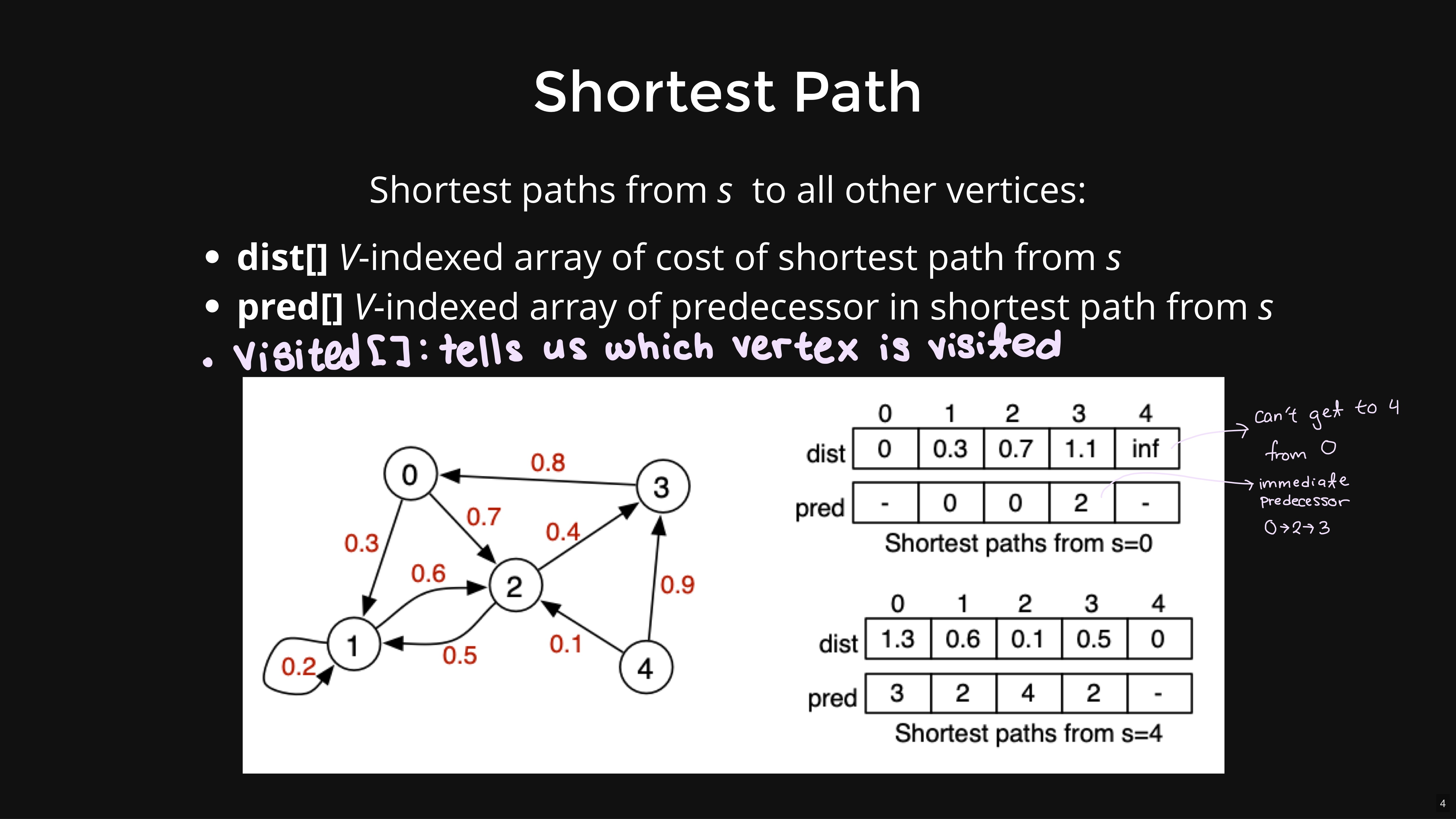

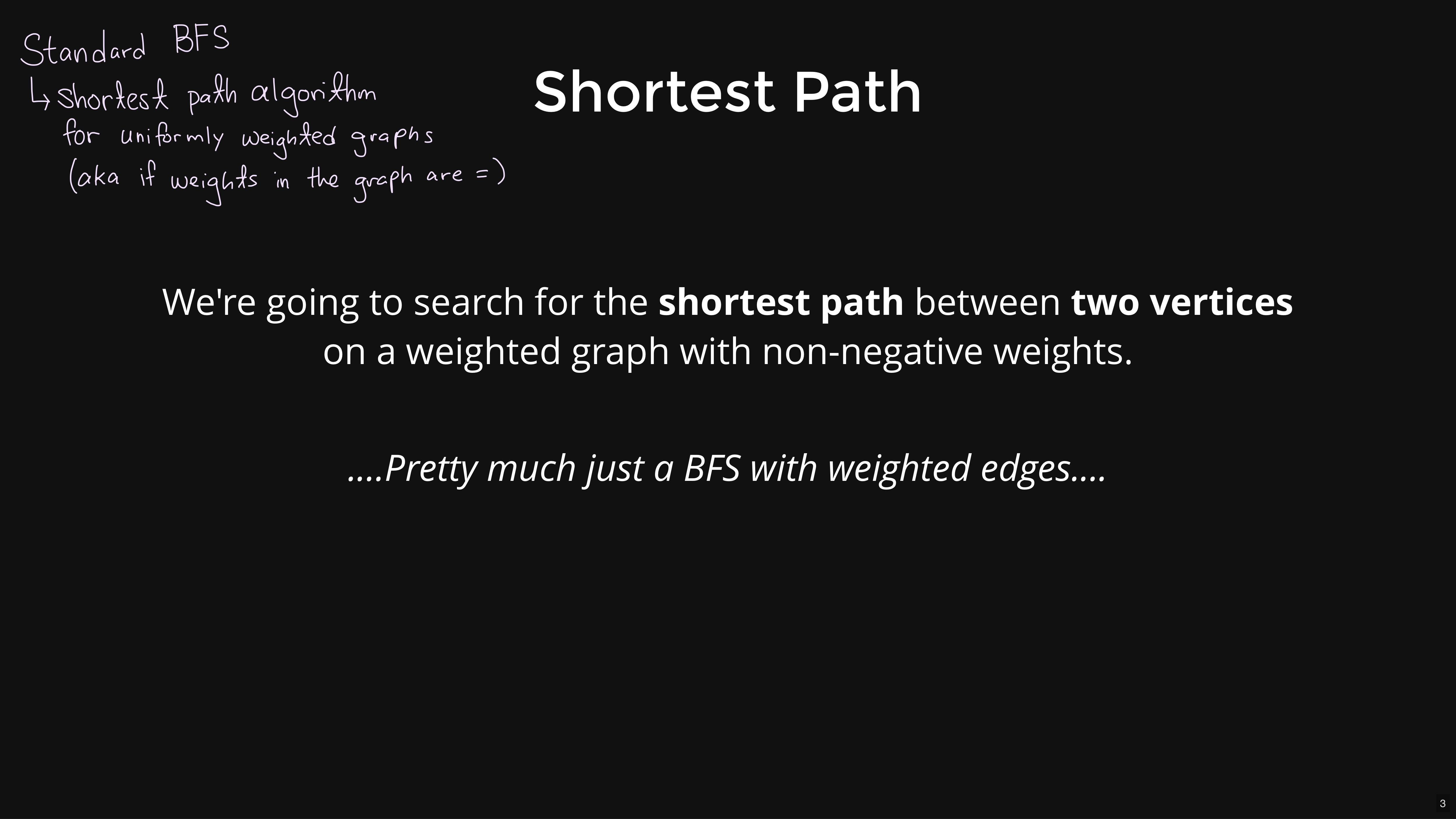

Shortest path

  • To find the shortest path from s to other vertices, we need to keep two arrays.
  • dist[] is a V-indexed array, where each index stores the cost of the shortest path to the corresponding vertex (v) from s.
  • If it is not possible to reach v from s, the value of dist[v] will either be -1 or infinity, depending on your implementation.
  • pred[] is also a V-indexed array, but it stores the predecessor in the shortest path from s, ie. the vertex you come from to get to v quickly.

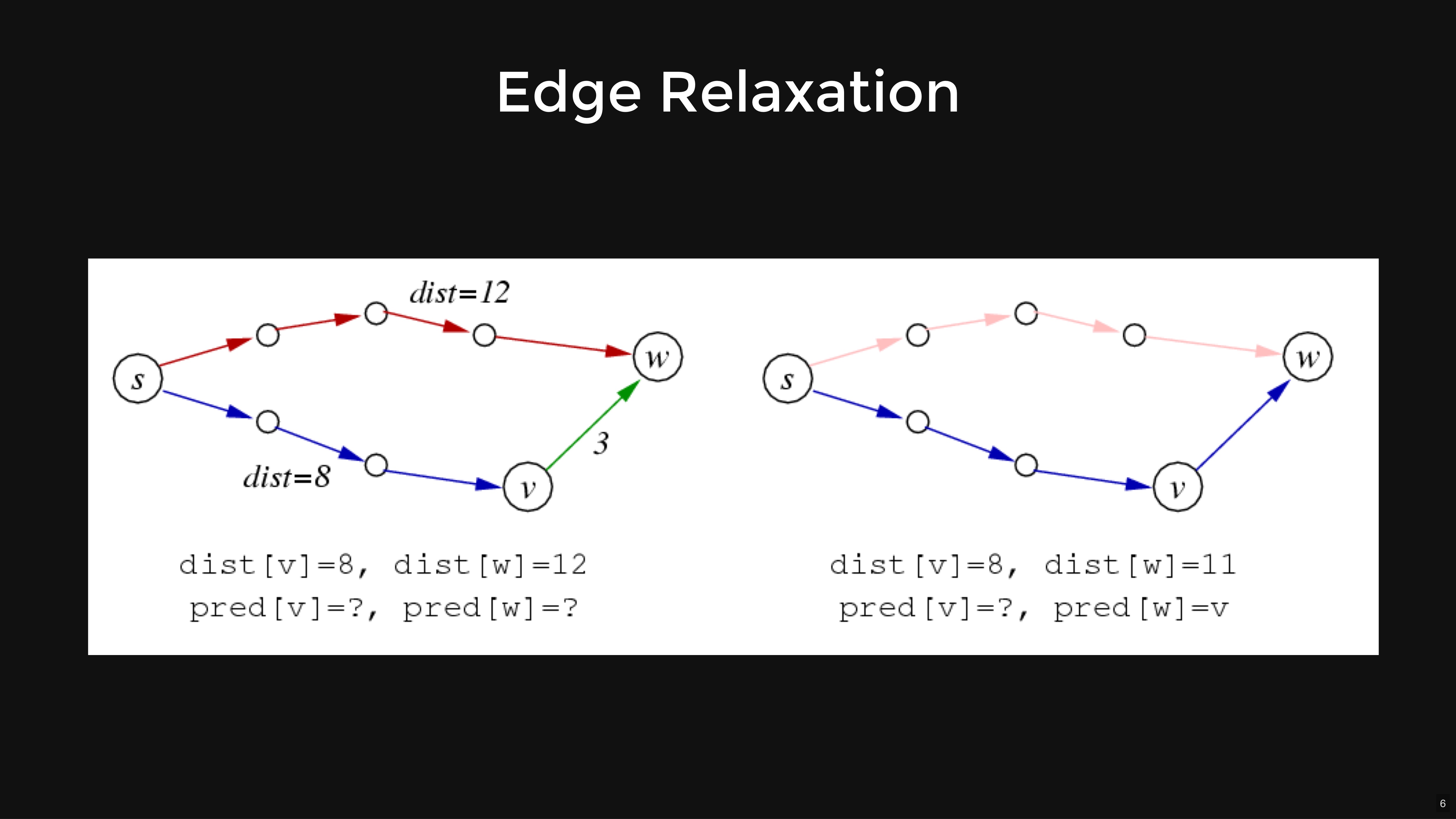

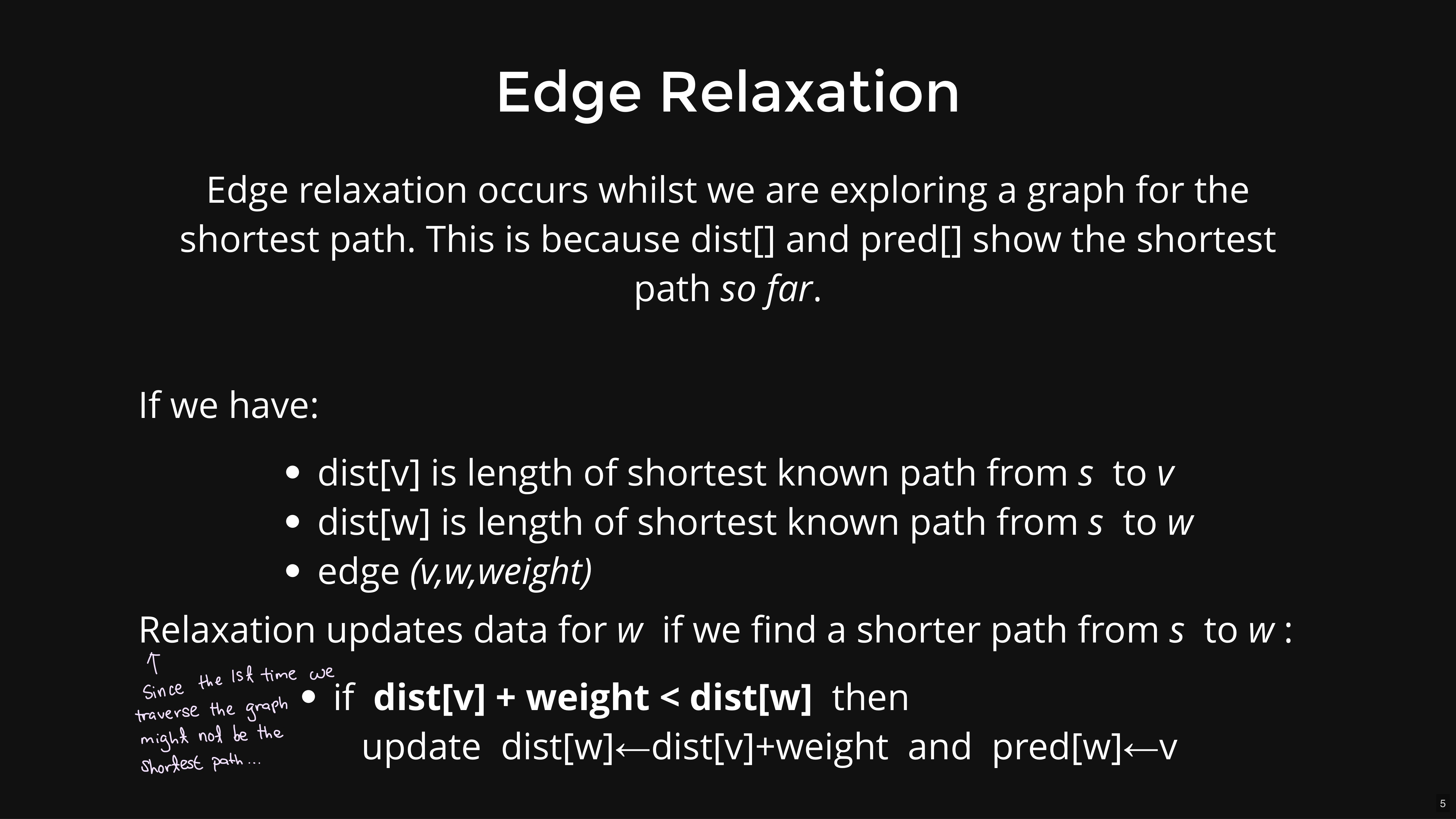

Edge relaxation

  • The process of finding a shorter path is called edge relaxation - this involves updating dist[v] and pred[v] to match a shorter path than what was previously found.
  • We do this because dist[] and pred[] show the shortest path found to date.
  • Relaxation updates data for w if we find a shorter path from s to w.
  • If dist[v] + weight < dist[w], then we update dist[w] to be dist[v] + weight and pred[w] to be v.

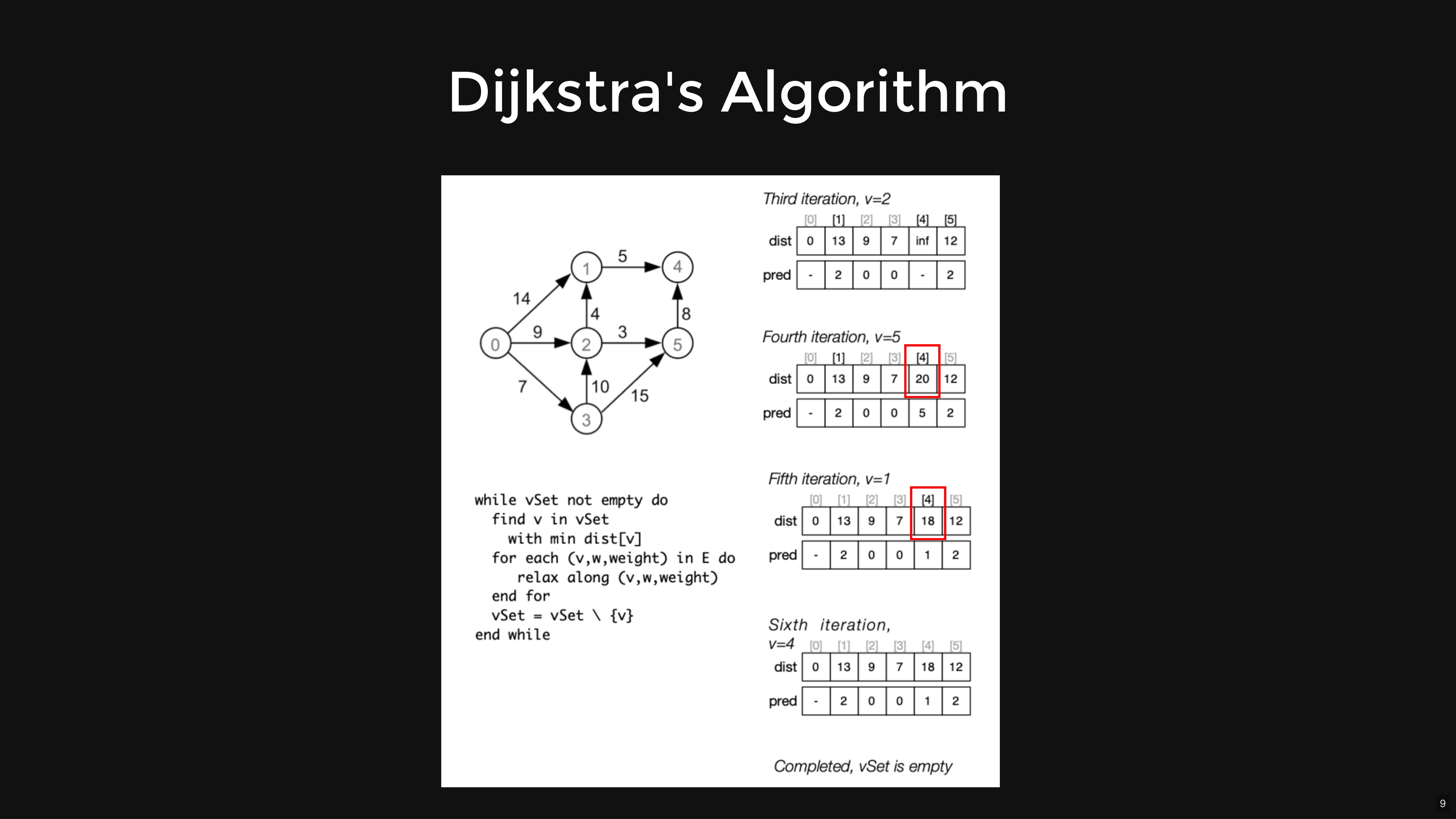

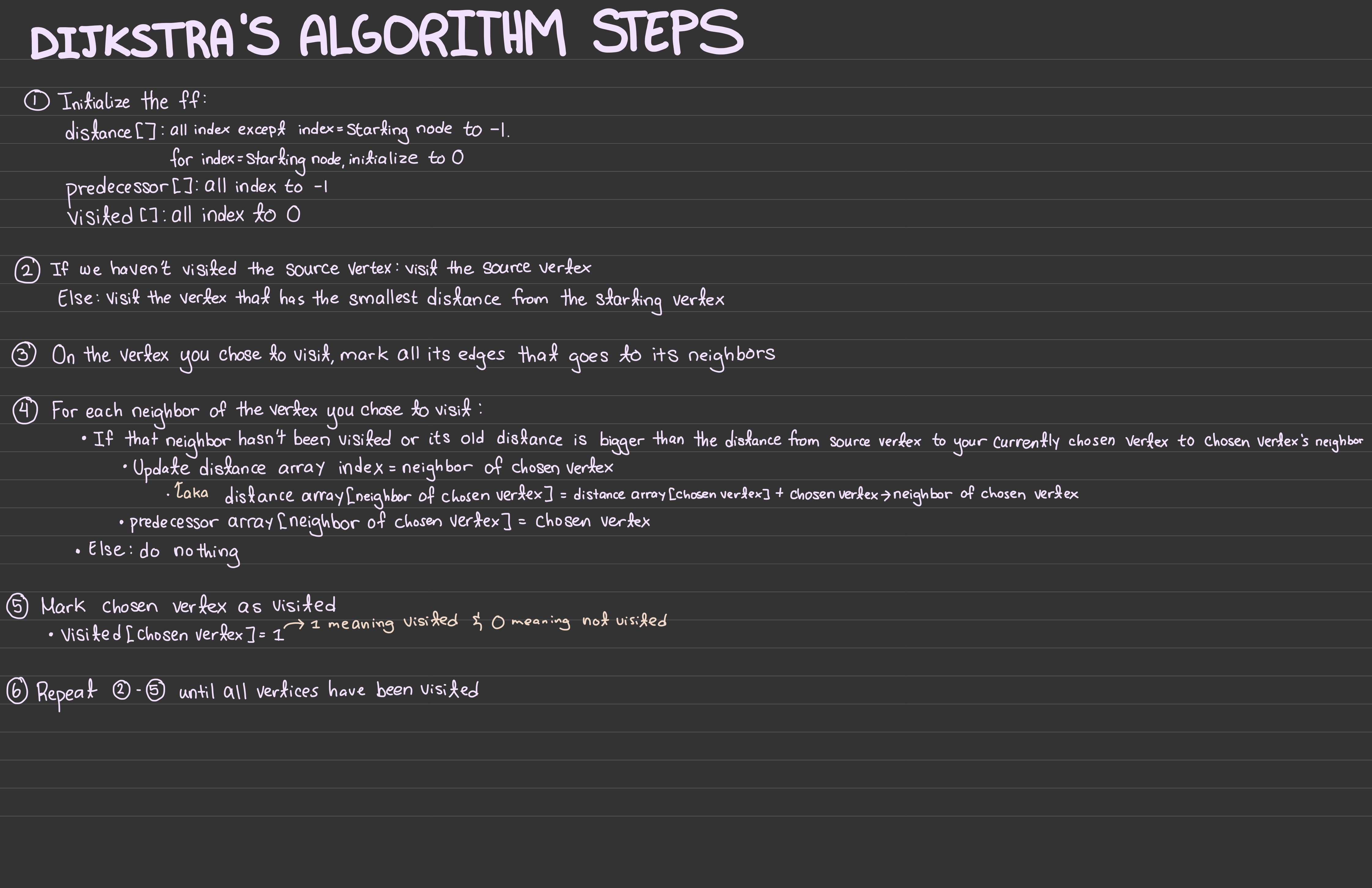

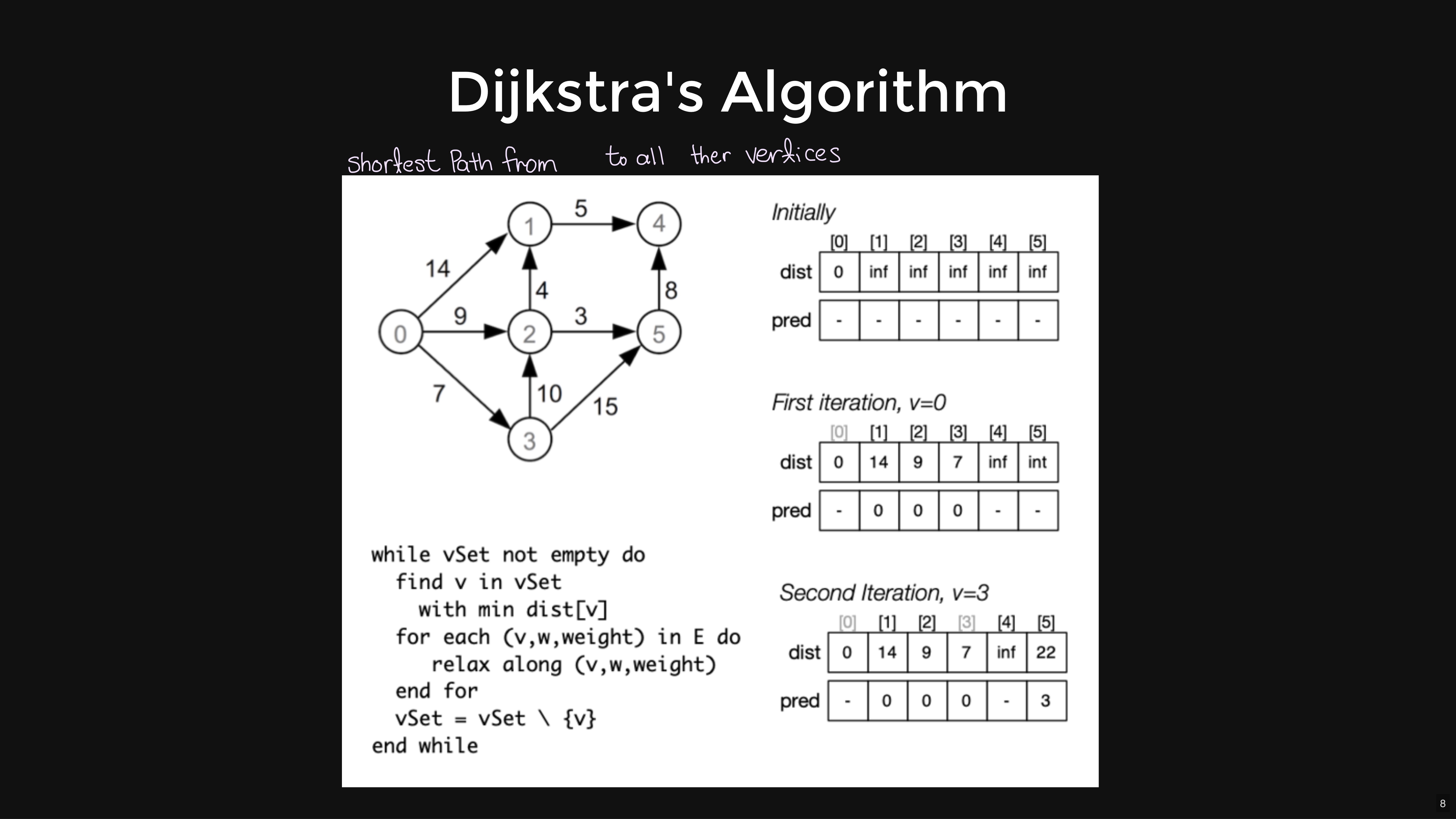

Dijkstra's algorithm

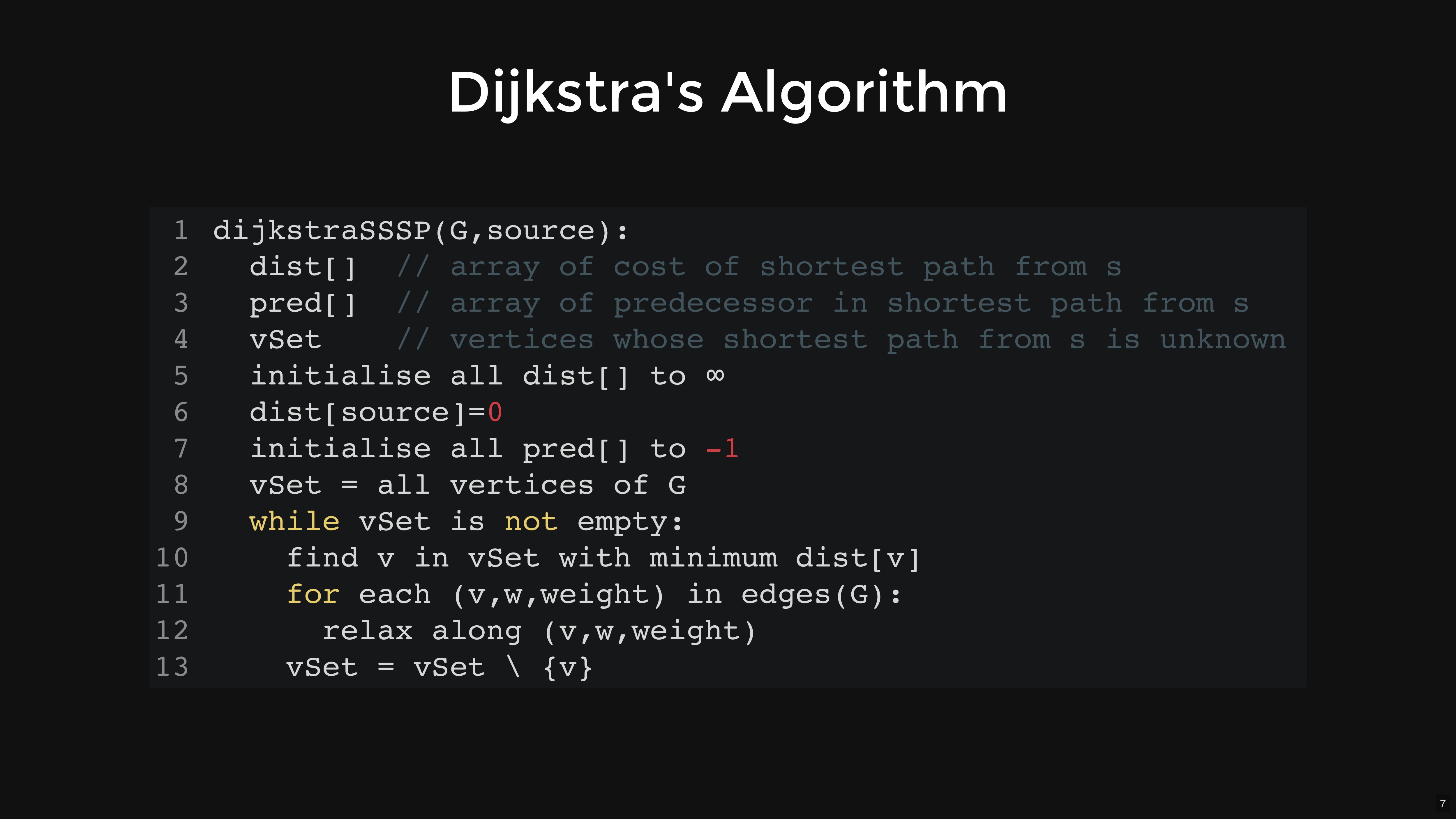

dijkstraSSSP(G, source):
    dist[]  // array of cost of shortest path from s
    pred[]  // array of predecessor in shortest path
            // from s
    vSet    // vertices whose shortest path from s is
            // unknown
    initialise all dist[] to infinity/-1
    dist[source] = 0
    initialise all pred[] to -1
    vSet = all vertices of G
    while vSet is not empty:
        find v in vSet with minimum dist[v]
        for each (v, w, weight) in G->edges:
            relax along (v, w, weight)
        vSet = vSet \ {v}

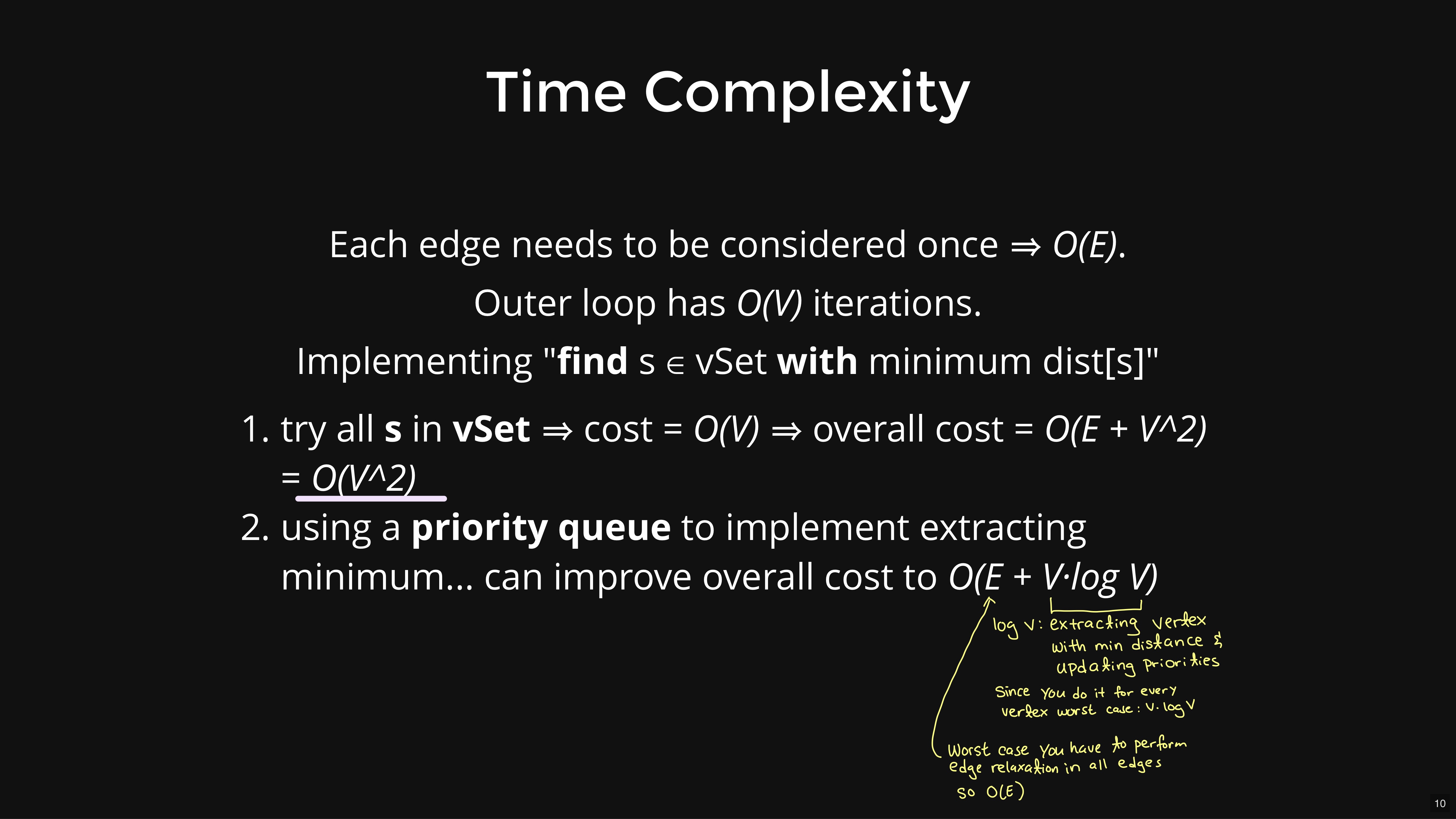

Time complexity

  • Each edge needs to be considered once, which is O(E).
  • The outer while loop has O(V) iterations.
    • If you try to find the shortest path for every vertex...
      • We have a cost of O(E) to go through each edge.
      • To find the shortest path from the source to somewhere that costs O(V).
      • If we try to do that for each vertex - V times - then the total cost is O(E + V^2), ergo O(V^2).
      • E gets simplified because E < V^2.

Shortest Path Lecture Slides Annotated

Annotated the lecture slides + added some stuff


Dijkstra's Algorithm, Kruskal's Algorithm, Prime's Algorithm

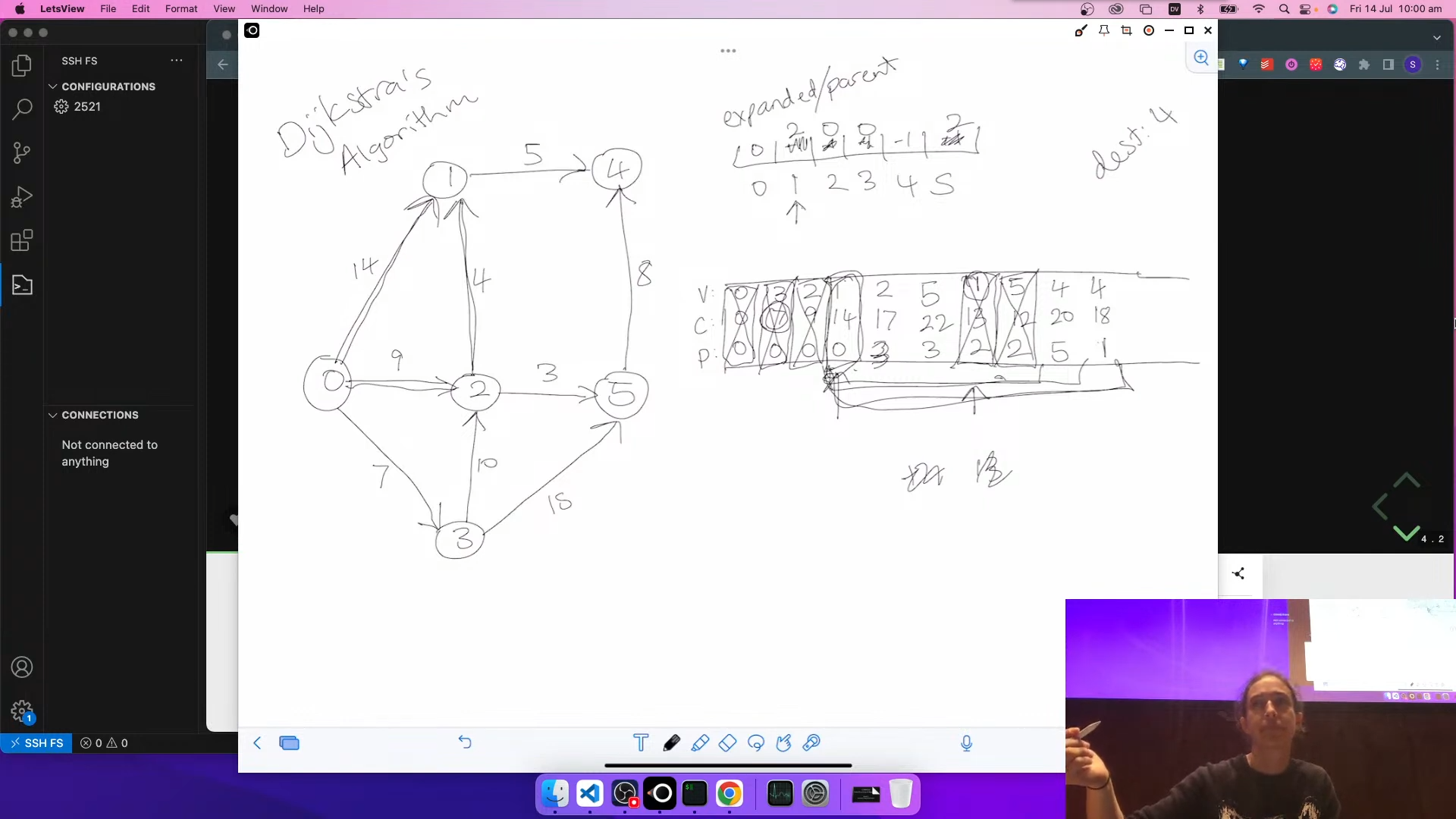

Dijkstra's Algorithm

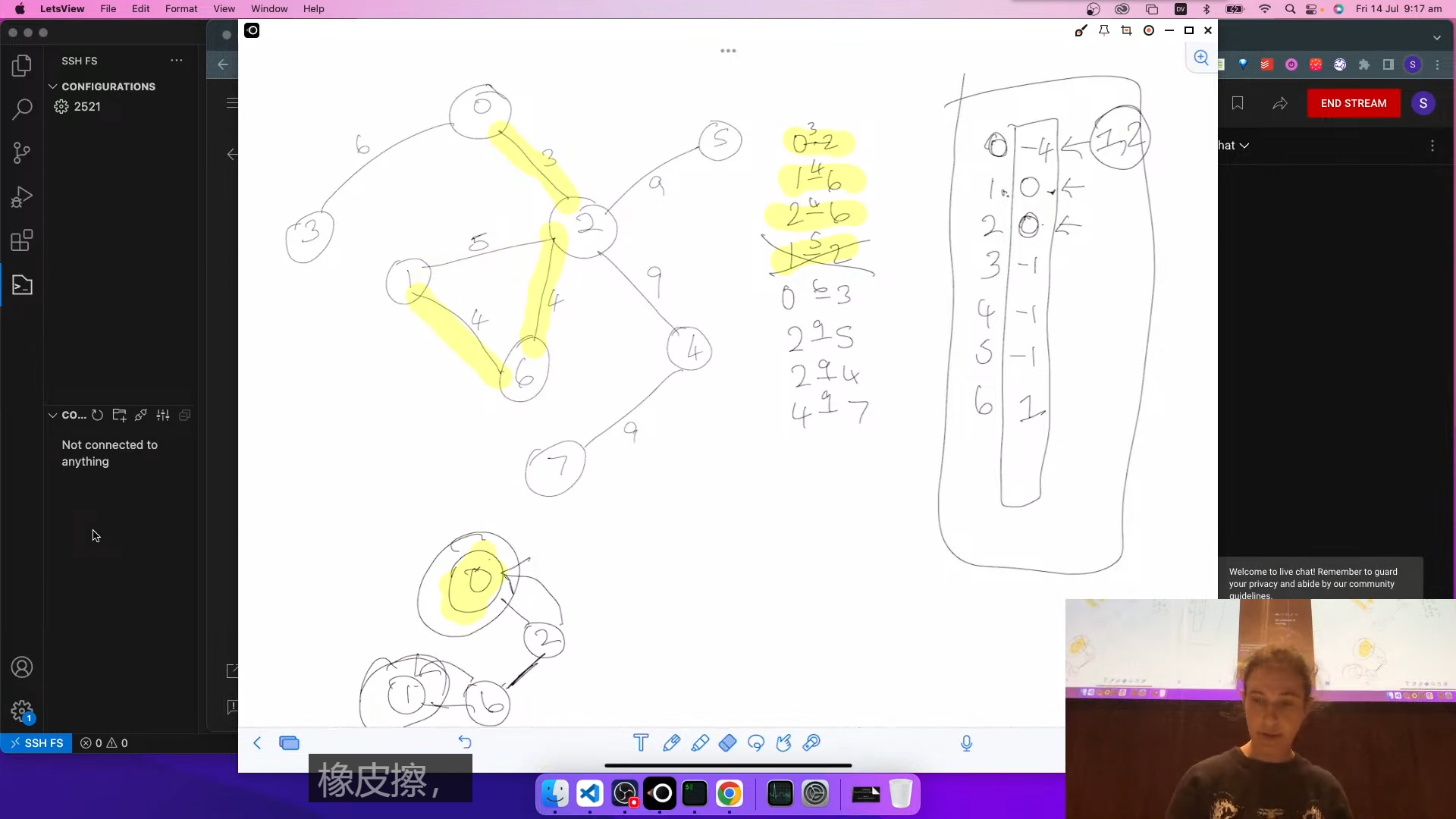

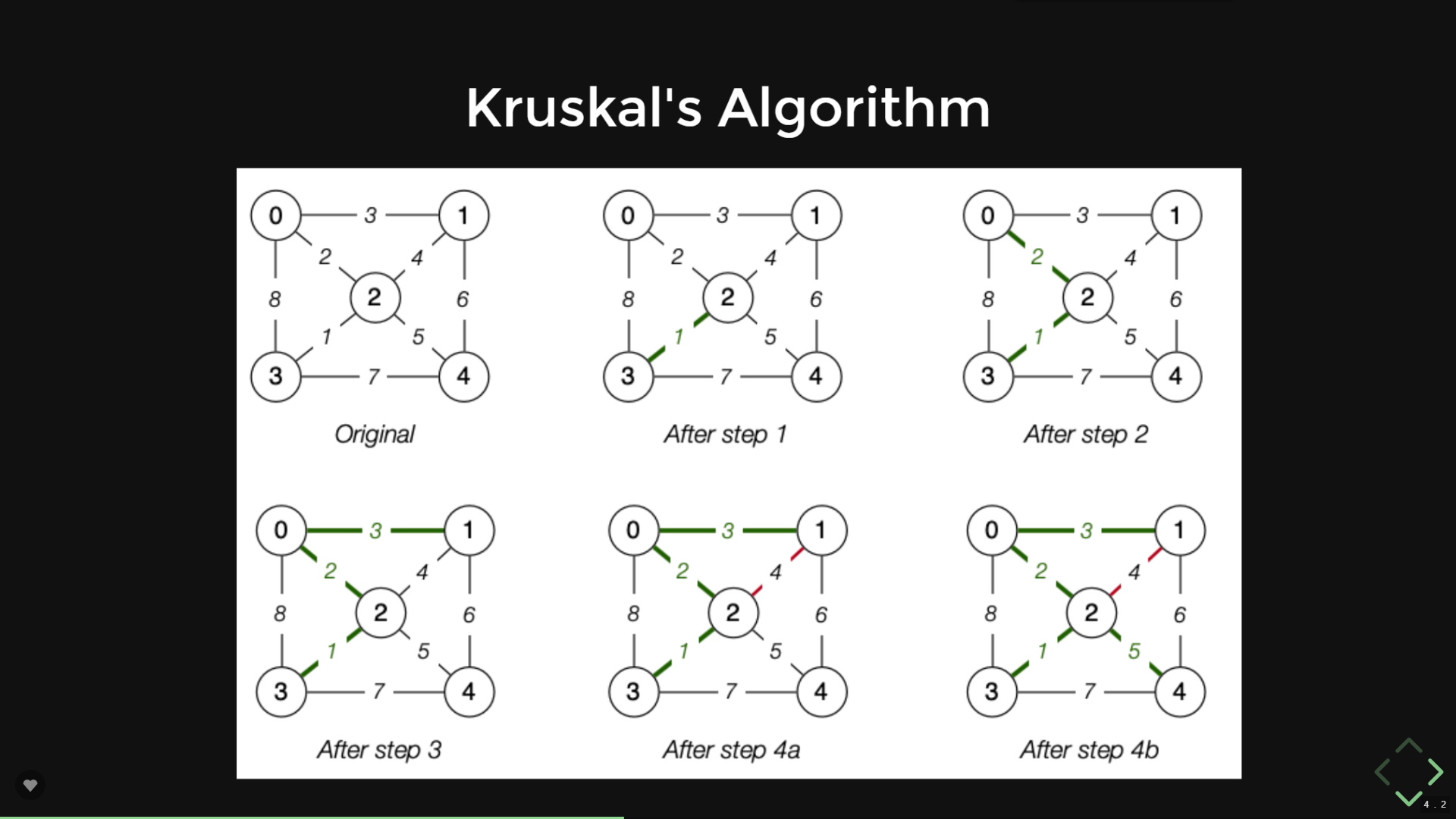

Kruskal's Algorithm

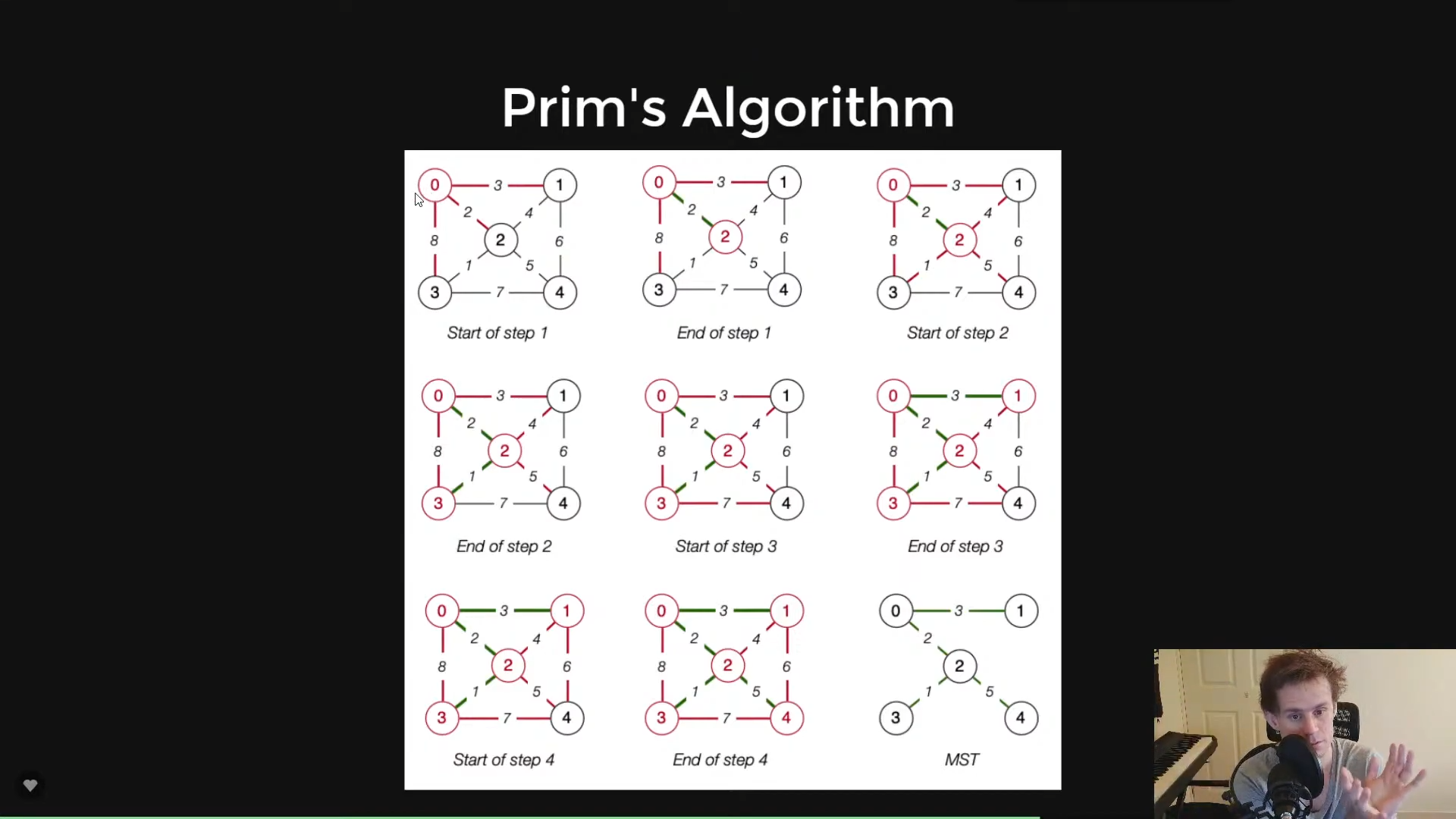

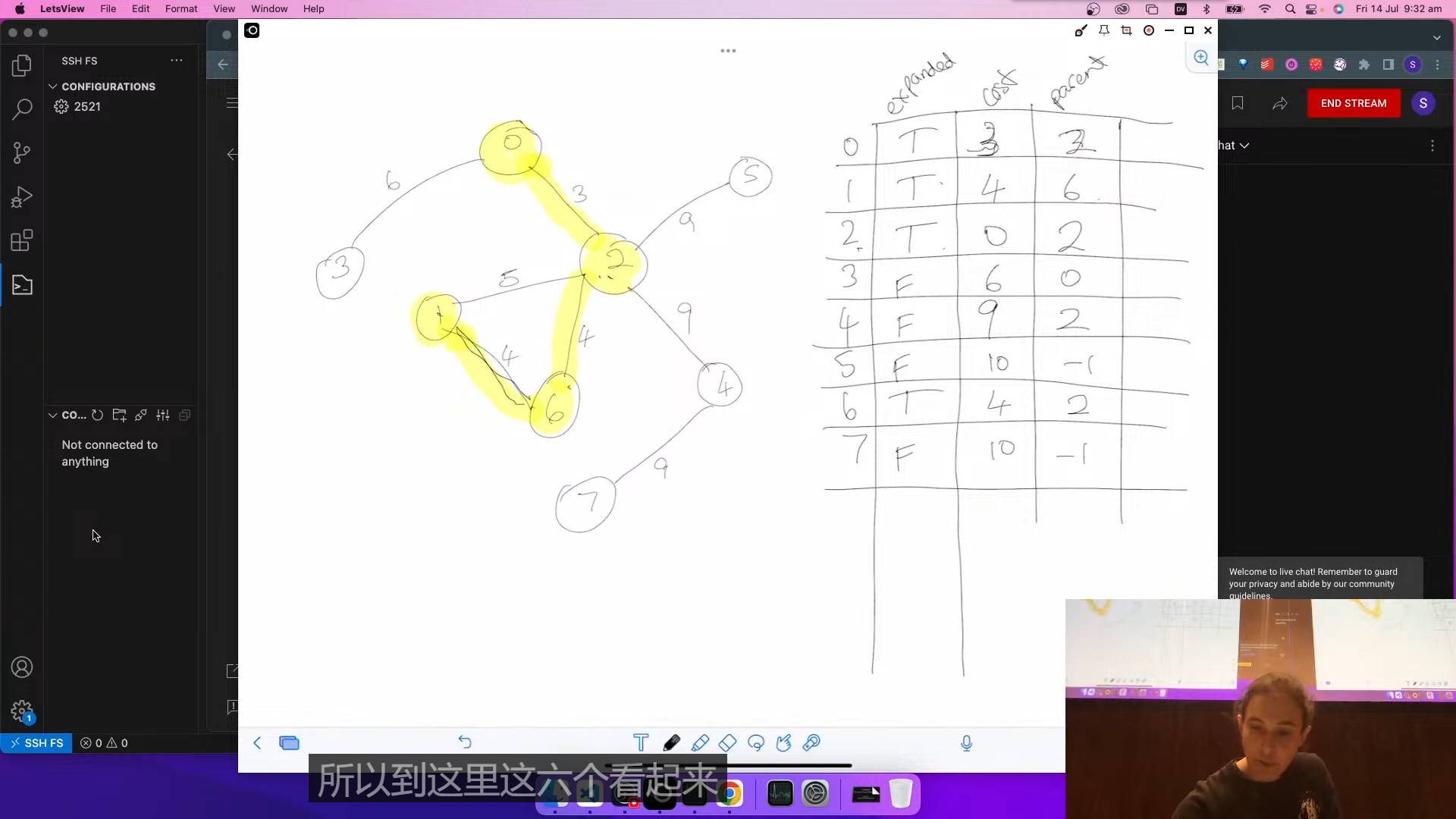

Prime's Algorithm


Function that returns the number of edges on the shortest path between two vertices in the given graph

int shortestDistance(Graph g, int src, int dest) {
// Standard BFS
int nV = GraphNumVertices(g);
int pred[nV];
for (int i = 0; i < nV; i++) {
pred[i] = -1;
}
pred[src] = src;
bool found = false;
Queue q = QueueNew();
QueueEnqueue(q, src);
while (!found && !QueueIsEmpty(q)) {
int v = QueueDequeue(q);
for (int w = 0; w < nV; w++) {
if (GraphIsAdjacent(g, v, w) && pred[w] == -1) {
pred[w] = v;
if (w == dest) {
found = true;
}
QueueEnqueue(q, w);
}
}
}
QueueFree(q);
if (pred[dest] == -1) {
return -1;
}
int distance = 0;
while (dest != src) {
distance++;
dest = pred[dest];
}
return distance;
}

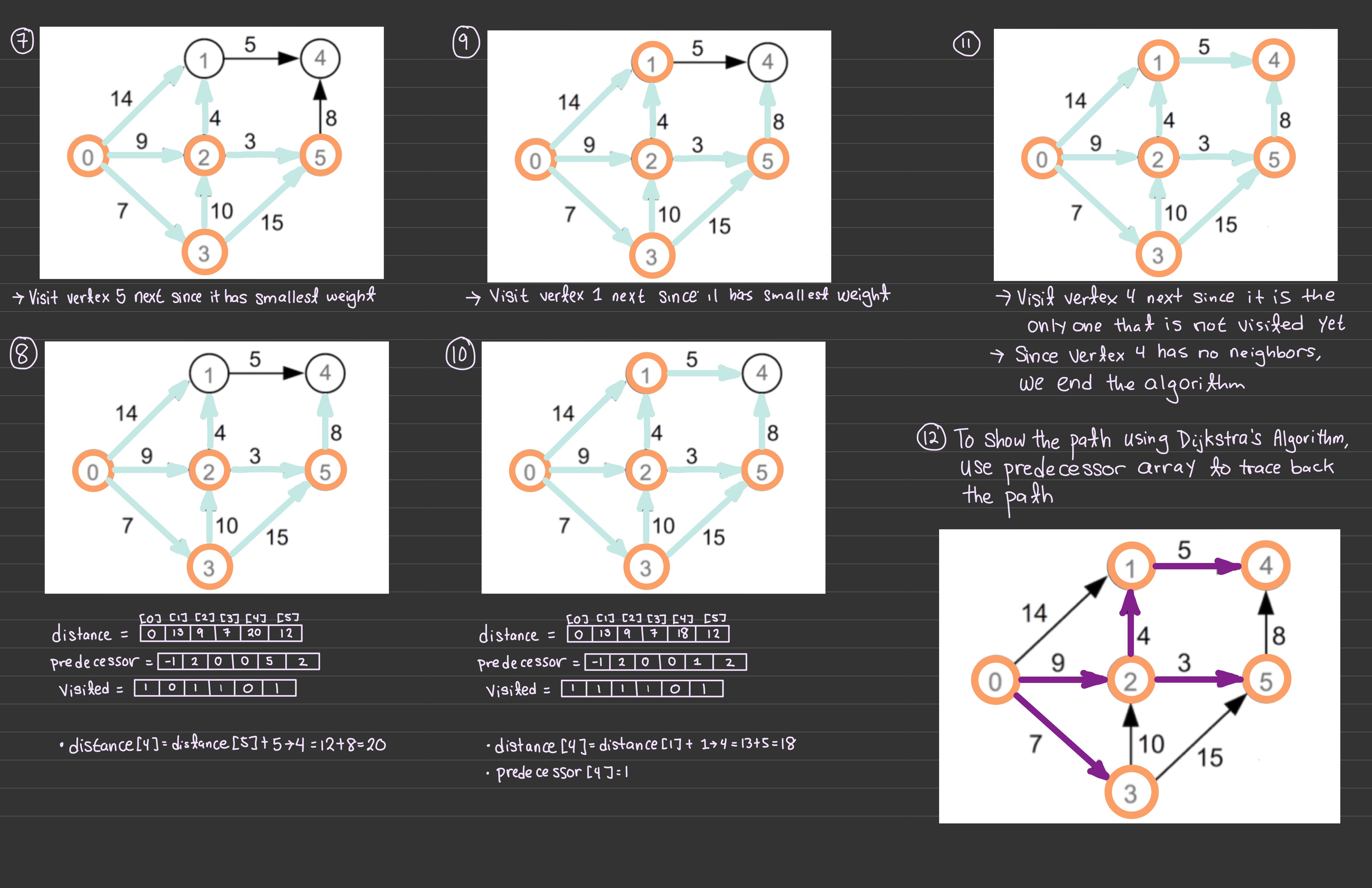

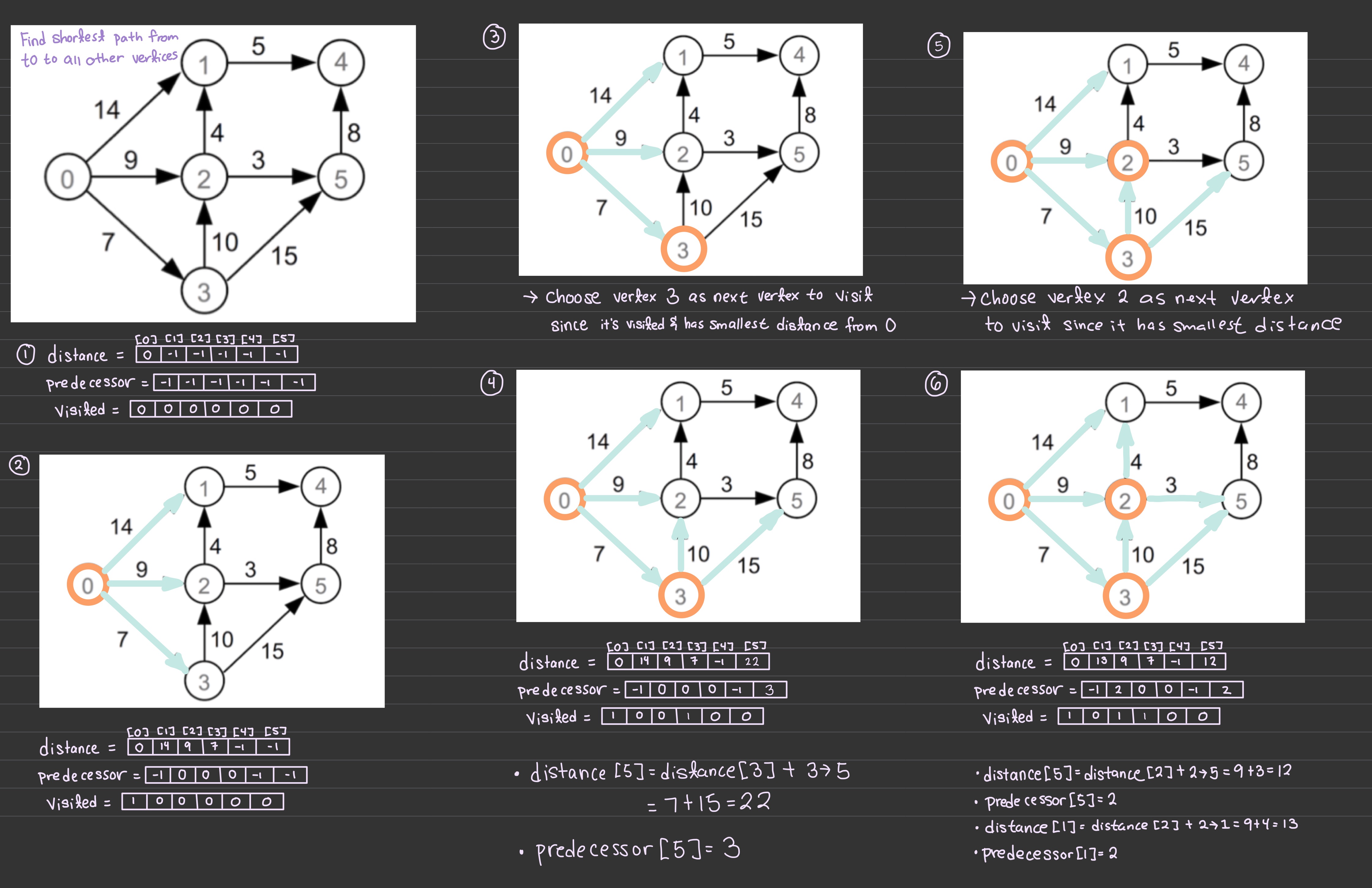

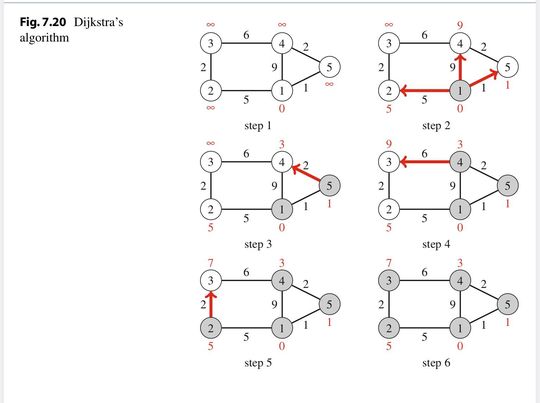

Dijkstra's Algorithm

Dijkstra's Algorithm
  • Dijkstra's Algorithm finds the shortest path between a given node (which is called the "source node") and all other nodes in a graph.
  • This algorithm uses the weights of the edges to find the path that minimizes the total distance (weight) between the source node and all other nodes.
  • Dijkstra’s algorithm doesn’t work for graphs with negative weight cycles.
  • Time complexity: O(V^2)
