• O(n²) Sorting Algorithms
• Selection Sort
• Bubble Sort
• Insertion Sort
• ShellSort: Improving Insertion Sort
• Summary of Elementary Sorts
• Sorting Linked Lists

❖ O(n2) Sorting Algorithms

One class of sorting methods has complexity O(n²)

• selection sort ... simple, non-adaptive sort
• bubble sort ... simple, adaptive sort
• insertion sort ... simple, adaptive sort
• shellsort ... improved version of insertion sort

There are sorting methods with better complexity O(n log n)

But for small arrays, the above methods are adequate

❖ Selection Sort

Simple, non-adaptive method:

• find the smallest element, put it into first array slot
• find second smallest element, put it into second array slot
• repeat until all elements are in correct position

"Put in x^th array slot" is accomplished by:

• swapping value in x^th position with x^th smallest value

Each iteration improves "sortedness" by one element

❖ ... Selection Sort

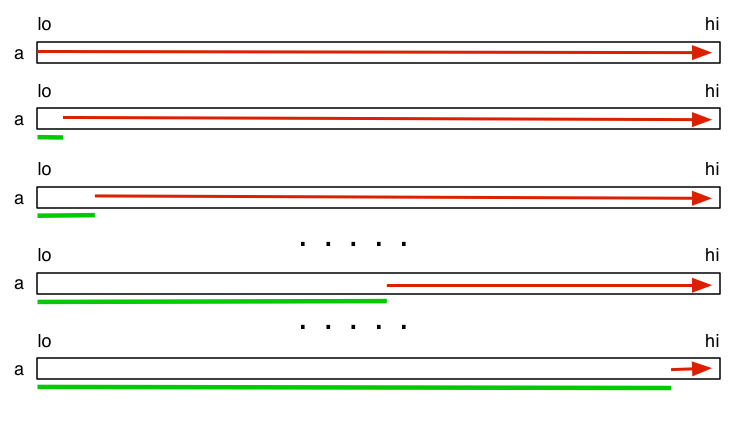

State of array after each iteration:

❖ ... Selection Sort

C function for Selection sort:

void selectionSort(int a[], int lo, int hi)
{
   int i, j, min;
   for (i = lo; i <= hi-1; i++) {
      min = i;
      for (j = i+1; j <= hi; j++) {
         if (less(a[j],a[min])) min = j;
      }
      swap(a[i], a[min]);
   }
}

❖ ... Selection Sort

Cost analysis (where n = hi-lo+1):

• on first pass, n-1 comparisons, 1 swap
• on second pass, n-2 comparisons, 1 swap
• ... on last pass, 1 comparison, 1 swap
• C = (n-1)+(n-2)+...+1 = n*(n-1)/2 = (n²-n)/2 ⇒ O(n²)
• S = n-1

Cost is same, regardless of sortedness of original array.

❖ Bubble Sort

Simple adaptive method:

• make multiple passes from N to i (i=0..N-1)
• on each pass, swap any out-of-order adjacent pairs
• elements move until they meet a smaller element
• eventually smallest element moves to i ^th position
• repeat until all elements have moved to appropriate position
• stop if there are no swaps during one pass (already sorted)

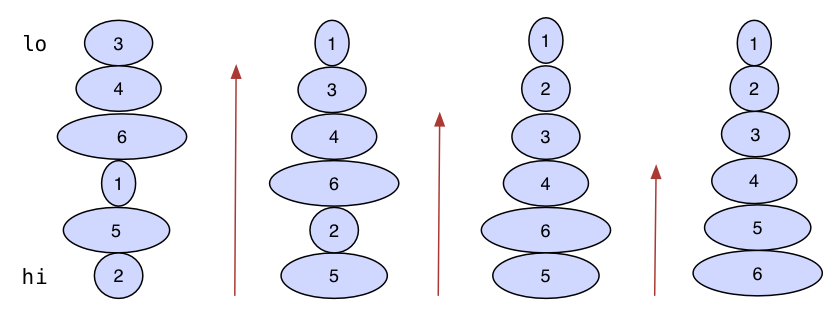

❖ ... Bubble Sort

❖ ... Bubble Sort

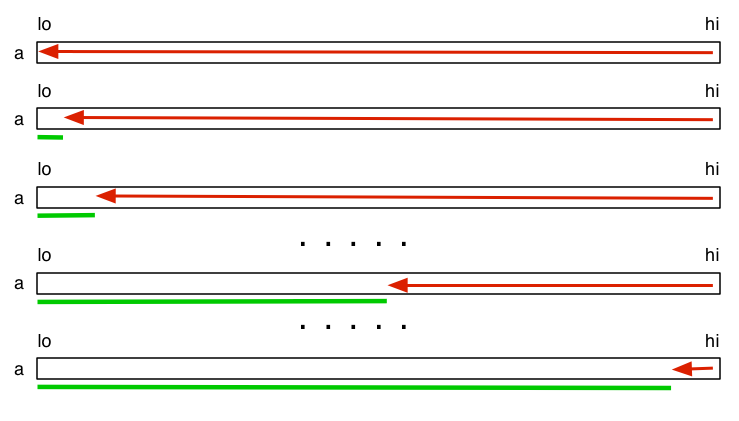

State of array after each iteration:

❖ ... Bubble Sort

Bubble sort example  (from Sedgewick):

S O R T E X A M P L E
A S O R T E X E M P L
A E S O R T E X L M P
A E E S O R T L X M P
A E E L S O R T M X P
A E E L M S O R T P X
A E E L M O S P R T X
A E E L M O P S R T X
A E E L M O P R S T X
... no swaps ⇒ done ...
A E E L M O P R S T X

❖ ... Bubble Sort

C function for Bubble Sort:

void bubbleSort(int a[], int lo, int hi)
{
   int i, j, nswaps;
   for (i = lo; i < hi; i++) {
      nswaps = 0;
      for (j = hi; j > i; j--) {
         if (less(a[j], a[j-1])) {
            swap(a[j], a[j-1]);
            nswaps++;
         }
      }
      if (nswaps == 0) break;
   }
}

❖ ... Bubble Sort

Cost analysis (where n = hi-lo+1):

• cost for i ^th iteration:
  • n-i comparisons, ?? swaps
  • S depends on "sortedness", best=0, worst=n-i
• how many iterations? depends on data orderedness
  • best case: 1 iteration,   worst case: n-1 iterations
• Cost_best = n   (data already sorted)
• Cost_worst = n-1 + ... + 1   (reverse sorted)
• Complexity is thus O(n²)

❖ Insertion Sort

Simple adaptive method:

• take first element and treat as sorted array (length 1)
• take next element and insert into sorted part of array
  so that order is preserved
• above increases length of sorted part by one
• repeat until whole array is sorted

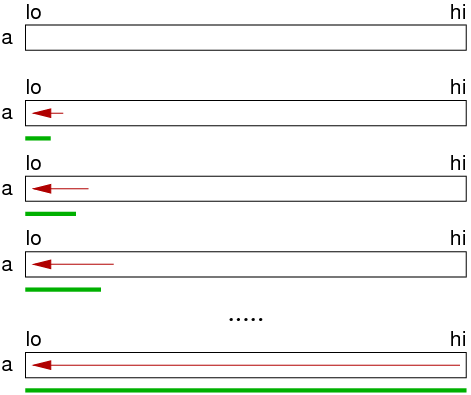

❖ ... Insertion Sort

❖ ... Insertion Sort

Insertion sort example  (from Sedgewick):

S O R T E X A M P L E
S O R T E X A M P L E
O S R T E X A M P L E
O R S T E X A M P L E
O R S T E X A M P L E
E O R S T X A M P L E
E O R S T X A M P L E
A E O R S T X M P L E
A E M O R S T X P L E
A E M O P R S T X L E
A E L M O P R S T X E
A E E L M O P R S T X

❖ ... Insertion Sort

C function for insertion sort:

void insertionSort(int a[], int lo, int hi)
{
   int i, j, val;
   for (i = lo+1; i <= hi; i++) {
      val = a[i];
      for (j = i; j > lo; j--) {
         if (!less(val,a[j-1])) break;
         a[j] = a[j-1];
      }
      a[j] = val;
   }
}

❖ ... Insertion Sort

Cost analysis (where n = hi-lo+1):

• cost for inserting element into sorted list of length i
  • C=??, depends on "sortedness", best=1, worst=i
  • S=??, don't swap, just shift, but do C-1 shifts
• always have n iterations
• Cost_best = 1 + 1 + ... + 1   (already sorted)
• Cost_worst = 1 + 2 + ... + n = n*(n+1)/2   (reverse sorted)
• Complexity is thus O(n²)

❖ ShellSort: Improving Insertion Sort

Insertion sort:

• based on exchanges that only involve adjacent items
• already improved above by using moves rather than swaps
• "long distance" moves may be more efficient

Shellsort: basic idea

• array is h-sorted if taking every h'th element yields a sorted array
• an h-sorted array is made up of n/h interleaved sorted arrays
• Shellsort: h-sort array for progressively smaller h, ending with 1-sorted

❖ ... ShellSort: Improving Insertion Sort

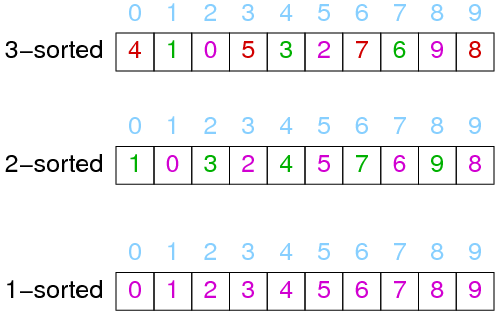

Example h-sorted arrays:

❖ ... ShellSort: Improving Insertion Sort

void shellSort(int a[], int lo, int hi)
{
   int hvals[8] = {701, 301, 132, 57, 23, 10, 4, 1};
   int g, h, start, i, j, val;
   for (g = 0; g < 8; g++) {
      h = hvals[g];
      start = lo + h;
      for (i = start; i <= hi; i++) {
         val = a[i];
         for (j = i; j >= start; j -= h) {
            if (!less(val,a[j-h]) break;
            a[j] = a[j-h];
         }
         a[j] = val;
      }
   }
}

❖ ... ShellSort: Improving Insertion Sort

Effective sequences of h values have been determined empirically.

E.g. h_i+i = 3h_i+1 ... 1093, 364, 121, 40, 13, 4, 1

Efficiency of Shellsort:

• depends on the sequence of h values
• suprisingly, Shellsort has not yet been fully analysed
• above sequence has been shown to be O(n^3/2)
• others have found sequences which are O(n^4/3)

❖ Summary of Elementary Sorts

Comparison of sorting algorithms  (animated comparison)

Which is best?

• depends on cost of compare vs swap vs move for Items
• depends on likelihood of average vs worst case

❖ Sorting Linked Lists

Selection sort on linked lists

• L = original list, S = sorted list (initially empty)
• find largest value V in L; unlink it
• link V node at front of S

Bubble sort on linked lists

• traverse list: if current > next, swap node values
• repeat until no swaps required in one traversal

Selection sort on linked lists

• L = original list, S = sorted list (initially empty)
• scan list L from start to finish
• insert each item into S in order
