• Summary of Sorting Methods
• Lower Bound for Comparison-Based Sorting
• Radix Sort

❖ Summary of Sorting Methods

Sorting = arrange a collection of N items in ascending order ...

Elementary sorting algorithms:   O(N²) comparisons

• selection sort,   insertion sort,   bubble sort

Advanced sorting algorithms:   O(NlogN) comparisons

• quicksort,   merge sort,   heap sort (priority queue)

Most are intended for use in-memory (random access data structure).

Merge sort adapts well for use as disk-based sort.

❖ ... Summary of Sorting Methods

Other properties of sort algorithms: stable, adaptive

Selection sort:

• stability depends on implementation
• not adaptive

Bubble sort:

• is stable if items don't move past same-key items
• adaptive if it terminates when no swaps

Insertion sort:

• stability depends on implementation of insertion
• adaptive if it stops scan when position is found

❖ ... Summary of Sorting Methods

Other properties of sort algorithms: stable, adaptive

Quicksort:

• easy to make stable on lists; difficult on arrays
• can be adaptive depending on implementation

Merge sort:

• is stable if merge operation is stable
• can be made adaptive (but version in slides is not)

Heap sort:

• is not stable because of top-to-bottom nature of heap ordering
• adaptive variants of heap sort exist (faster if data almost sorted)

❖ Lower Bound for Comparison-Based Sorting

All of the above sorting algorithms for arrays of n  elements

• have comparing whole keys as a critical operation

Such algorithms cannot work with less than O(n log n) comparisons

Informal proof (for arrays with no duplicates):

• there are n! possible permutation sequences
• one of these possible sequences is a sorted sequence
• each comparision reduces # possible sequences to be considered

(continued ...)

❖ ... Lower Bound for Comparison-Based Sorting

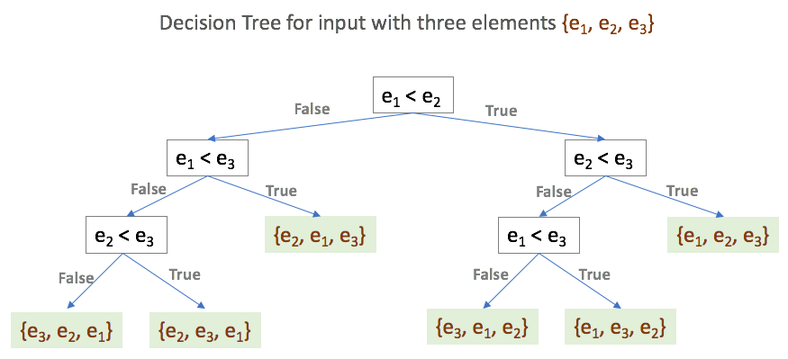

Can view sorting as navigating a decision tree ...

(continued ...)

❖ ... Lower Bound for Comparison-Based Sorting

Can view the sorting process as

• following a path from the root to a leaf in the decision tree
• requiring one comparison at each level

For n  elements, there are n!  leaves

• height of such a tree is at least log₂(n!)
  ⇒ number of comparisions required is at least log₂(n!)

So, for comparison-based sorting, lower bound is Ω(n log₂ n).

Are there faster algorithms not based on whole key comparison?

❖ Radix Sort

Radix sort is a non-comparative sorting algorithm.

Requires us to consider a key as a tuple (k₁, k₂, ..., k_m), e.g.

• represent key 372 as (3, 7, 2)
• represent key "sydney" as (s, y, d, n, e, y)

Assume only small number of possible values for k_i, e.g.

• numeric: 0-9 ... alpha: a-z

If keys have different lengths, pad with suitable character, e.g.

• numeric: 123, 002, 015 ... alpha: "abc", "zz⎵", "t⎵⎵"

❖ ... Radix Sort

Radix sort algorithm:

• stable sort on k_m,
• then stable sort on k_(m-1),
• continue until we reach k₁

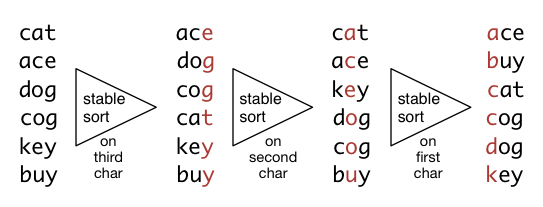

Example:

❖ ... Radix Sort

Stable sorting (bucket sort):

// sort array A[n] of keys
// each key is m symbols from an "alphabet"
// array of buckets, one for each symbol
for each i in m .. 1 do
   empty all buckets
   for each key in A do
      append key to bucket[key[i]]
   end for
   clear A
   for each bucket in order do
      for each key in bucket do
         append to array
      end for
   end for
end for

❖ ... Radix Sort

Example:

• m = 3,   alphabet = {'a', 'b', 'c'},   B[ ] = buckets
• A[ ] = {"abc", "cab", "baa", "a⎵⎵", "ca⎵"}

After first pass (i = 3):

• B['a'] = {"baa"},   B['b'] = {"cab"},   B['c'] = {"abc"},   B['⎵'] = {"a⎵⎵","ca⎵"}
• A[ ] = {"baa", "cab", "abc", "a⎵⎵", "ca⎵"}

After second pass (i = 2):

• B['a'] = {"baa","cab","ca⎵"},   B['b'] = {"abc"},   B['c'] = {},   B["⎵"] = {"a⎵⎵"}
• A[ ] = {"baa", "cab", "ca⎵", "abc", "a⎵⎵"}

After third pass (i = 1):

• B['a'] = {"abc","a⎵⎵"},   B['b'] = {"baa"},   B['c'] = {"cab","ca⎵"},   B["⎵"] = {}
• A[ ] = {"abc", "a⎵⎵", baa", "cab", "ca⎵"}

❖ ... Radix Sort

Complexity analysis:

• array contains n  keys,   each key contains m  symbols
• stable sort (bucket sort) runs in time O(n)
• radix sort uses stable sort m times

So, time complexity for radix sort = O(mn)

Radix sort performs better than comparison-based sorting algorithms

• when keys are short (small m ) and arrays are large (large n )
