• Heaps
• Insertion with Heaps
• Deletion with Heaps
• Cost Analysis
• Priority Queues

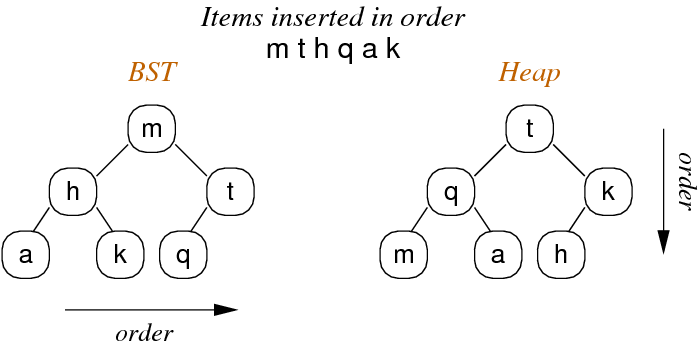

Heaps can be viewed as trees with top-to-bottom ordering

• cf. binary search trees which have left-to-right ordering

Heap characteristics ...

• priorities determined by order on keys
• new items added initially at lower-most, right-most leaf
• then new item "drifts up" to appropriate level in tree
• items are always deleted by removing root (top priority)

Insertion cost = O(logN),   Deletion cost = O(logN)

Heaps are typically used for implementing Priority Queues

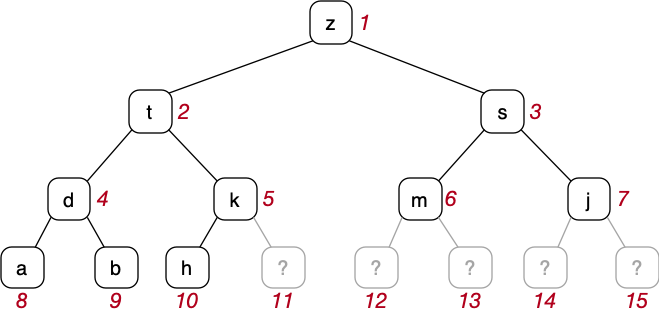

Heaps grow in regular (level-order) manner:

Nodes are always added in sequence indicated by numbers

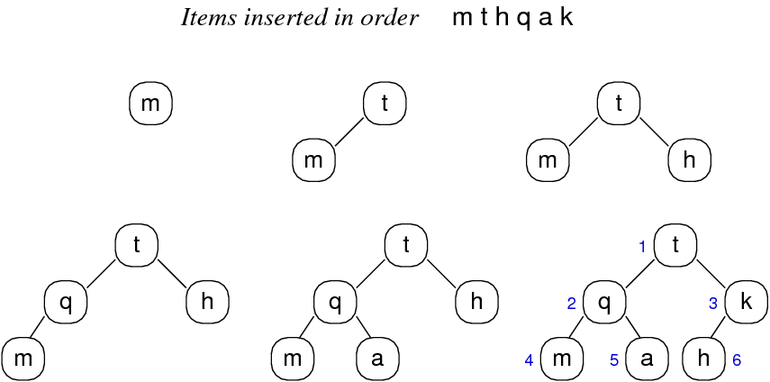

Trace of growing heap ...

BSTs are typically implemented as linked data structures.

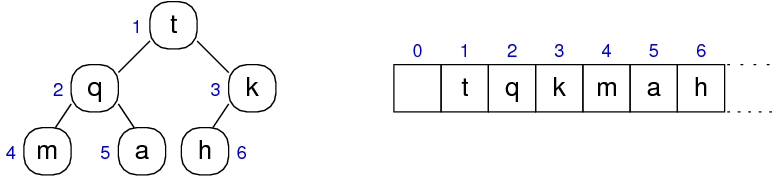

Heaps are often implemented via arrays   (assumes we know max size)

Simple index calculations allow navigation through the tree:

• left child of Item at index i  is located at 2i
• right child of Item at index i  is located at 2i+1
• parent of Item at index i  is located at i/2

Heap data structure:

typedef struct HeapRep {
   Item *items;  // array of Items
   int  nitems;  // #items in array
   int  nslots;  // #elements in array
} HeapRep;

typedef HeapRep *Heap;

Initialisation:  nitems=0,  nslots=ArraySize

One difference: we use indexes from 1..nitems

Note: unlike "normal" C arrays, nitems also gives index of last item

Creating new heap:

Heap newHeap(int N)
{
   Heap new = malloc(sizeof(HeapRep));
   Item *a = malloc((N+1)*sizeof(Item));
   assert(new != NULL && a != NULL);
   new->items = a;   // no initialisation needed
   new->nitems = 0;  // counter and index
   new->nslots = N;  // index range 1..N
   return new;
}

Insertion is a two-step process

• add new element at next available position on bottom row
  (but this might violate heap property; new value larger than parent)
• reorganise values along path to root to restore heap property

Insertion into heap:

void HeapInsert(Heap h, Item it)
{
   // is there space in the array?
   assert(h->nitems < h->nslots);
   h->nitems++;
   // add new item at end of array
   h->items[h->nitems] = it;
   // move new item to its correct place
   fixUp(h->items, h->nitems);
}

Bottom-up heapify:

// force value at a[i] into correct position
void fixUp(Item a[], int i)
{
   while (i > 1 && less(a[i/2],a[i])) {
      swap(a, i, i/2);
      i = i/2;  // integer division
   }
}
void swap(Item a[], int i, int j)
{
   Item tmp = a[i];
   a[i] = a[j];
   a[j] = tmp;
}

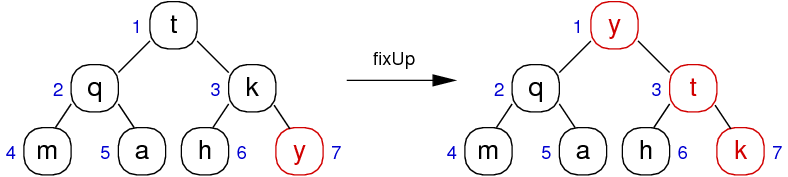

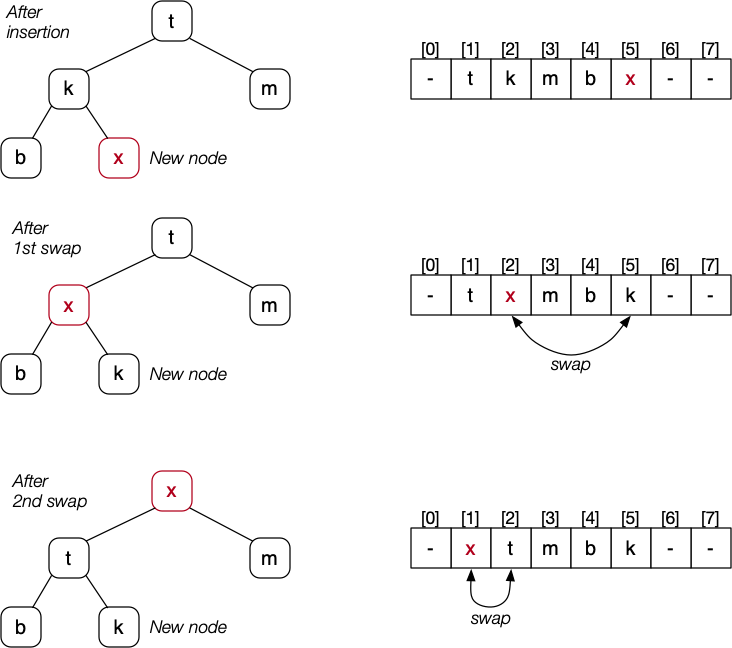

Trace of fixUp after insertion ..

Deletion is a three-step process:

• replace root value by bottom-most, rightmost value
• remove bottom-most, rightmost value
• reorganise values along path from root to restore heap

Deletion from heap (always remove root):

Item HeapDelete(Heap h)
{
   Item top = h->items[1];
   // overwrite first by last
   h->items[1] = h->items[h->nitems];
   h->nitems--;
   // move new root to correct position
   fixDown(h->items, 1, h->nitems);
   return top;
}

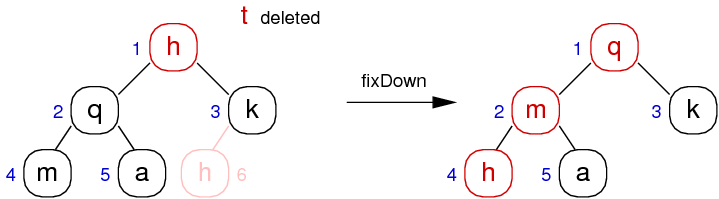

Top-down heapify:

// force value at a[i] into correct position
// note that N gives max index *and* # items
void fixDown(Item a[], int i, int N)
{
   while (2*i <= N) {
      // compute address of left child
      int j = 2*i;
      // choose larger of two children
      if (j < N && less(a[j], a[j+1])) j++;
      if (!less(a[i], a[j])) break;
      swap(a, i, j);
      // move one level down the heap
      i = j;
   }
}

Recall:  tree is compact;  max path length = log₂n

For insertion ...

• add new item at end of array  ⇒  O(1)
• move item up into correct position  ⇒  O(log₂n)

• replace root by item at end of array  ⇒  O(1)
• move new root down into correct position  ⇒  O(log₂n)

Heap behaviour is exactly behaviour required for Priority Queue ...

• join(PQ,it): ensure highest priority item at front of queue
• it = leave(PQ): take highest priority item from queue

typedef Heap PQueue;

void join(PQueue pq, Item it) { HeapInsert(pq,it); }

Item leave(PQueue pq) { return HeapDelete(pq); }

Heaps are not the only way to implement priority queues ...

Comparison of different Priority Queue representations:

	Array (sorted)	Array (unsorted)	List (sorted)	List (unsorted)	Heap
space usage	O(N)*	O(N)*	O(N)	O(N)	O(N)*
join	O(N)	O(1)	O(N)	O(1)	O(logN)
leave	O(N)	O(N)	O(1)	O(N)	O(logN)
is empty?	O(1)	O(1)	O(1)	O(1)	O(1)

for a Priority Queue containing N  items

* If fixed-size array (no realloc), choose max N that might ever be needed
