• Text Compression
• Huffman Code
• Decompression
• Analysis of Huffman Encoding

❖ Text Compression

Problem: Efficiently encode a given string T  by a smaller string E

Applications:

• Save memory and/or bandwidth

Huffman's algorithm

• computes frequency f(c) for each character c
• encodes high-frequency characters with short code word
• no code word is a prefix of another code word (e.g. can't have 00 + 001)
• uses encoding tree to determine the code words
• many encodings are possible; aims to find optimal encoding

❖ ... Text Compression

Code …

• mapping of each character to a binary code word  (e.g. ascii)

Prefix code …

• binary code such that no code word is prefix of another code word

Encoding tree …

• represents a prefix code
• each leaf stores a character
• code given by the path from the root to the leaf   (0 for left, 1 for right)

❖ ... Text Compression

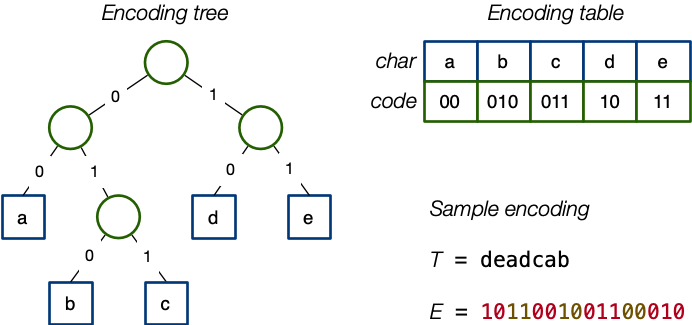

Example:

T  as ascii chars would require 56 bits; E  needs only 16 bits

❖ ... Text Compression

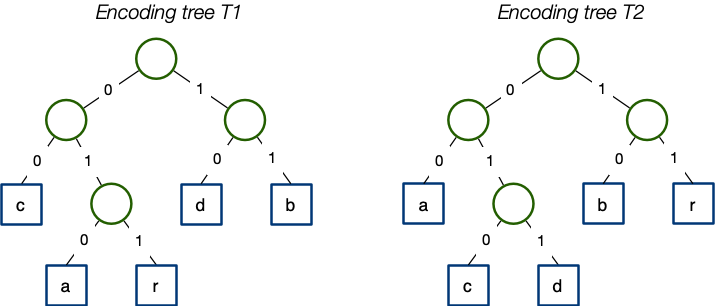

Example: T = abracadabra

Encoding with T₁  is  010.11.011.010.00.010.10.010.11.011.010  i.e. 29 bits

Encoding with T₂  is  00.10.11.00.010.00.011.00.10.11.00  i.e. 24 bits

The dots are there only to distinguish characters; they are not part of the encoding.

❖ ... Text Compression

Text compression problem

Given a text T …

• find a prefix code  that yields the shortest encoding  of T

Some obvious strategies …

• shorter codewords for frequent characters
• longer code words for rare characters

But how to ensure optimal  encoding?

❖ ... Text Compression

Huffman's algorithm

• computes frequency f(c)  for each character
• successively combines pairs of lowest-frequency characters
• builds encoding tree "bottom-up"

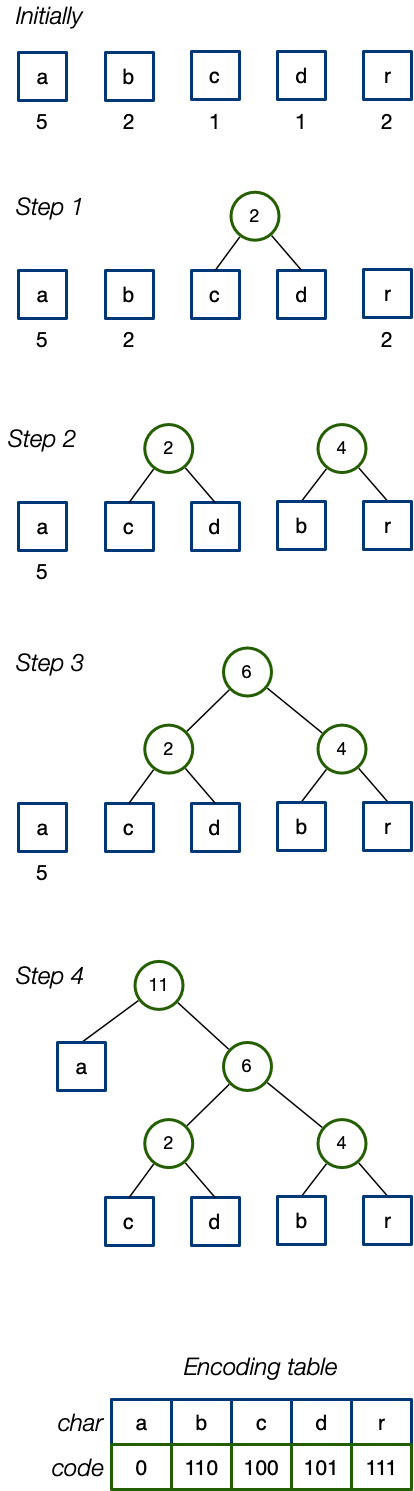

Example:   T  =  abracadabra

❖ Huffman Code

Huffman's algorithm using a priority queue:

HuffmanCode(T):
|  Input  string T of size n
|  Output optimal encoding tree for T
|
|  compute frequency array
|  Q = new priority queue (ordered low key to high key)
|  for all characters c do
|     T = new single-node tree storing c
|     join(Q,T) with frequency(c) as key
|  end for
|  while |Q|≥2 do
|     f1 = Q.minKey(),  T1 = leave(Q)
|     f2 = Q.minKey(),  T2 = leave(Q)
|     T = new tree node with subtrees T1 and T2
|     join(Q,T) with f1+f2 as key
|  end while
|  return leave(Q)

❖ ... Huffman Code

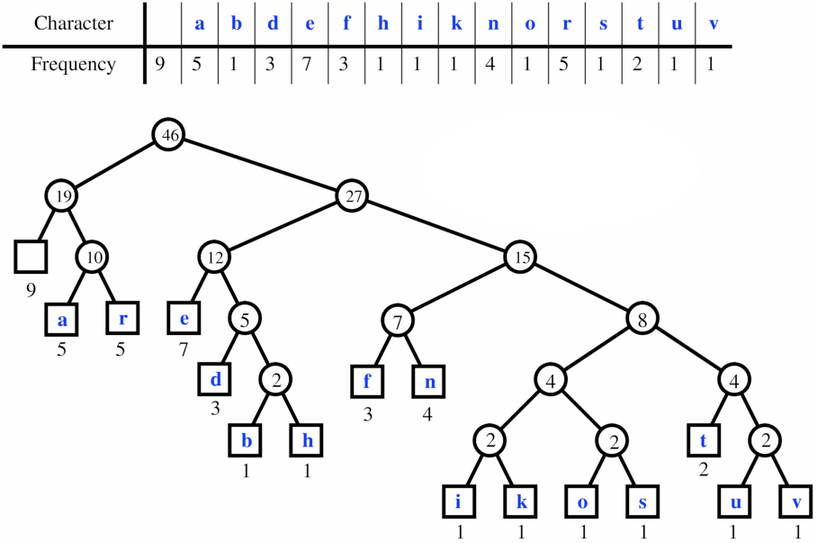

Larger example: T  =  a fast runner need never be afraid of the dark

❖ Decompression

Decompression involves repeated traversal of paths in tree …

decompress(B, T):
|  Input  bit-string B, encoding tree T
|  Output original string
|
|  start from root of Tree
|  for each b in Bits do
|     if b = 1 then
|        go right in Tree
|     else
|        go left in Tree
|     end if
|     if reached leaf then
|         print char in leaf
|         return to root of Tree
|     end if
|  end for

❖ Analysis of Huffman Encoding

Analysis of Huffman's algorithm:

• assume length(T)  = m, vocab(T)  = v
• build frequency table: scan entire input (m)
• build the tree: use frequency table (v) via priority queue (log₂v)

Gives complexity: O(m + v log v) time

Many variations exist to improve compression (e.g. gzip, bzip2, xz)
