❖ Strings

A string is a sequence of characters.

An alphabet Σ is the set of possible characters in strings.

Examples of strings:

• C program
• HTML document
• DNA sequence
• Digitized image

Examples of alphabets:

• ASCII
• Unicode
• {0,1}
• {A,C,G,T}

❖ ... Strings

Notation:

• length(P) … #characters in P
• λ … empty string   (length(λ) = 0)
• Σ^m … set of all strings of length m over alphabet Σ
• Σ^* … set of all strings over alphabet Σ

νω denotes the concatenation of strings ν and ω

Note: length(νω) = length(ν)+length(ω)    λω = ω = ωλ

❖ ... Strings

Notation:

• substring of P … any string Q such that P = νQω, for some ν,ω∈Σ^*
• prefix of P … any string Q such that P = Qω, for some ω∈Σ^*
• suffix of P … any string Q such that P = ωQ, for some ω∈Σ^*

❖ Exercise : Strings

The string  a/a  of length 3 over the ASCII alphabet has

• how many prefixes?
• how many suffixes?
• how many substrings?

• 4 prefixes:   ""    "a"    "a/"    "a/a"
• 4 suffixes:   "a/a"    "/a"    "a"    ""
• 6 substrings:   ""    "a"    "/"    "a/"    "/a"    "a/a"

Note:
"" means the same as λ   (= empty string)

❖ ... Strings

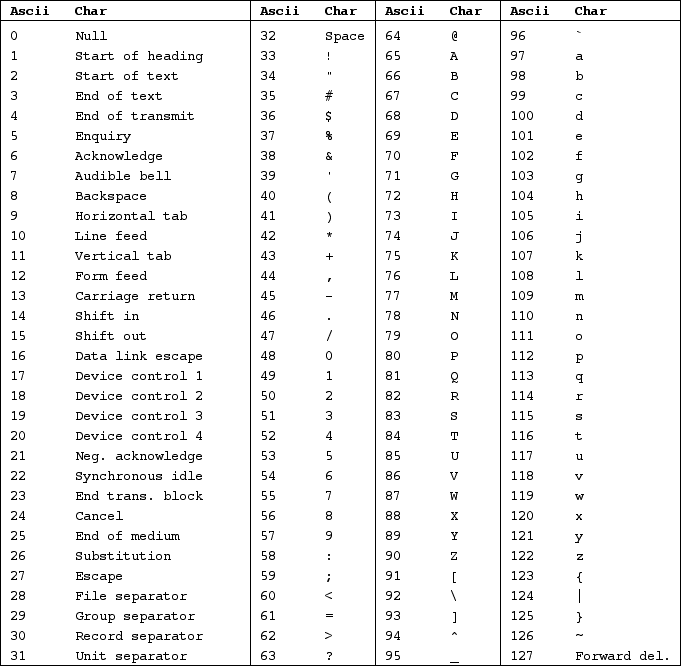

ASCII (American Standard Code for Information Interchange)

• Specifies mapping of 128 characters to integers 0..127
• The characters encoded include:
  • upper and lower case English letters: A-Z and a-z
  • digits: 0-9
  • common punctuation symbols
  • special non-printing characters: e.g. newline and space

❖ ... Strings

Reminder:

In C a string is an array of chars containing ASCII codes

• these arrays have an extra element containing a 0
• the extra 0 can also be written '\0'   (null character or null-terminator)
• convenient because don't have to track the length of the string

Because strings are so common, C provides convenient syntax:

char str[] = "hello";  // same as char str[] = {'h', 'e', 'l', 'l', 'o', '\0'};

Note: str[] will have 6 elements

❖ ... Strings

C provides a number of string manipulation functions via #include <string.h>, e.g.

strlen()   // length of string
strncpy()  // copy one string to another
strncat()  // concatenate two strings
strstr()   // find substring inside string

Example:

char *strncat(char *dest, char *src, int n)

• appends string src to the end of dest overwriting the '\0' at the end of dest and adds terminating '\0'
• returns start of string dest
• will never add more than n characters
  (If src is less than n characters long, the remainder of dest is filled with '\0' characters. Otherwise, dest is not null-terminated.)

❖ Pattern Matching

❖ Pattern Matching

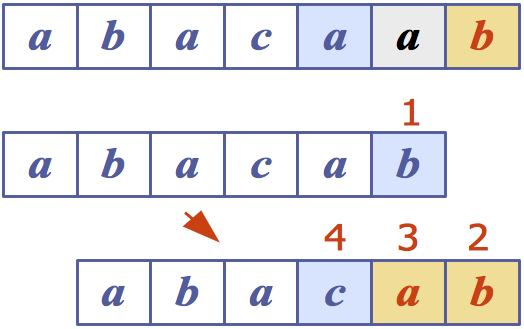

Example (pattern checked backwards):

• Text  …    abacaab
• Pattern  …    abacab

❖ ... Pattern Matching

Given two strings T (text) and P (pattern),
the pattern matching problem consists of finding a substring of T equal to P

Applications:

• Text editors
• Search engines
• Biological research

❖ ... Pattern Matching

Brute-force pattern matching algorithm

• checks for each possible shift of P relative to T
  • untile a match is found, or
  • all placements of the pattern have been tried

BruteForceMatch(T,P):
|  Input  text T of length n, pattern P of length m
|  Output starting index of a substring of T equal to P
|         -1 if no such substring exists
|
|  for all i=0..n-m do
|  |  j=0                           // check from left to right
|  |  while j<m ∧ T[i+j]=P[j] do    // test ith shift of pattern
|  |     j=j+1
|  |     if j=m then
|  |        return i                // entire pattern checked
|  |     end if
|  |  end while
|  end for
|  return -1                        // no match found

❖ Analysis of Brute-force Pattern Matching

Brute-force pattern matching runs in O(n·m)

Examples of worst case (forward checking):

• T = aaa…ah
• P = aaah
• may occur in DNA sequences
• unlikely in English text

❖ Boyer-Moore Algorithm

The Boyer-Moore pattern matching algorithm is based on two heuristics:

• Looking-glass heuristic: Compare P with subsequence of T moving backwards
• Character-jump heuristic: When a mismatch occurs at T[i]=c
  • if P contains c ⇒ shift P so as to align the last occurrence of c in P with T[i]
  • otherwise ⇒ shift P so as to align P[0] with T[i+1]    (a.k.a. "big jump")

❖ ... Boyer-Moore Algorithm

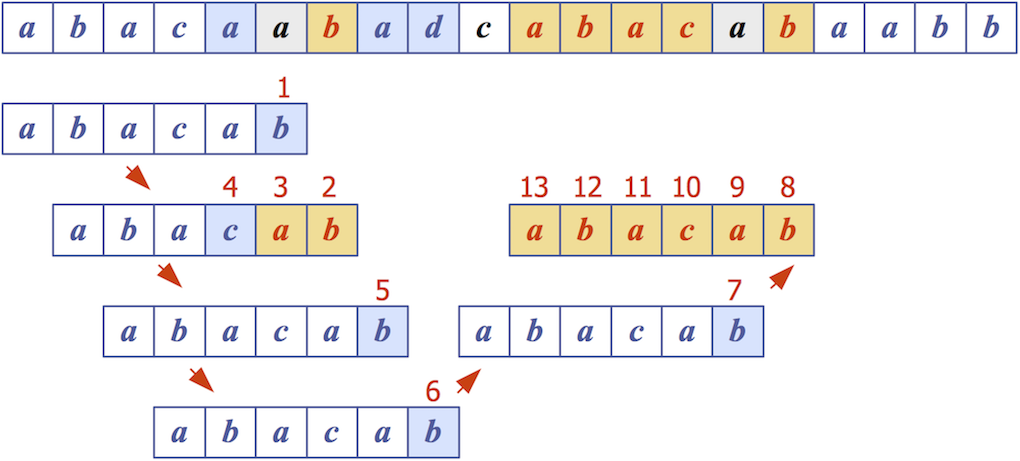

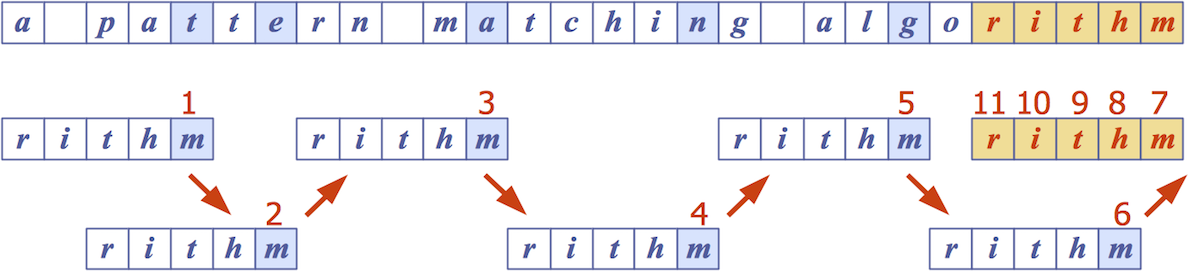

Example:

❖ ... Boyer-Moore Algorithm

Boyer-Moore algorithm preprocesses pattern P and alphabet Σ to build

• last-occurrence function L
  • L maps Σ to integers such that L(c) is defined as
    • the largest index i such that P[i]=c, or
    • -1 if no such index exists

Example: Σ = {a,b,c,d}, P = acab

• L can be represented by an array indexed by the numeric codes of the characters
• L can be computed in O(m+s) time   (m … length of pattern, s … size of Σ)

❖ ... Boyer-Moore Algorithm

BoyerMooreMatch(T,P,Σ):
|  Input  text T of length n, pattern P of length m, alphabet Σ
|  Output starting index of a substring of T equal to P
|         -1 if no such substring exists
|
|  L=lastOccurenceFunction(P,Σ)
|  i=m-1, j=m-1                 // start at end of pattern
|  repeat
|  |  if T[i]=P[j] then
|  |     if j=0 then
|  |        return i            // match found at i
|  |     else
|  |        i=i-1, j=j-1
|  |     end if
|  |  else                      // character-jump
|  |     i=i+m-min(j,1+L[T[i]])
|  |     j=m-1
|  |  end if
|  until i≥n
|  return -1                    // no match

• Biggest jump (m characters ahead) occurs when L[T[i]] = -1

❖ ... Boyer-Moore Algorithm

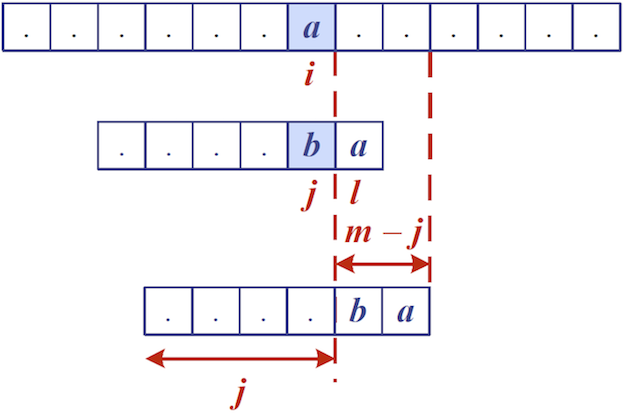

Case 1: j ≤ 1+L[c]

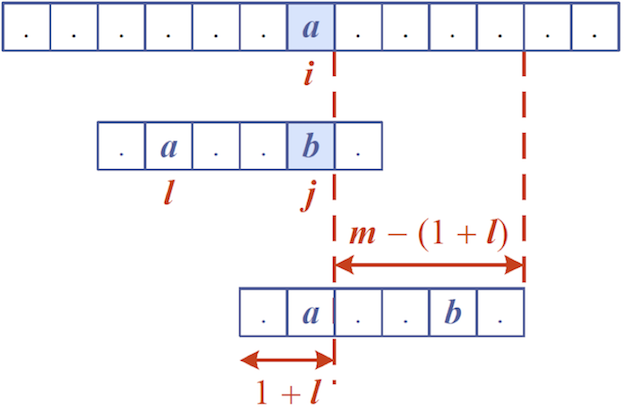

Case 2: 1+L[c] < j

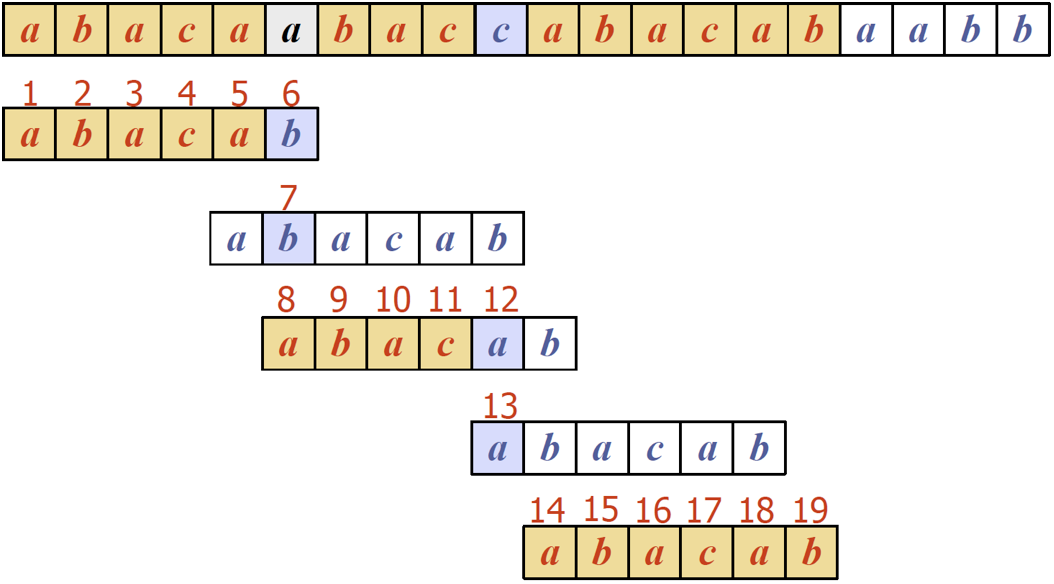

❖ Exercise : Boyer-Moore algorithm

For the alphabet Σ = {a,b,c,d}

1. compute last-occurrence function L for pattern P = abacab
2. trace Boyer-More on P and text T = abacaabadcabacabaabb
   • how many comparisons are needed?

c	a	b	c	d
L(c)	4	5	3	-1

13 comparisons in total

❖ ... Boyer-Moore Algorithm

Analysis of Boyer-Moore algorithm:

• Runs in O(nm+s) time
  • m … length of pattern    n … length of text    s … size of alphabet
• Example of worst case:
  • T = aaa … a
  • P = baaa
• Worst case may occur in images and DNA sequences but unlikely in English texts
  ⇒ Boyer-Moore significantly faster than brute-force on English text

❖ Knuth-Morris-Pratt Algorithm

The Knuth-Morris-Pratt algorithm …

• compares the pattern to the text left-to-right
• but shifts the pattern more intelligently than the brute-force algorithm

Reminder:

• Q is a prefix of P   …   P = Qω, for some ω∈Σ^*
• Q is a suffix of P   …   P = ωQ, for some ω∈Σ^*

❖ ... Knuth-Morris-Pratt Algorithm

When a mismatch occurs …

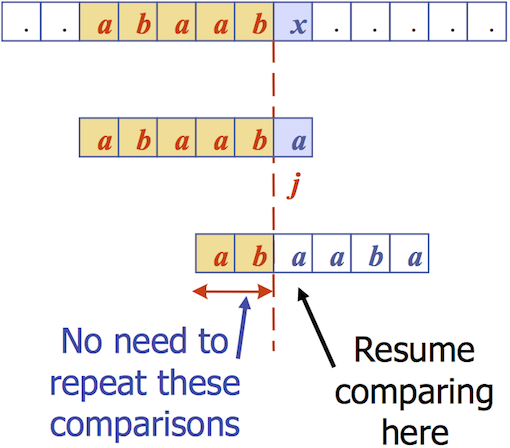

• what is the most we can shift the pattern to avoid redundant comparisons?
• Answer: the largest prefix of P[0..j] that is a suffix of P[1..j]

❖ ... Knuth-Morris-Pratt Algorithm

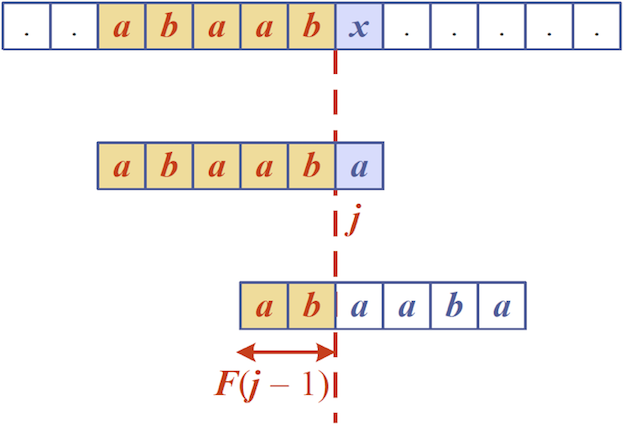

KMP preprocesses the pattern to find matches of its prefixes with itself

• Failure function F(j) defined as
  • the size of the largest prefix of P[0..j] that is also a suffix of P[1..j]
• if mismatch occurs at P_j   ⇒ advance j to F(j-1)

Example: P = abaaba

❖ ... Knuth-Morris-Pratt Algorithm

KMPMatch(T,P):
|  Input  text T of length n, pattern P of length m
|  Output starting index of a substring of T equal to P
|         -1 if no such substring exists
|
|  F=failureFunction(P)
|  i=0, j=0                    // start from left
|  while i<n do
|  |  if T[i]=P[j] then
|  |     if j=m-1 then
|  |        return i-j         // match found at i-j
|  |     else
|  |        i=i+1, j=j+1
|  |     end if
|  |  else                     // mismatch at P[j]
|  |     if j>0 then
|  |        j=F[j-1]           // resume comparing P at F[j-1]
|  |     else
|  |        i=i+1
|  |     end if
|  |  end if
|  end while
|  return -1                   // no match

❖ Exercise : KMP-Algorithm

1. compute failure function F for pattern P = abacab
2. trace Knuth-Morris-Pratt on P and text T = abacaabadcabacabaabb
   • how many comparisons are needed?

j	0	1	2	3	4	5
Pj	a	b	a	c	a	b
F(j)	0	0	1	0	1	2

19 comparisons in total

❖ ... Knuth-Morris-Pratt Algorithm

Construction of the failure function is similar to the KMP algorithm itself:

failureFunction(P):
|  Input  pattern P of length m
|  Output failure function for P
|
|  F[0]=0
|  i=1, j=0
|  while i<m do
|  |  if P[i]=P[j] then   // we have matched j+1 characters
|  |     F[i]=j+1
|  |     i=i+1, j=j+1
|  |  else if j>0 then    // use failure function to shift P
|  |     j=F[j-1]
|  |  else
|  |     F[i]=0           // no match
|  |     i=i+1
|  |  end if
|  end while
|  return F

❖ ... Knuth-Morris-Pratt Algorithm

Analysis of failure function computation:

• At each iteration of the while-loop, either
  • i increases by one, or
  • the "shift amount" i-j increases by at least one   (observe that F(j-1)<j)
• Hence, there are no more than 2·m iterations of the while-loop

⇒  failure function can be computed in O(m) time

❖ ... Knuth-Morris-Pratt Algorithm

Analysis of Knuth-Morris-Pratt algorithm:

• Failure function can be computed in O(m) time
• At each iteration of the while-loop, either
  • i increases by one, or
  • the "shift amount" i-j increases by at least one   (observe that F(j-1)<j)
• Hence, there are no more than 2·n iterations of the while-loop

⇒  KMP's algorithm runs in optimal time O(m+n)

❖ Boyer-Moore vs KMP

Boyer-Moore algorithm

• decides how far to jump ahead based on the mismatched character in the text
• works best on large alphabets and natural language texts (e.g. English)

Knuth-Morris-Pratt algorithm

• uses information embodied in the pattern to determine where the next match could begin
• works best on small alphabets (e.g. A,C,G,T)

❖ Tries

❖ Preprocessing Strings

Preprocessing the pattern speeds up pattern matching queries

• After preprocessing P, KMP algorithm performs pattern matching in time proportional to the text length

If the text is large, immutable and searched for often (e.g., works by Shakespeare)

• we can preprocess the text instead of the pattern

❖ ... Preprocessing Strings

A trie …

• is a compact data structure for representing a set of strings
  • e.g. all the words in a text, a dictionary etc.
• supports pattern matching queries in time proportional to the pattern size

Note: Trie comes from retrieval, but is pronounced like "try" to distinguish it from "tree"

❖ Tries

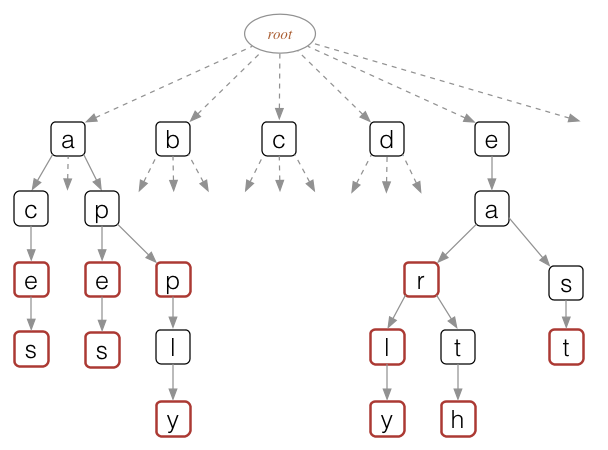

Tries are trees organised using parts of keys (rather than whole keys)

❖ ... Tries

Each node in a trie …

• contains one part of a key (typically one character)
• may have up to 26 children
• may be tagged as a "finishing" node
• but even "finishing" nodes may have children

Depth d of trie = length of longest key value

Cost of searching O(d)   (independent of n)

❖ ... Tries

Possible trie representation:

#define ALPHABET_SIZE 26

typedef struct Node *Trie;

typedef struct Node {
   bool finish;      // last char in key?
   Item data;        // no Item if !finish
   Trie child[ALPHABET_SIZE];
} Node;

typedef char *Key;

❖ ... Tries

Note: Can also use BST-like nodes for more space-efficient implementation of tries

❖ Trie Operations

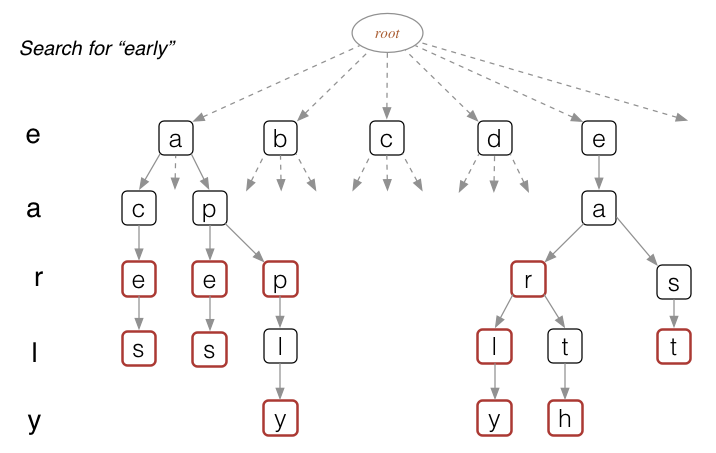

Basic operations on tries:

1. search for a key
2. insert a key

❖ Trie Operations

❖ ... Trie Operations

Traversing a path, using char-by-char from Key:

find(trie,key):
|  Input  trie, key
|  Output pointer to element in trie if key found
|         NULL otherwise
|
|  node=trie
|  for each char in key do
|  |  if node.child[char] exists then
|  |     node=node.child[char]  // move down one level
|  |  else
|  |     return NULL
|  |  end if
|  end for
|  if node.finish then          // "finishing" node reached?
|     return node
|  else
|     return NULL
|  end if

❖ ... Trie Operations

Insertion into Trie:

insert(trie,item,key):
|  Input  trie, item with key of length m
|  Output trie with item inserted
|
|  if trie is empty then
|     t=new trie node
|  end if
|  if m=0 then
|     t.finish=true, t.data=item
|  else
|     t.child[key[0]]=insert(trie,item,key[1..m-1])
|  end if
|  return t

❖ ... Trie Operations

Analysis of standard tries:

• O(n) space
• insertion and search in time O(d·m)
  • n … total size of text  (e.g. sum of lengths of all strings in a given dictionary)
  • m … size of the string parameter of the operation  (the "key")
  • d … size of the underlying alphabet  (e.g. 26)

❖ Word Matching With Tries

❖ Word Matching with Tries

Preprocessing the text:

1. Insert all searchable words of a text into a trie
2. Each leaf stores the occurrence(s) of the associated word in the text

❖ ... Word Matching with Tries

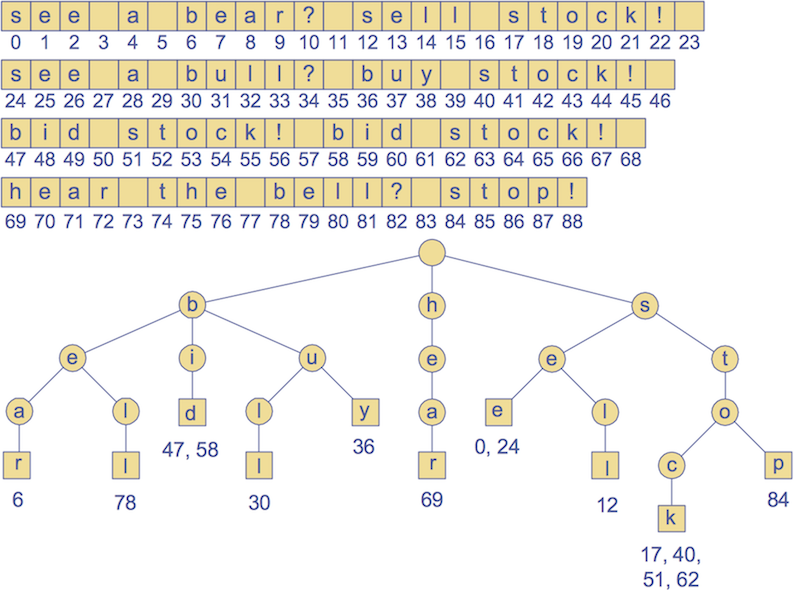

Example text and corresponding trie of searchable words:

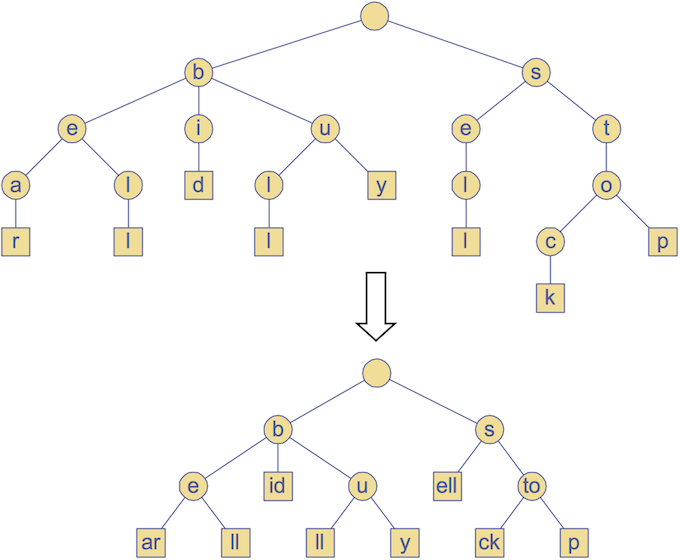

❖ Compressed Tries

Compressed tries …

• have internal nodes of degree ≥ 2
• are obtained from standard tries by compressing "redundant" chains of nodes

Example:

❖ ... Compressed Tries

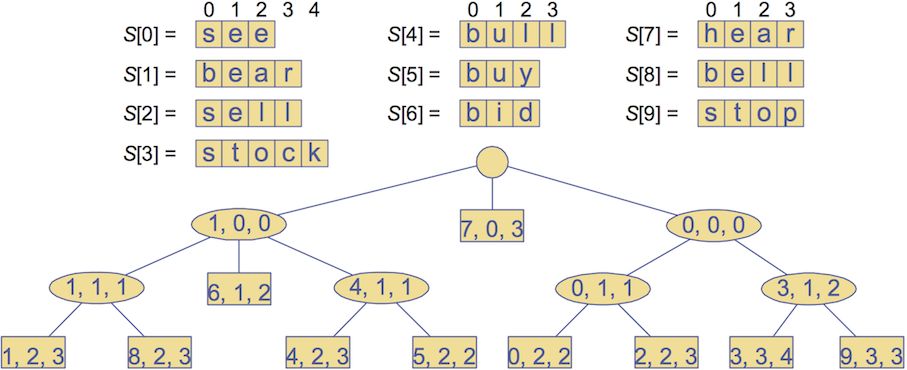

Possible compact representation of a compressed trie to encode an array S of strings:

• nodes store ranges of indices instead of substrings
  • use triple (i,j,k) to represente substring S[i][j..k]
• requires O(s) space  (s = #strings in array S)

Example:

❖ Pattern Matching With Suffix Tries

The suffix trie of a text T is the compressed trie of all the suffixes of T

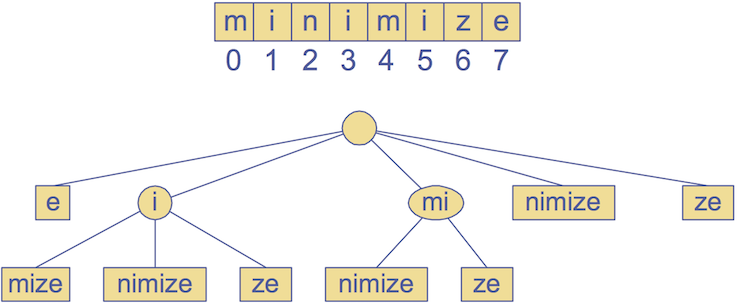

Example:

❖ ... Pattern Matching With Suffix Tries

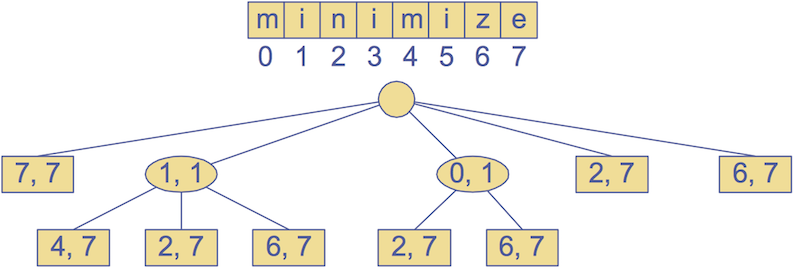

Compact representation:

❖ ... Pattern Matching With Suffix Tries

Input:

• compact suffix trie for text T
• pattern P

Goal:

• find starting index of a substring of T equal to P

❖ ... Pattern Matching With Suffix Tries

Analysis of pattern matching using suffix tries:

Suffix trie for a text of size n …

• can be constructed in O(n) time
• uses O(n) space
• supports pattern matching queries in O(s·m) time
  • m … length of the pattern
  • s … size of the alphabet

❖ Text Compression

❖ Text Compression

Problem: Efficiently encode a given string X by a smaller string Y

Applications:

• Save memory and/or bandwidth

Huffman's algorithm

• computes frequency f(c) for each character c
• encodes high-frequency characters with short code
• no code word is a prefix of another code word
• uses optimal encoding tree to determine the code words

❖ ... Text Compression

Code … mapping of each character to a binary code word

Prefix code … binary code such that no code word is prefix of another code word

Encoding tree …

• represents a prefix code
• each leaf stores a character
• code word given by the path from the root to the leaf   (0 for left child, 1 for right child)

❖ ... Text Compression

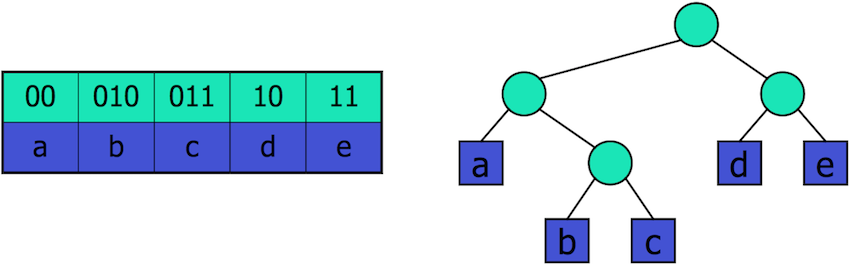

Example:

❖ ... Text Compression

Text compression problem

Given a text T, find a prefix code that yields the shortest encoding of T

• short codewords for frequent characters
• long code words for rare characters

❖ ... Text Compression

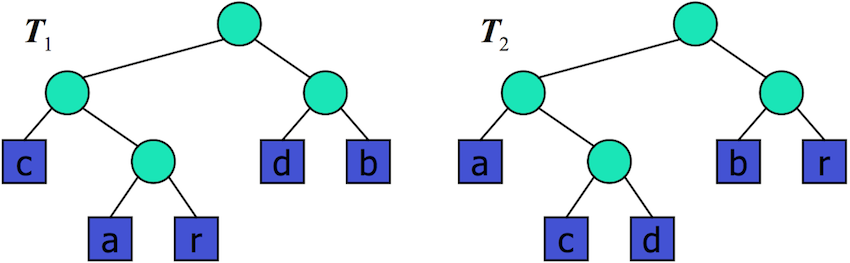

Example: T = abracadabra

T₁ requires 29 bits to encode text T,
T₂ requires 24 bits

❖ ... Text Compression

Huffman's algorithm

• computes frequency f(c) for each character
• successively combines pairs of lowest-frequency characters to build encoding tree "bottom-up"

Example: abracadabra

❖ Huffman Code

Huffman's algorithm using priority queue:

HuffmanCode(T):
|  Input  string T of size n
|  Output optimal encoding tree for T
|
|  compute frequency array
|  Q=new priority queue
|  for all characters c do
|     T=new single-node tree storing c
|     join(Q,T) with frequency(c) as key
|  end for
|  while |Q|≥2 do
|     f1=Q.minKey(), T1=leave(Q)
|     f2=Q.minKey(), T2=leave(Q)
|     T=new tree node with subtrees T1 and T2
|     join(Q,T) with f1+f2 as key
|  end while
|  return leave(Q)

❖ ... Huffman Code

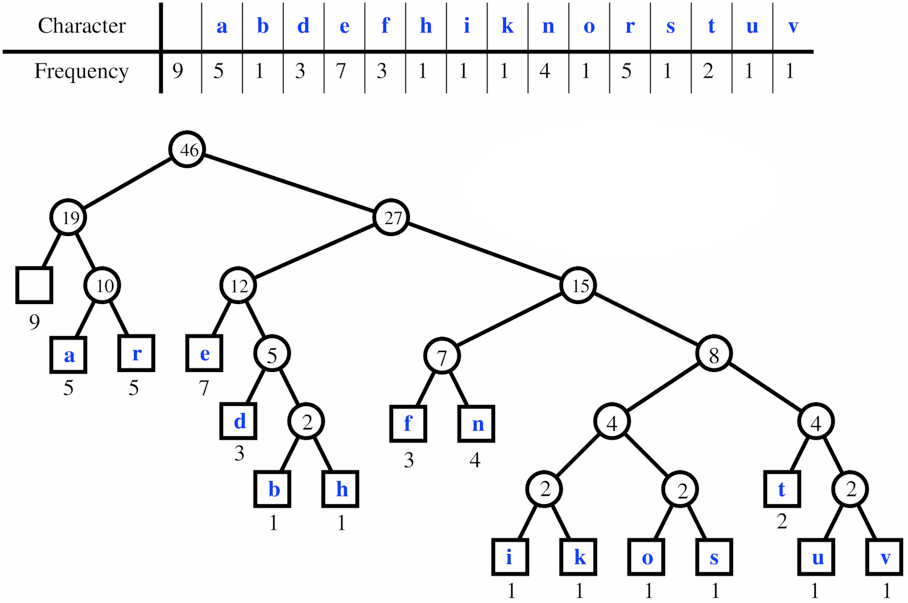

Larger example: a fast runner need never be afraid of the dark

❖ ... Huffman Code

Analysis of Huffman's algorithm:

• O(n+d·log d) time
  • n … length of the input text T
  • s … number of distinct characters in T

❖ Summary

• Alphabets and words
• Pattern matching
  • Boyer-Moore, Knuth-Morris-Pratt
• Tries
• Text compression
  • Huffman code

• Suggested reading:
  • Tries … Sedgewick, Ch.15.2
